◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#122757) — 28 parça

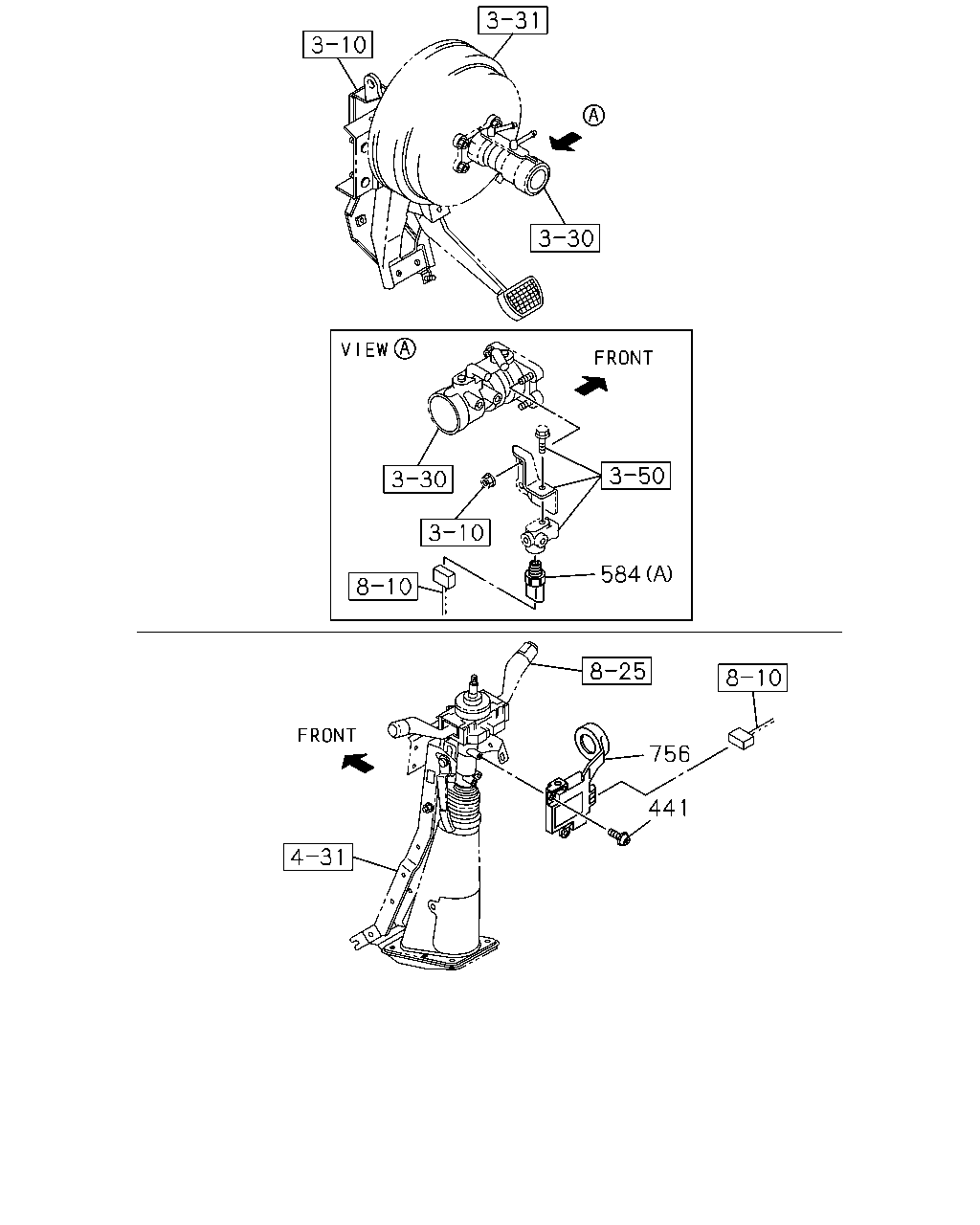

çizim 357321
584 756 441
BalonParca AdiParca NoAdetTipApplied Date A B C
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1306- ● ● ●
584 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 1306- ● ●
584 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97387-682-0 01 1 1306- ●
584 SENSOR; PRESSURE
(B) 		8-98020-514-0 01 1 1306- ●
584 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ) (B) 		8-98020-514-0 01 1 1306- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1306- ● ● ●

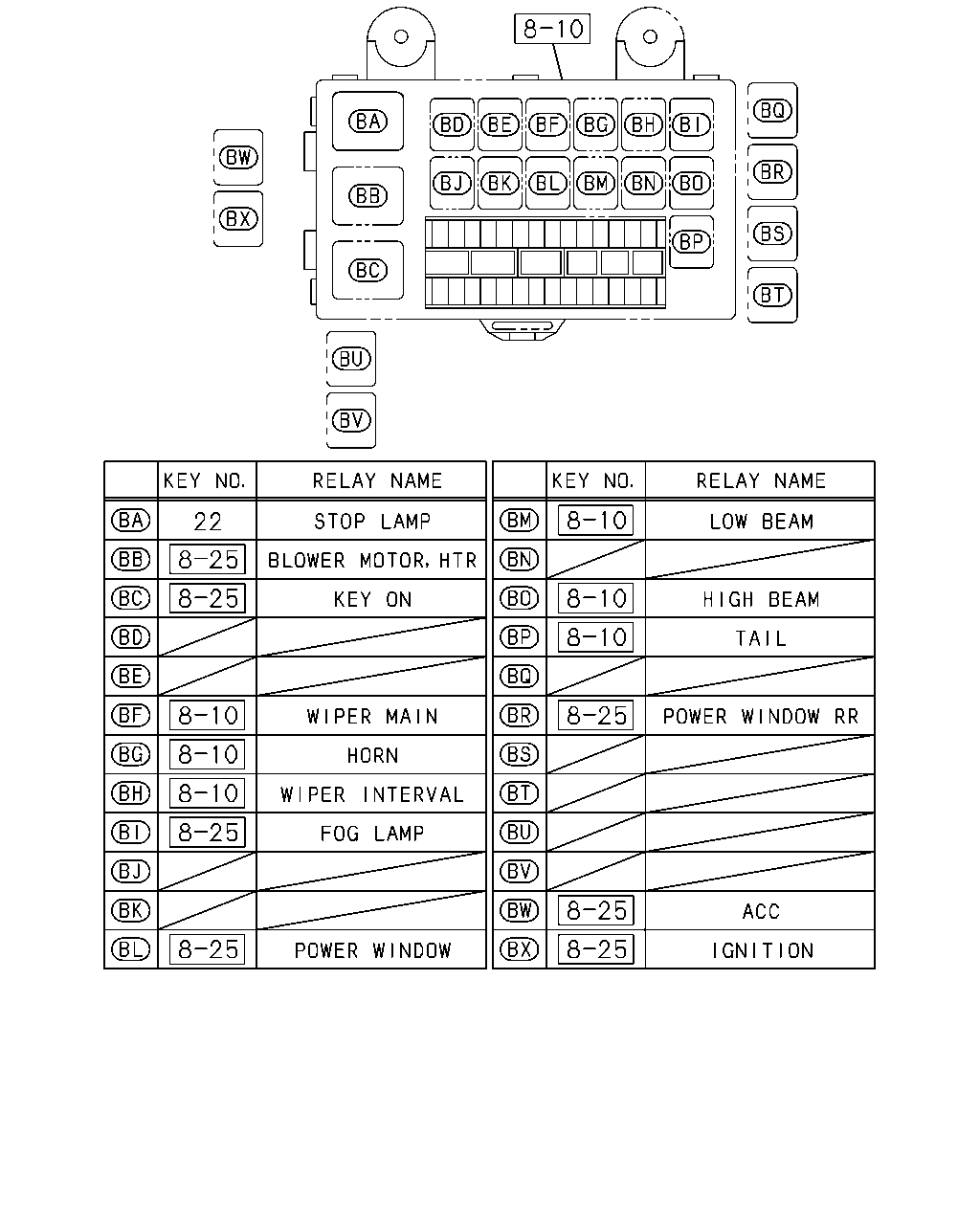

çizim 357940
22
BalonParca AdiParca NoAdetTipApplied Date A B C
22 RELAY; STOP LAMP
24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1306- ●
22 RELAY; STOP LAMP
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1306- ● ●
çizim 357944
666 531
BalonParca AdiParca NoAdetTipApplied Date A B C
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1306-1402 ●
531 RELAY; MAIN
4HK1-TCN ENG(RDQ) 24V 30A MITSUBA 		8-97238-540-0 01 1 1306-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ●
531 RELAY; MAIN
4HK1-TCN ENG(RDQ) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
666 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1306- ●
666 RELAY; STARTER
4HK1-TCN ENG(RDQ) 24V 10A PANASONIC 		8-98167-173-0 01 1 1306- ● ●
çizim 358034
540
BalonParca AdiParca NoAdetTipApplied Date A B C
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1306-1308 ● ● ●
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1309- ● ● ●

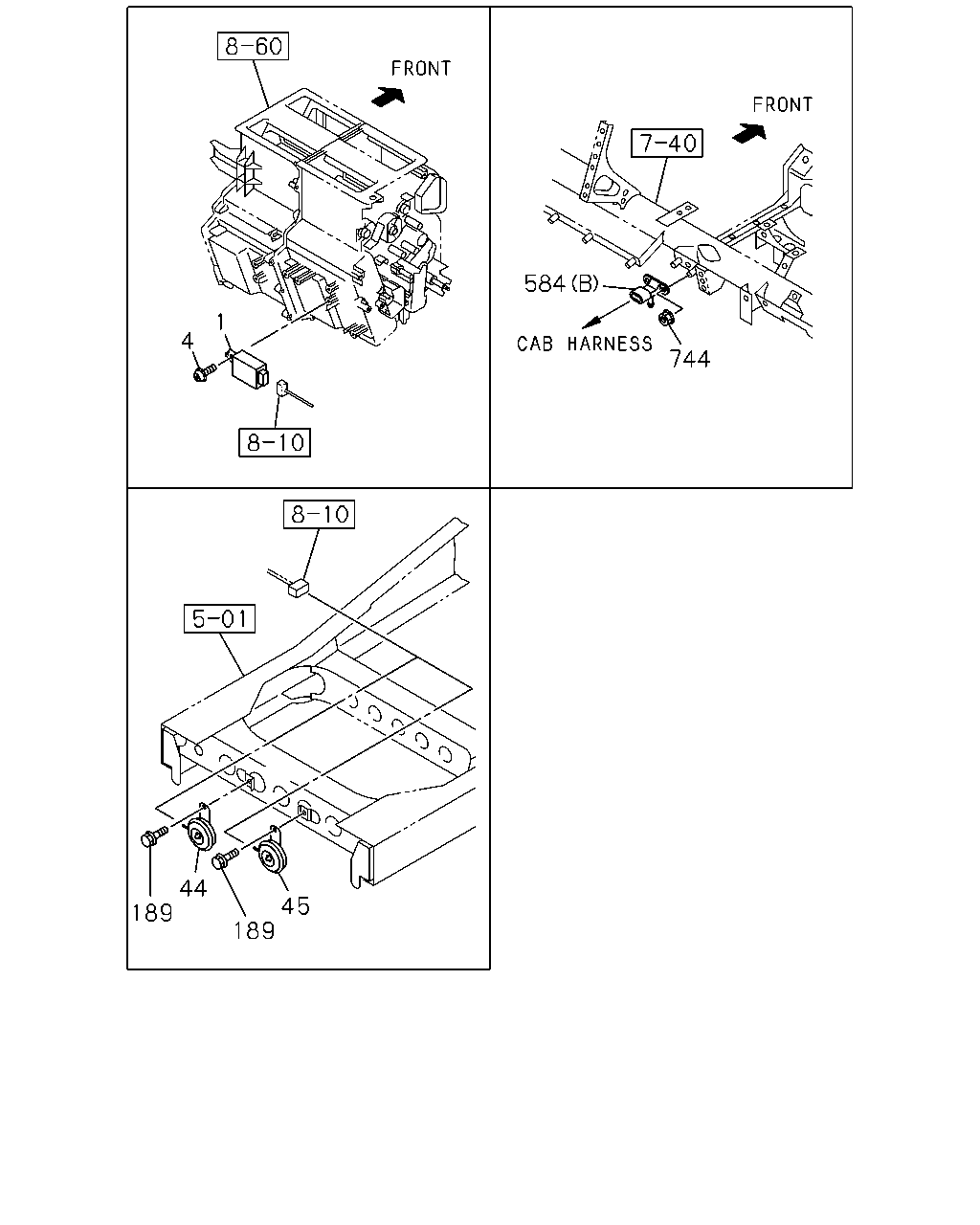

çizim 358727
1 4 44 189 189 45 744 584
BalonParca AdiParca NoAdetTipApplied Date A B C
1 UNIT; FLASHER 8-98025-533-1 01 1 1306- ● ● ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1306- ● ● ●
44 HORN; HIGH NOTE 8-98070-080-0 01 1 1306- ● ● ●
45 HORN; LOW NOTE 8-98022-023-0 01 1 1306- ● ● ●
189 BOLT; HORN
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1306- ● ● ●
189 BOLT; HORN
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1306- ● ● ●
584 SENSOR; PRESSURE
(A) 		8-97387-682-0 01 1 1306- ● ●
584 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97387-682-0 01 1 1306- ●
584 SENSOR; PRESSURE
(B) 		8-98020-514-0 01 1 1306- ●
584 SENSOR; PRESSURE
4HK1-TCN ENG(RDQ) (B) 		8-98020-514-0 01 1 1306- ● ●
744 NUT; SENSOR
M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ●
744 NUT; SENSOR
4HK1-TCN ENG(RDQ) M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ● ●
