8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#122755) — 38 parça

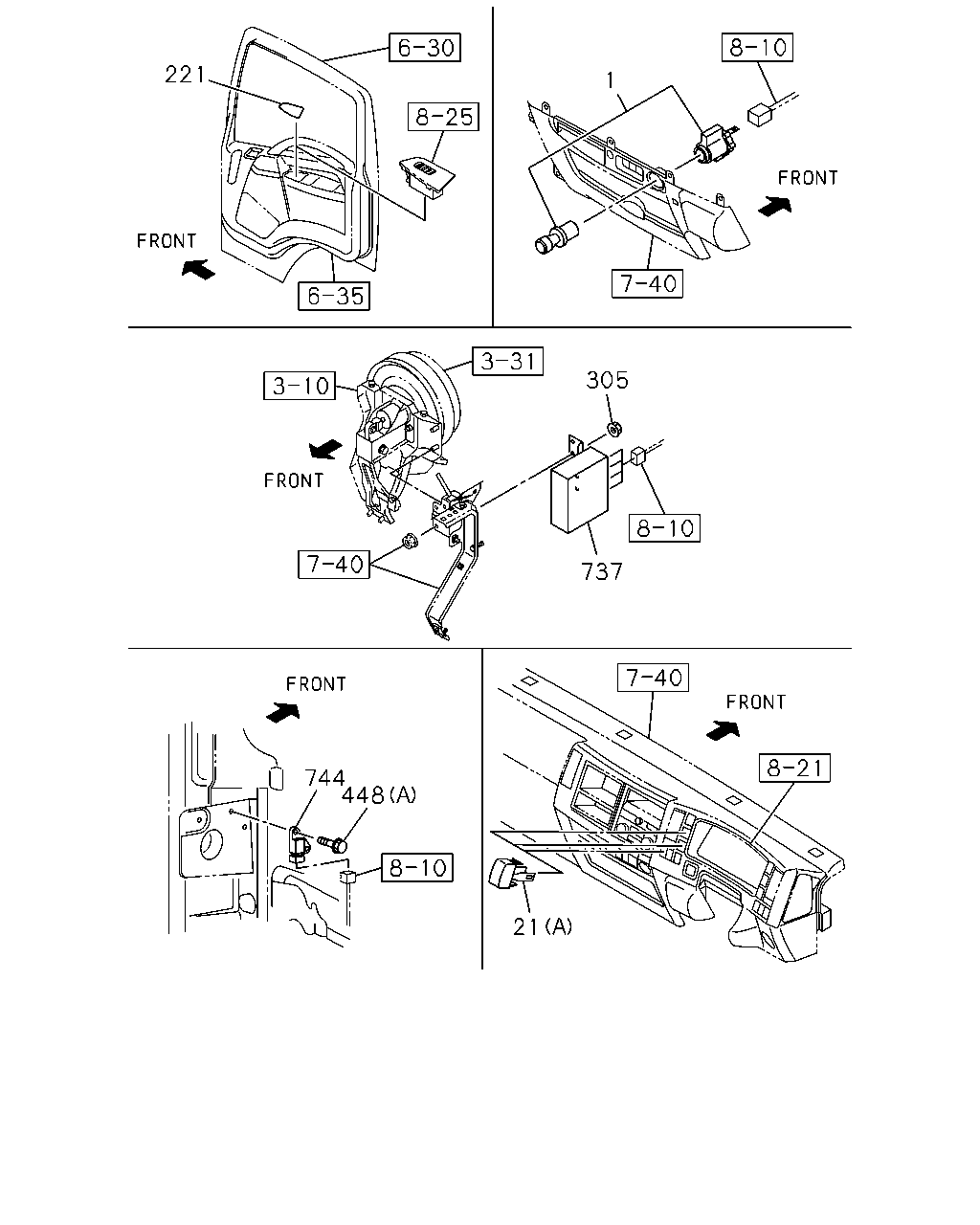

çizim 357471
221 1 305 737 744 448 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1306- ● ● ●
21 COVER; HOLE
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (B) 		8-97101-974-0 01 1 1306- ● ● ●
21 COVER; HOLE
(A) 		8-98025-954-1 01 1 1306-1511 ● ● ●
21 COVER; HOLE
(A) 		8-98025-954-1 01 1 1512- ● ● ●
21 COVER; HOLE
(A) 		8-98025-954-1 01 1 1512- ● ● ●
21 COVER; HOLE
(A) 		8-98025-954-1 01 1 1512- ● ● ●
21 COVER; HOLE
(A) 		8-98025-954-1 02 1 1306-1511 ● ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1306- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 1306- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1306- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 1306- ●
305 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER SOU 		8-94279-050-0 02 1 1306- ● ● ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1306- ● ● ●
448 BOLT; SENSOR
4HK1-TCN ENG(RDQ) (B) M6X16 FLANGE SOU 		0-28050-616-0 01 1 1306- ● ● ●
737 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98246-646-0 01 1 1306-1308 ●
737 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98249-919-0 01 1 1309-1309 ●
737 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98254-378-0 01 1 1310-1403 ●
737 CONTROL UNIT; TRANSMISSION
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98255-495-0 01 1 1404- ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98067-712-5 01 1 1306- ● ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1306- ● ● ●

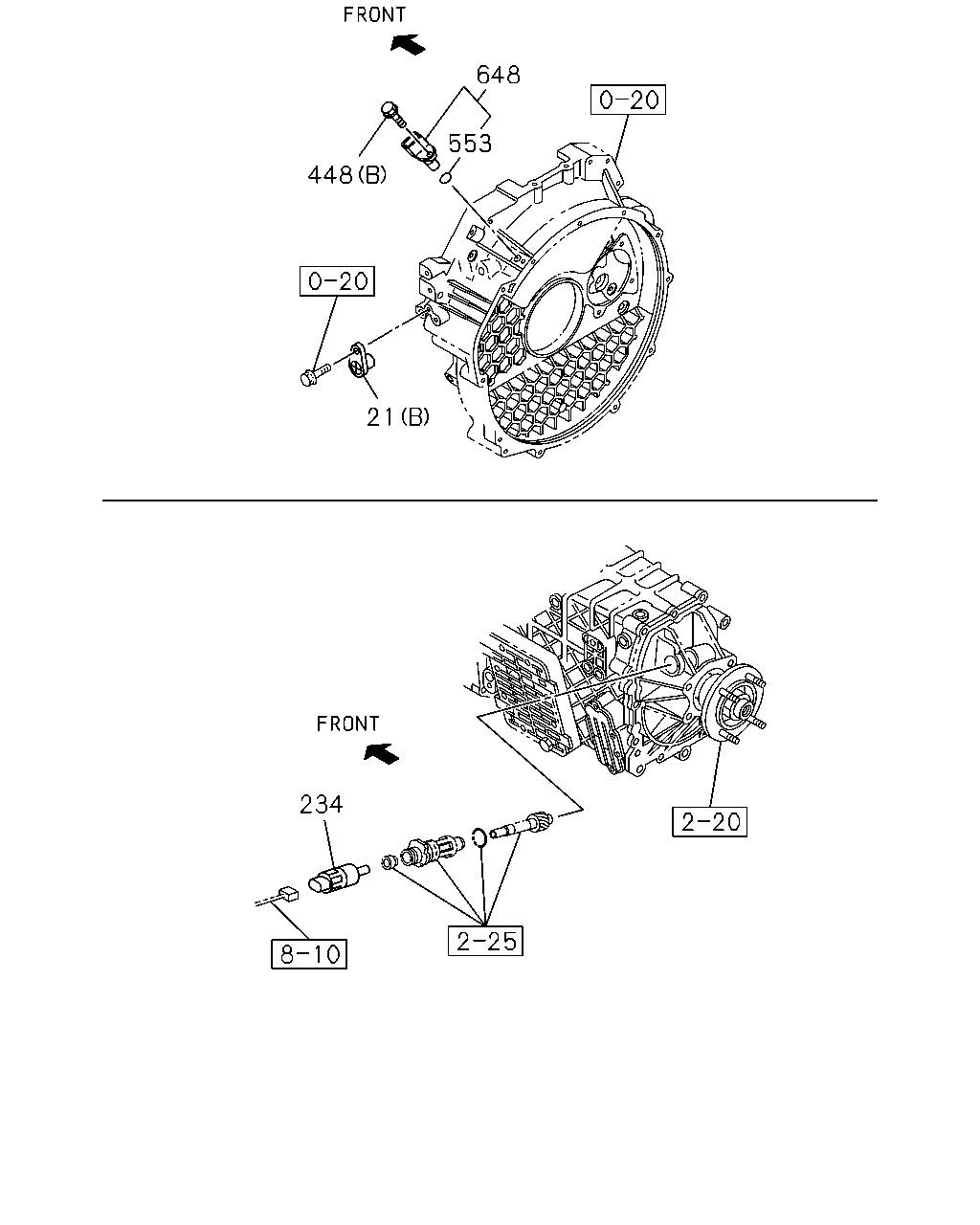

çizim 357542
21 448 553 648 234
BalonParca AdiParca NoAdetTipApplied Date A B C
21 COVER; HOLE
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (B) 		8-97101-974-0 01 1 1306- ● ● ●
21 COVER; HOLE
(A) 		8-98025-954-1 01 1 1306-1511 ● ● ●
21 COVER; HOLE
(A) 		8-98025-954-1 01 1 1512- ● ● ●
21 COVER; HOLE
(A) 		8-98025-954-1 01 1 1512- ● ● ●
21 COVER; HOLE
(A) 		8-98025-954-1 01 1 1512- ● ● ●
21 COVER; HOLE
(A) 		8-98025-954-1 02 1 1306-1511 ● ● ●
234 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1306- ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1306- ● ● ●
448 BOLT; SENSOR
4HK1-TCN ENG(RDQ) (B) M6X16 FLANGE SOU 		0-28050-616-0 01 1 1306- ● ● ●
553 GASKET
4HK1-TCN ENG(RDQ) ID=14.2 OD=18.8 		8-97369-404-0 01 1 1306- ● ● ●
648 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ) 		8-97606-943-0 01 1 1306- ● ● ●
çizim 358271
68 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B C
67 BRACKET; CONT UNIT
(B) 		8-98237-555-0 01 1 1306-1404 ●
67 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B) 		8-98237-555-0 01 1 1306-1404 ● ●
67 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1405- ●
67 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B) 		8-98217-377-0 01 1 1405- ● ●
67 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1306- ● ● ●
68 BOLT; BRKT
M6X12 FLANGE 		0-28450-612-0 01 1 1306- ● ● ●
69 NUT; BRKT
M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ● ● ●
