◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#122752) — 273 parça

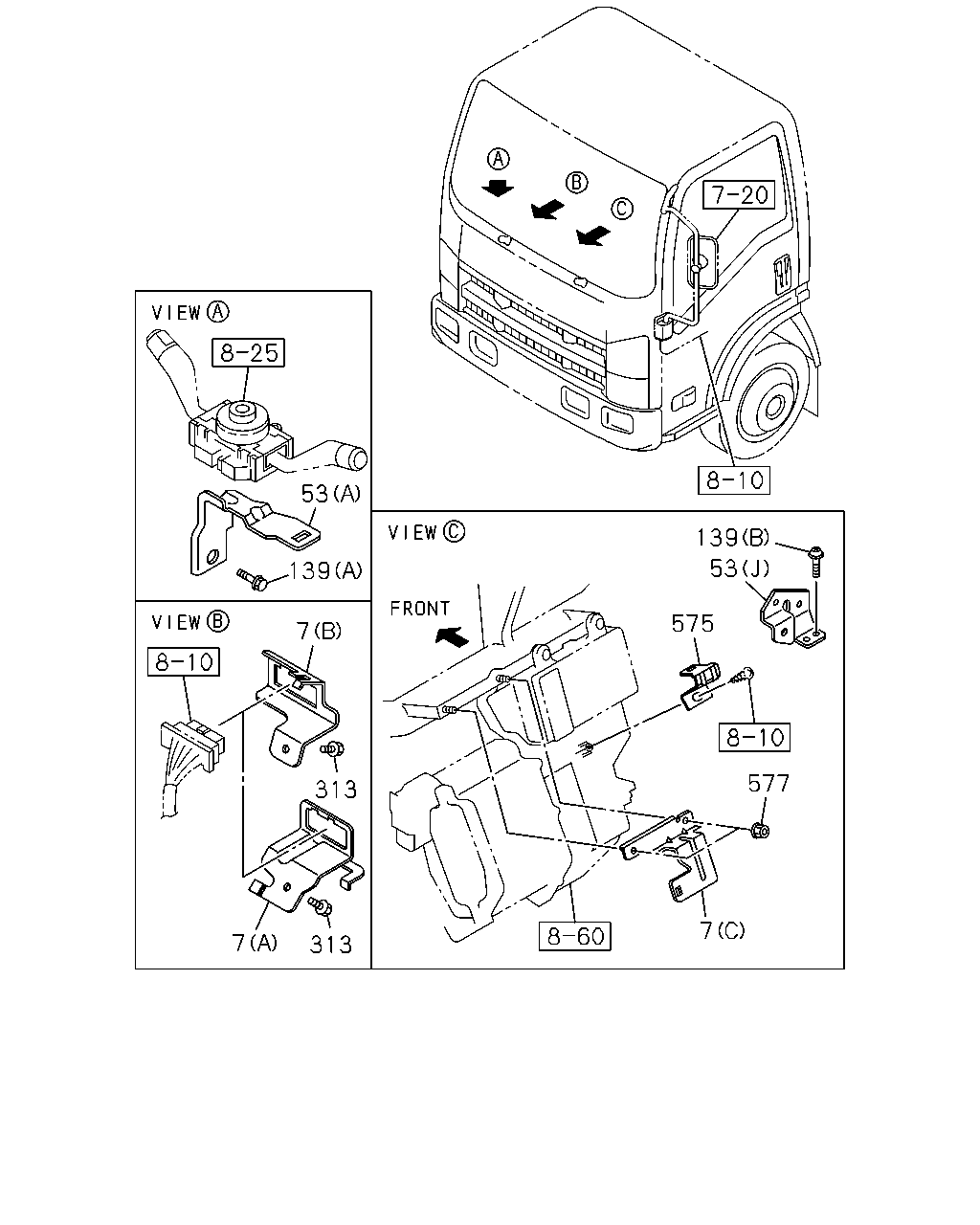

çizim 357313
7 577 575 139 53 139 53 7 313 313 7
BalonParca AdiParca NoAdetTipApplied Date A B C
7 BRACKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98114-514-0 01 1 1306- ●
7 BRACKET; CONNECTOR
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98114-514-0 01 1 1306- ● ●
7 BRACKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98043-070-1 01 1 1306- ●
7 BRACKET; CONNECTOR
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98043-070-1 01 1 1306- ● ●
7 BRACKET; CONNECTOR
(C) 		8-98029-762-4 01 1 1306- ●
7 BRACKET; CONNECTOR
4HK1-TCN ENG(RDQ) (C) 		8-98029-762-4 01 1 1306- ● ●
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) (F) 		8-98052-804-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (I) 		8-98055-636-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98130-669-1 01 1 1306- ●
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) (C) 		8-98130-669-1 01 1 1306- ● ●
53 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98077-503-1 01 1 1306- ●
53 BRACKET; HARNESS
(E) 		8-98077-503-1 01 1 1306- ● ●
53 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98077-504-0 01 1 1306- ●
53 BRACKET; HARNESS
(D) 		8-98077-504-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(G) 		8-98018-900-2 01 1 1306- ● ● ●
53 BRACKET; HARNESS
(H) 		8-98051-457-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98083-225-1 01 1 1306- ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1306- ● ● ●
313 BOLT; BRKT
M6X16 FLANGE SOU 		0-28450-616-0 01 1 1306- ●
313 BOLT; BRKT
4HK1-TCN ENG(RDQ) M6X16 FLANGE SOU 		0-28450-616-0 01 1 1306- ● ●
575 BRACKET; FUSE BOX 8-98042-656-2 01 1 1306- ●
575 BRACKET; FUSE BOX
4HK1-TCN ENG(RDQ) 		8-98042-656-2 01 1 1306- ● ●
577 NUT; FUSE BOX
M6 FLANGE SOU 		0-91180-106-0 04 1 1306- ●
577 NUT; FUSE BOX
4HK1-TCN ENG(RDQ) M6 FLANGE SOU 		0-91180-106-0 04 1 1306- ● ●
çizim 357436
150 313 481 38 139 150 480 304 242 529 480 386 377 386 377 139 24 515 552 294 515 524 552 577 515 24
BalonParca AdiParca NoAdetTipApplied Date A B C
24 NUT; HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ● ●
24 NUT; HARNESS
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1306-1409 ● ● ●
24 NUT; HARNESS
(A) M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1410- ● ● ●
38 BOLT; CLIP,HARNESS
4JJ1-TCC ENG(RDU) M8X12 FLANGE 		0-28050-812-0 01 1 1306-1509 ●
38 BOLT; CLIP,HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X12 FLANGE 		0-28050-812-0 01 1 1510- ●
38 BOLT; CLIP,HARNESS
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) M8X12 FLANGE 		0-28050-812-0 01 1 1510- ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1306- ● ● ●
150 BOLT; CLIP
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) M6X10 FLANGE SOU 		0-28050-610-0 01 1 1306- ● ● ●
150 BOLT; CLIP
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1306- ● ● ●
242 BOLT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE SOU 		0-28650-835-0 02 1 1306- ● ● ●
294 NUT
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
294 NUT
4HK1-TCN ENG(RDQ) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
304 BOLT; ENG HARNESS CLIP
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) M10X16 FLANGE 		0-28151-016-0 01 1 1306- ● ● ●
313 BOLT; BRKT
M6X16 FLANGE SOU 		0-28450-616-0 01 1 1306- ●
313 BOLT; BRKT
4HK1-TCN ENG(RDQ) M6X16 FLANGE SOU 		0-28450-616-0 01 1 1306- ● ●
377 BOLT; CAB EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1306- ● ● ●
377 BOLT; CAB EARTH
(A) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1306- ● ● ●
386 BOLT; GRAND HARNESS
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1306- ● ● ●
386 BOLT; GRAND HARNESS
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1306- ● ● ●
480 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
480 BOLT; BRKT
(B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
480 BOLT; BRKT
(A) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1306- ●
480 BOLT; BRKT
4HK1-TCN ENG(RDQ) (A) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1306- ● ●
481 BOLT; CABLE HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> M8X10 W/LK WASHER 		8-98029-928-0 02 1 1306- ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ● ●
515 NUT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
515 NUT; BRKT
4HK1-TCN ENG(RDQ) (C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
515 NUT; BRKT
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1306- ● ● ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1306- ● ● ●
524 NUT; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
529 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1306- ●
529 BOLT; RELAY BOX
EXC. FRAME STRAIGHT TYPE<7KJ> M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1306- ●
529 BOLT; RELAY BOX
4HK1-TCN ENG(RDQ) M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1306- ● ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ● ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
552 NUT; BRKT,HARNESS
4HK1-TCN ENG(RDQ) (B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ●
552 NUT; BRKT,HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
577 NUT; FUSE BOX
M6 FLANGE SOU 		0-91180-106-0 04 1 1306- ●
577 NUT; FUSE BOX
4HK1-TCN ENG(RDQ) M6 FLANGE SOU 		0-91180-106-0 04 1 1306- ● ●

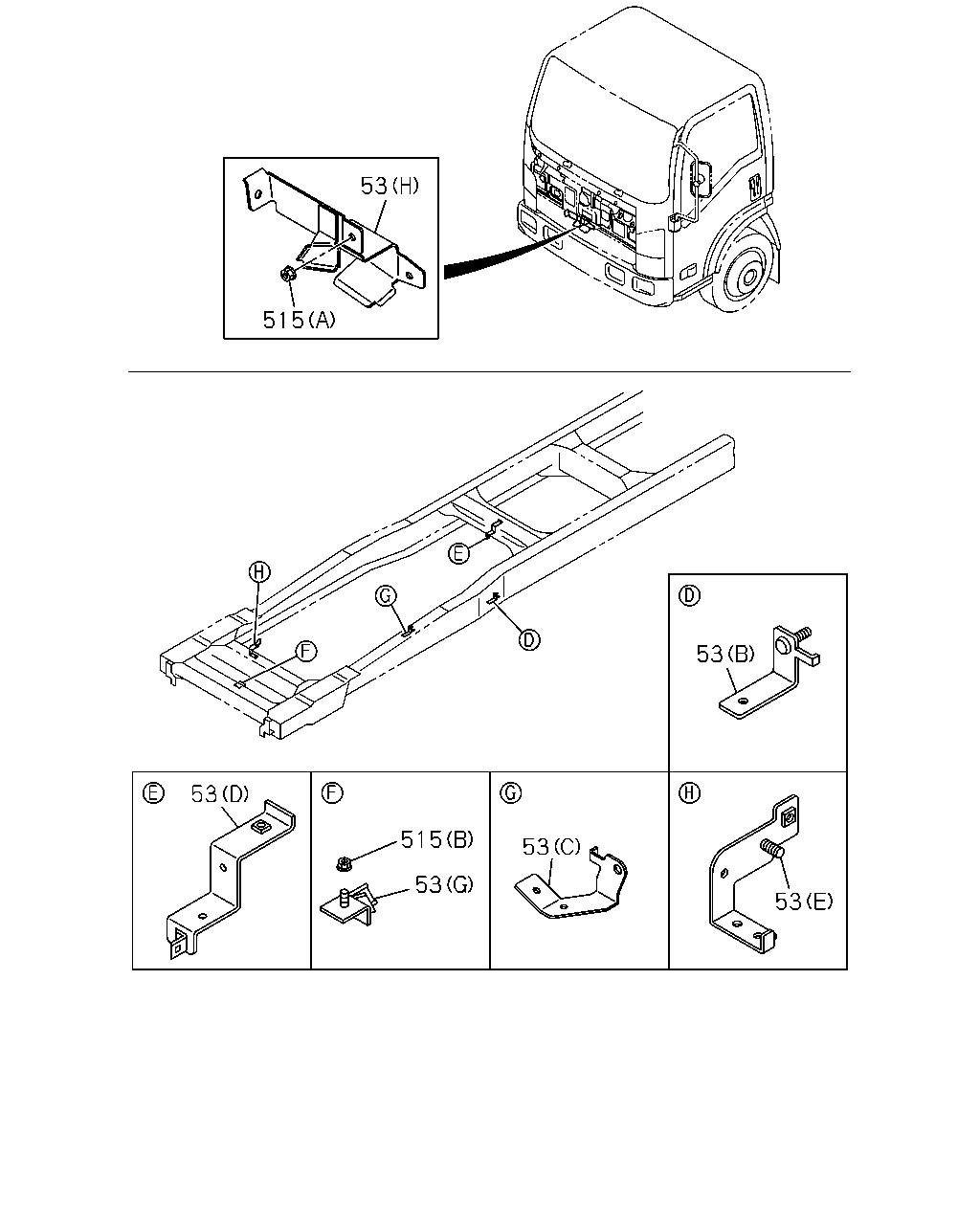

çizim 357501
53 515 53 515 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B C
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) (F) 		8-98052-804-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (I) 		8-98055-636-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98130-669-1 01 1 1306- ●
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) (C) 		8-98130-669-1 01 1 1306- ● ●
53 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98077-503-1 01 1 1306- ●
53 BRACKET; HARNESS
(E) 		8-98077-503-1 01 1 1306- ● ●
53 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98077-504-0 01 1 1306- ●
53 BRACKET; HARNESS
(D) 		8-98077-504-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(G) 		8-98018-900-2 01 1 1306- ● ● ●
53 BRACKET; HARNESS
(H) 		8-98051-457-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98083-225-1 01 1 1306- ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ● ●
515 NUT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
515 NUT; BRKT
4HK1-TCN ENG(RDQ) (C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
515 NUT; BRKT
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1306- ● ● ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1306- ● ● ●

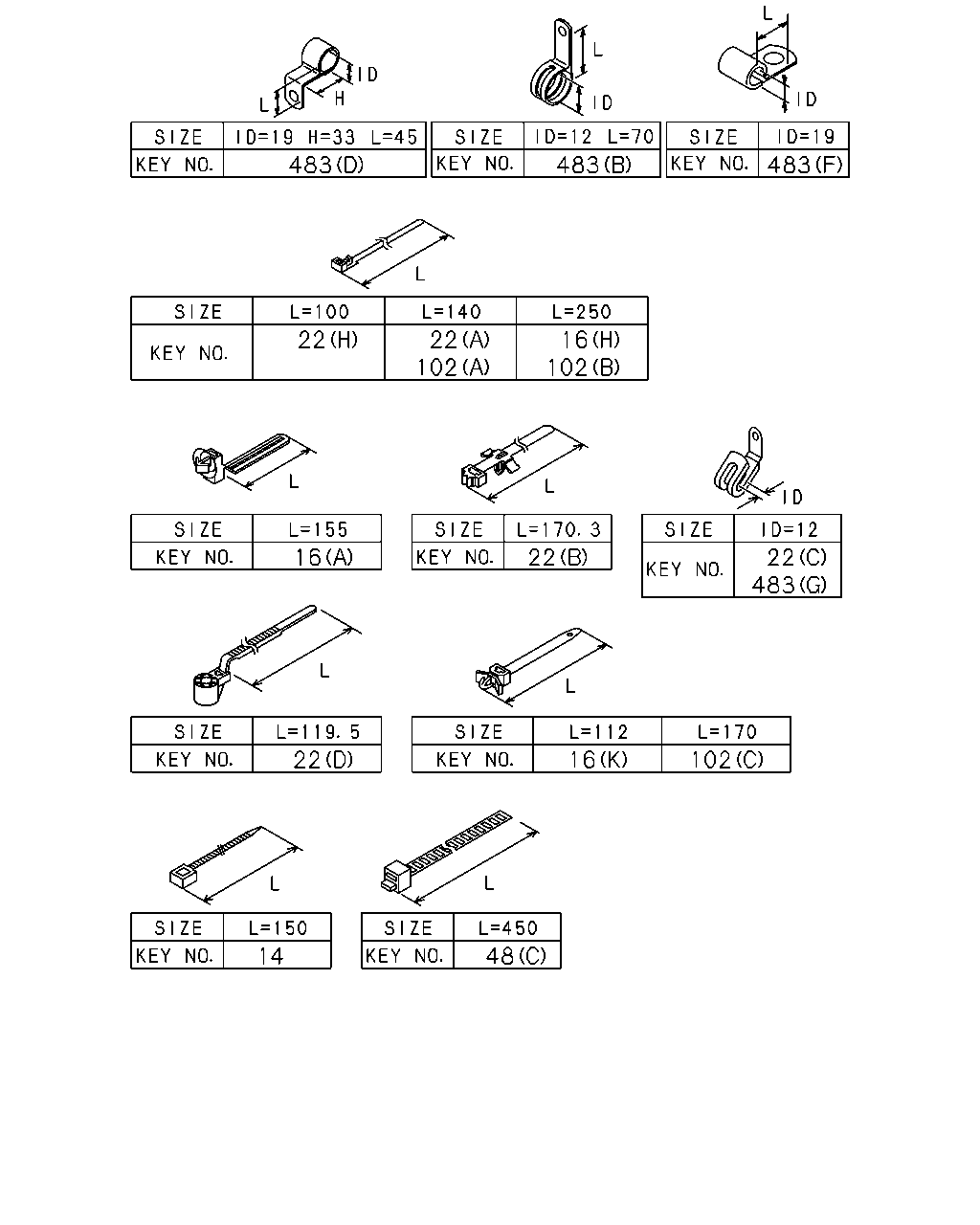

çizim 357502
483 483 483 22 22 102 16 102 22 483 22 16 22 16 102 48 14
BalonParca AdiParca NoAdetTipApplied Date A B C
14 CLIP; BAND,HARNESS
4HK1-TCN ENG(RDQ) L=150 		8-97355-273-0 01 1 1306- ● ● ●
16 CLIP; HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-97101-436-0 01 1 1306- ● ● ●
16 CLIP; HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) (B) ID=6 & 10 SOU 		8-94154-844-0 01 1 1306- ●
16 CLIP; HARNESS
RR BODY FLAT BED<RS6> (K) L=112 SOU 		8-94232-618-0 05 1 1306- ●
16 CLIP; HARNESS
(D) ID=10 & 16 SOU 		8-94413-325-0 01 1 1306- ●
16 CLIP; HARNESS
4HK1-TCN ENG(RDQ) (D) ID=10 & 16 SOU 		8-94413-325-0 01 1 1306- ● ●
16 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1306- ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 02 1 1306- ●
16 CLIP; HARNESS
(G) ID=6 & 10-13 SOU 		8-97069-515-0 02 1 1306- ● ● ●
16 CLIP; HARNESS
(A) L=155 SOU 		8-97173-307-0 14 1 1306- ● ● ●
16 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 1306- ● ● ●
16 CLIP; HARNESS
EXC. RR BODY FLAT BED<RS6> (H) L=250 SOU 		5-09707-030-1 01 1 1306- ●
16 CLIP; HARNESS
(H) L=250 SOU 		5-09707-030-1 01 1 1306- ● ●
16 CLIP; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (L) ID=20 		8-94241-972-0 01 1 1306- ●
16 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (I) L=60 		8-94449-165-0 02 1 1306- ●
16 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (J) L=60 		8-97063-335-0 02 1 1306- ●
22 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) (C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306- ● ● ●
22 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) (C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306- ● ● ●
22 CLIP; ENG HARNESS
(A) L=140 SOU 		5-09707-031-1 01 1 1306-1306 ● ● ●
22 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU 		5-09707-031-1 01 1 1306-1306 ● ● ●
22 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU 		5-09707-031-1 01 1 1307-1311 ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (A) L=140 SOU 		5-09707-031-1 01 1 1307-1311 ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (A) L=140 SOU 		5-09707-031-1 01 1 1307-1311 ●
22 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU 		5-09707-031-1 01 1 1312- ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (A) L=140 SOU 		5-09707-031-1 01 1 1312- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (D) L=119.5 		1-09707-197-0 01 1 1306- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (H) L=100 SOU 		5-09707-036-1 01 1 1306- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (E) ID=6 & 8.3 		8-94167-742-0 01 1 1306-1509 ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=6 & 8.3 		8-94167-742-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=6 & 8.3 		8-94167-742-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 1306-1509 ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (G) ID=12 & 6.8 		8-97125-842-0 01 1 1306-1509 ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=12 & 6.8 		8-97125-842-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=12 & 6.8 		8-97125-842-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=170.3 		1-09987-182-0 01 1 1306- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C) L=450 		1-09707-142-1 01 1 1306-1308 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) L=450 		1-09707-142-1 01 1 1306-1308 ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C) L=450 		1-09707-142-1 01 1 1309- ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) L=450 		1-09707-142-1 01 1 1309- ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 16.5 		8-94424-440-0 01 1 1306- ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) (D) ID=10 & 16.5 		8-94424-440-0 01 1 1306- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47 SOU 		5-09700-319-0 05 1 1306- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) (B) ID=14 L=47 SOU 		5-09700-319-0 05 1 1306- ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 SOU 		5-09700-319-0 05 1 1306- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47 SOU 		5-09700-319-0 10 1 1306- ●
48 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1306-1412 ●
48 CLIP; FRAME HARNESS
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1501- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) (B) ID=14 L=47 SOU 		5-09700-319-0 03 1 1306-1307 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) ID=14 L=47 SOU 		5-09700-319-0 03 1 1308- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) (B) ID=14 L=47 SOU 		5-09700-319-0 04 1 1306-1307 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) ID=14 L=47 SOU 		5-09700-319-0 04 1 1308- ●
102 CLIP; BAND
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) L=250 SOU 		5-09707-030-1 01 1 1306- ● ● ●
102 CLIP; BAND
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A) L=140 SOU 		5-09707-031-1 02 1 1306- ● ● ●
102 CLIP; BAND
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (A) L=140 SOU 		5-09707-031-1 03 1 1306- ● ● ●
102 CLIP; BAND
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C) L=170 		5-09707-054-0 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (F) ID=19 L=60 		0-95235-896-0 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) ID=12 L=70 		1-09700-097-1 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) ID=24 L=24 		1-09701-001-1 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (E) L=36 		8-94224-891-1 04 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (G) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (A) ID=14.5 L=40 		1-09701-014-0 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (D) ID=19 H=33 L=45 		1-09701-045-0 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (E) L=36 		8-94224-891-1 01 1 1306- ● ● ●
çizim 357504
48 22 22 22 16 483 48 16 16 16 483 483
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-97101-436-0 01 1 1306- ● ● ●
16 CLIP; HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) (B) ID=6 & 10 SOU 		8-94154-844-0 01 1 1306- ●
16 CLIP; HARNESS
RR BODY FLAT BED<RS6> (K) L=112 SOU 		8-94232-618-0 05 1 1306- ●
16 CLIP; HARNESS
(D) ID=10 & 16 SOU 		8-94413-325-0 01 1 1306- ●
16 CLIP; HARNESS
4HK1-TCN ENG(RDQ) (D) ID=10 & 16 SOU 		8-94413-325-0 01 1 1306- ● ●
16 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1306- ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 02 1 1306- ●
16 CLIP; HARNESS
(G) ID=6 & 10-13 SOU 		8-97069-515-0 02 1 1306- ● ● ●
16 CLIP; HARNESS
(A) L=155 SOU 		8-97173-307-0 14 1 1306- ● ● ●
16 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 1306- ● ● ●
16 CLIP; HARNESS
EXC. RR BODY FLAT BED<RS6> (H) L=250 SOU 		5-09707-030-1 01 1 1306- ●
16 CLIP; HARNESS
(H) L=250 SOU 		5-09707-030-1 01 1 1306- ● ●
16 CLIP; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (L) ID=20 		8-94241-972-0 01 1 1306- ●
16 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (I) L=60 		8-94449-165-0 02 1 1306- ●
16 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (J) L=60 		8-97063-335-0 02 1 1306- ●
22 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) (C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306- ● ● ●
22 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) (C) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306- ● ● ●
22 CLIP; ENG HARNESS
(A) L=140 SOU 		5-09707-031-1 01 1 1306-1306 ● ● ●
22 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU 		5-09707-031-1 01 1 1306-1306 ● ● ●
22 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU 		5-09707-031-1 01 1 1307-1311 ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (A) L=140 SOU 		5-09707-031-1 01 1 1307-1311 ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (A) L=140 SOU 		5-09707-031-1 01 1 1307-1311 ●
22 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SOU 		5-09707-031-1 01 1 1312- ● ● ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (A) L=140 SOU 		5-09707-031-1 01 1 1312- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (D) L=119.5 		1-09707-197-0 01 1 1306- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (H) L=100 SOU 		5-09707-036-1 01 1 1306- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (E) ID=6 & 8.3 		8-94167-742-0 01 1 1306-1509 ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=6 & 8.3 		8-94167-742-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=6 & 8.3 		8-94167-742-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 1306-1509 ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (G) ID=12 & 6.8 		8-97125-842-0 01 1 1306-1509 ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=12 & 6.8 		8-97125-842-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=12 & 6.8 		8-97125-842-0 01 1 1510- ●
22 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=170.3 		1-09987-182-0 01 1 1306- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C) L=450 		1-09707-142-1 01 1 1306-1308 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) L=450 		1-09707-142-1 01 1 1306-1308 ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C) L=450 		1-09707-142-1 01 1 1309- ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) L=450 		1-09707-142-1 01 1 1309- ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 16.5 		8-94424-440-0 01 1 1306- ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) (D) ID=10 & 16.5 		8-94424-440-0 01 1 1306- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47 SOU 		5-09700-319-0 05 1 1306- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) (B) ID=14 L=47 SOU 		5-09700-319-0 05 1 1306- ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 SOU 		5-09700-319-0 05 1 1306- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47 SOU 		5-09700-319-0 10 1 1306- ●
48 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1306-1412 ●
48 CLIP; FRAME HARNESS
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1501- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) (B) ID=14 L=47 SOU 		5-09700-319-0 03 1 1306-1307 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) ID=14 L=47 SOU 		5-09700-319-0 03 1 1308- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) (B) ID=14 L=47 SOU 		5-09700-319-0 04 1 1306-1307 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) ID=14 L=47 SOU 		5-09700-319-0 04 1 1308- ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (F) ID=19 L=60 		0-95235-896-0 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) ID=12 L=70 		1-09700-097-1 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) ID=24 L=24 		1-09701-001-1 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (E) L=36 		8-94224-891-1 04 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (G) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (A) ID=14.5 L=40 		1-09701-014-0 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (D) ID=19 H=33 L=45 		1-09701-045-0 01 1 1306- ● ● ●
483 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (E) L=36 		8-94224-891-1 01 1 1306- ● ● ●
çizim 357537
16 16 16 16 16 48 513 530
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-97101-436-0 01 1 1306- ● ● ●
16 CLIP; HARNESS
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) (B) ID=6 & 10 SOU 		8-94154-844-0 01 1 1306- ●
16 CLIP; HARNESS
RR BODY FLAT BED<RS6> (K) L=112 SOU 		8-94232-618-0 05 1 1306- ●
16 CLIP; HARNESS
(D) ID=10 & 16 SOU 		8-94413-325-0 01 1 1306- ●
16 CLIP; HARNESS
4HK1-TCN ENG(RDQ) (D) ID=10 & 16 SOU 		8-94413-325-0 01 1 1306- ● ●
16 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 1306- ● ● ●
16 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 02 1 1306- ●
16 CLIP; HARNESS
(G) ID=6 & 10-13 SOU 		8-97069-515-0 02 1 1306- ● ● ●
16 CLIP; HARNESS
(A) L=155 SOU 		8-97173-307-0 14 1 1306- ● ● ●
16 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 1306- ● ● ●
16 CLIP; HARNESS
EXC. RR BODY FLAT BED<RS6> (H) L=250 SOU 		5-09707-030-1 01 1 1306- ●
16 CLIP; HARNESS
(H) L=250 SOU 		5-09707-030-1 01 1 1306- ● ●
16 CLIP; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (L) ID=20 		8-94241-972-0 01 1 1306- ●
16 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (I) L=60 		8-94449-165-0 02 1 1306- ●
16 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (J) L=60 		8-97063-335-0 02 1 1306- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C) L=450 		1-09707-142-1 01 1 1306-1308 ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) L=450 		1-09707-142-1 01 1 1306-1308 ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C) L=450 		1-09707-142-1 01 1 1309- ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) L=450 		1-09707-142-1 01 1 1309- ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 16.5 		8-94424-440-0 01 1 1306- ●
48 CLIP; FRAME HARNESS
4HK1-TCN ENG(RDQ) (D) ID=10 & 16.5 		8-94424-440-0 01 1 1306- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47 SOU 		5-09700-319-0 05 1 1306- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) (B) ID=14 L=47 SOU 		5-09700-319-0 05 1 1306- ●
48 CLIP; FRAME HARNESS
(B) ID=14 L=47 SOU 		5-09700-319-0 05 1 1306- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=14 L=47 SOU 		5-09700-319-0 10 1 1306- ●
48 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1306-1412 ●
48 CLIP; FRAME HARNESS
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1501- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) (B) ID=14 L=47 SOU 		5-09700-319-0 03 1 1306-1307 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) ID=14 L=47 SOU 		5-09700-319-0 03 1 1308- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) (B) ID=14 L=47 SOU 		5-09700-319-0 04 1 1306-1307 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) ID=14 L=47 SOU 		5-09700-319-0 04 1 1308- ●
513 TAPE; SOFT,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 SOU 		8-97304-373-0 01 1 1306- ● ● ●
530 SEAL; HARNESS
OD=32 BLACK 		8-98031-126-0 01 1 1306- ● ● ●

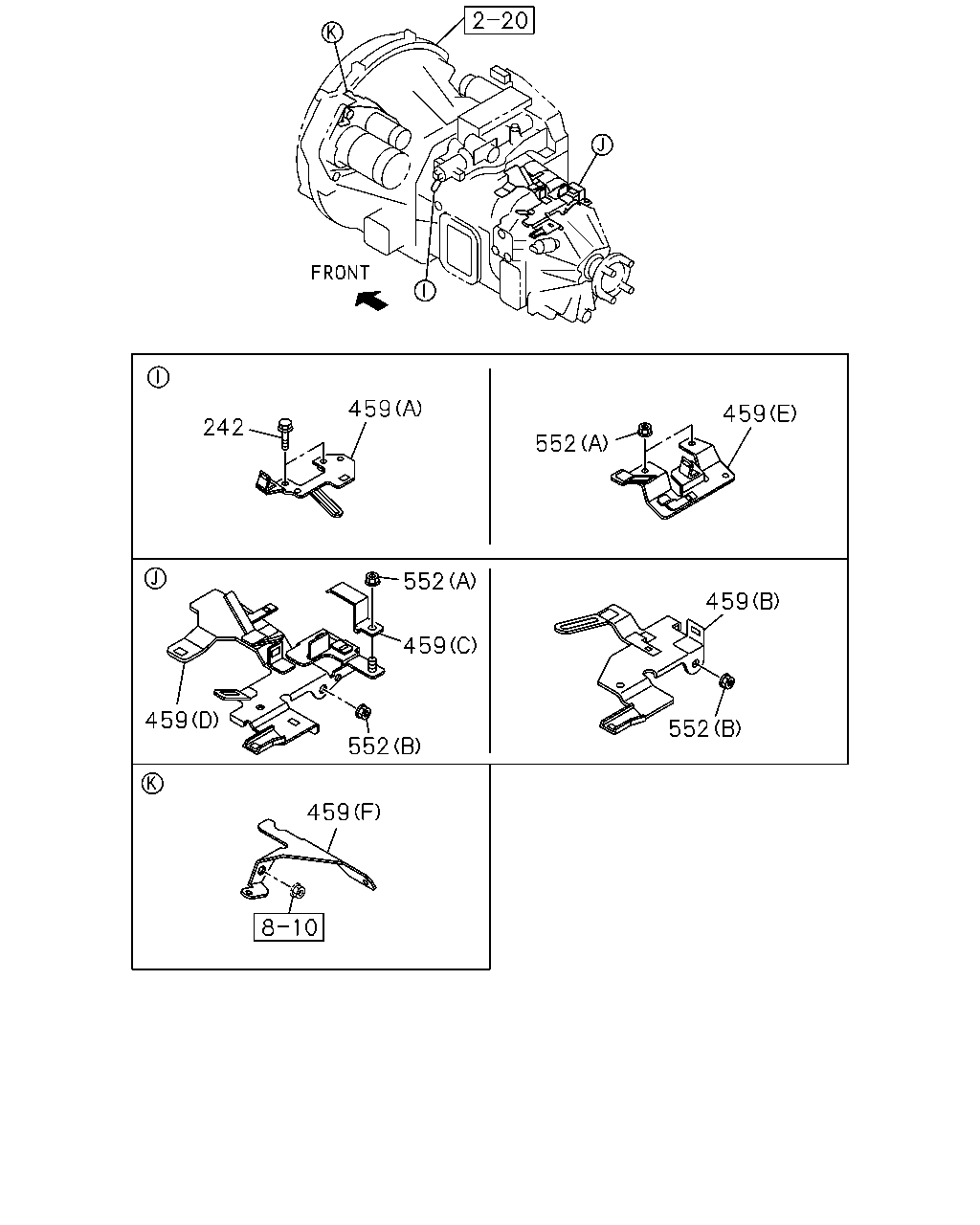

çizim 357653
459 552 459 552 459 459 552 459 552 242 459
BalonParca AdiParca NoAdetTipApplied Date A B C
242 BOLT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE SOU 		0-28650-835-0 02 1 1306- ● ● ●
459 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98018-899-1 01 1 1306- ● ● ●
459 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98030-988-2 01 1 1306- ● ● ●
459 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98030-991-2 01 1 1306- ● ● ●
459 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98044-758-2 01 1 1306- ●
459 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98020-227-3 01 1 1306- ●
459 BRACKET; SUPPORT,HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98020-227-3 01 1 1306- ● ●
459 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98196-974-0 01 1 1306- ●
459 BRACKET; SUPPORT,HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98196-974-0 01 1 1306- ● ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ● ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
552 NUT; BRKT,HARNESS
4HK1-TCN ENG(RDQ) (B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
552 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ●
552 NUT; BRKT,HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●

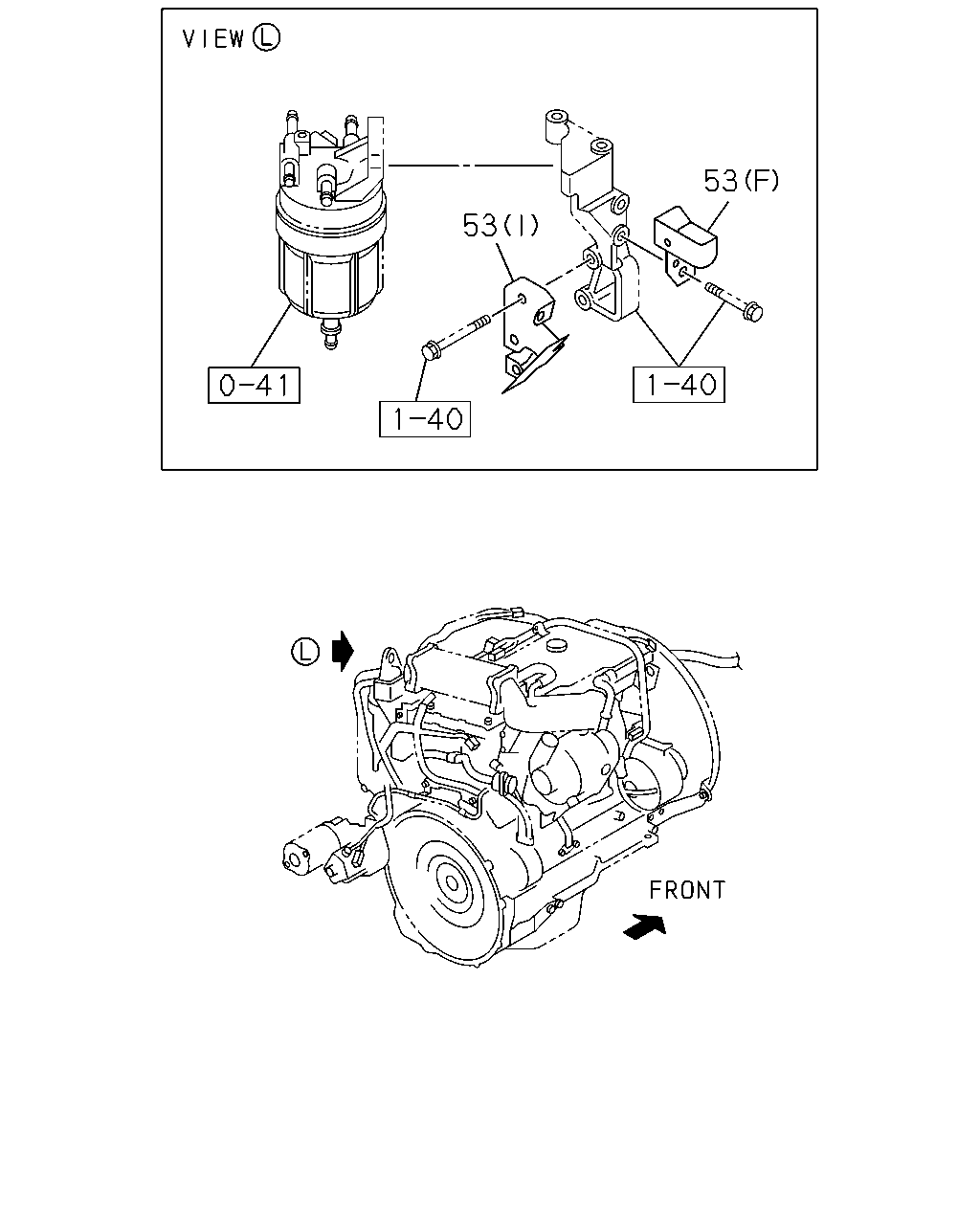

çizim 358809
53 53
BalonParca AdiParca NoAdetTipApplied Date A B C
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) (F) 		8-98052-804-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (I) 		8-98055-636-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98130-669-1 01 1 1306- ●
53 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) (C) 		8-98130-669-1 01 1 1306- ● ●
53 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98077-503-1 01 1 1306- ●
53 BRACKET; HARNESS
(E) 		8-98077-503-1 01 1 1306- ● ●
53 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98077-504-0 01 1 1306- ●
53 BRACKET; HARNESS
(D) 		8-98077-504-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(G) 		8-98018-900-2 01 1 1306- ● ● ●
53 BRACKET; HARNESS
(H) 		8-98051-457-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1306- ● ● ●
53 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98083-225-1 01 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
