Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#122751) — 345 parça

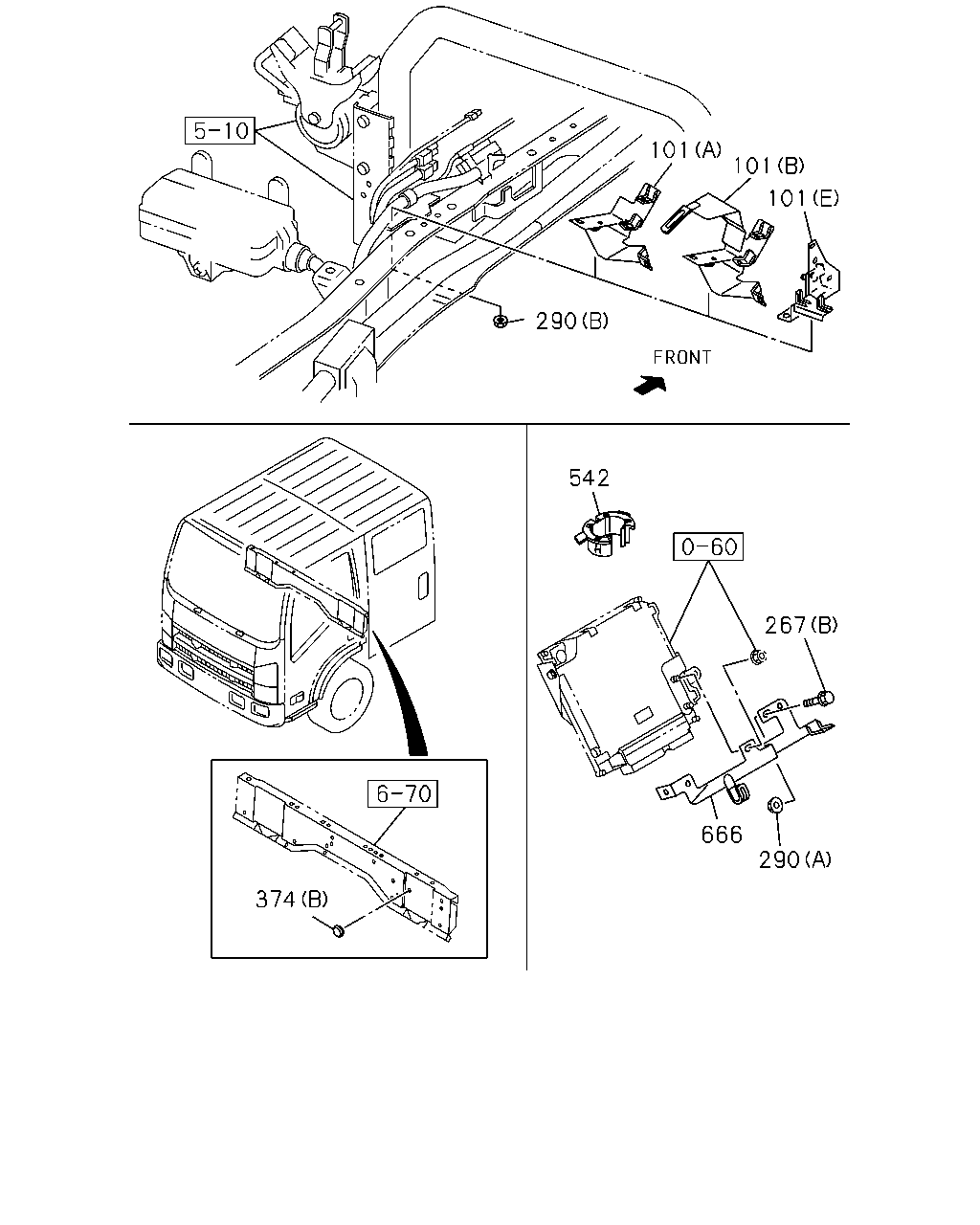

290 101 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	1306-	●	●	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-137-2	01	1	1306-	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (A)	8-98079-137-2	01	1	1306-		●	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (B)	8-98094-483-1	01	1	1306-	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EXC. EURO3 SPECIFICATION(NT3) (B)	8-98094-483-1	01	1	1306-		●	●
101	BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98030-725-1	01	1	1306-	●
101	BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-447-1	01	1	1306-	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A) M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
290	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●	●
290	NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
441	HARNESS; CABLE,SPEED SENSOR EXC. FRAME STRAIGHT TYPE<7KJ>	8-97308-225-4	01	1	1306-	●

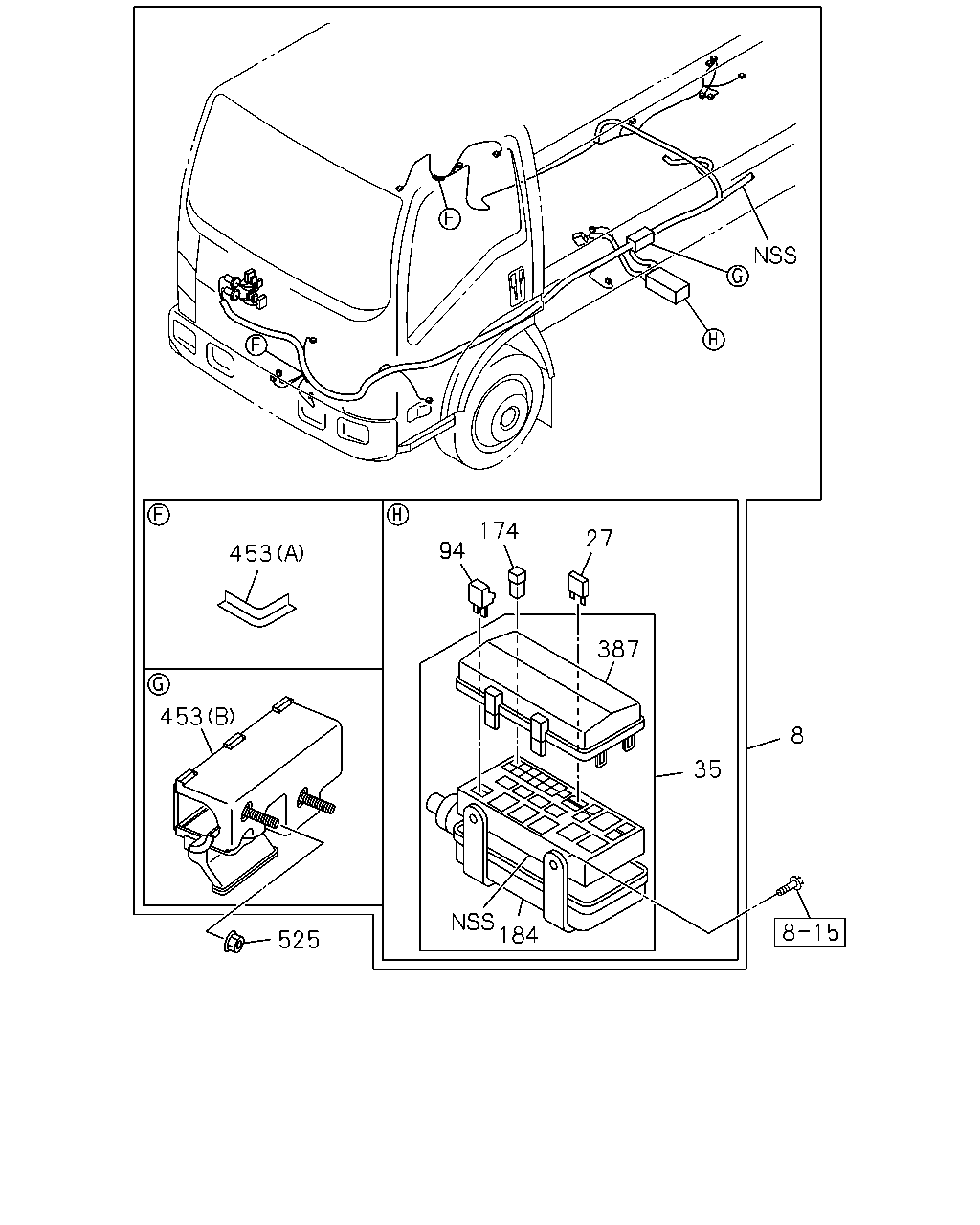

453 453 525 94 174 27 387 35 8 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	1306-1409		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	1306-1409		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-		●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98220-976-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98294-427-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98240-749-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98293-991-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98220-883-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98294-426-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98240-748-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98293-990-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98101-915-3	01	1	1306-1409		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-276-0	01	1	1410-		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-287-9	01	1	1306-1409			●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-237-0	01	1	1410-			●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-284-8	01	1	1306-1409			●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-234-0	01	1	1410-			●
27	FUSE UNIT 10A RED SOU	8-98054-257-0	AR	1	1306-	●	●	●
35	BOX; RELAY & FUSE	8-98030-763-0	01	1	1306-	●	●	●
94	DIODE; FRAME HARNESS BLACK 2P-1.5A SOU	8-94422-639-1	01	1	1306-	●	●	●
174	FUSE; SLOW BLOW 30A PINK SOU	8-98079-191-0	AR	1	1306-	●	●	●
174	FUSE; SLOW BLOW 40A GREEN SOU	8-98079-192-0	AR	1	1306-	●	●	●
174	FUSE; SLOW BLOW 50A RED SOU	8-98079-193-0	AR	1	1306-	●	●	●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW SOU	8-97219-407-0	AR	1	1306-	●	●	●
184	COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1306-	●	●	●
387	COVER; RELAY BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98081-367-0	01	1	1306-	●
387	COVER; RELAY BOX EXC. FRAME STRAIGHT TYPE<7KJ>	8-98081-367-0	01	1	1306-	●
387	COVER; RELAY BOX 4HK1-TCN ENG(RDQ)	8-98081-367-0	01	1	1306-		●	●
453	PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-94417-716-0	02	1	1306-	●	●	●
453	PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) (A)	8-94417-716-0	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1306-	●	●	●
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●

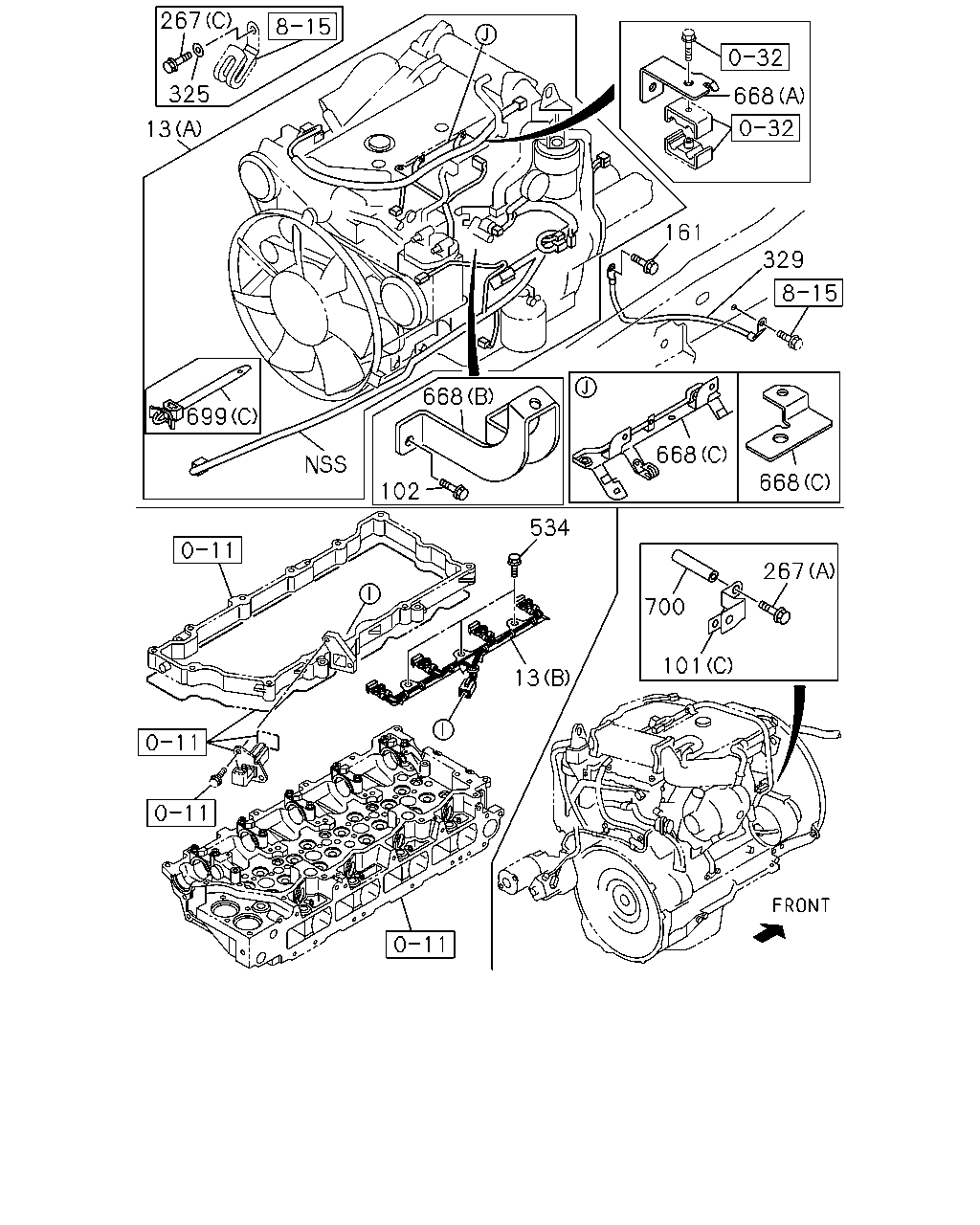

101 700 267 534 13 668 668 668 102 329 161 325 13 267 668 699

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1306-	●	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1306-	●	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1306-	●	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) (A)	8-98178-539-0	01	1	1306-	●	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) (A)	8-98178-540-0	01	1	1306-	●	●	●
13	HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98172-158-1	01	1	1306-	●
13	HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (C)	8-98182-851-1	01	1	1306-	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	1306-	●	●	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-137-2	01	1	1306-	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (A)	8-98079-137-2	01	1	1306-		●	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (B)	8-98094-483-1	01	1	1306-	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EXC. EURO3 SPECIFICATION(NT3) (B)	8-98094-483-1	01	1	1306-		●	●
101	BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98030-725-1	01	1	1306-	●
101	BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-447-1	01	1	1306-	●
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) M10X16 FLANGE	0-28151-016-0	02	1	1306-	●	●	●
161	BOLT; GROUND,HARNESS 4HK1-TCN ENG(RDQ) M8X16 FLANGE SOU	0-28050-816-0	01	1	1306-	●	●	●
161	BOLT; GROUND,HARNESS 4JJ1-TCC ENG(RDU) M10X16 FLANGE	0-28051-016-0	01	1	1306-	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) (C) M8X12 FLANGE	0-28050-812-0	01	1	1306-	●	●	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	1306-	●	●	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	1306-	●	●	●
325	WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) ID=8.4 OD=18	0-91610-608-0	01	1	1306-	●	●	●
329	CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	1306-	●
329	CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98102-465-0	01	1	1306-		●	●
329	CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98030-126-1	01	1	1306-	●
534	BOLT 4HK1-TCN ENG(RDQ) M10X55 FLANGE	8-97365-449-0	03	1	1306-	●	●	●
668	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B)	8-98011-484-0	01	1	1306-	●	●	●
668	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C)	8-98205-089-0	01	1	1306-	●	●	●
668	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (A)	8-98001-095-0	01	1	1306-	●	●	●
699	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C) L=213.5	8-98000-506-1	02	1	1306-	●	●	●
699	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) L=213.5	8-98000-506-1	01	1	1306-	●	●	●
699	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) L=146.2	8-98052-677-0	01	1	1306-	●	●	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1510-	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1510-	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1510-	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1510-	●
700	TUBE; DISTANCE 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	1306-	●	●	●

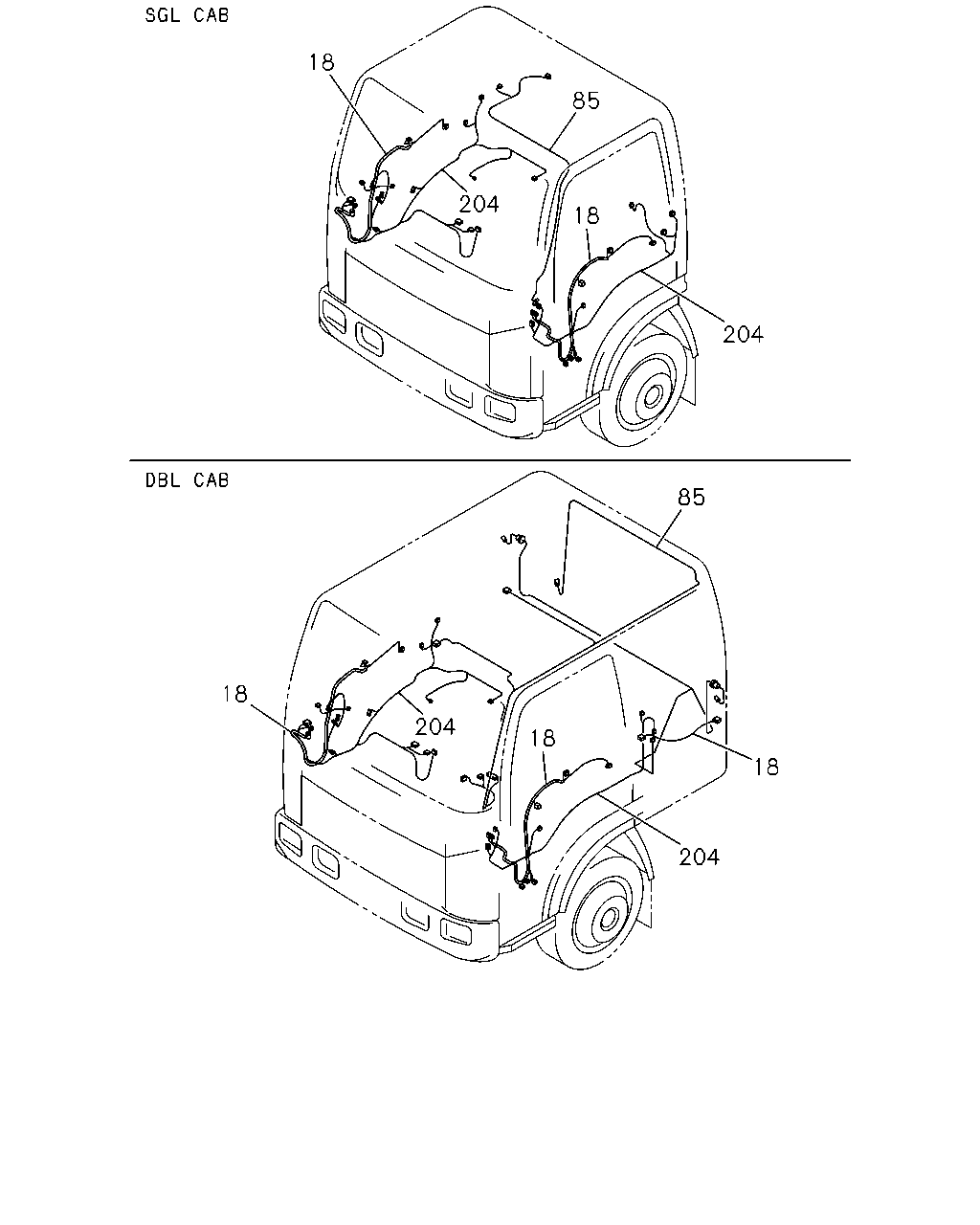

18 85 204 18 204 85 18 18 204 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98071-076-2	01	1	1306-	●	●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-076-2	01	1	1306-			●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98071-084-3	01	1	1306-	●	●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-084-3	01	1	1306-			●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98071-075-2	01	1	1306-	●	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-075-2	01	1	1306-			●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98071-083-2	01	1	1306-	●	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98071-083-2	01	1	1306-			●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> REAR	8-98202-555-0	02	1	1306-			●
85	HARNESS; ROOM LAMP	8-98047-149-3	01	1	1306-	●	●
85	HARNESS; ROOM LAMP	8-98029-741-4	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98047-156-6	01	1	1306-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98047-157-6	01	1	1306-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF)	8-98074-592-3	01	1	1306-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF)	8-98075-612-3	01	1	1306-	●	●
204	HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	1306-	●	●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-789-4	01	1	1306-	●	●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-787-4	01	1	1306-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-727-6	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98029-726-6	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98070-797-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98070-793-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31>	8-98074-594-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98074-593-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-796-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-792-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-810-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98070-795-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98070-791-3	01	1	1306-			●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOWFRT&REAR DOOR<A31>	8-98070-809-3	01	1	1306-			●

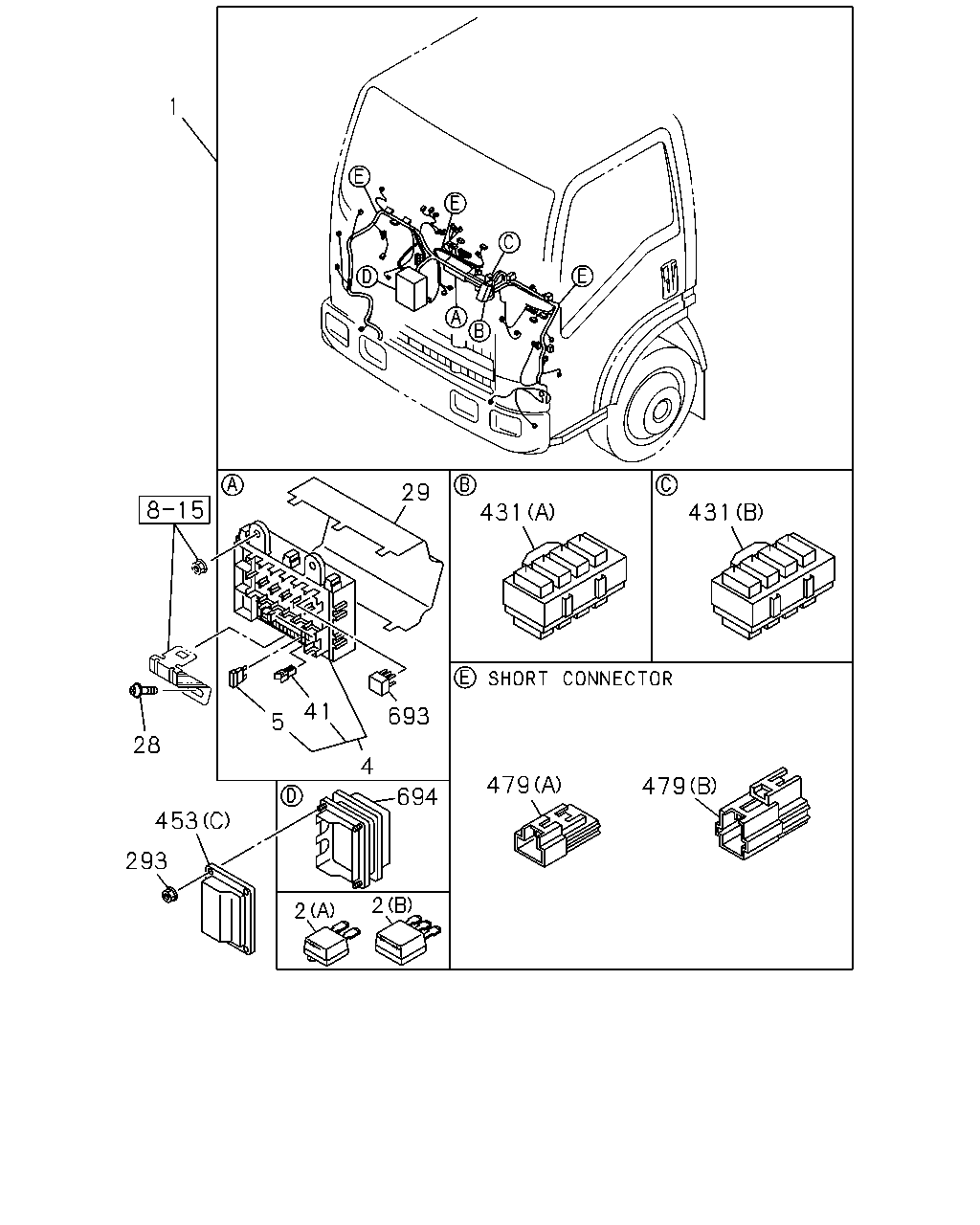

1 431 431 479 479 693 694 2 2 4 41 5 453 293 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-670-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-670-0	01	1	1311-		●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-669-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-669-0	01	1	1311-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-684-0	01	1	1306-1310	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-684-0	01	1	1306-1310		●
1	HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98207-684-0	01	1	1311-1402	●
1	HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98260-102-0	01	1	1403-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-656-0	01	1	1306-1310	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-656-0	01	1	1306-1310		●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-656-0	01	1	1306-1310			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98207-656-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-656-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-656-0	01	1	1311-		●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-656-0	01	1	1311-			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-683-0	01	1	1306-1310	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-683-0	01	1	1306-1310		●
1	HARNESS; CAB 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HYDRO BRAKE BOOSTER(7QQ)	8-98207-683-0	01	1	1311-1402	●
1	HARNESS; CAB 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HYDRO BRAKE BOOSTER(7QQ)	8-98260-101-0	01	1	1403-	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-655-0	01	1	1306-1310	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-655-0	01	1	1306-1310		●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-655-0	01	1	1306-1310			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HYDRO BRAKE BOOSTER(7QQ)	8-98207-655-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-655-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-655-0	01	1	1311-		●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-655-0	01	1	1311-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-691-0	01	1	1306-1310			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-676-0	01	1	1311-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-663-0	01	1	1306-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-689-0	01	1	1306-1310			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-674-0	01	1	1311-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-690-0	01	1	1306-1310			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-675-0	01	1	1311-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-662-0	01	1	1306-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-688-0	01	1	1306-1310			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-673-0	01	1	1311-			●
2	DIODE; CABLE HARNESS (A) BLACK 2P-1.5A SOU	8-94422-639-1	AR	1	1306-1310	●	●	●
2	DIODE; CABLE HARNESS (A) BLACK 2P-1.5A SOU	8-94422-639-1	05	1	1311-	●	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A SOU	8-94422-640-1	AR	1	1306-1310	●	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A SOU	8-94422-640-1	02	1	1311-	●	●	●
4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1306-	●	●	●
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	1306-	●	●	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	1306-	●	●	●
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	1306-	●	●	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1306-	●	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1306-	●	●	●
41	PULLER; FUSE SOU	8-98054-260-0	01	1	1306-	●	●	●
293	NUT M6 FLANGE SOU	0-91180-106-0	04	1	1306-	●	●	●
431	CONNECTOR; JOINT (A)	8-98046-205-0	01	1	1306-	●	●	●
431	CONNECTOR; JOINT (B)	8-98046-206-0	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-94417-716-0	02	1	1306-	●	●	●
453	PROTECTOR; HARNESS 4JJ1-TCC ENG(RDU) (A)	8-94417-716-0	01	1	1306-	●	●	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1306-	●	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1306-	●	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1306-	●	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1306-	●	●	●
694	BOX ASM; CONNECTOR	8-98057-772-0	01	1	1306-	●	●	●

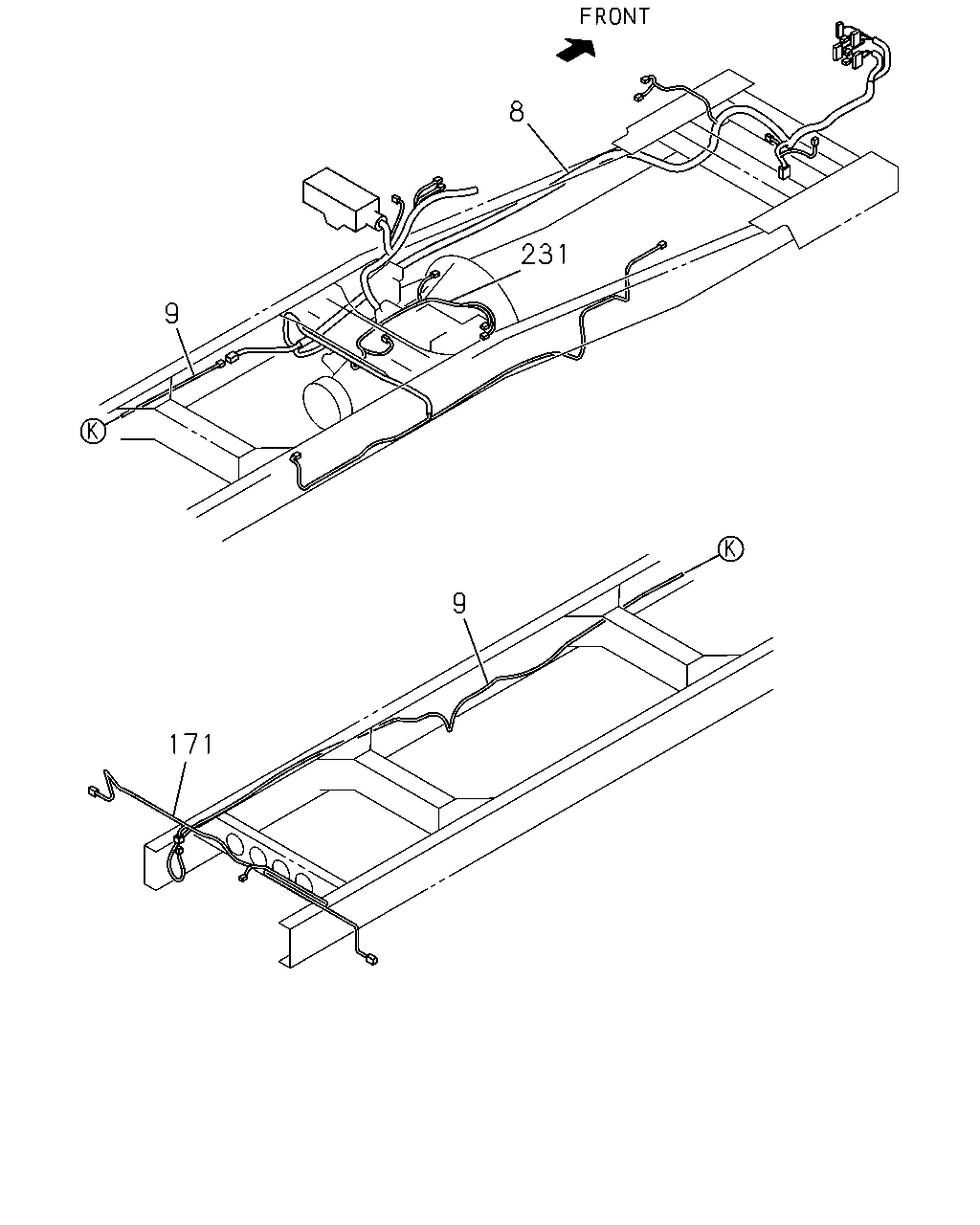

8 9 231 171 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	1306-1409		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	1306-1409		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-		●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98220-976-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98294-427-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98240-749-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98293-991-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98220-883-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98294-426-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98240-748-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98293-990-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98101-915-3	01	1	1306-1409		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-276-0	01	1	1410-		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-287-9	01	1	1306-1409			●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-237-0	01	1	1410-			●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-284-8	01	1	1306-1409			●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-234-0	01	1	1410-			●
9	HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-251-0	01	1	1308-		●
9	HARNESS; FRAME,RR WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-259-0	01	1	1308-		●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ>	8-98117-253-0	01	1	1306-	●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-253-0	01	1	1306-		●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-002-1	01	1	1306-	●
9	HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ>	8-98117-254-0	01	1	1306-	●
9	HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-010-1	01	1	1306-	●
9	HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-248-0	01	1	1306-		●
9	HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-250-0	01	1	1306-		●
9	HARNESS; FRAME,RR WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-255-0	01	1	1306-		●
9	HARNESS; FRAME,RR	8-98117-257-0	01	1	1306-			●
171	HARNESS; CABLE,TAIL LAMP	8-98156-027-0	01	1	1306-	●	●	●
231	HARNESS; TRANS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-2	01	1	1306-	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-2	01	1	1306-		●	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98029-598-1	01	1	1306-	●

101 101 101 290 542 267 666 290 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	1306-	●	●	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-137-2	01	1	1306-	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (A)	8-98079-137-2	01	1	1306-		●	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (B)	8-98094-483-1	01	1	1306-	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) EXC. EURO3 SPECIFICATION(NT3) (B)	8-98094-483-1	01	1	1306-		●	●
101	BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98030-725-1	01	1	1306-	●
101	BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98032-447-1	01	1	1306-	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) (C) M8X12 FLANGE	0-28050-812-0	01	1	1306-	●	●	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) M6X12 FLANGE SOU	0-28050-612-0	02	1	1306-	●	●	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	1306-	●	●	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A) M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
290	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●	●
290	NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
374	PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>,ROOM LAMP W/ALL DOORS SW(SDF) (A) OD=32 BLACK	8-98031-126-0	01	1	1306-	●	●
374	PLUG; HARNESS CONNECTOR (B) OD=24.5 T=7.5	8-97224-683-0	01	1	1306-			●
542	GROMMET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	01	1	1306-	●
666	BRACKET; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98110-213-0	01	1	1306-	●	●	●

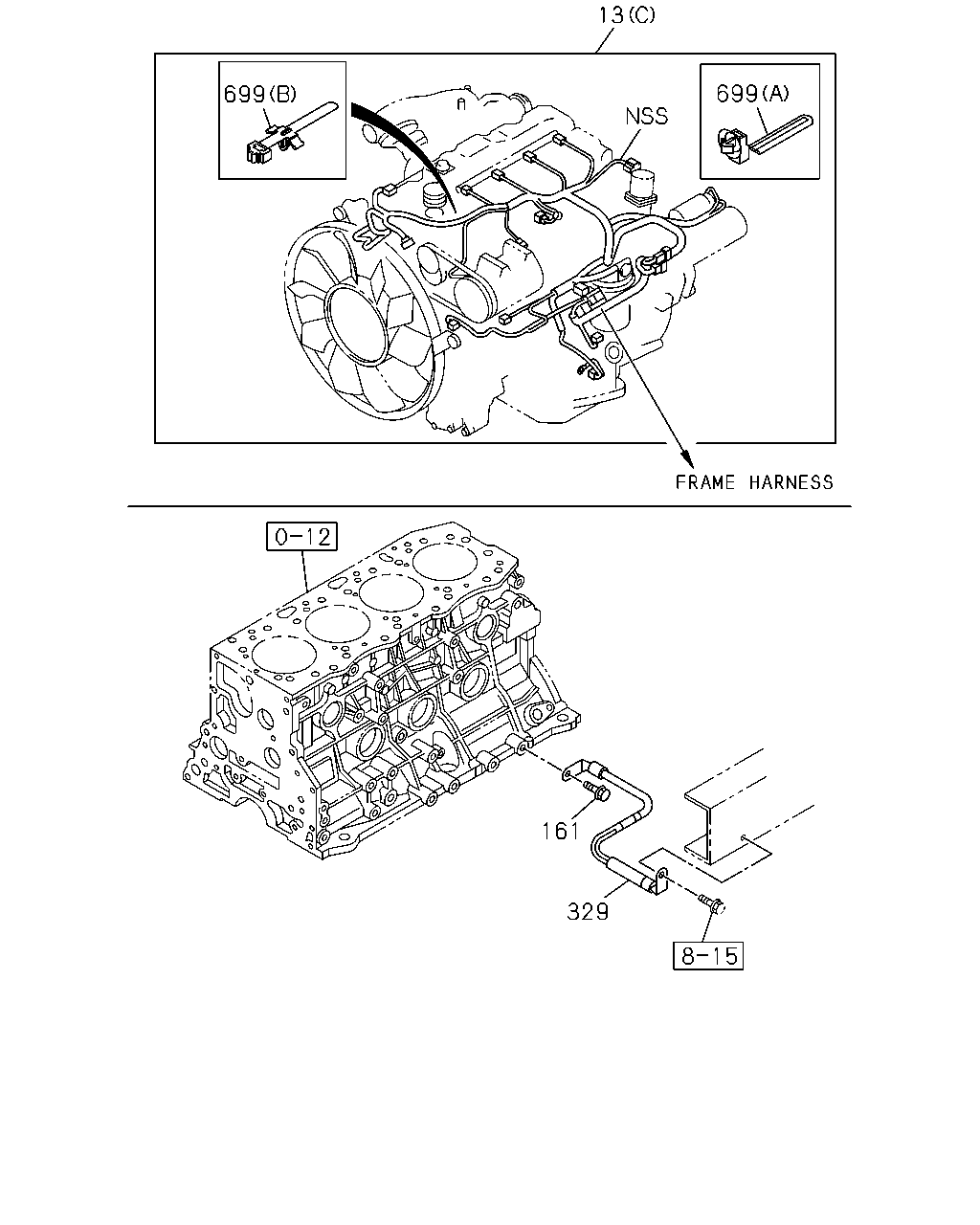

13 699 699 161 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1306-	●	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1306-	●	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1306-	●	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) (A)	8-98178-539-0	01	1	1306-	●	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) (A)	8-98178-540-0	01	1	1306-	●	●	●
13	HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98172-158-1	01	1	1306-	●
13	HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (C)	8-98182-851-1	01	1	1306-	●
161	BOLT; GROUND,HARNESS 4HK1-TCN ENG(RDQ) M8X16 FLANGE SOU	0-28050-816-0	01	1	1306-	●	●	●
161	BOLT; GROUND,HARNESS 4JJ1-TCC ENG(RDU) M10X16 FLANGE	0-28051-016-0	01	1	1306-	●
329	CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	1306-	●
329	CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98102-465-0	01	1	1306-		●	●
329	CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98030-126-1	01	1	1306-	●
699	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C) L=213.5	8-98000-506-1	02	1	1306-	●	●	●
699	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) L=213.5	8-98000-506-1	01	1	1306-	●	●	●
699	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) L=146.2	8-98052-677-0	01	1	1306-	●	●	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1510-	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140	8-97122-360-0	03	1	1510-	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1306-1306	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1307-1509	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1510-	●
699	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98088-438-0	01	1	1510-	●

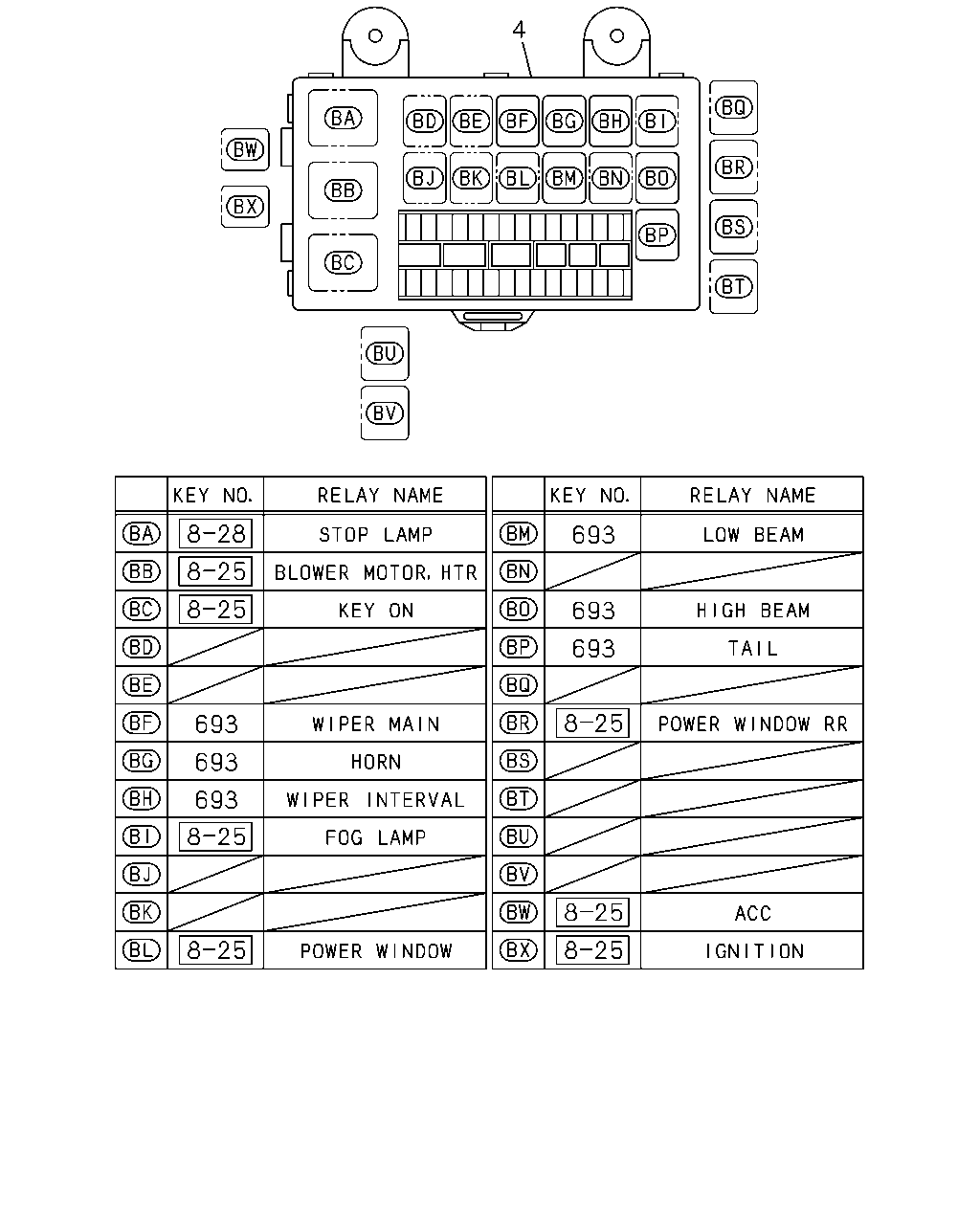

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1306-	●	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1306-	●	●	●

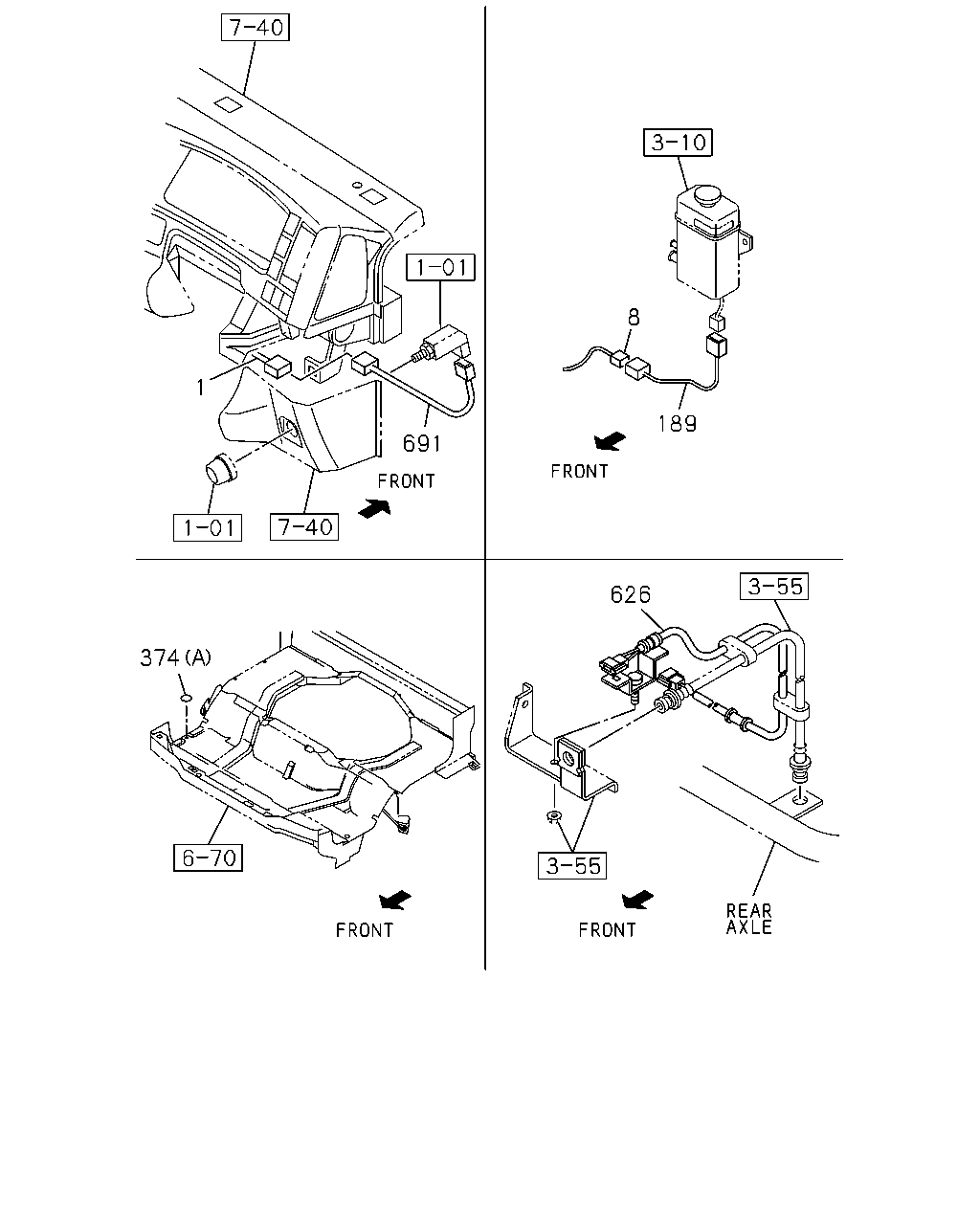

189 691 8 1 374 626

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-670-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-670-0	01	1	1311-		●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-669-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-669-0	01	1	1311-		●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-684-0	01	1	1306-1310	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-684-0	01	1	1306-1310		●
1	HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98207-684-0	01	1	1311-1402	●
1	HARNESS; CAB 4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98260-102-0	01	1	1403-	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-656-0	01	1	1306-1310	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-656-0	01	1	1306-1310		●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-656-0	01	1	1306-1310			●
1	HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98207-656-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-656-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-656-0	01	1	1311-		●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-656-0	01	1	1311-			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-683-0	01	1	1306-1310	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-683-0	01	1	1306-1310		●
1	HARNESS; CAB 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HYDRO BRAKE BOOSTER(7QQ)	8-98207-683-0	01	1	1311-1402	●
1	HARNESS; CAB 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HYDRO BRAKE BOOSTER(7QQ)	8-98260-101-0	01	1	1403-	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-655-0	01	1	1306-1310	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-655-0	01	1	1306-1310		●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-655-0	01	1	1306-1310			●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HYDRO BRAKE BOOSTER(7QQ)	8-98207-655-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-655-0	01	1	1311-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-655-0	01	1	1311-		●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-655-0	01	1	1311-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-691-0	01	1	1306-1310			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-676-0	01	1	1311-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-663-0	01	1	1306-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-689-0	01	1	1306-1310			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98207-674-0	01	1	1311-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-690-0	01	1	1306-1310			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-675-0	01	1	1311-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98207-662-0	01	1	1306-			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-688-0	01	1	1306-1310			●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&REAR DOOR<A31>	8-98207-673-0	01	1	1311-			●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-286-9	01	1	1306-1409		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-236-0	01	1	1410-		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-283-8	01	1	1306-1409		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-233-0	01	1	1410-		●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98220-976-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98294-427-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98240-749-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98293-991-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98220-883-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98294-426-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98240-748-0	01	1	1306-1409	●
8	HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ>	8-98293-990-0	01	1	1410-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98101-915-3	01	1	1306-1409		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-276-0	01	1	1410-		●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-287-9	01	1	1306-1409			●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-237-0	01	1	1410-			●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-284-8	01	1	1306-1409			●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-234-0	01	1	1410-			●
189	HARNESS; EXT 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98095-676-0	01	1	1306-			●
374	PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>,ROOM LAMP W/ALL DOORS SW(SDF) (A) OD=32 BLACK	8-98031-126-0	01	1	1306-	●	●
374	PLUG; HARNESS CONNECTOR (B) OD=24.5 T=7.5	8-97224-683-0	01	1	1306-			●
626	HARNESS; FLEX HOSE FRAME STRAIGHT TYPE<7KJ>	8-97253-968-1	01	1	1306-	●
626	HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-968-1	01	1	1306-		●
626	HARNESS; FLEX HOSE	8-97253-968-1	01	1	1306-			●
626	HARNESS; FLEX HOSE FRAME STRAIGHT TYPE<7KJ>	8-97253-969-1	01	1	1306-	●
626	HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-969-1	01	1	1306-		●
626	HARNESS; FLEX HOSE	8-97253-969-1	01	1	1306-			●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1306-	●
691	HARNESS; IDLE CONT 4HK1-TCN ENG(RDQ)	8-98049-014-2	01	1	1306-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
