◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#122743) — 68 parça

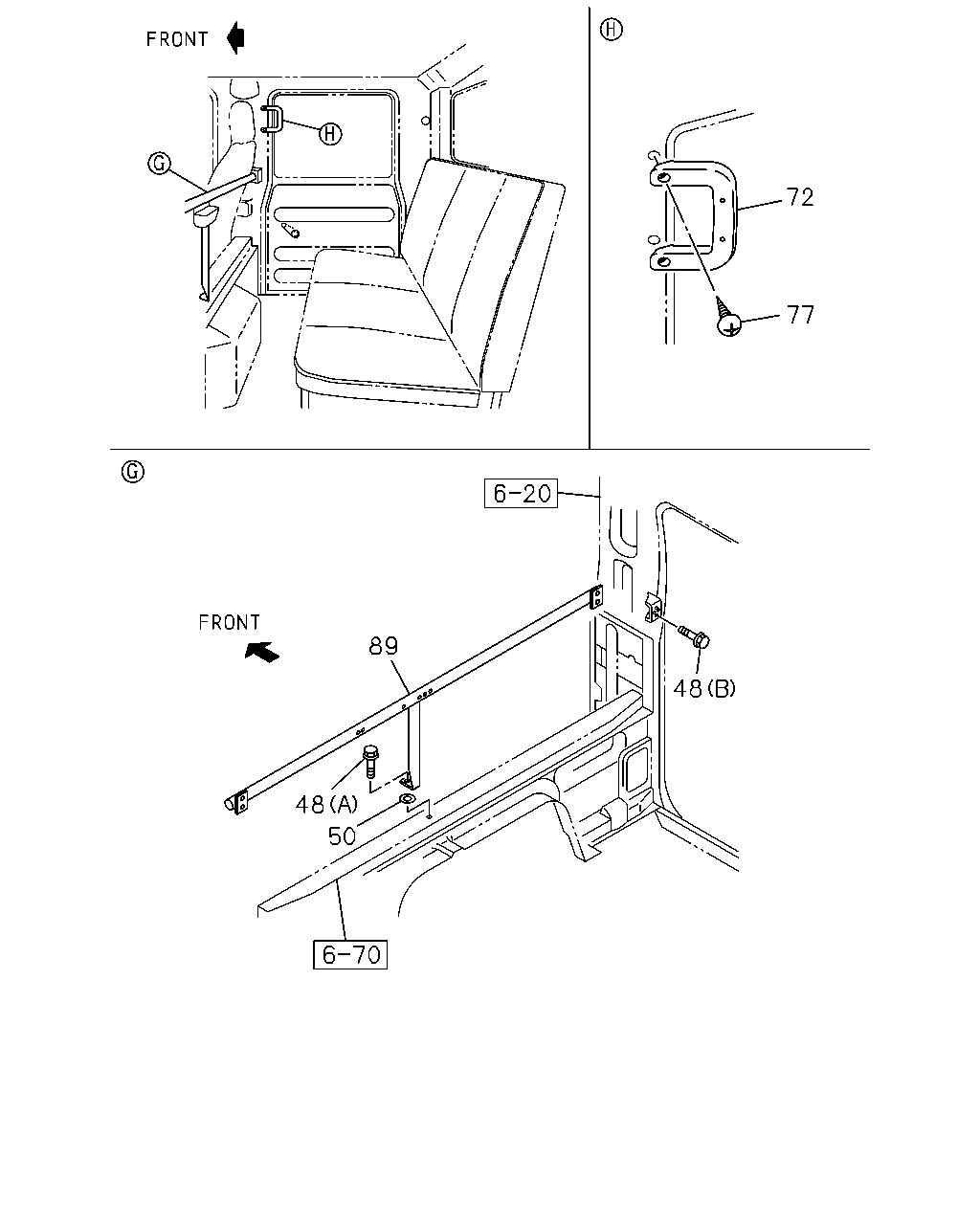

çizim 357222
72 77 48 89 48 50
BalonParca AdiParca NoAdetTipApplied Date A B C
48 BOLT; ASSIST GRIP
(B) M6X10 FLANGE SOU 		0-28050-610-0 04 1 1306- ●
48 BOLT; ASSIST GRIP
(A) M6X20 FLANGE SOU 		0-28650-620-0 01 1 1306- ●
50 WASHER; PL,ASSIST GRIP
ID=8.4 OD=16 SOU 		0-91610-508-0 01 1 1306- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
DARK GRAY 		8-97405-249-2 02 1 1306- ●
77 SCREW; ASSIST GRIP
M6X28 		8-98004-344-0 04 1 1306- ●
89 HANDLE; ASSIST 8-97583-743-3 01 1 1306- ●

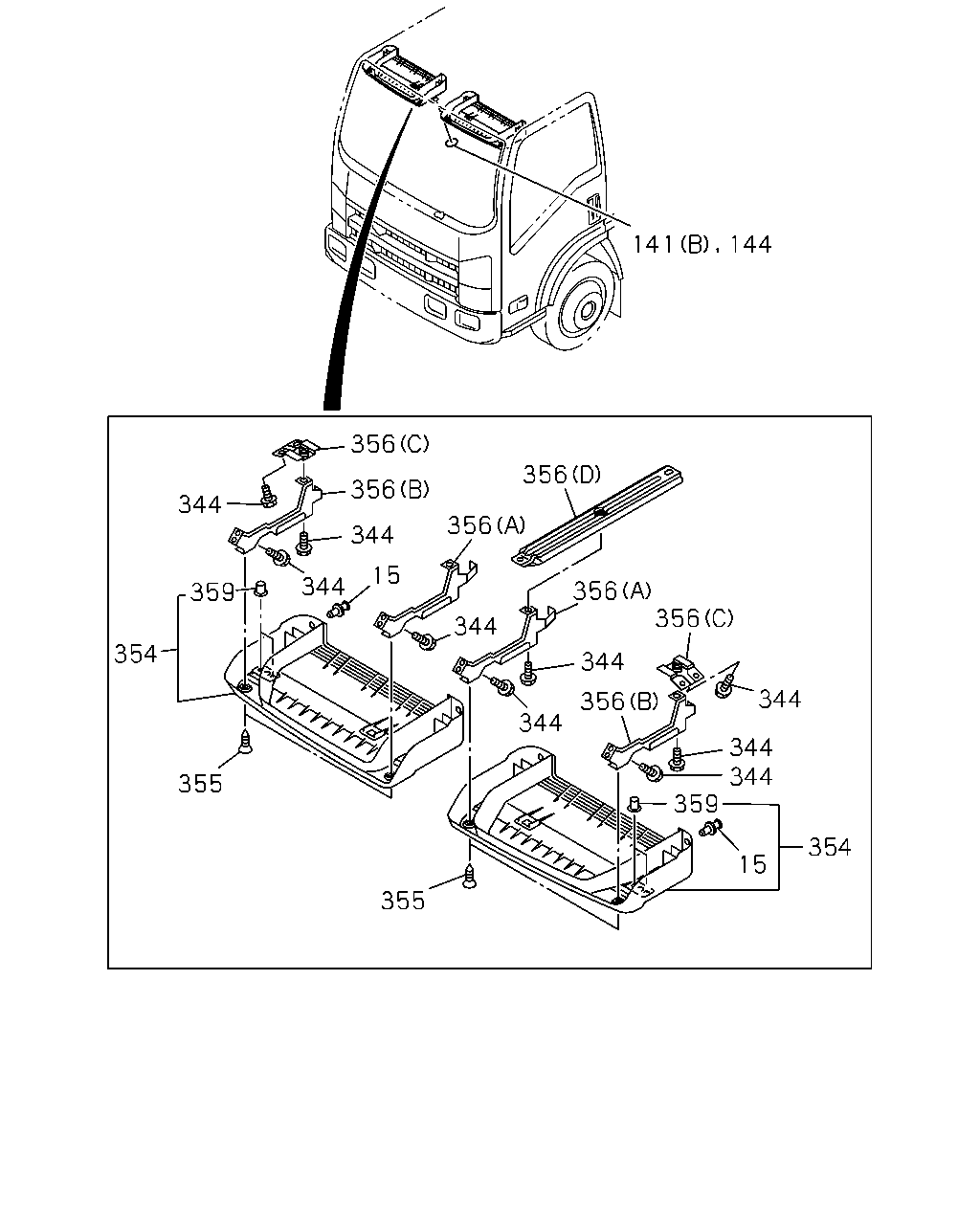

çizim 357487
141 144 356 356 356 356 344 344 344 359 354 355 15 344 356 356 344 344 344 354 15 359 356 344 344 355
BalonParca AdiParca NoAdetTipApplied Date A B C
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1306- ● ● ●
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1306- ● ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1306- ● ● ●
141 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1306- ● ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1306- ● ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1306- ● ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1306- ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1306-1503 ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1306-1503 ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1306-1503 ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1504- ● ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306-1503 ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306-1503 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306-1503 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306-1503 ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ● ●
144 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE 		8-97108-669-0 08 1 1306- ● ● ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE 		8-97108-669-0 08 1 1306- ● ● ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-064-2 01 1 1306- ● ● ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-065-2 01 1 1306- ● ● ●
355 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1306- ● ● ●
355 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1306- ● ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1306- ● ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1306- ● ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1306- ● ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1306- ● ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-022-4 01 1 1306- ● ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-023-4 01 1 1306- ● ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1306- ● ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1306- ● ● ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1306- ● ● ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1306- ● ● ●

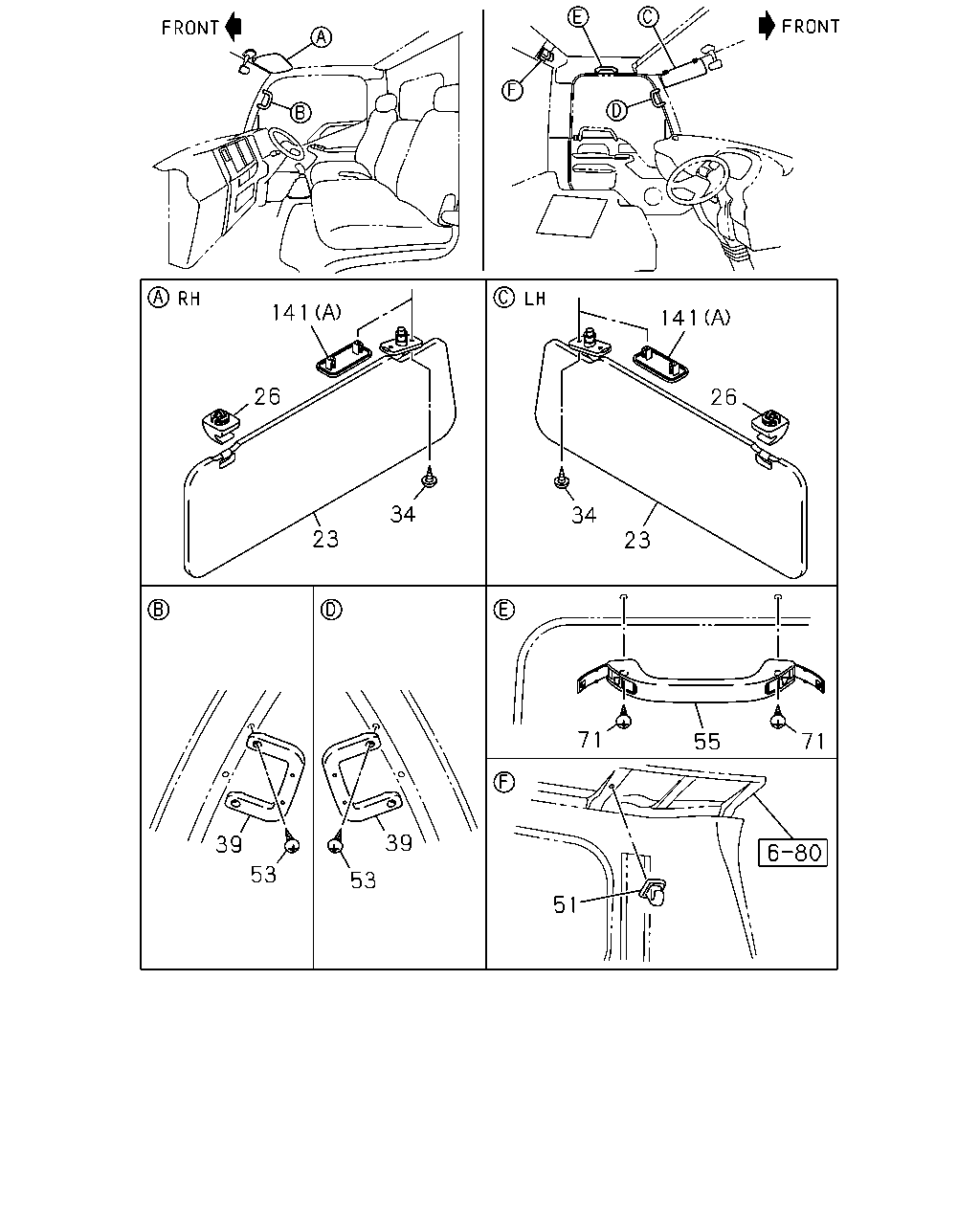

çizim 357636
141 26 23 34 34 23 26 141 53 39 53 39 51 71 55 71
BalonParca AdiParca NoAdetTipApplied Date A B C
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-170-3 01 1 1306- ● ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-169-1 01 1 1306- ● ● ●
23 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-059-1 01 1 1306- ● ● ●
23 SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> DARK GRAY 		8-97407-895-0 01 1 1306- ● ● ●
26 HOLDER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1306- ● ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1306- ● ● ●
26 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER &PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1306- ● ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1306- ● ● ●
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 02 1 1306- ● ● ●
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1306- ● ● ●
34 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1306- ● ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 1306- ● ● ●
51 HOOK; COAT HANGER
COAT HOOK<S9M> DARK GRAY 		8-97406-200-0 01 1 1306- ● ●
53 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 1306- ● ● ●
55 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 1306- ● ● ●
71 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 1306- ● ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1306- ● ● ●
141 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1306- ● ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1306- ● ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1306- ● ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1306- ● ● ●
