◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#122739) — 45 parça

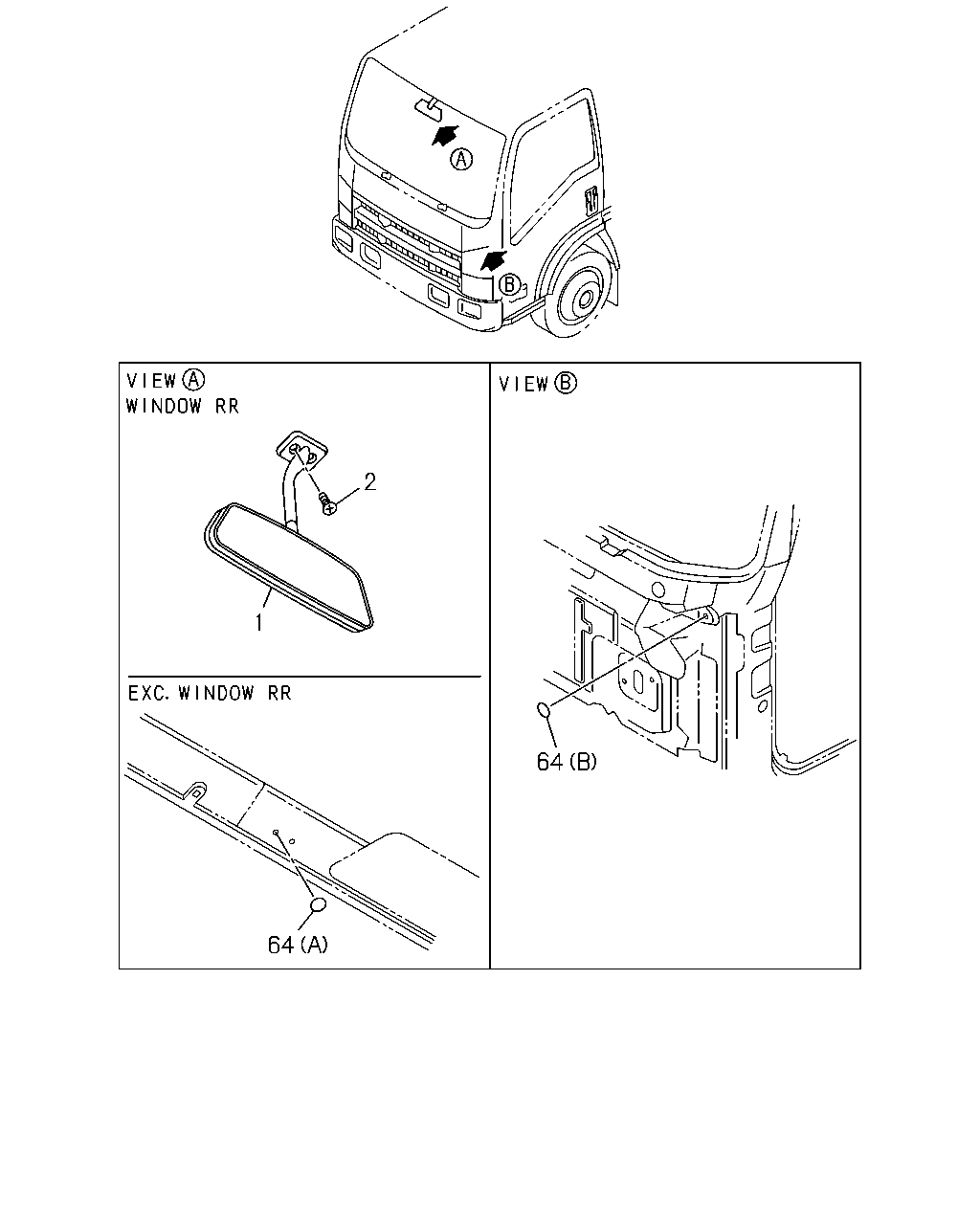

çizim 356861
2 64 64 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 1306- ● ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1306- ●
2 SCREW; MIRROR TO BODY
WINDOW RR<8LF> M6X26 		8-98033-674-0 02 1 1306- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1306- ●
64 SEAL; MIRROR
(C) OD=52 BLACK SOU 		1-76798-041-0 02 1 1306- ● ● ●
64 SEAL; MIRROR
(B) OD=25 BLACK SOU 		1-76798-019-0 02 1 1306- ● ● ●
64 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1306- ● ●
64 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1306- ● ●

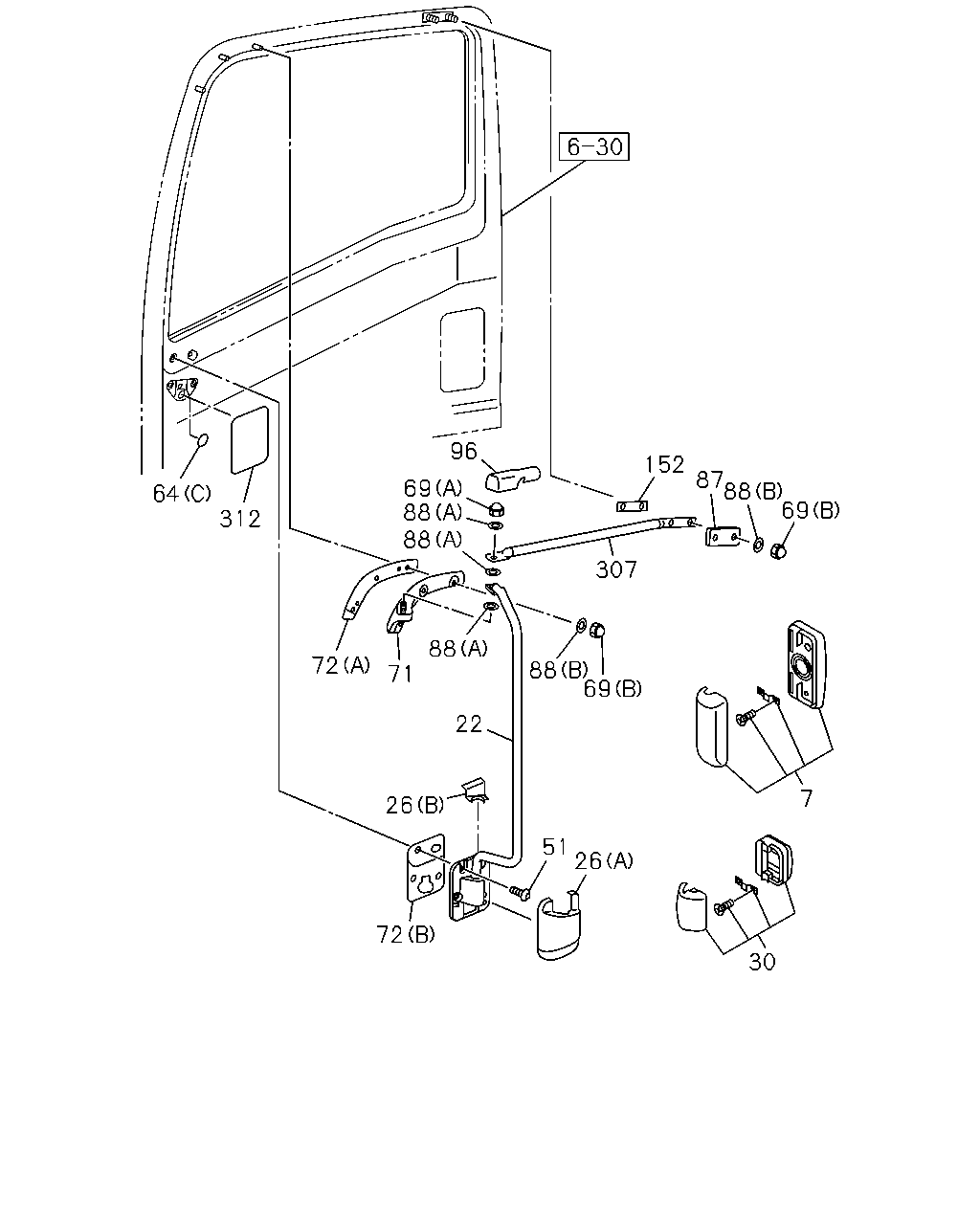

çizim 357028
64 312 96 69 88 88 72 71 22 88 88 69 307 152 87 88 69 7 30 26 51 72 26
BalonParca AdiParca NoAdetTipApplied Date A B C
7 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-991-1 01 1 1306- ● ● ●
7 MIRROR ASM; DOOR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98055-992-1 01 1 1306- ● ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-98166-180-0 01 1 1306- ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-180-0 01 1 1306- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-98166-181-0 01 1 1306- ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-181-0 01 1 1306- ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> 		8-98158-846-0 01 1 1306- ● ● ●
22 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> 		8-98158-847-0 01 1 1306- ● ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98158-848-0 01 1 1306- ● ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98158-849-0 01 1 1306- ● ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-191-0 01 1 1306- ●
26 COVER; OUTSIDE MIRROR
(A) SOU 		8-98031-802-2 01 1 1306- ● ● ●
26 COVER; OUTSIDE MIRROR
(A) SOU 		8-98031-803-2 01 1 1306- ● ● ●
26 COVER; OUTSIDE MIRROR
(B) SOU 		8-98031-805-0 01 1 1306- ● ● ●
26 COVER; OUTSIDE MIRROR
(B) SOU 		8-98031-806-0 01 1 1306- ● ● ●
30 MIRROR; UNDER 8-98043-061-0 02 1 1306- ●
51 SCREW; MIRROR
M8X23 SOU 		8-97310-216-1 08 1 1306- ● ● ●
64 SEAL; MIRROR
(C) OD=52 BLACK SOU 		1-76798-041-0 02 1 1306- ● ● ●
64 SEAL; MIRROR
(B) OD=25 BLACK SOU 		1-76798-019-0 02 1 1306- ● ● ●
64 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1306- ● ●
64 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1306- ● ●
69 NUT; CAP
(A) M10 CAP NUT SOU 		8-98059-913-0 02 1 1306-1404 ● ● ●
69 NUT; CAP
(A) M10 CAP NUT SOU 		1-09984-134-0 02 1 1405- ● ● ●
69 NUT; CAP
(B) M8 CAP NUT SOU 		8-98059-914-0 10 1 1306- ● ● ●
71 BRACKET; OUTSIDE MIRROR
SOU 		8-98031-793-2 01 1 1306- ● ● ●
71 BRACKET; OUTSIDE MIRROR
SOU 		8-98031-794-2 01 1 1306- ● ● ●
72 SHEET
(A) SOU 		8-98031-796-0 01 1 1306- ● ● ●
72 SHEET
(A) SOU 		8-98031-797-0 01 1 1306- ● ● ●
72 SHEET
(B) SOU 		8-98080-418-0 02 1 1306- ● ● ●
87 SPACER
SOU 		8-98063-789-0 02 1 1306- ● ● ●
88 WASHER; PL,SUPPORT STAY
(B) ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 10 1 1306- ● ● ●
88 WASHER; PL,SUPPORT STAY
(A) ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 06 1 1306- ● ● ●
96 CAP; MIRROR STAY
SOU 		8-98080-173-0 02 1 1306- ● ● ●
152 SHEET; MIRROR STAY
SOU 		8-98063-786-0 02 1 1306- ● ● ●
307 STAY; MIRROR SUPPORT
SOU 		8-98063-784-2 01 1 1306- ● ● ●
307 STAY; MIRROR SUPPORT
SOU 		8-98063-785-2 01 1 1306- ● ● ●
312 TAPE 8-98164-812-0 02 1 1306- ● ● ●
