◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#122738) — 35 parça

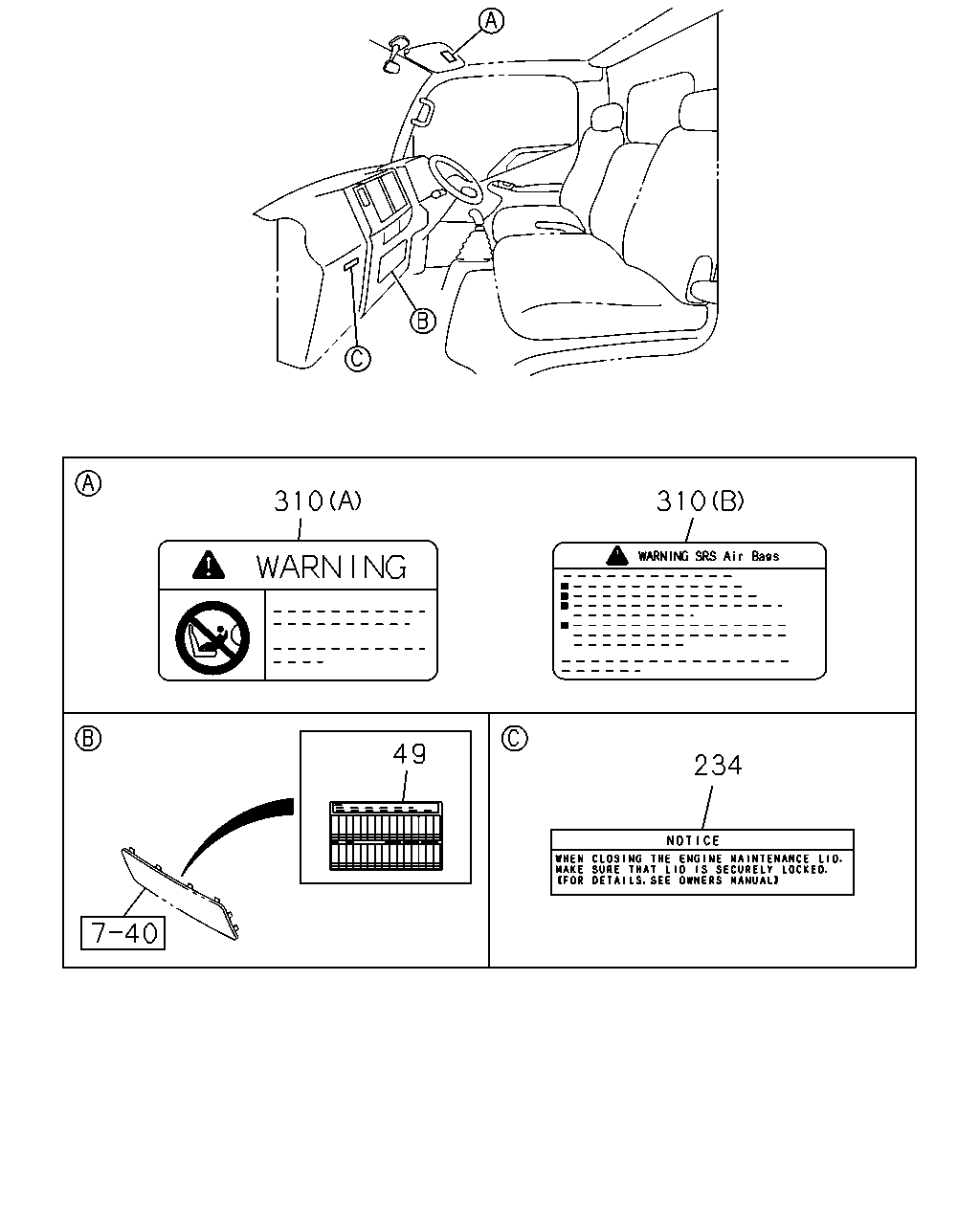

çizim 356668
310 234 49 310
BalonParca AdiParca NoAdetTipApplied Date A B C
49 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1306- ●
49 PLATE; CAUTION,FUSE BOX
4HK1-TCN ENG(RDQ) 		8-98090-175-0 01 1 1306- ● ●
234 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1306- ● ●
234 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 1306- ●
234 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1306- ● ●
234 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1306- ●
310 LABEL; WARNING,SRS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CAUTION SPANISH<YN1> (B) DRIVER 		8-98224-287-0 01 1 1306- ● ● ●
310 LABEL; WARNING,SRS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. CAUTION SPANISH<YN1> (B) DRIVER 		8-98139-964-0 01 1 1306- ● ● ●
310 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> (A) PASSENGER 		8-98080-839-0 01 1 1306- ● ● ●

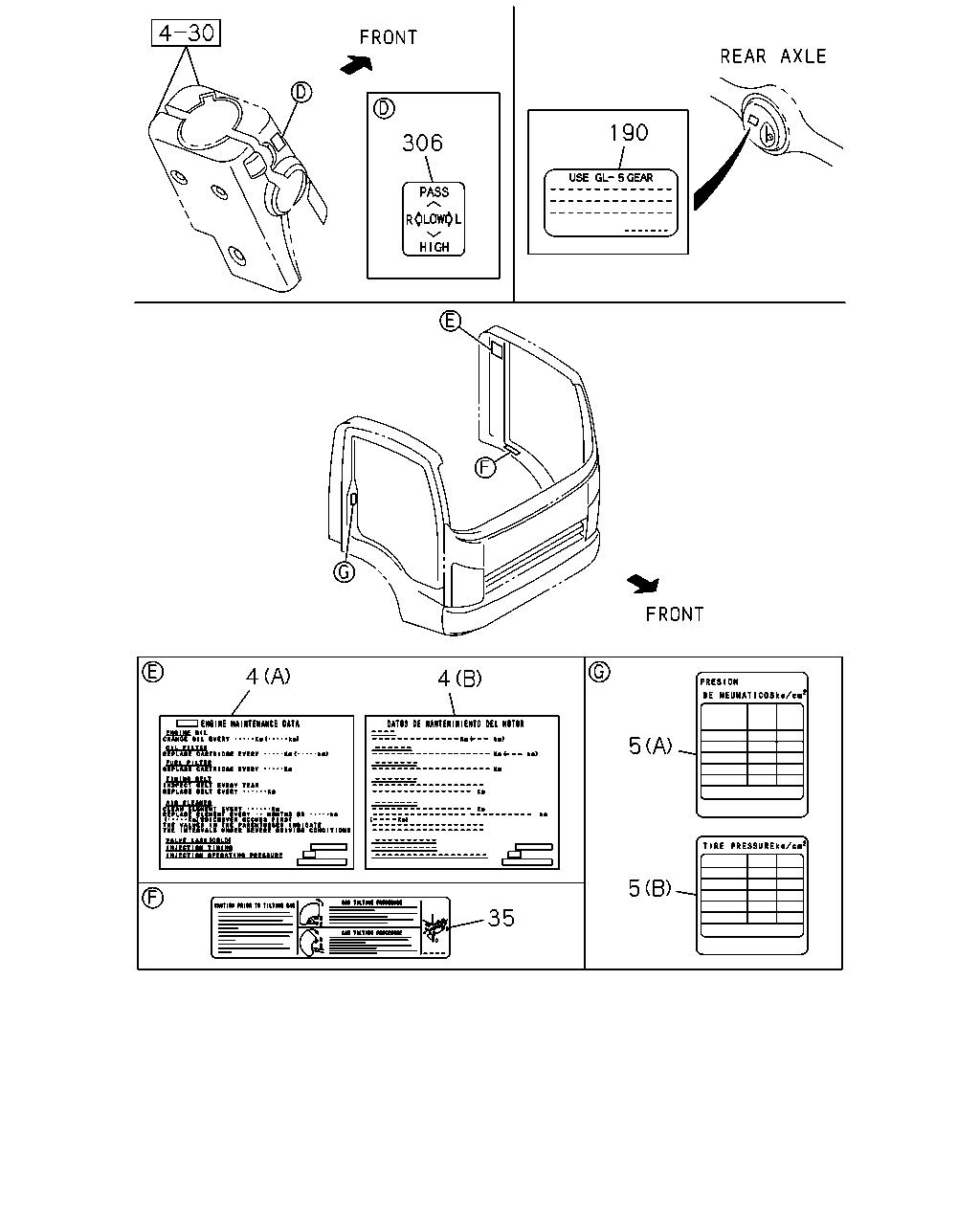

çizim 356738
306 190 4 4 5 5 35
BalonParca AdiParca NoAdetTipApplied Date A B C
4 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1306- ● ● ●
4 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1306- ● ● ●
4 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1306- ●
4 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1306- ●
5 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1407-1507 ●
5 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1508- ●
5 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1508- ●
5 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1407-1507 ●
5 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1508- ●
5 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1508- ●
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1306- ● ●
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1306- ● ●
190 PLATE; CAUTION,OIL CHANGE
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FINAL GEAR RATIO 41/7(R41) FRT&RR 215/85R16 16X6K-128(CSC), FRT&RR7.50R-16-12R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) G.V.W. 6.0-6.5TON(RPV) LIMITED SLIP DIFF<6LV> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97200-740-0 01 1 1306-1406 ●
190 PLATE; CAUTION,OIL CHANGE
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR7.50R-16-12 R/L6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) G.V.W. 6.0-6.5TON(RPV) LIMITED SLIP DIFF<6LV> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97200-740-0 01 1 1407-1507 ●
190 PLATE; CAUTION,OIL CHANGE
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FR T&RR 215/85R16 16X6K-128(CSC),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) G.V.W. 6.0-6.5TON(RPV) LIMITED SLIP DIFF<6LV> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97200-740-0 01 1 1508- ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1306- ● ● ●

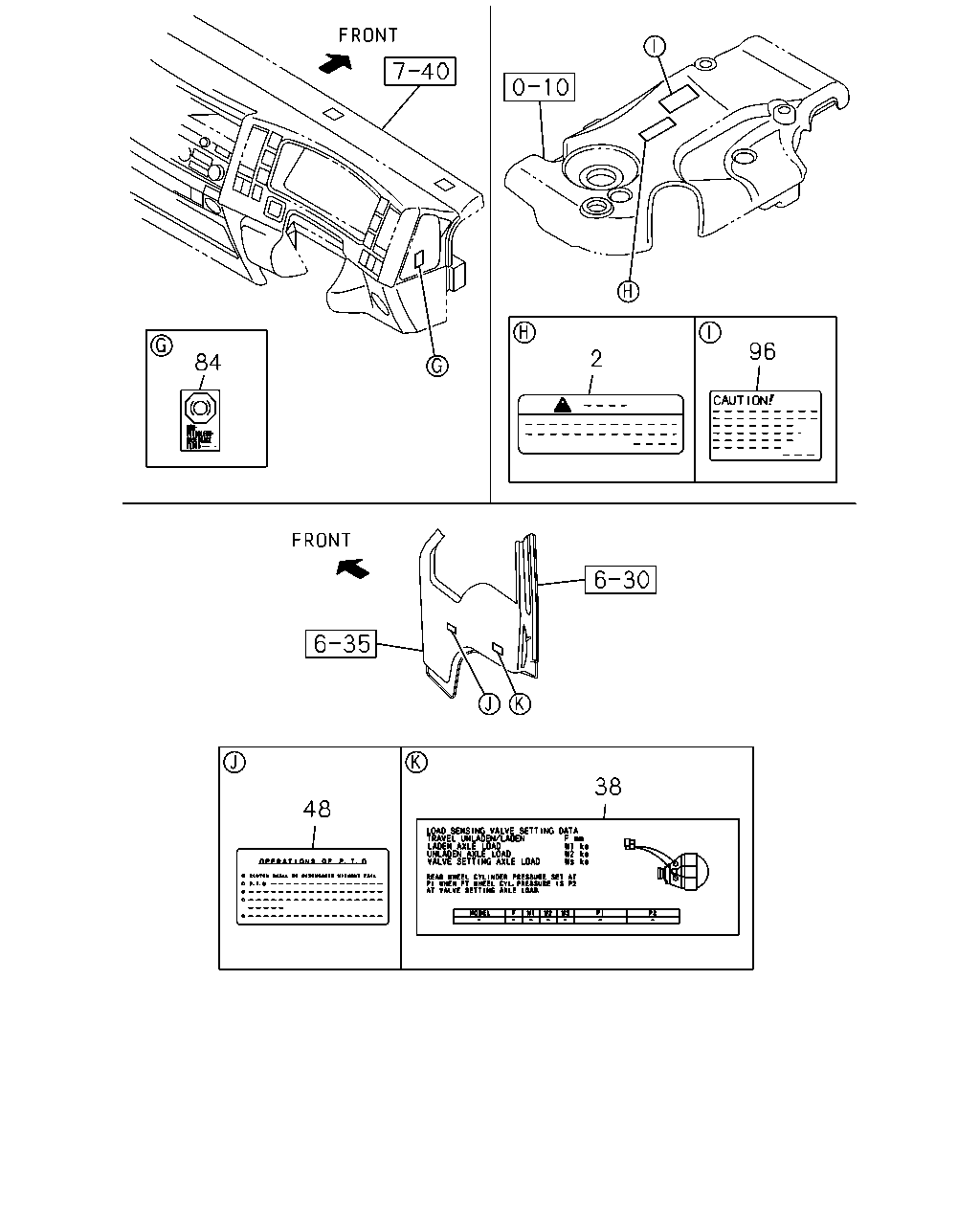

çizim 358760
84 2 96 48 38
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LABEL; FUEL CAUTION
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1306- ●
2 LABEL; FUEL CAUTION
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> 		8-98036-252-0 01 1 1306- ●
38 PLATE; CAUTION,LSV
BRK WHL LK CONT LSPV<6PH> 		8-98100-941-0 01 1 1306- ●
48 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98091-102-0 01 1 1306- ● ● ●
48 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-94313-054-0 01 1 1306- ● ● ●
48 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1306- ● ● ●
48 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> SOU 		8-94469-277-0 01 1 1306- ● ● ●
84 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 1306- ● ● ●
96 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> 		8-98036-112-0 01 1 1306- ●
96 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> 		8-98036-111-1 01 1 1306- ●
