◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#122736) — 23 parça

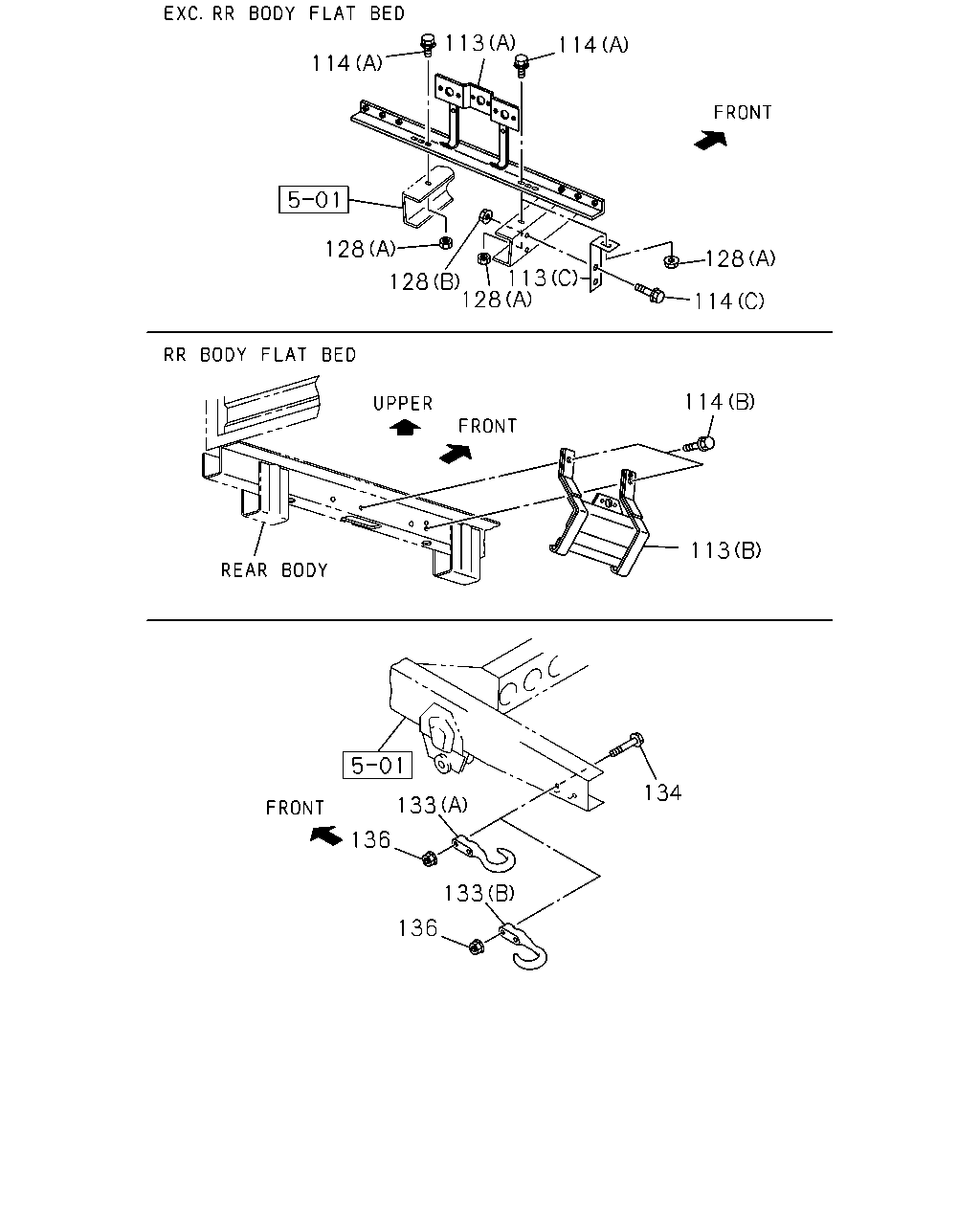

çizim 356553
114 113 114 128 114 113 128 128 128 114 113 134 133 136 136 133
BalonParca AdiParca NoAdetTipApplied Date A B C
113 BRACKET; LICENSE PLATE
RR BODY FLAT BED<RS6> (B) 		8-97077-573-2 01 1 1306- ●
113 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED<RS6> (A) SOU 		8-98029-390-3 01 1 1306- ●
113 BRACKET; LICENSE PLATE
(A) SOU 		8-98029-390-3 01 1 1306- ● ●
113 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W) (C) 		8-98091-681-0 02 1 1306-1307 ●
113 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) 		8-98091-681-0 02 1 1308- ●
114 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED<RS6> (B) M6X25 FLANGE SOU 		0-28650-625-0 02 1 1306- ●
114 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED<RS6> (A) M8X40 FLANGE SOU 		0-28650-840-0 02 1 1306- ●
114 BOLT; BRKT,LICENSE PLATE
(A) M8X40 FLANGE SOU 		0-28650-840-0 02 1 1306- ● ●
114 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W) (C) M10X25 FLANGE 		0-28661-025-0 04 1 1306-1307 ●
114 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) M10X25 FLANGE 		0-28661-025-0 04 1 1308- ●
128 NUT; CROSS PLATE
EXC. RR BODY FLAT BED<RS6> (A) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ●
128 NUT; CROSS PLATE
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
128 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W) (B) M10 FLANGE SOU 		0-91180-110-0 04 1 1306-1307 ●
128 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) M10 FLANGE SOU 		0-91180-110-0 04 1 1308- ●
133 HOOK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) SOU 		8-94249-270-2 01 1 1306-1307 ●
133 HOOK
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A) SOU 		8-94249-270-2 01 1 1306-1307 ●
133 HOOK
(A) SOU 		8-94249-270-2 01 1 1306-1307 ●
133 HOOK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) SOU 		8-94249-270-2 01 1 1308- ●
133 HOOK
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) (A) SOU 		8-94249-270-2 01 1 1308- ●
133 HOOK
(A) SOU 		8-94249-270-2 01 1 1308- ●
133 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) SOU 		8-97387-665-0 01 1 1306- ●
134 BOLT; HOOK
M14X50 SOU 		0-10856-450-0 02 1 1306- ● ● ●
136 NUT; HOOK
M14 FLANGE SOU 		0-91180-214-0 02 1 1306- ● ● ●
