6-47 — MUD GUARD AND INSULATOR (#122722) — 77 parça

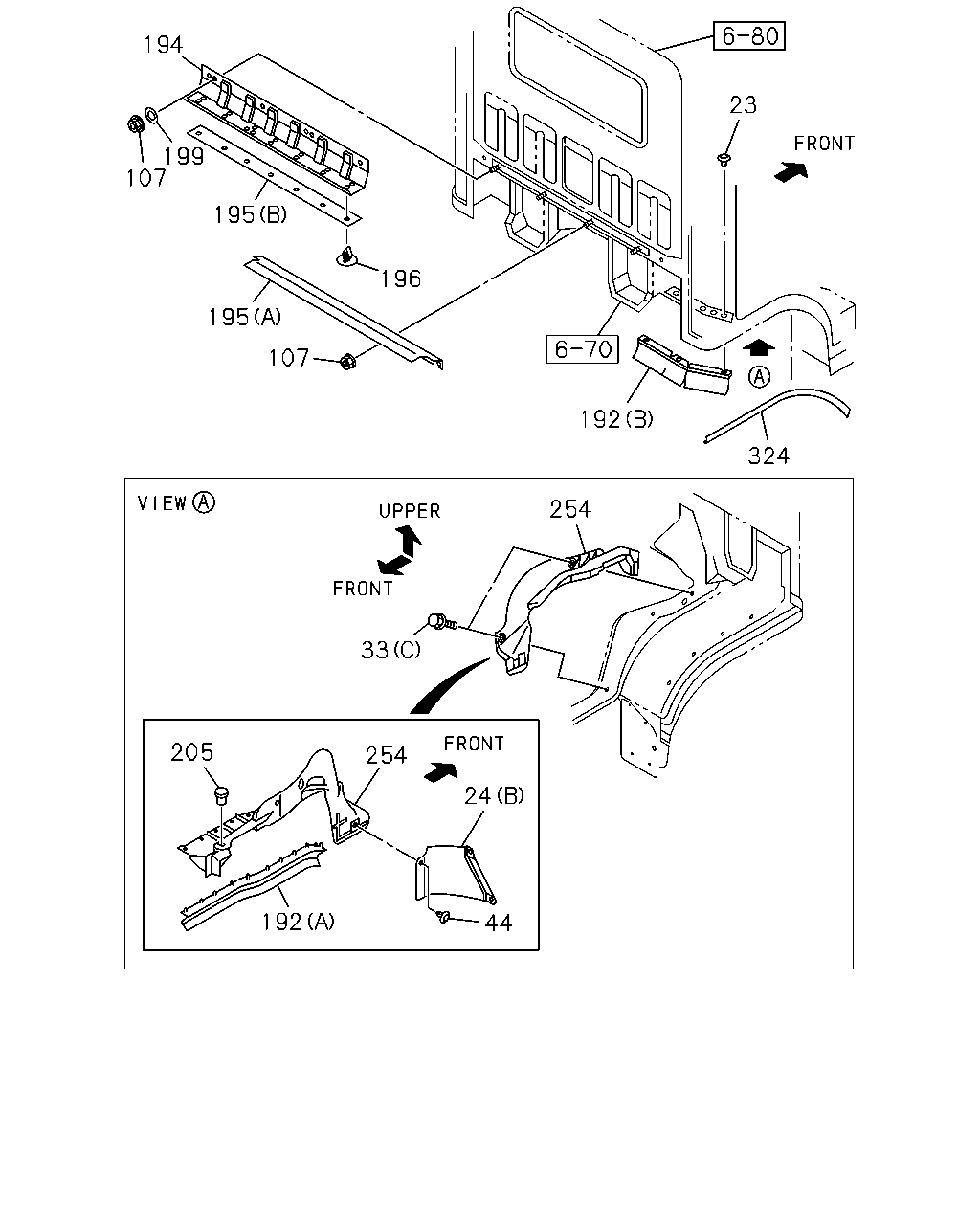

23 324 192 196 107 195 195 107 199 194 33 254 24 44 192 205 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	FASTENER; MUD COVER OD=8.3 SOU	8-97997-832-0	06	1	1306-	●	●	●
24	PLATE; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A)	8-98004-031-1	02	1	1306-	●
24	PLATE; MUD COVER (A)	8-98004-031-1	02	1	1306-		●	●
24	PLATE; MUD COVER (B)	8-98154-258-0	02	1	1306-	●	●	●
33	BOLT; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) M6X16 FLANGE	8-98227-381-0	08	1	1306-	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1306-		●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1306-	●	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1306-	●	●	●
44	CLIP; ANCHOR OD=16 L=11 SOU	1-76378-155-0	06	1	1306-	●	●	●
107	NUT; HEAT PROTECTOR RR BODY FLAT BED<RS6> M6 FLANGE	8-94279-514-0	04	1	1306-	●
107	NUT; HEAT PROTECTOR M6 FLANGE	8-94279-514-0	04	1	1306-			●
192	SEAL; MUD COVER (A)	8-98022-755-1	01	1	1306-	●	●	●
192	SEAL; MUD COVER (A)	8-98022-756-1	01	1	1306-	●	●	●
192	SEAL; MUD COVER (B)	8-98022-782-3	02	1	1306-	●	●	●
194	BRACKET; HEAT PROTECTOR	8-98065-107-0	01	1	1306-			●
195	PROTECTOR; HEAT RR BODY FLAT BED<RS6> (A)	8-98028-224-1	01	1	1306-	●
195	PROTECTOR; HEAT (B)	8-94272-528-1	01	1	1306-			●
196	CLIP; HEAT PROTECTOR SOU	8-94244-922-0	07	1	1306-			●
199	WASHER; PL,HEAT PROTECTOR	8-94292-135-0	04	1	1306-			●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON SOU	8-94242-150-0	02	1	1306-	●	●	●
254	COVER; MUD,VALANCE	8-98022-750-3	01	1	1306-	●	●	●
254	COVER; MUD,VALANCE	8-98022-751-3	01	1	1306-	●	●	●
324	PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1306-	●	●	●

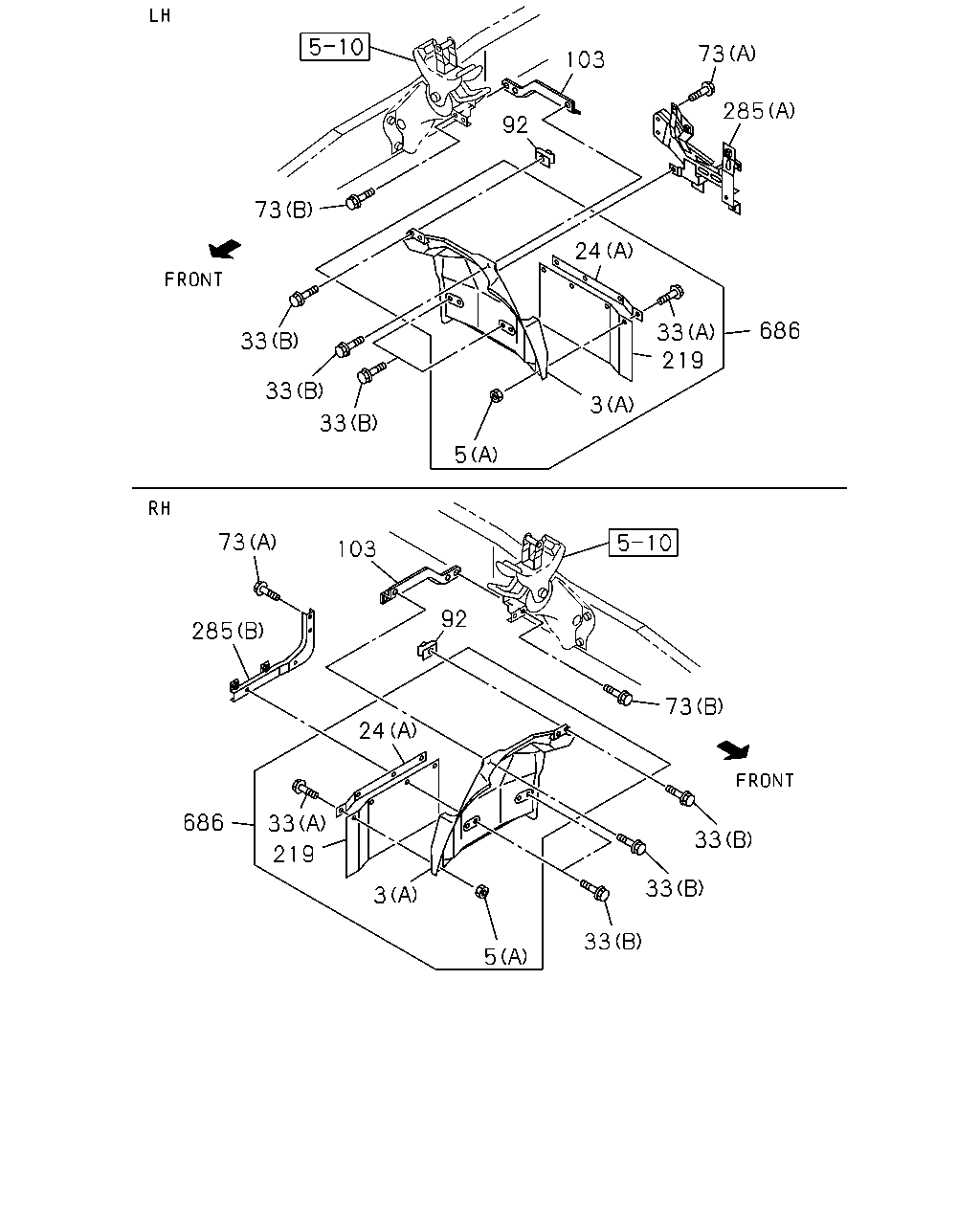

73 285 686 33 219 3 5 33 33 33 73 103 92 24 73 33 33 33 5 3 219 33 686 24 92 103 73 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A)	8-98004-029-5	01	1	1306-	●
3	GUARD; MUD,RR (A)	8-98004-029-5	01	1	1306-		●	●
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A)	8-98004-030-4	01	1	1306-	●
3	GUARD; MUD,RR (A)	8-98004-030-4	01	1	1306-		●	●
3	GUARD; MUD,RR RR BODY FLAT BED<RS6> (B) H=440 B=430	8-97214-177-1	02	1	1306-	●
5	NUT; FLAP RUBBER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) M6	8-98227-380-0	08	1	1306-	●
5	NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1306-		●	●
5	NUT; FLAP RUBBER (B) M6 FLANGE SOU	0-91180-106-0	02	1	1306-			●
24	PLATE; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A)	8-98004-031-1	02	1	1306-	●
24	PLATE; MUD COVER (A)	8-98004-031-1	02	1	1306-		●	●
24	PLATE; MUD COVER (B)	8-98154-258-0	02	1	1306-	●	●	●
33	BOLT; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) M6X16 FLANGE	8-98227-381-0	08	1	1306-	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1306-		●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1306-	●	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1306-	●	●	●
73	BOLT; MUD COVER BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	04	1	1306-	●	●	●
73	BOLT; MUD COVER BRKT (A) M10X25 FLANGE SOU	0-28651-025-0	04	1	1306-	●	●	●
92	NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1306-	●	●	●
103	BRACKET ASM; RR MUD FLAP	8-98001-315-2	01	1	1306-	●	●	●
103	BRACKET ASM; RR MUD FLAP	8-98001-319-2	01	1	1306-	●	●	●
219	FLAP; MUD GUARD G.V.W. 6.0-6.5TON(RPV)	8-98004-032-1	02	1	1306-	●
219	FLAP; MUD GUARD G.V.W. 7.5-8.0TON(RPY)	8-98004-033-1	02	1	1306-	●
219	FLAP; MUD GUARD	8-98004-033-1	02	1	1306-		●	●
285	BRACKET; MUD COVER (A)	8-98001-320-3	01	1	1306-	●
285	BRACKET; MUD COVER 4HK1-TCN ENG(RDQ) (A)	8-98001-320-3	01	1	1306-		●	●
285	BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1306-	●	●	●
686	FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-746-7	01	1	1306-	●
686	FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-747-6	01	1	1306-	●
686	FLAP ASM; MUD G.V.W. 7.5-8.0TON(RPY)	8-97387-750-7	01	1	1306-	●
686	FLAP ASM; MUD	8-97387-750-7	01	1	1306-		●	●
686	FLAP ASM; MUD G.V.W. 7.5-8.0TON(RPY)	8-97387-751-6	01	1	1306-	●
686	FLAP ASM; MUD	8-97387-751-6	01	1	1306-		●	●

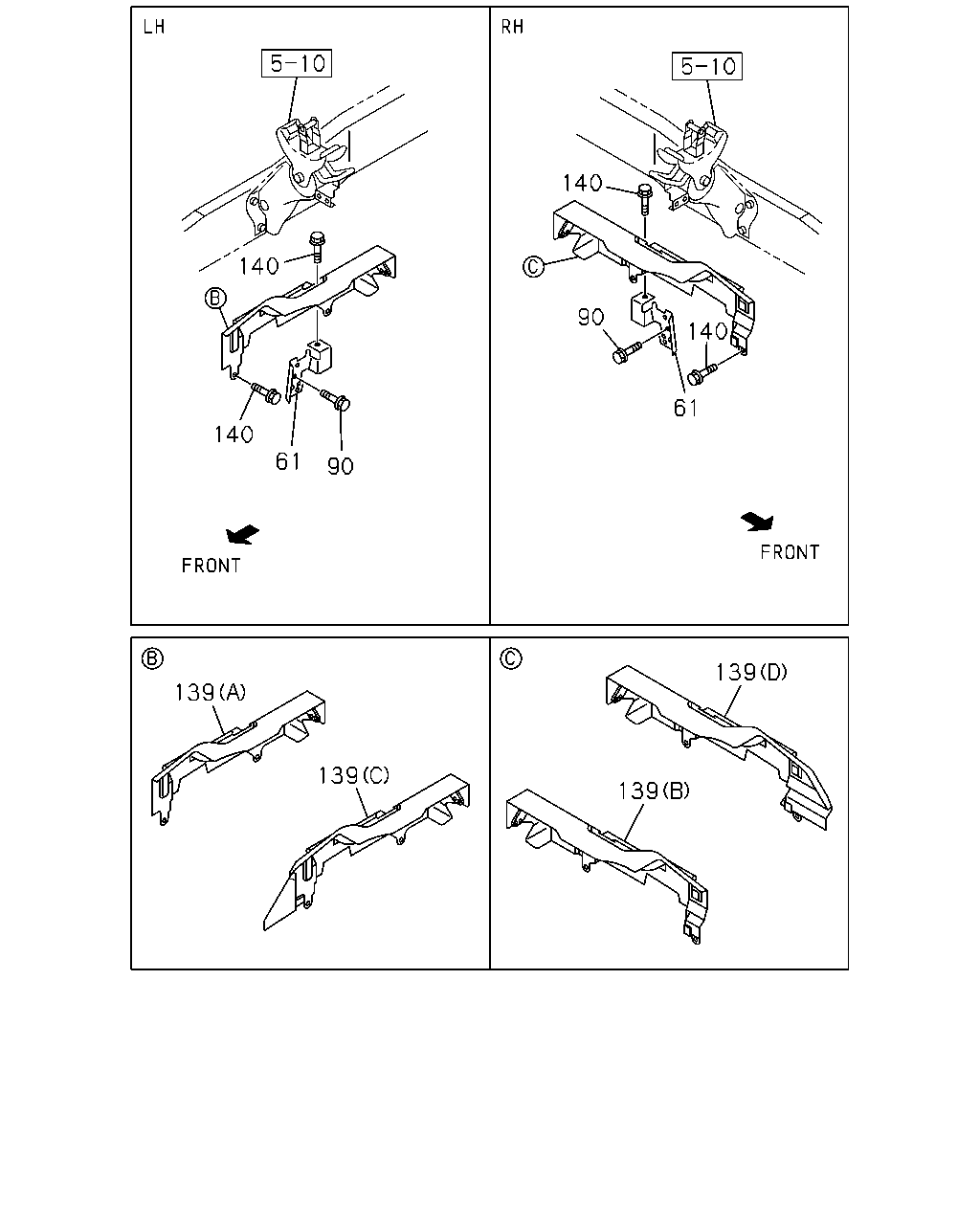

140 140 90 61 90 61 140 140 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	BRACKET; COVER	8-98040-465-1	01	1	1306-	●	●	●
61	BRACKET; COVER	8-98040-466-1	01	1	1306-	●	●	●
90	BOLT; COVER M8X25 FLANGE SOU	0-28650-825-0	04	1	1306-	●	●	●
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	1306-	●
139	PANEL; SIDE (B)	8-98043-920-2	01	1	1306-		●	●
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98115-458-1	01	1	1306-	●
139	PANEL; SIDE (A)	8-98115-458-1	01	1	1306-		●	●
139	PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97387-727-4	01	1	1306-	●
139	PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-728-8	01	1	1306-	●
140	BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1306-	●	●	●

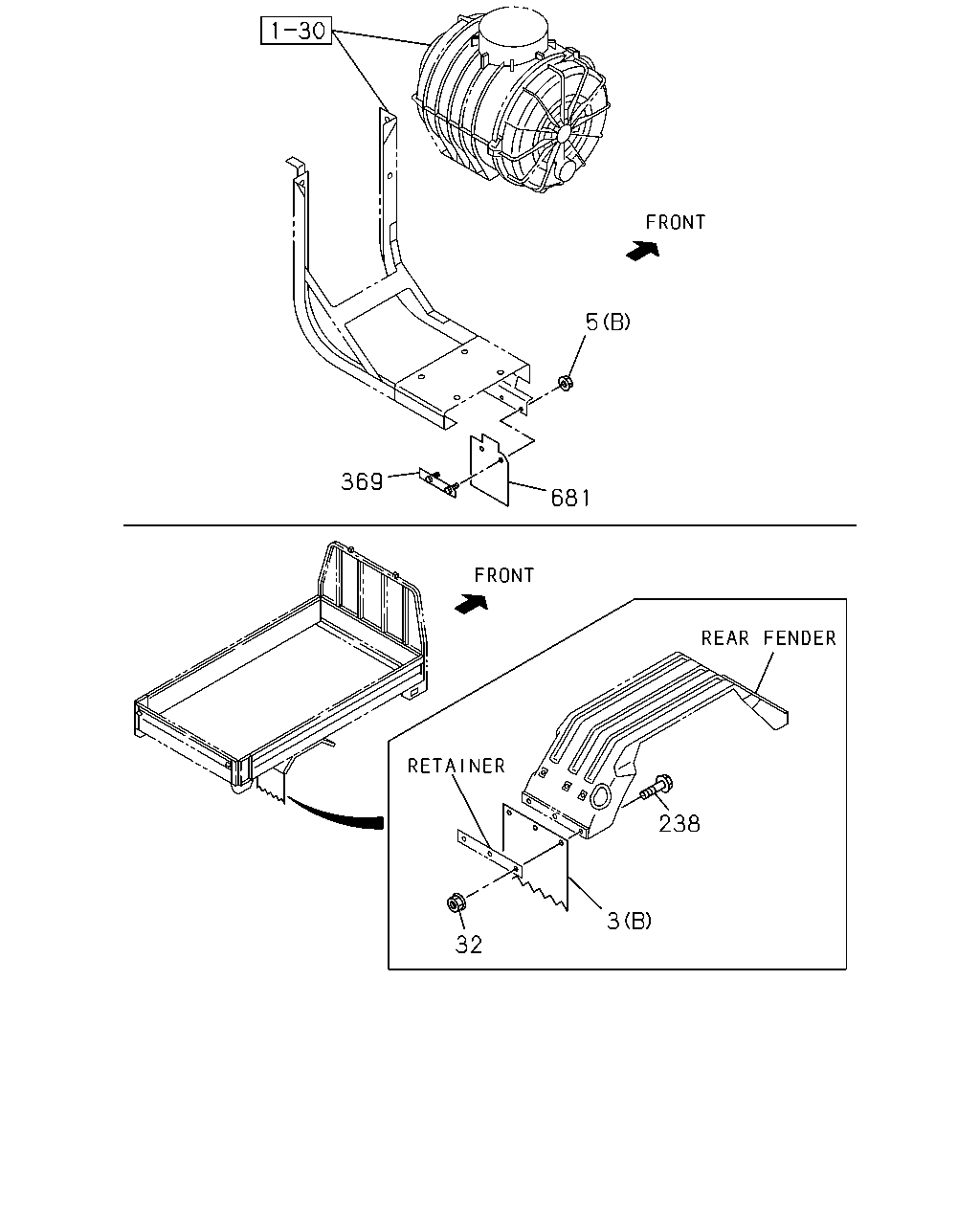

5 681 369 238 32 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A)	8-98004-029-5	01	1	1306-	●
3	GUARD; MUD,RR (A)	8-98004-029-5	01	1	1306-		●	●
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A)	8-98004-030-4	01	1	1306-	●
3	GUARD; MUD,RR (A)	8-98004-030-4	01	1	1306-		●	●
3	GUARD; MUD,RR RR BODY FLAT BED<RS6> (B) H=440 B=430	8-97214-177-1	02	1	1306-	●
5	NUT; FLAP RUBBER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (A) M6	8-98227-380-0	08	1	1306-	●
5	NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1306-		●	●
5	NUT; FLAP RUBBER (B) M6 FLANGE SOU	0-91180-106-0	02	1	1306-			●
32	NUT; MUD GUARD RR BODY FLAT BED<RS6> M6 FLANGE	8-97065-431-0	06	1	1306-	●
238	SCREW; MUD GUARD RR BODY FLAT BED<RS6> M6X16 FLANGE	8-98098-459-0	06	1	1306-	●
369	PLATE	8-98061-674-0	01	1	1306-			●
681	FLAP; AIR CLEANER	8-98061-671-0	01	1	1306-			●
