◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#122711) — 75 parça

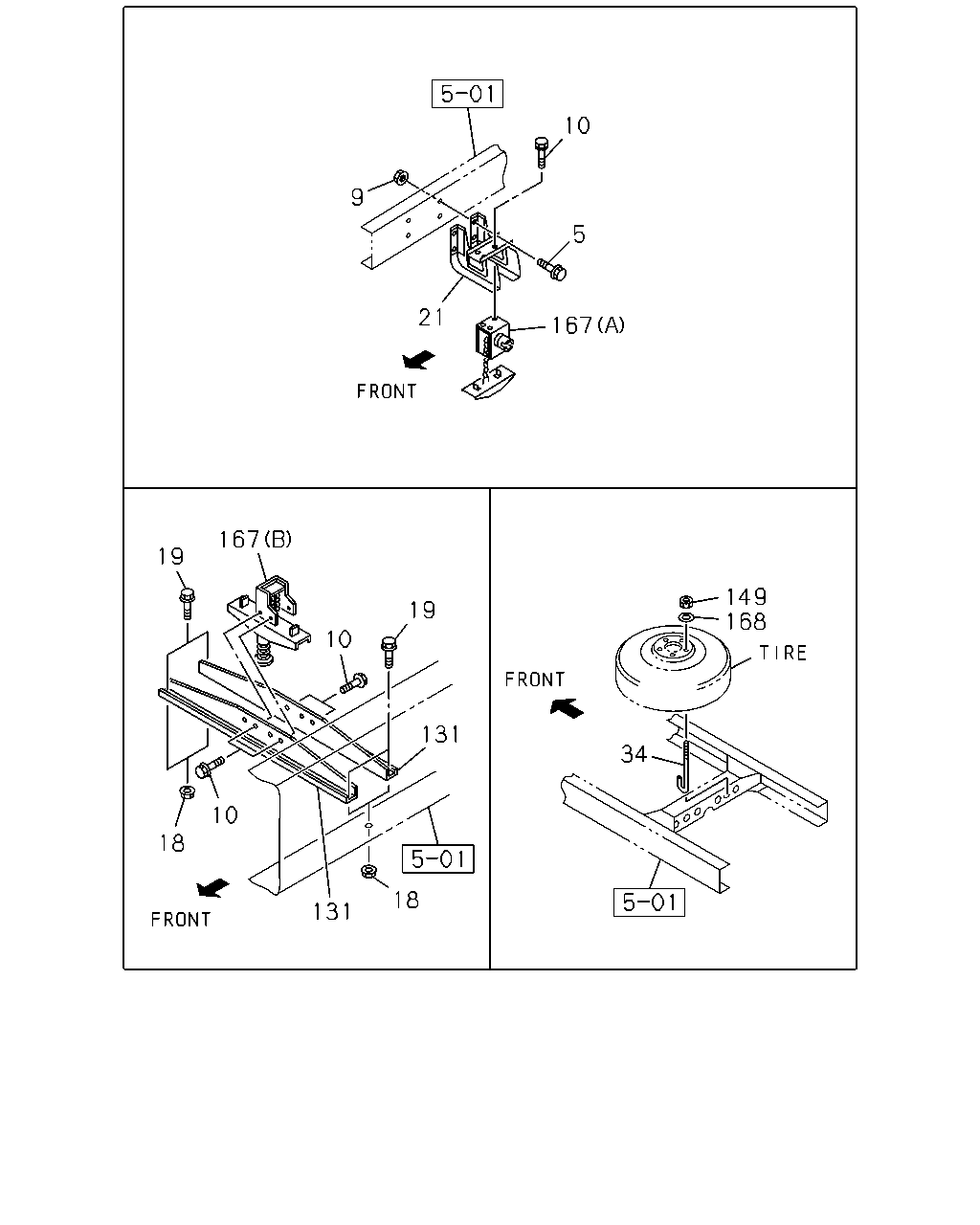

çizim 357041
10 5 167 21 9 149 168 34 131 19 10 167 19 10 18 131 18
BalonParca AdiParca NoAdetTipApplied Date A B C
5 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W) M10X25 FLANGE 		0-28051-025-0 04 1 1306-1307 ●
5 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X25 FLANGE 		0-28051-025-0 04 1 1308- ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W) M10 FLANGE SOU 		0-91180-110-0 04 1 1306-1307 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10 FLANGE SOU 		0-91180-110-0 04 1 1308- ●
10 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M8X25 FLANGE SOU 		0-28650-825-0 04 1 1306- ●
10 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W) M8X25 FLANGE SOU 		0-28650-825-0 04 1 1306- ●
10 BOLT; TIRE HANGER
M8X25 FLANGE SOU 		0-28650-825-0 04 1 1306- ●
10 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W) M8X20 FLANGE 		0-28650-820-0 03 1 1306-1307 ●
10 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M8X20 FLANGE 		0-28650-820-0 03 1 1308- ●
18 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10 FLANGE SOU 		0-91180-110-0 04 1 1306- ●
18 NUT; MEMBER
WHEEL BASE 3300MM(33W) M10 FLANGE SOU 		0-91180-110-0 04 1 1306- ●
18 NUT; MEMBER
M10 FLANGE SOU 		0-91180-110-0 04 1 1306- ●
19 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X30 FLANGE SOU 		0-28651-030-0 04 1 1306- ●
19 BOLT; C/MBR
WHEEL BASE 3300MM(33W) M10X30 FLANGE SOU 		0-28651-030-0 04 1 1306- ●
19 BOLT; C/MBR
M10X30 FLANGE SOU 		0-28651-030-0 04 1 1306- ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W) 		8-98036-085-2 01 1 1308- ●
21 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W) 		8-98072-378-2 01 1 1306- ●
34 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> M12X330 		8-98226-501-0 02 1 1306-1307 ●
34 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M12X330 		8-98226-501-0 02 1 1306-1307 ●
34 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) M12X330 		8-98226-501-0 02 1 1306-1307 ●
34 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) M12X330 		8-98226-501-0 02 1 1306-1307 ●
34 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> M12X330 		8-98226-501-0 02 1 1308-1407 ●
34 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M12X330 		8-98226-501-0 02 1 1308-1407 ●
34 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) M12X330 		8-98226-501-0 02 1 1308-1407 ●
34 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) M12X330 		8-98226-501-0 02 1 1308-1407 ●
34 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> M12X330 		8-98226-501-0 02 1 1408-1504 ●
34 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) M12X330 		8-98226-501-0 02 1 1408-1504 ●
34 BOLT; SPARE TIRE
4HK1-TCN ENG(RDQ) M12X330 		8-98226-501-0 02 1 1408-1504 ●
34 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X330 		8-98226-501-0 02 1 1505- ●
34 BOLT; SPARE TIRE
M12X330 		8-98226-501-0 02 1 1505- ● ●
131 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98035-827-1 02 1 1306- ●
131 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W) 		8-98035-827-1 02 1 1306- ●
131 CROSSMEMBER; SPARE TIRE 8-98035-827-1 02 1 1306- ●
131 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98024-842-2 02 1 1306- ●
149 NUT; CARRIER
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> M12 SOU 		0-91110-512-0 02 1 1306-1307 ●
149 NUT; CARRIER
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M12 SOU 		0-91110-512-0 02 1 1306-1307 ●
149 NUT; CARRIER
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) M12 SOU 		0-91110-512-0 02 1 1306-1307 ●
149 NUT; CARRIER
4HK1-TCN ENG(RDQ) M12 SOU 		0-91110-512-0 02 1 1306-1307 ●
149 NUT; CARRIER
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> M12 SOU 		0-91110-512-0 02 1 1308-1407 ●
149 NUT; CARRIER
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M12 SOU 		0-91110-512-0 02 1 1308-1407 ●
149 NUT; CARRIER
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) M12 SOU 		0-91110-512-0 02 1 1308-1407 ●
149 NUT; CARRIER
4HK1-TCN ENG(RDQ) M12 SOU 		0-91110-512-0 02 1 1308-1407 ●
149 NUT; CARRIER
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> M12 SOU 		0-91110-512-0 02 1 1408-1504 ●
149 NUT; CARRIER
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) M12 SOU 		0-91110-512-0 02 1 1408-1504 ●
149 NUT; CARRIER
4HK1-TCN ENG(RDQ) M12 SOU 		0-91110-512-0 02 1 1408-1504 ●
149 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ> M12 SOU 		0-91110-512-0 02 1 1505- ●
149 NUT; CARRIER
M12 SOU 		0-91110-512-0 02 1 1505- ● ●
167 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR 215/85R16 16X6K-128(CSC), FRT&RR7.50R-16-12R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (B) 		8-98036-383-0 01 1 1306-1402 ●
167 HANGER; TIRE
WHEEL BASE 3300MM(33W) FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (B) 		8-98036-383-0 01 1 1306-1402 ●
167 HANGER; TIRE
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C) (B) 		8-98036-383-0 01 1 1306-1402 ●
167 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR 215/85R16 16X6K-128(CSC), FRT&RR7.50R-16-12R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (B) 		8-98036-383-0 01 1 1403-1406 ●
167 HANGER; TIRE
WHEEL BASE 3300MM(33W) FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),F&R 225/70R19.5 F&R 19.5X6.00-127 BLACK DISC(CYN) (B) 		8-98036-383-0 01 1 1403-1406 ●
167 HANGER; TIRE
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C) (B) 		8-98036-383-0 01 1 1403-1406 ●
167 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR7.50R-16-12 R/L6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (B) 		8-98036-383-0 01 1 1407-1507 ●
167 HANGER; TIRE
WHEEL BASE 3300MM(33W) FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),F&R 225/70R19.5 F&R 19.5X6.00-127 BLACK DISC(CYN) (B) 		8-98036-383-0 01 1 1407-1507 ●
167 HANGER; TIRE
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C) (B) 		8-98036-383-0 01 1 1407-1507 ●
167 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FR T&RR 215/85R16 16X6K-128(CSC),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-126GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (B) 		8-98036-383-0 01 1 1508- ●
167 HANGER; TIRE
WHEEL BASE 3300MM(33W) FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),F&R 225/70R19.5 F&R 19.5X6.00-127 BLACK DISC(CYN) (B) 		8-98036-383-0 01 1 1508- ●
167 HANGER; TIRE
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C) (B) 		8-98036-383-0 01 1 1508- ●
167 HANGER; TIRE
WHEEL BASE 4100MM(41W) FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) 		8-97010-955-1 01 1 1306-1307 ●
167 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) 		8-97010-955-1 01 1 1308-1402 ●
167 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),F&R 225/70R19.5 F&R 19.5X6.00-127 BLACK DISC(CYN) (A) 		8-97010-955-1 01 1 1403- ●
168 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1306-1307 ●
168 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1306-1307 ●
168 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1306-1307 ●
168 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1306-1307 ●
168 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1308-1407 ●
168 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1308-1407 ●
168 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1308-1407 ●
168 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1308-1407 ●
168 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1408-1504 ●
168 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1408-1504 ●
168 WASHER; SPARE TIRE
4HK1-TCN ENG(RDQ) ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1408-1504 ●
168 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1505- ●
168 WASHER; SPARE TIRE
ID=12.5 OD=54 SOU 		8-94466-483-0 02 1 1505- ● ●
