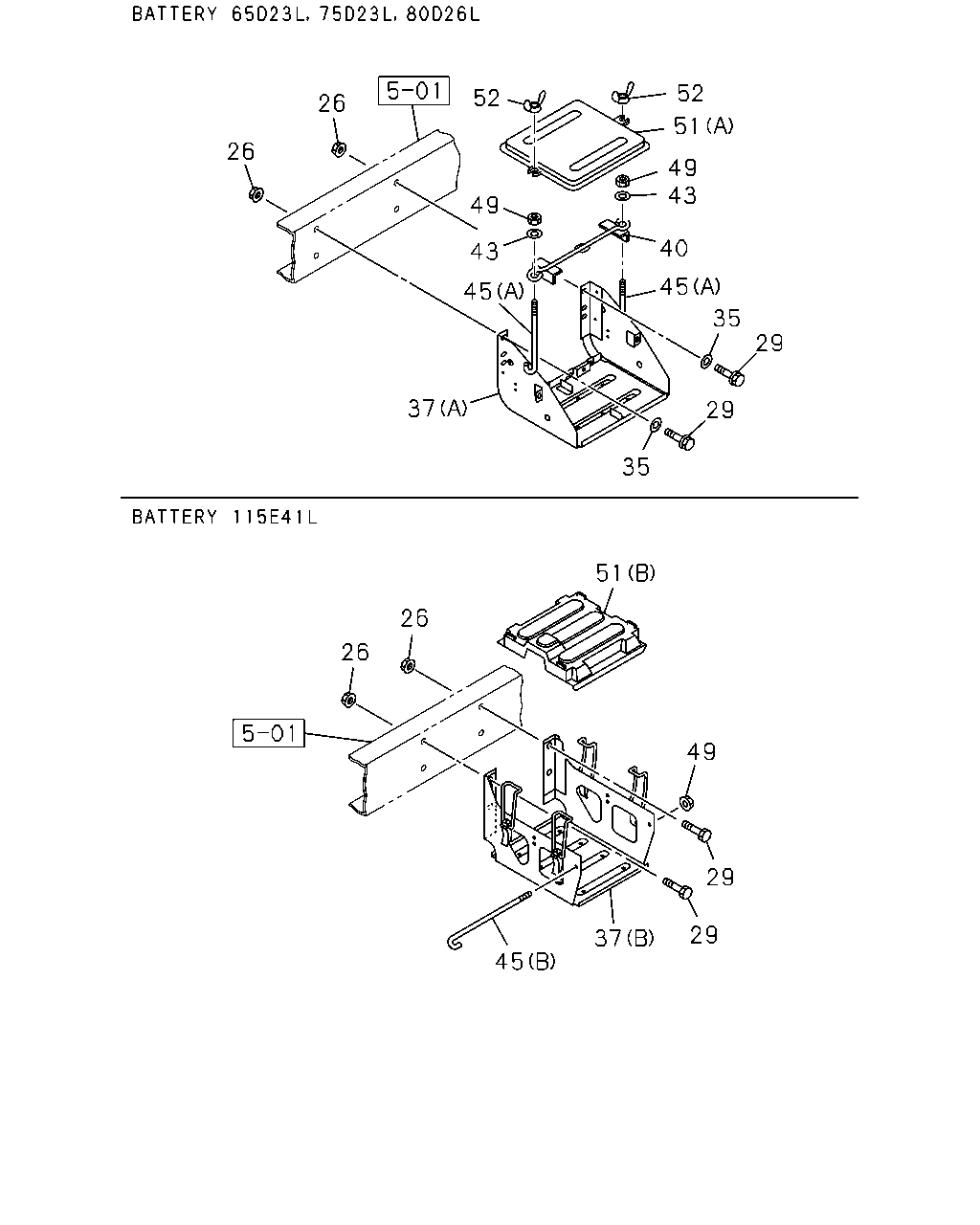

5-20 — BATTERY CARRIER (#122710) — 20 parça

29 35 45 40 43 49 51 52 52 49 43 45 26 26 37 35 29 51 26 26 45 37 29 29 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1306-	●	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	04	1	1306-	●	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1306-	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1306-		●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1306-	●	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	1306-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1306-	●	●	●
40	CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	1306-	●
40	CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	1306-		●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> ID=8.4 OD=22	0-91614-708-0	02	1	1306-	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1> ID=8.4 OD=22	0-91614-708-0	02	1	1306-		●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A) L=120 SOU	9-53616-615-0	02	1	1306-	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) L=120 SOU	9-53616-615-0	02	1	1306-		●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1306-	●	●	●
49	NUT; ROD,BATTERY M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	1306-	●
51	COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	1306-		●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1306-	●	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1306-	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1306-		●	●
