5-15 — CAB MOUNTING; CAB SIDE (#122709) — 99 parça

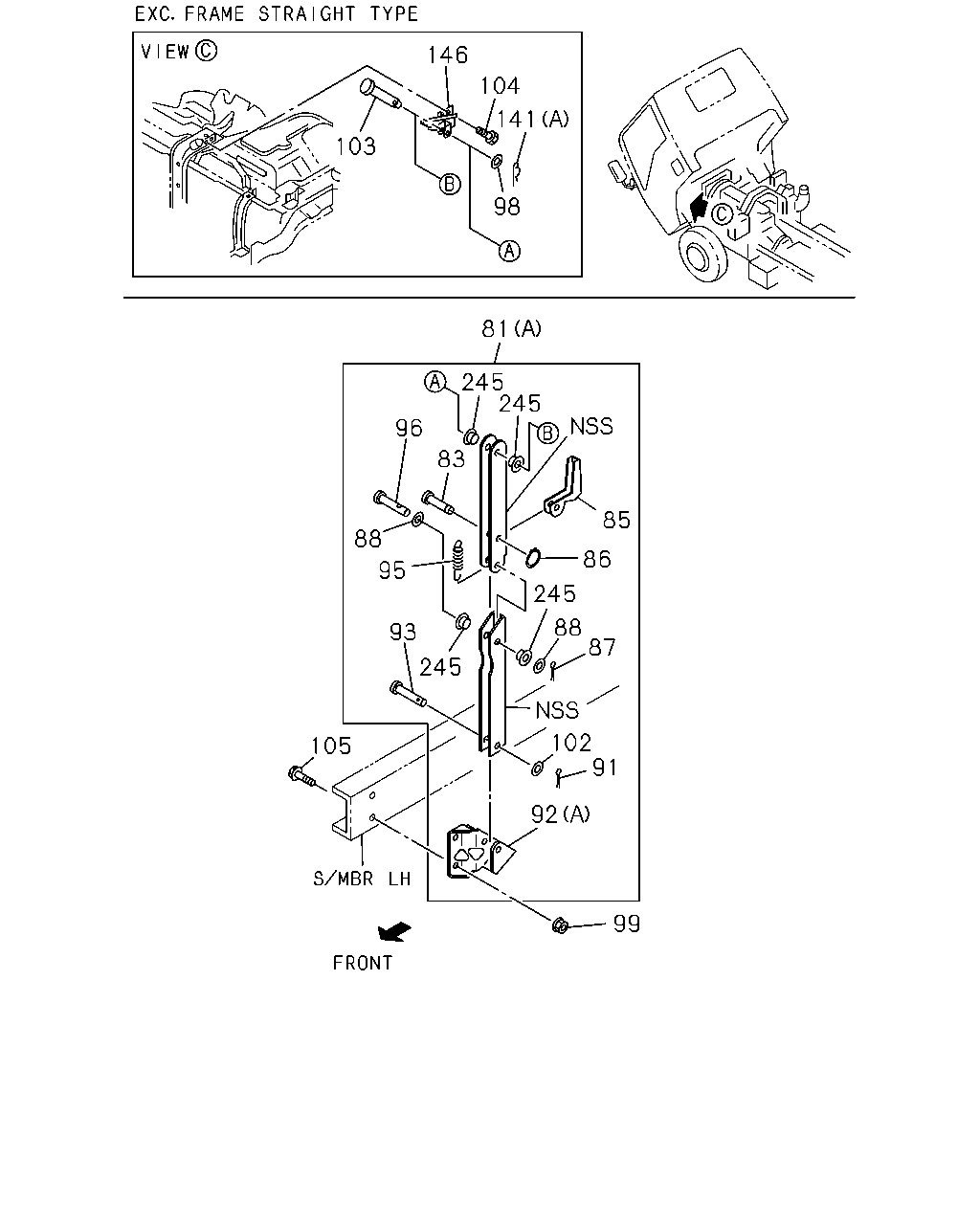

103 146 104 141 98 81 245 245 83 96 85 86 245 88 87 102 91 92 99 105 245 93 95 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98123-310-0	01	1	1306-	●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-98123-310-0	01	1	1306-		●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98123-307-0	01	1	1306-	●
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1306-	●	●
85	LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1306-	●	●
86	RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> ID=6	0-91805-506-0	01	1	1306-	●	●
87	PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> OD=2.8 L=20	0-81123-020-0	01	1	1306-	●	●
88	WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1306-	●	●
91	PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> OD=3.7 L=20	0-81124-020-0	01	1	1306-	●	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98011-317-0	01	1	1306-	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-98011-317-0	01	1	1306-		●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98001-020-0	01	1	1306-	●
93	PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1306-	●	●
95	SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1306-	●	●
96	PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1306-	●	●
98	WASHER; CAB STAY MANUAL TILT CAB<RWZ> ID=10.5 T=2.0 SOU	1-09985-183-0	01	1	1306-	●	●
99	NUT; CAB STAY MANUAL TILT CAB<RWZ> M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●
102	WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> ID=12.5 OD=26	0-91610-612-0	01	1	1306-	●	●
103	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48 SOU	1-09744-107-0	01	1	1306-	●	●
104	BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28660-820-0	03	1	1306-	●	●
105	BOLT; CAB STAY MANUAL TILT CAB<RWZ> M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6 SOU	1-09987-142-0	01	1	1306-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1306-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1306-	●	●
146	BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	1306-	●	●
245	BUSHING; CAB STAY MANUAL TILT CAB<RWZ> SOU	1-62500-587-0	04	1	1306-	●	●

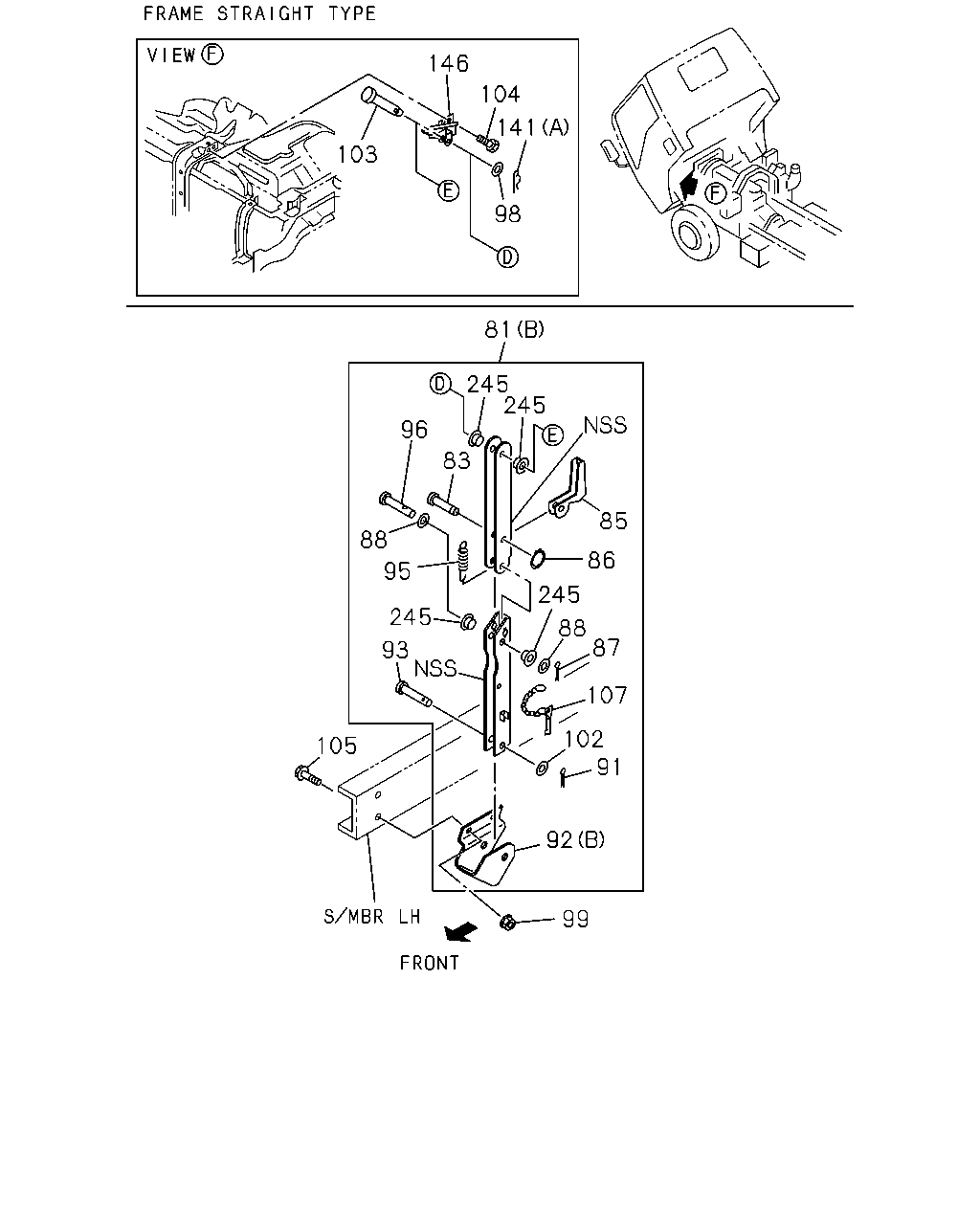

103 146 104 141 98 81 245 245 83 96 88 95 245 93 245 85 86 88 87 107 102 91 92 99 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98123-310-0	01	1	1306-	●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-98123-310-0	01	1	1306-		●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98123-307-0	01	1	1306-	●
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1306-	●	●
85	LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1306-	●	●
86	RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> ID=6	0-91805-506-0	01	1	1306-	●	●
87	PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> OD=2.8 L=20	0-81123-020-0	01	1	1306-	●	●
88	WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1306-	●	●
91	PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> OD=3.7 L=20	0-81124-020-0	01	1	1306-	●	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98011-317-0	01	1	1306-	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-98011-317-0	01	1	1306-		●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98001-020-0	01	1	1306-	●
93	PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1306-	●	●
95	SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1306-	●	●
96	PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1306-	●	●
98	WASHER; CAB STAY MANUAL TILT CAB<RWZ> ID=10.5 T=2.0 SOU	1-09985-183-0	01	1	1306-	●	●
99	NUT; CAB STAY MANUAL TILT CAB<RWZ> M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●
102	WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> ID=12.5 OD=26	0-91610-612-0	01	1	1306-	●	●
103	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48 SOU	1-09744-107-0	01	1	1306-	●	●
104	BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28660-820-0	03	1	1306-	●	●
105	BOLT; CAB STAY MANUAL TILT CAB<RWZ> M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●	●
107	PIN; LK LEVER MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ>	8-94331-482-0	01	1	1306-	●
107	PIN; LK LEVER MANUAL TILT CAB<RWZ>	8-94331-482-0	01	1	1306-		●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6 SOU	1-09987-142-0	01	1	1306-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1306-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1306-	●	●
146	BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	1306-	●	●
245	BUSHING; CAB STAY MANUAL TILT CAB<RWZ> SOU	1-62500-587-0	04	1	1306-	●	●

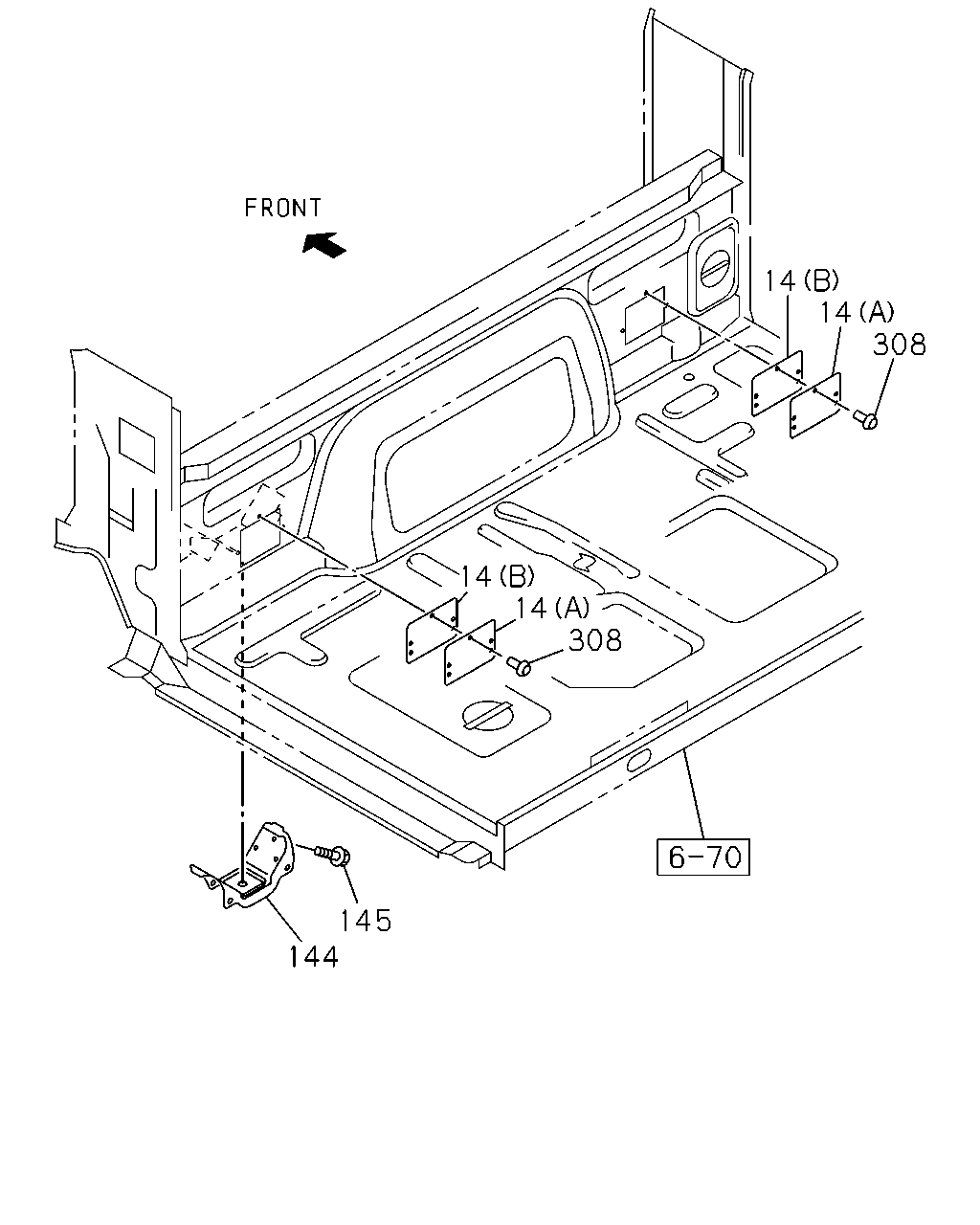

308 14 14 14 14 308 145 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	COVER; MTG,CAB (A) BLACK L=125	8-94273-738-3	02	1	1306-			●
14	COVER; MTG,CAB (B) BLACK L=124	8-98132-457-0	02	1	1306-			●
144	BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	1306-	●	●
144	BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1306-			●
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1306-	●	●
145	BOLT; CAB RR MTG BRKT M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1306-			●
308	RIVET; COVER D6X12.5 SOU	8-94146-425-0	06	1	1306-			●

144 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
144	BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	1306-	●	●
144	BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1306-			●
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1306-	●	●
145	BOLT; CAB RR MTG BRKT M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1306-			●

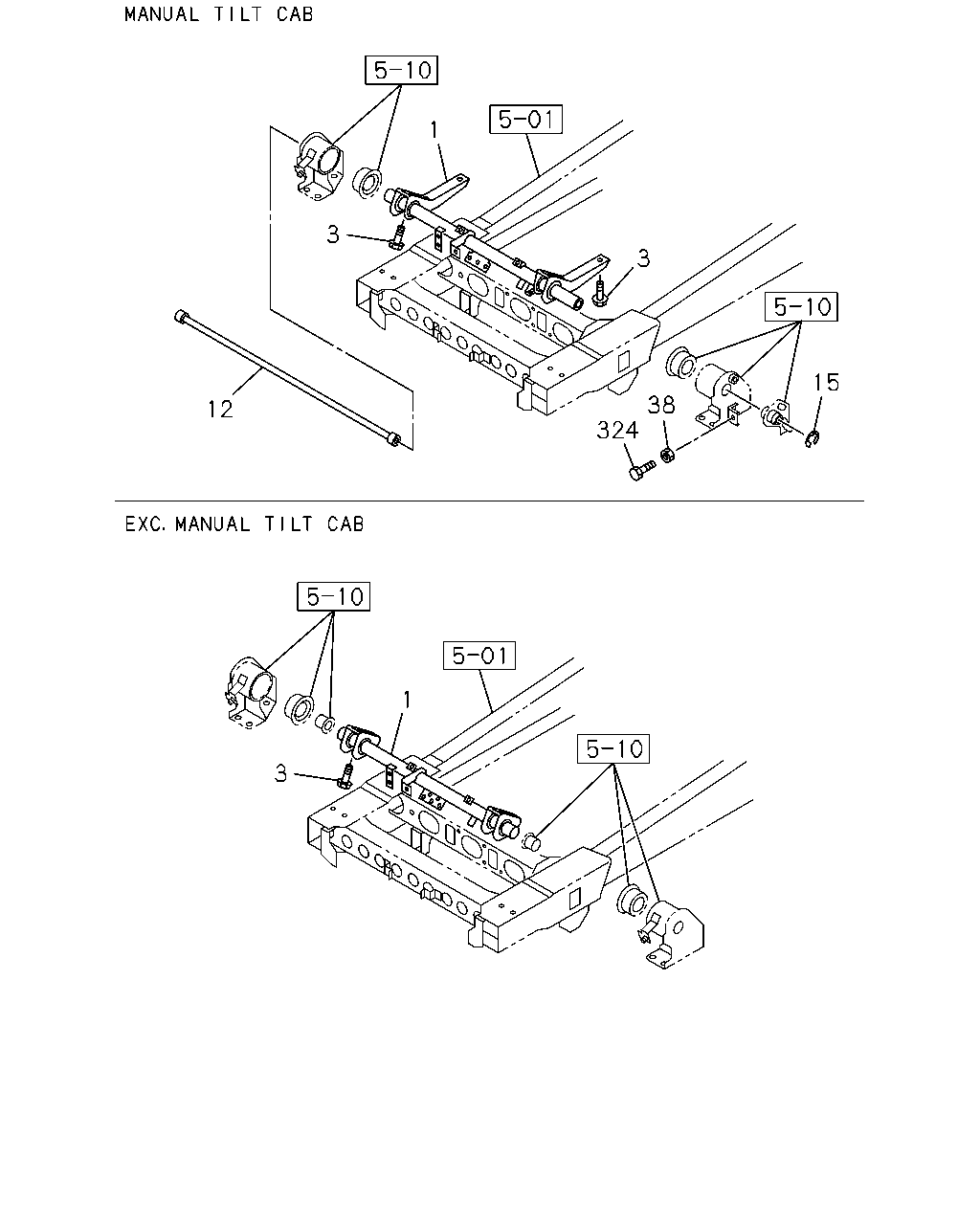

1 3 12 3 38 324 15 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98074-174-1	01	1	1306-	●	●
1	LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-98077-693-0	01	1	1306-	●	●
1	LEVER; TORSION BAR	8-98077-693-0	01	1	1306-			●
3	BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER SOU	8-97359-033-0	06	1	1306-	●	●
3	BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER SOU	8-97359-033-0	04	1	1306-	●	●
3	BOLT; LEVER M12X37 W/LK&PL WASHER SOU	8-97359-033-0	04	1	1306-			●
12	BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98166-027-0	01	1	1306-	●	●
15	RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	1306-	●	●
38	NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	1306-	●	●
324	BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	1306-	●	●

152 149 150 212 136 138 137 311 133 212 212 143 148 138 335 335 335 335 335 141 139 141 141 335 335 139 142 335 335 141 136 212 133 142 136 143

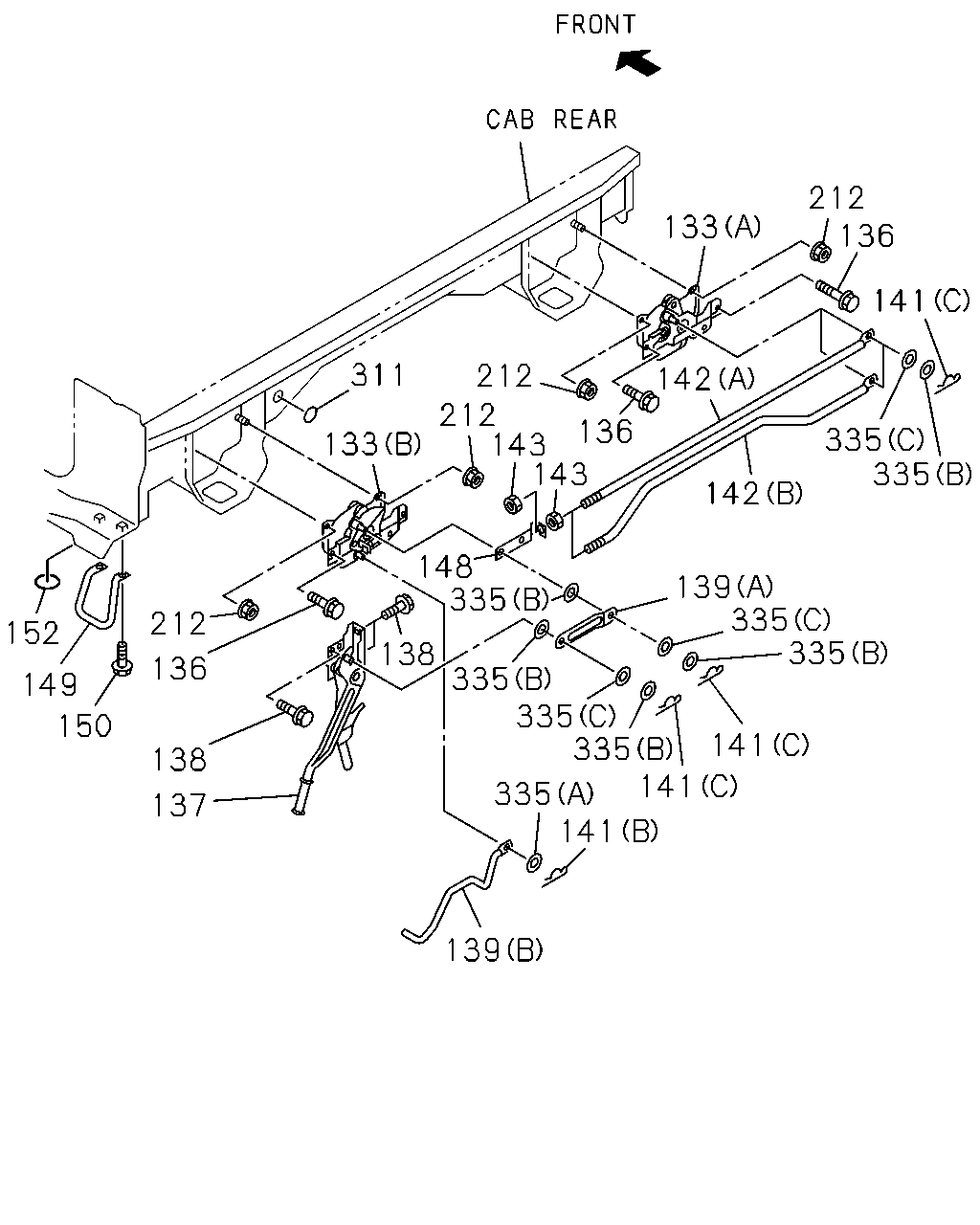

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1306-	●	●
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1306-	●	●
136	BOLT; CAB LK MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	04	1	1306-	●	●
137	CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97584-469-3	01	1	1306-	●	●
138	BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28650-820-0	03	1	1306-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1306-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-202-0	01	1	1306-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6 SOU	1-09987-142-0	01	1	1306-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1306-	●	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1306-	●	●
142	ROD; HOOK TO HOOK 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (B)	8-97410-633-0	01	1	1306-	●	●
142	ROD; HOOK TO HOOK 4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> (A)	8-97587-991-0	01	1	1306-	●
143	NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> M10 SOU	0-91110-510-0	02	1	1306-	●
143	NUT; JAW JOINT,HOOK TO HOOK 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> M10 SOU	0-91110-510-0	02	1	1306-		●
148	JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1306-	●
148	JOINT; JAW,HOOK TO HOOK 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1306-		●
149	HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1306-	●	●
150	BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
152	GROMMET; DUMMY HOLE,CAB TILT LOCK EXC. MANUAL TILT CAB<RWZ> OD=25 BLACK SOU	1-76798-019-0	02	1	1306-	●	●
212	NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 FLANGE SOU	0-91180-108-0	04	1	1306-	●	●
311	SEAL; CAB LOCK OD=32 BLACK	8-98031-126-0	01	1	1306-	●	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) ID=12.5 OD=22	0-91610-512-0	05	1	1306-	●	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) ID=8.4 OD=14	5-09550-002-0	01	1	1306-	●	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	1306-	●	●
