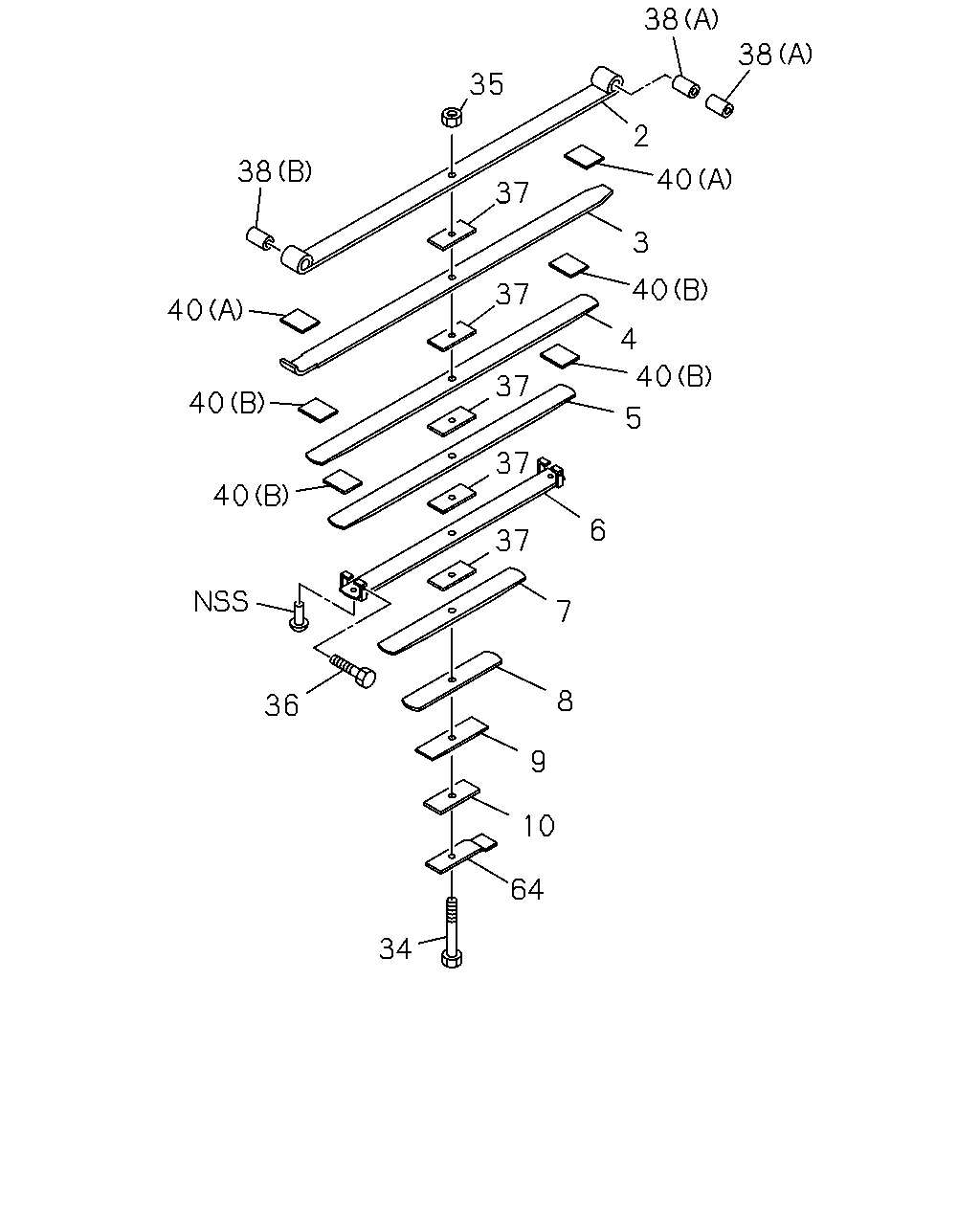

4-65A — REAR LEAF SPRING (#122702) — 29 parça

35 38 38 2 40 3 40 4 40 5 6 37 7 8 9 10 64 34 36 40 40 40 38 37 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98190-547-0	8-98193-147-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98190-548-0	8-98193-157-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98190-547-0	8-98193-148-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98190-548-0	8-98193-158-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98190-547-0	8-98193-149-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98190-548-0	8-98193-159-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98190-547-0	8-98193-150-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-98190-548-0	8-98193-160-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98190-547-0	8-98193-151-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98190-548-0	8-98193-161-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-98190-547-0	8-98193-152-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-98190-548-0	8-98193-162-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 8-98190-547-0	8-98193-153-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 8-98190-548-0	8-98193-163-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 8-98190-547-0	8-98193-154-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 8-98190-548-0	8-98193-164-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 8-98190-547-0	8-98193-155-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 8-98190-548-0	8-98193-165-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=125 ASM PART: A = 8-98190-547-0	8-98037-584-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=135 ASM PART: B = 8-98190-548-0	8-98041-354-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98190-547-0, B = 8-98190-548-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: A = 8-98190-547-0, B = 8-98190-548-0	8-98040-332-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98190-547-0, B = 8-98190-548-0	8-97084-102-0	05	1	-
38	BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-98190-547-0, B = 8-98190-548-0	5-87610-163-0	01	1	-
38	BUSHING; LEAF SPR,RR (A), OD=40 L=43.7 ASM PART: A = 8-98190-547-0, B = 8-98190-548-0	8-94118-588-1	02	1	-
38	BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-98190-547-0, B = 8-98190-548-0	8-97074-826-0	01	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 8-98190-547-0, B = 8-98190-548-0	8-97084-848-0	02	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 8-98190-547-0, B = 8-98190-548-0	8-98193-188-0	04	1	-
64	SUPPORT; RR SPR ASM PART: B = 8-98190-548-0	8-97225-579-1	01	1	-
