◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#122701) — 28 parça

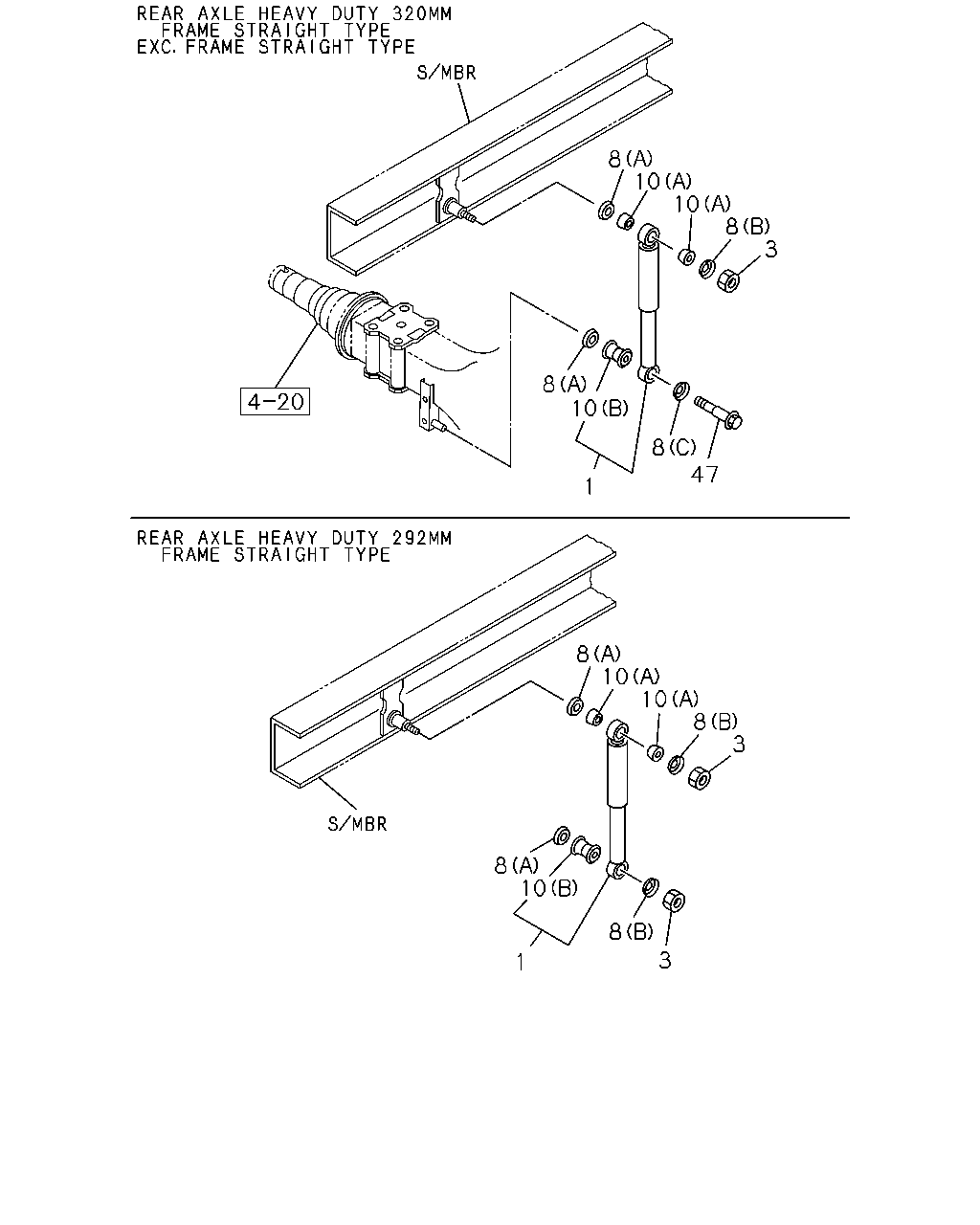

çizim 356558
1 47 8 10 8 3 8 10 10 8 3 8 10 10 8 3 8 10 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 1306-1506 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 1306-1506 ●
1 ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS VAR.2(6GQ) 		8-97253-662-2 02 1 1306- ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-98079-868-1 02 1 1306- ●
1 ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98079-868-1 02 1 1306- ●
1 ABSORBER ASM; SHOCK,RR 8-98079-868-1 02 1 1306- ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-132-0 02 1 1306-1506 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-132-0 02 1 1306-1506 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98316-233-0 02 1 1507- ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-98316-233-0 02 1 1507- ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-133-0 02 1 1306- ●
1 ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS VAR.2(6GQ) BEST VALUE PARTS 		5-87610-133-0 02 1 1306- ●
1 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS 		5-87610-133-0 02 1 1306- ●
1 ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS VAR.2(6GQ) BEST VALUE PARTS 		5-87610-156-0 02 1 1306- ●
3 NUT; S/ABS
M14 SOU 		0-91110-514-0 02 1 1306- ● ● ●
3 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> M14 SOU 		0-91110-514-0 02 1 1306- ●
8 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1306- ● ● ●
8 WASHER; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> (B) ID=15 		8-97360-056-0 02 1 1306- ●
8 WASHER; S/ABS
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		8-97360-058-0 02 1 1306- ●
8 WASHER; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		8-97360-058-0 02 1 1306- ●
8 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 1306- ● ●
8 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 1306- ● ● ●
10 BUSHING; RUBBER,S/ABS
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) (B) TOKICO 		8-94382-149-0 02 1 1306- ●
10 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 1306- ● ●
10 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 1306- ● ● ●
47 PIN; S/ABS SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M10X16 FLANGE 		0-28051-016-0 02 1 1306- ●
47 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> M10X16 FLANGE 		0-28051-016-0 02 1 1306- ●
47 PIN; S/ABS SETTING
M10X16 FLANGE 		0-28051-016-0 02 1 1306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
