4-60 — REAR SUSPENSION (#122700) — 53 parça

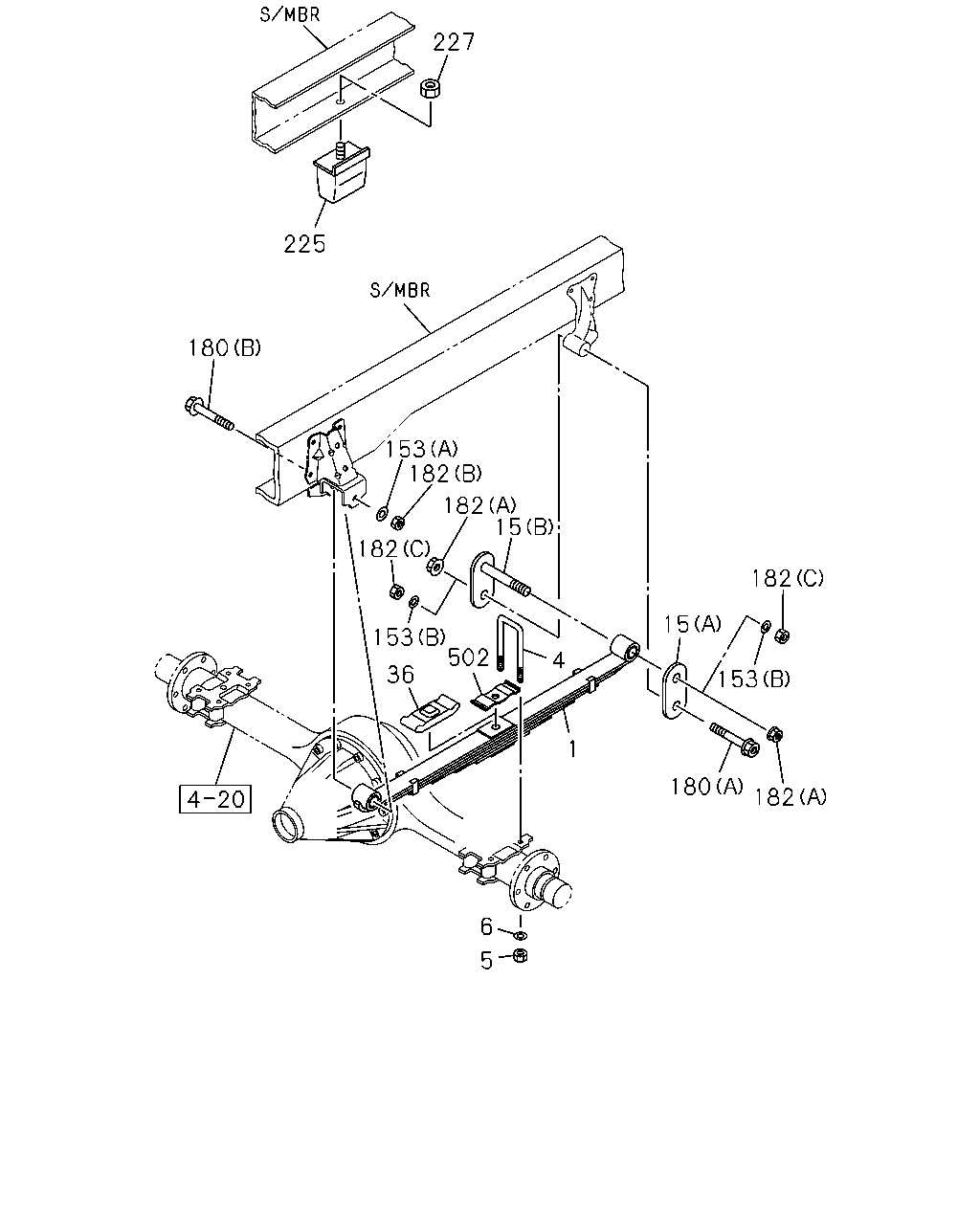

çizim 356893
182 180 153 15 182 5 6 502 4 1 36 153 182 15 182 182 153 180 225 227
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 12-LEAF 		8-98025-051-0 02 1 1306- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> 10-LEAF 		8-98025-049-0 02 1 1306- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 1306- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) 13-LEAF 		8-98079-902-0 02 1 1306- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF 		8-98079-902-0 02 1 1306- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS VAR.2(6GQ) 9-LEAF 		8-98190-548-0 02 1 1306- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS VAR.2(6GQ) EXC. STABILIZER REAR<GN1> 9-LEAF 		8-98190-547-0 02 1 1306- ●
4 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 1306- ●
4 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> L=315 		1-51371-194-2 04 1 1306- ●
4 U-BOLT; RR SPR
MINI BUS CHASSIS VAR.2(6GQ) L=315 		1-51371-194-2 04 1 1306- ●
4 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 1306- ●
4 U-BOLT; RR SPR
EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS VAR.2(6GQ) L=345 		1-51371-195-2 04 1 1306- ●
4 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 1306- ●
5 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) M16 		8-97360-121-0 08 1 1306- ●
5 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> M16 		8-97360-121-0 08 1 1306- ●
5 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 1306- ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 1306- ● ●
6 WASHER; PL,U-BOLT
REAR AXLE HEAVY DUTY 292MM(G73) ID=16.4 		8-97360-118-0 08 1 1306- ●
6 WASHER; PL,U-BOLT
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-97360-118-0 08 1 1306- ●
15 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1306- ● ● ●
15 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1306- ● ● ●
36 SEAT; HELPER RUBBER,RR SPR
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		1-51372-059-0 02 1 1306- ●
36 SEAT; HELPER RUBBER,RR SPR
4HK1-TCN ENG(RDQ) 		1-51372-059-0 02 1 1306- ● ●
153 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (B) ID=16.5 		8-98011-489-0 04 1 1306- ● ● ●
153 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1306- ● ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122 		8-98011-487-0 02 1 1306- ● ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1306- ● ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97360-110-0 02 1 1306- ● ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1306- ● ● ●
182 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (C) M16 SOU 		0-91110-516-0 04 1 1306- ● ● ●
182 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1306- ● ● ●
182 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 04 1 1306- ● ● ●
225 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1306- ● ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-112-0 02 1 1306- ● ● ●
502 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 1306- ●
502 CLAMP; RR LEAF SPR
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 1306- ●

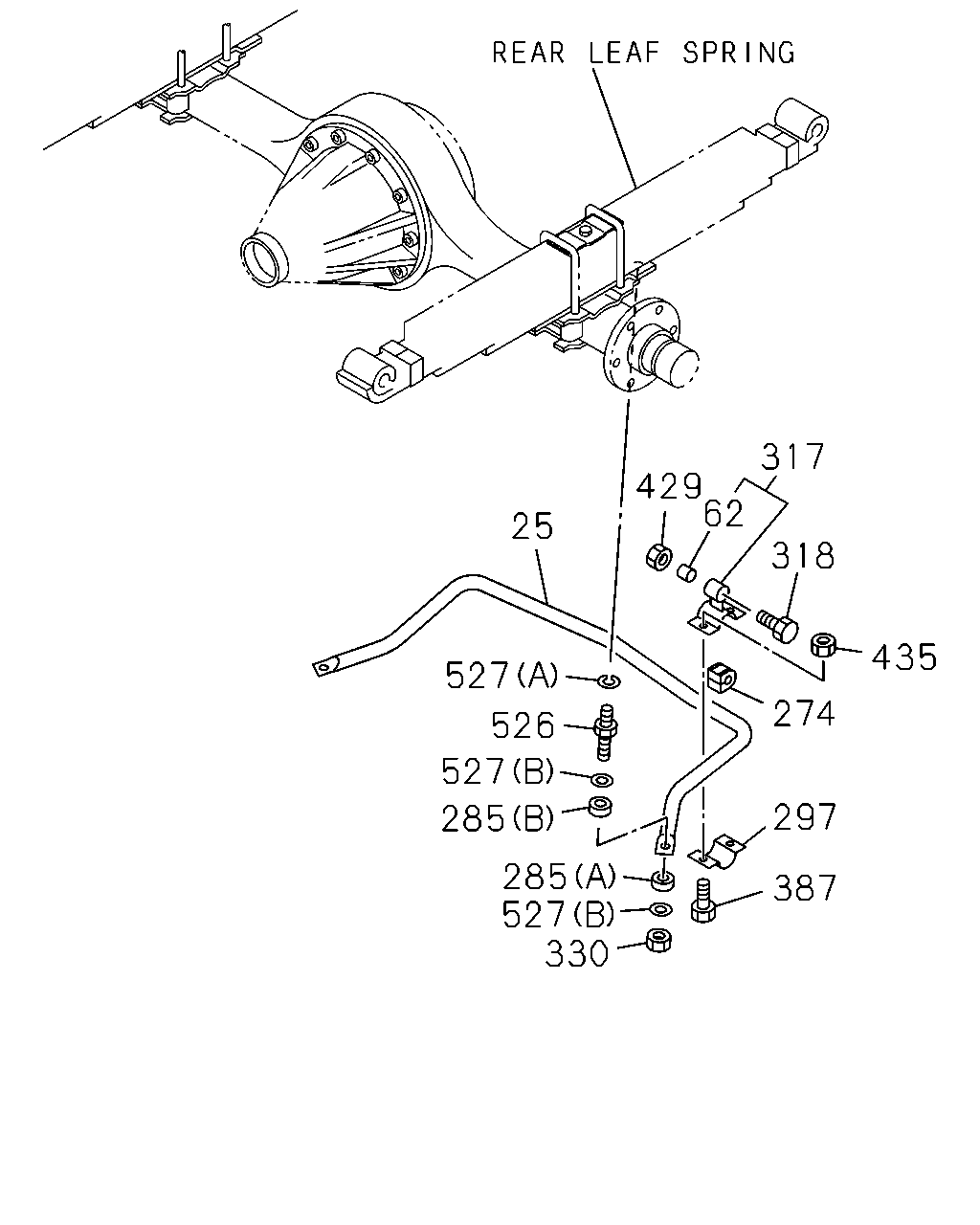

çizim 356965
435 274 318 317 62 429 297 387 330 527 285 285 527 527 526 25
BalonParca AdiParca NoAdetTipApplied Date A B C
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 		8-98067-239-0 01 1 1306- ●
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-98067-239-0 01 1 1306- ●
25 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98025-630-0 01 1 1306- ●
62 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 1306- ● ●
274 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 1306- ● ●
285 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (A) L=18 		8-97089-556-0 02 1 1306- ● ●
285 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (B) L=29 		8-97089-557-0 02 1 1306- ● ●
297 CAP; STAB BAR
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 1306- ● ●
317 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 1306- ● ●
318 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE 		0-28851-470-0 02 1 1306- ● ●
330 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 1306- ● ●
387 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> M10X25 FLANGE SOU 		0-28651-025-0 04 1 1306- ● ●
429 NUT; LINK
STABILIZER REAR<GN1> M14 FLANGE 		8-97360-124-0 02 1 1306- ● ●
435 NUT; CAP
STABILIZER REAR<GN1> M10 FLANGE SOU 		0-91180-110-0 04 1 1306- ● ●
526 STUD; STABILIZER
STABILIZER REAR<GN1> 		8-97360-120-0 02 1 1306- ● ●
527 WASHER; STABILIZER
STABILIZER REAR<GN1> (A) ID=14.2 SOU 		0-91510-514-0 02 1 1306- ● ●
527 WASHER; STABILIZER
STABILIZER REAR<GN1> (B) ID=12.5 		8-97360-055-0 04 1 1306- ● ●
