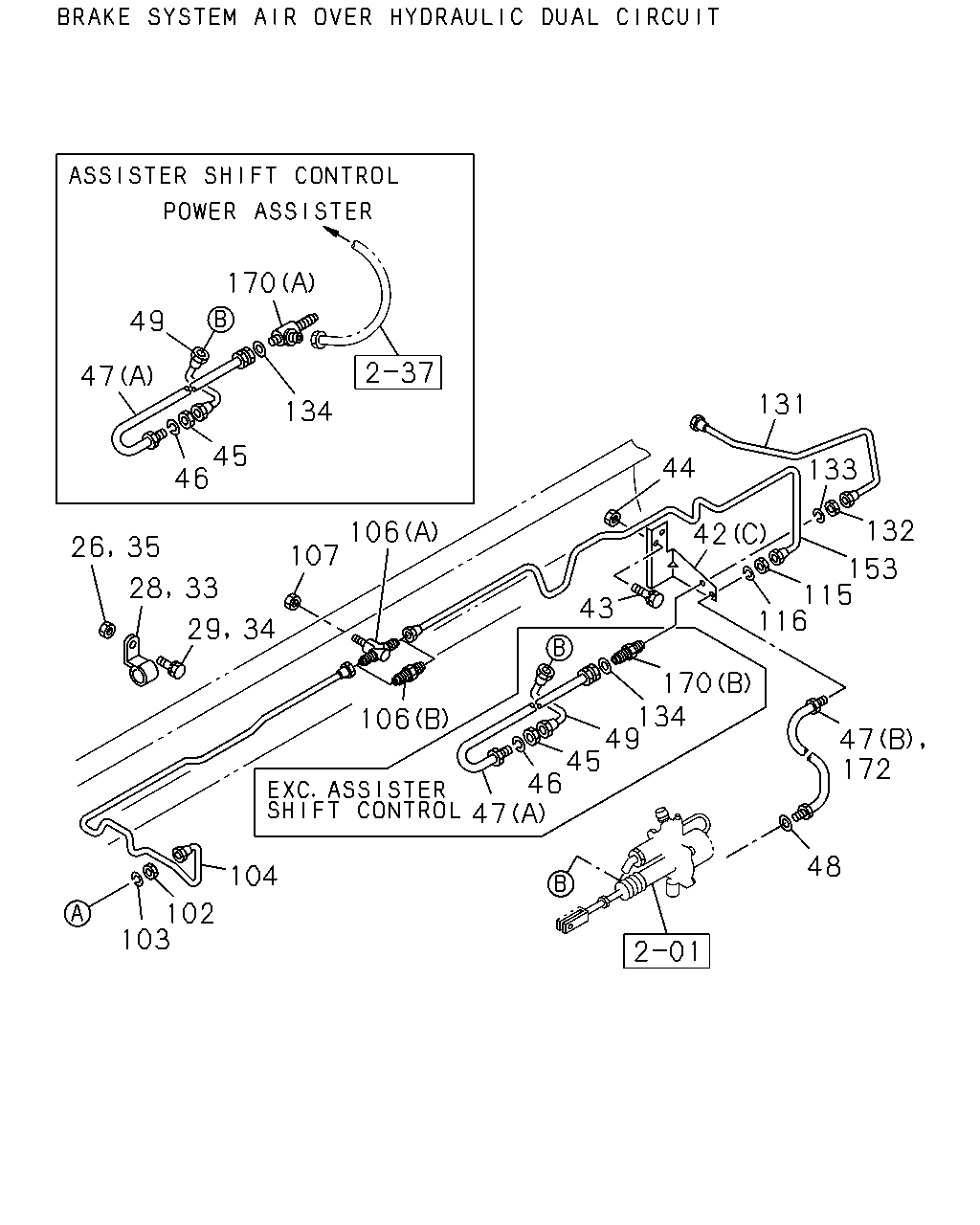

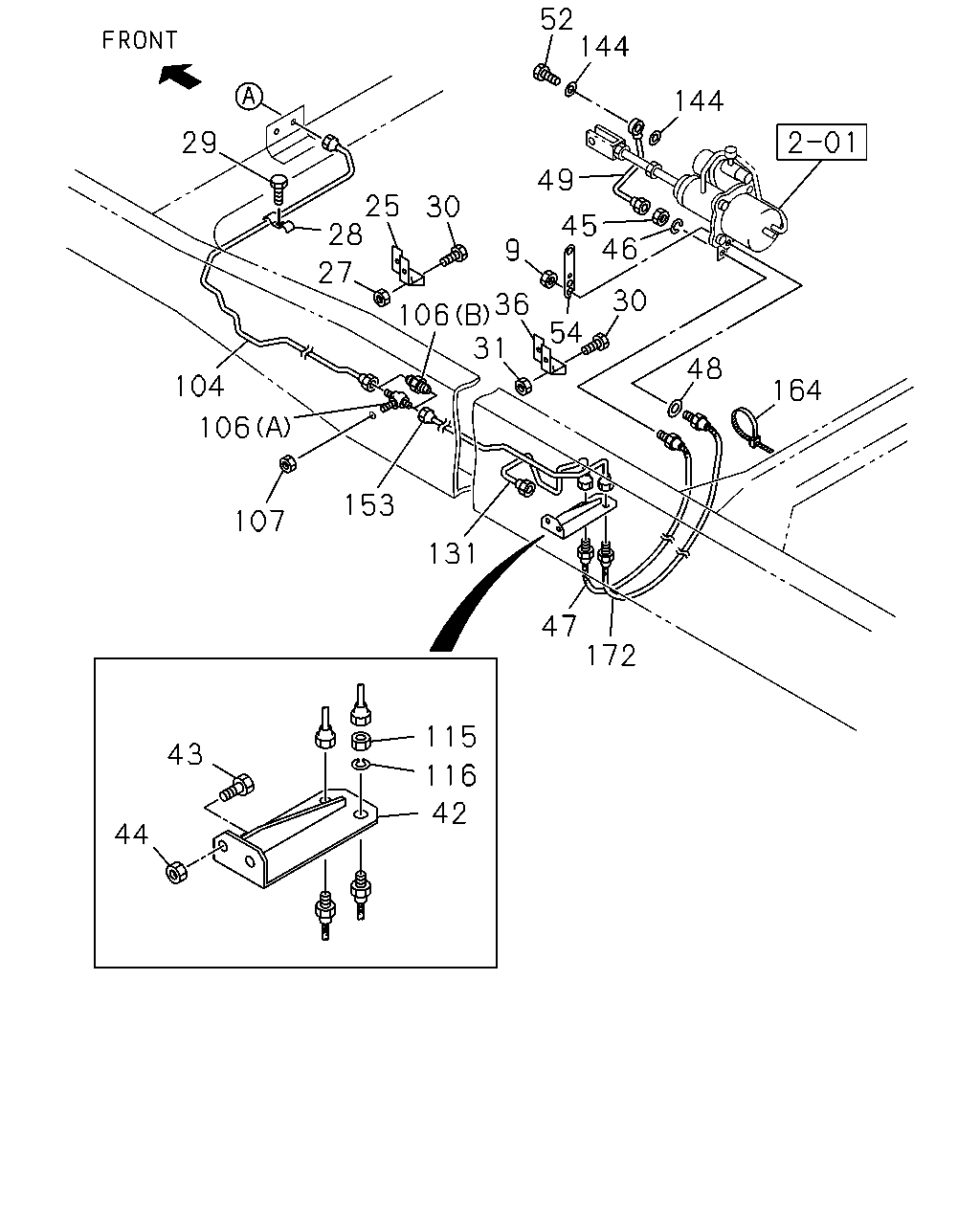

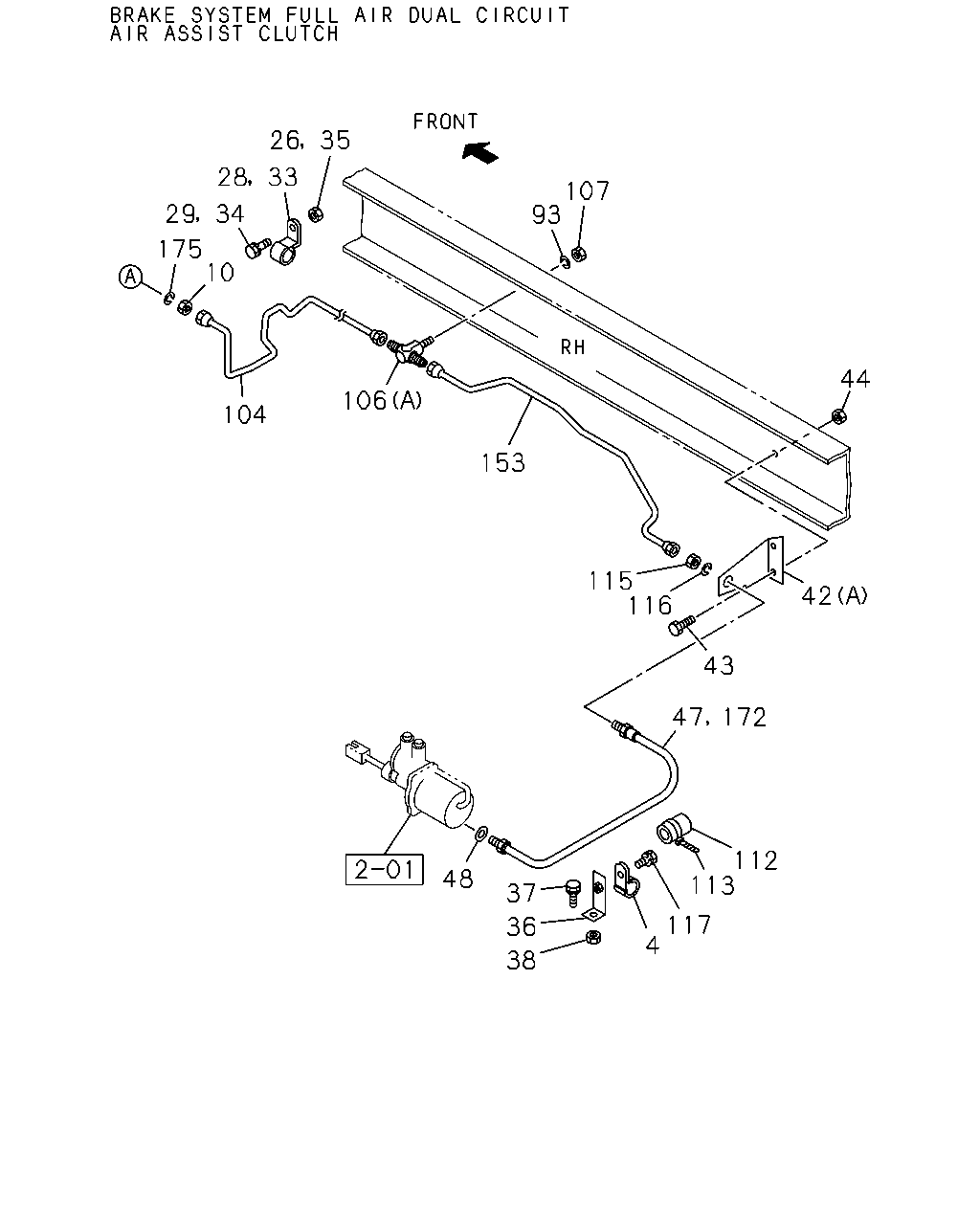

2-05 — CLUTCH PIPING (#1227) — 360 parça

170 49 47 131 134 45 46 44 133 132 106 42 26 35 107 153 115 116 28 33 43 29 34 170 134 49 45 46 47 106 47 172 48 104 102 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9202-	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9202-	●	●	●
28	CLIP; OIL PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9306-9504				●
28	CLIP; OIL PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9505-				●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9505-				●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9505-				●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9306-				●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	05	1	9505-				●
33	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9202-9211	●	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9212-	●	●	●
33	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-9211	●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●	●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-9211	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●	●
34	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
34	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9205-9211	●
35	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9202-9211	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9212-	●	●	●
35	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9202-9211	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-709-0	01	1	9202-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-291-0	01	1	9202-	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-444-4	01	1	9202-9209	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-781-0	01	1	9210-9307	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-371-0	01	1	9308-	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47476-912-0	01	1	9306-				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9205-				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9202-	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9202-	●
45	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9306-9312				●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	9401-				●
46	WASHER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9202-9312	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9306-9312				●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> L=570	1-09364-693-0	01	1	9202-9305	●		●
47	HOSE; FLEX,CLU CONT L=420	0-07030-420-0	01	1	9306-				●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=550	1-09364-434-0	01	1	9202-9305	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTER SHIFT CONTROL<WX8> (A) L=500	0-07120-500-0	01	1	9202-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=570	0-07120-570-0	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (B) ID=14.2	9-09851-004-0	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-			●	●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=211	1-47449-064-0	01	1	9202-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=198 SERVICED BY L=250	1-47426-339-0	01	1	9306-9310				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=233 SERVICED BY L=250	1-47426-339-0	01	1	9311-				●
102	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14	9-99110-414-0	01	1	9202-	●
103	WASHER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	01	1	9202-9312	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1722 SERVICED BY L=1800	1-47434-413-0	01	1	9202-9205	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1810 SERVICED BY L=1950	1-47434-414-0	01	1	9206-9212	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1810 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1574 SERVICED BY L=1700	1-47426-391-0	01	1	9306-9312				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=920 SERVICED BY L=970	1-47426-385-0	01	1	9401-				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1550 SERVICED BY L=1700	1-47426-391-0	01	1	9505-				●
106	UNION; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14 2WAY	1-09654-176-2	01	1	9202-9312	●	●	●
106	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9401-	●	●	●	●
106	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14 STRAIGHT	9-09223-008-1	01	1	9202-9312	●			●
106	UNION; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 STRAIGHT	9-09223-008-1	01	1	9505-				●
107	NUT; UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99111-412-0	01	1	9202-9312	●	●	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9401-	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9202-	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9202-9312	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47491-989-0	01	1	9202-9208	●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=877 SERVICED BY L=1000	1-47434-386-0	01	1	9209-	●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=285 SERVICED BY L=300	1-47426-340-0	01	1	9306-				●
132	NUT; UNION,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9202-	●
133	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9202-9312	●
134	GASKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18	9-09572-510-0	01	1	9202-	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=686 SERVICED BY L=730	1-47426-382-0	01	1	9202-9212	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=686 SERVICED BY L=1000	1-47426-386-0	01	1	9301-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1819 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9208	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1730 SERVICED BY L=1950	1-47434-414-0	01	1	9209-9212	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1730 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1304 SERVICED BY L=1400	1-47426-389-0	01	1	9306-9312				●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1942 SERVICED BY L=1950	1-47426-393-0	01	1	9401-				●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1356 SERVICED BY L=1400	1-47426-389-0	01	1	9505-				●
170	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTER SHIFT CONTROL<WX8> (A) M12 & M20X2 3WAY	1-09656-395-3	01	1	9202-	●
170	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-09654-185-1	01	1	9202-	●
172	HOSE; FLEX,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> L=570	1-09364-693-0	01	1	9306-	●		●
172	HOSE; FLEX,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=550	1-09364-434-0	01	1	9306-	●
172	HOSE; FLEX,CLU BOOSTER L=390	1-09364-475-0	01	1	9306-				●

52 144 144 29 49 25 28 30 45 46 9 27 36 106 31 30 54 48 104 164 106 153 107 131 47 172 115 43 116 42 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	NUT; BRKT,FLEX HOSE M8 FLANGE	0-91150-108-0	02	1	9306-				●
25	BRACKET; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 W/NUT	1-47475-439-2	02	1	9505-				●
27	NUT; BRKT M8	9-09110-408-0	02	1	9202-9504	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	02	1	9505-	●	●	●	●
27	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9505-				●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9202-	●	●	●
28	CLIP; OIL PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9306-9504				●
28	CLIP; OIL PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9505-				●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9505-				●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9505-				●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9306-				●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	05	1	9505-				●
30	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	03	1	9505-				●
30	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9505-				●
31	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	03	1	9505-				●
36	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> L=90 W/NUT	1-47475-520-0	01	1	9202-	●		●
36	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 W/NUT	1-47475-439-2	03	1	9505-				●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-709-0	01	1	9202-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-291-0	01	1	9202-	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-444-4	01	1	9202-9209	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-781-0	01	1	9210-9307	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-371-0	01	1	9308-	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47476-912-0	01	1	9306-				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9205-				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9202-	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9202-	●
45	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9306-9312				●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	9401-				●
46	WASHER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9202-9312	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9306-9312				●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> L=570	1-09364-693-0	01	1	9202-9305	●		●
47	HOSE; FLEX,CLU CONT L=420	0-07030-420-0	01	1	9306-				●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=550	1-09364-434-0	01	1	9202-9305	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTER SHIFT CONTROL<WX8> (A) L=500	0-07120-500-0	01	1	9202-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=570	0-07120-570-0	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (B) ID=14.2	9-09851-004-0	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-			●	●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=211	1-47449-064-0	01	1	9202-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=198 SERVICED BY L=250	1-47426-339-0	01	1	9306-9310				●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=233 SERVICED BY L=250	1-47426-339-0	01	1	9311-				●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9306-				●
54	BRACKET; AIR,FLEX HOSE	1-47465-890-0	01	1	9306-				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1722 SERVICED BY L=1800	1-47434-413-0	01	1	9202-9205	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1810 SERVICED BY L=1950	1-47434-414-0	01	1	9206-9212	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1810 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1574 SERVICED BY L=1700	1-47426-391-0	01	1	9306-9312				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=920 SERVICED BY L=970	1-47426-385-0	01	1	9401-				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1550 SERVICED BY L=1700	1-47426-391-0	01	1	9505-				●
106	UNION; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14 2WAY	1-09654-176-2	01	1	9202-9312	●	●	●
106	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9401-	●	●	●	●
106	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14 STRAIGHT	9-09223-008-1	01	1	9202-9312	●			●
106	UNION; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 STRAIGHT	9-09223-008-1	01	1	9505-				●
107	NUT; UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99111-412-0	01	1	9202-9312	●	●	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9401-	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9202-	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9202-9312	●	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47491-989-0	01	1	9202-9208	●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=877 SERVICED BY L=1000	1-47434-386-0	01	1	9209-	●
131	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=285 SERVICED BY L=300	1-47426-340-0	01	1	9306-				●
144	GASKET; AIR PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	9306-				●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=686 SERVICED BY L=730	1-47426-382-0	01	1	9202-9212	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=686 SERVICED BY L=1000	1-47426-386-0	01	1	9301-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1819 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9208	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1730 SERVICED BY L=1950	1-47434-414-0	01	1	9209-9212	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1730 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1304 SERVICED BY L=1400	1-47426-389-0	01	1	9306-9312				●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1942 SERVICED BY L=1950	1-47426-393-0	01	1	9401-				●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1356 SERVICED BY L=1400	1-47426-389-0	01	1	9505-				●
164	CLIP; BAND,FLEX HOSE L=100	5-09707-036-0	01	1	9306-				●
172	HOSE; FLEX,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> L=570	1-09364-693-0	01	1	9306-	●		●
172	HOSE; FLEX,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=550	1-09364-434-0	01	1	9306-	●
172	HOSE; FLEX,CLU BOOSTER L=390	1-09364-475-0	01	1	9306-				●

26 35 28 33 107 93 34 29 175 10 44 106 104 153 115 116 42 43 47 172 112 113 48 37 117 4 36 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	CLIP; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=18 L=28	1-09701-067-0	01	1	9202-	●		●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9202-	●	●	●	●
10	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	01	1	9202-	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9202-	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9202-	●	●	●
28	CLIP; OIL PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9306-9504				●
28	CLIP; OIL PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9505-				●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9505-				●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9505-				●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9306-				●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	05	1	9505-				●
33	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9202-9211	●	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9212-	●	●	●
33	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-9211	●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●	●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-9211	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●	●
34	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
34	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9205-9211	●
35	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9202-9211	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9212-	●	●	●
35	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9202-9211	●
36	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> L=90 W/NUT	1-47475-520-0	01	1	9202-	●		●
36	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 W/NUT	1-47475-439-2	03	1	9505-				●
37	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28010-830-0	01	1	9202-9204	●		●
37	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28080-830-0	01	1	9205-	●		●
38	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8	9-09110-408-0	01	1	9202-	●		●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-709-0	01	1	9202-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-291-0	01	1	9202-	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-444-4	01	1	9202-9209	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-781-0	01	1	9210-9307	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-371-0	01	1	9308-	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47476-912-0	01	1	9306-				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9205-				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9202-	●	●	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> L=570	1-09364-693-0	01	1	9202-9305	●		●
47	HOSE; FLEX,CLU CONT L=420	0-07030-420-0	01	1	9306-				●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=550	1-09364-434-0	01	1	9202-9305	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTER SHIFT CONTROL<WX8> (A) L=500	0-07120-500-0	01	1	9202-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. ASSISTER SHIFT CONTROL<WX8> (A) L=570	0-07120-570-0	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (B) ID=14.2	9-09851-004-0	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-			●	●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-	●
93	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	9310-9312	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1722 SERVICED BY L=1800	1-47434-413-0	01	1	9202-9205	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1810 SERVICED BY L=1950	1-47434-414-0	01	1	9206-9212	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1810 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1574 SERVICED BY L=1700	1-47426-391-0	01	1	9306-9312				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=920 SERVICED BY L=970	1-47426-385-0	01	1	9401-				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1550 SERVICED BY L=1700	1-47426-391-0	01	1	9505-				●
106	UNION; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14 2WAY	1-09654-176-2	01	1	9202-9312	●	●	●
106	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9401-	●	●	●	●
106	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14 STRAIGHT	9-09223-008-1	01	1	9202-9312	●			●
106	UNION; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 STRAIGHT	9-09223-008-1	01	1	9505-				●
107	NUT; UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99111-412-0	01	1	9202-9312	●	●	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9401-	●	●	●	●
112	SLEEVE; RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10 OD=14 L=30	9-09956-682-0	01	1	9302-9304	●	●	●
113	CLIP; BAND BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	9302-9304	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9202-	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9202-9312	●	●	●	●
117	BOLT; CLIP,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●		●
117	BOLT; CLIP,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●		●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=686 SERVICED BY L=730	1-47426-382-0	01	1	9202-9212	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=686 SERVICED BY L=1000	1-47426-386-0	01	1	9301-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1819 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9208	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1730 SERVICED BY L=1950	1-47434-414-0	01	1	9209-9212	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1730 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1304 SERVICED BY L=1400	1-47426-389-0	01	1	9306-9312				●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1942 SERVICED BY L=1950	1-47426-393-0	01	1	9401-				●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1356 SERVICED BY L=1400	1-47426-389-0	01	1	9505-				●
172	HOSE; FLEX,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> L=570	1-09364-693-0	01	1	9306-	●		●
172	HOSE; FLEX,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=550	1-09364-434-0	01	1	9306-	●
172	HOSE; FLEX,CLU BOOSTER L=390	1-09364-475-0	01	1	9306-				●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9202-	●	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9202-	●	●	●

26 35 28 33 107 93 34 29 175 10 44 106 104 153 115 116 42 43 112 113 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9202-	●	●	●	●
10	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	01	1	9202-	●	●	●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9202-	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9202-	●	●	●
28	CLIP; OIL PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9306-9504				●
28	CLIP; OIL PIPE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9505-				●
28	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9505-				●
28	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9505-				●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9306-				●
29	BOLT; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	05	1	9505-				●
33	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8 H=20 L=20	1-09700-604-0	01	1	9202-9211	●	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	9212-	●	●	●
33	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-9211	●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●	●
34	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-9211	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●	●
34	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
34	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9205-9211	●
35	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9202-9211	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9212-	●	●	●
35	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9202-9211	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-709-0	01	1	9202-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-291-0	01	1	9202-	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-444-4	01	1	9202-9209	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-781-0	01	1	9210-9307	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-371-0	01	1	9308-	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47476-912-0	01	1	9306-				●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9205-				●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9202-	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	9202-		●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (B) ID=14.2	9-09851-004-0	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-			●	●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-	●
48	GASKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> ID=10.2 OD=16.0	9-09571-410-0	01	1	9202-	●
93	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	01	1	9310-9312	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1722 SERVICED BY L=1800	1-47434-413-0	01	1	9202-9205	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1810 SERVICED BY L=1950	1-47434-414-0	01	1	9206-9212	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1810 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1574 SERVICED BY L=1700	1-47426-391-0	01	1	9306-9312				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=920 SERVICED BY L=970	1-47426-385-0	01	1	9401-				●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1550 SERVICED BY L=1700	1-47426-391-0	01	1	9505-				●
106	UNION; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M14 2WAY	1-09654-176-2	01	1	9202-9312	●	●	●
106	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9401-	●	●	●	●
106	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14 STRAIGHT	9-09223-008-1	01	1	9202-9312	●			●
106	UNION; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 STRAIGHT	9-09223-008-1	01	1	9505-				●
107	NUT; UNION,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	9-99111-412-0	01	1	9202-9312	●	●	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9401-	●	●	●	●
112	SLEEVE; RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10 OD=14 L=30	9-09956-682-0	01	1	9302-9304	●	●	●
113	CLIP; BAND BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	9302-9304	●	●	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	9202-		●
114	BOLT; EYE,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1>	1-09675-158-0	01	1	9202-	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9202-	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9202-9312	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=686 SERVICED BY L=730	1-47426-382-0	01	1	9202-9212	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=686 SERVICED BY L=1000	1-47426-386-0	01	1	9301-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1819 SERVICED BY L=1950	1-47434-414-0	01	1	9202-9208	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1730 SERVICED BY L=1950	1-47434-414-0	01	1	9209-9212	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1730 SERVICED BY L=1950	1-47426-393-0	01	1	9301-	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1304 SERVICED BY L=1400	1-47426-389-0	01	1	9306-9312				●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1942 SERVICED BY L=1950	1-47426-393-0	01	1	9401-				●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1356 SERVICED BY L=1400	1-47426-389-0	01	1	9505-				●
161	HOSE; FLEX,SLAVE CYL	0-05567-350-0	01	1	9202-		●
161	HOSE; FLEX,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1>	0-05567-350-0	01	1	9202-	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9202-	●	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9202-	●	●	●

58 57 58 66 67 67 58 149 62 63 13 150 17 10 175 42 167 167 1 17 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,CLU CONT L=400	1-09364-263-0	01	1	9202-	●	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9202-	●	●	●	●
10	NUT; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	01	1	9202-	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL L=812	1-47418-493-4	01	1	9202-9212	●	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL L=802	1-47425-600-0	01	1	9301-	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●	●	●
17	BOLT; BRKT (B) M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	02	1	9202-9504	●	●	●	●
27	NUT; BRKT M8	9-09110-408-0	02	1	9505-	●	●	●	●
27	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9505-				●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-709-0	01	1	9202-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-291-0	01	1	9202-	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-444-4	01	1	9202-9209	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-781-0	01	1	9210-9307	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-371-0	01	1	9308-	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47476-912-0	01	1	9306-				●
57	HOSE; CLU M/CYL TO OIL TANK L=630 SERVICED BY L=1800	1-09360-320-0	01	1	9202-	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=16	1-09707-171-0	02	1	9202-	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (B) ID=15	1-09987-115-0	01	1	9202-	●	●	●	●
62	CLIP; CLU PIPE ID=5 & 8	5-09700-165-0	01	1	9202-	●	●	●	●
63	BOLT; CLIP,PIPE M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9202-	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9202-	●	●	●	●
149	BRACKET; CLIP,OIL PIPE	1-47465-169-1	01	1	9202-	●	●	●	●
150	BOLT; BRKT,PIPE CLIP M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-	●	●	●	●
167	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47475-444-4	01	1	9202-9306	●	●	●
167	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47476-781-0	01	1	9307-	●	●	●
167	BRACKET; UNION (A)	1-79738-107-0	01	1	9202-	●	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9202-	●	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9202-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
