4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#122694) — 125 parça

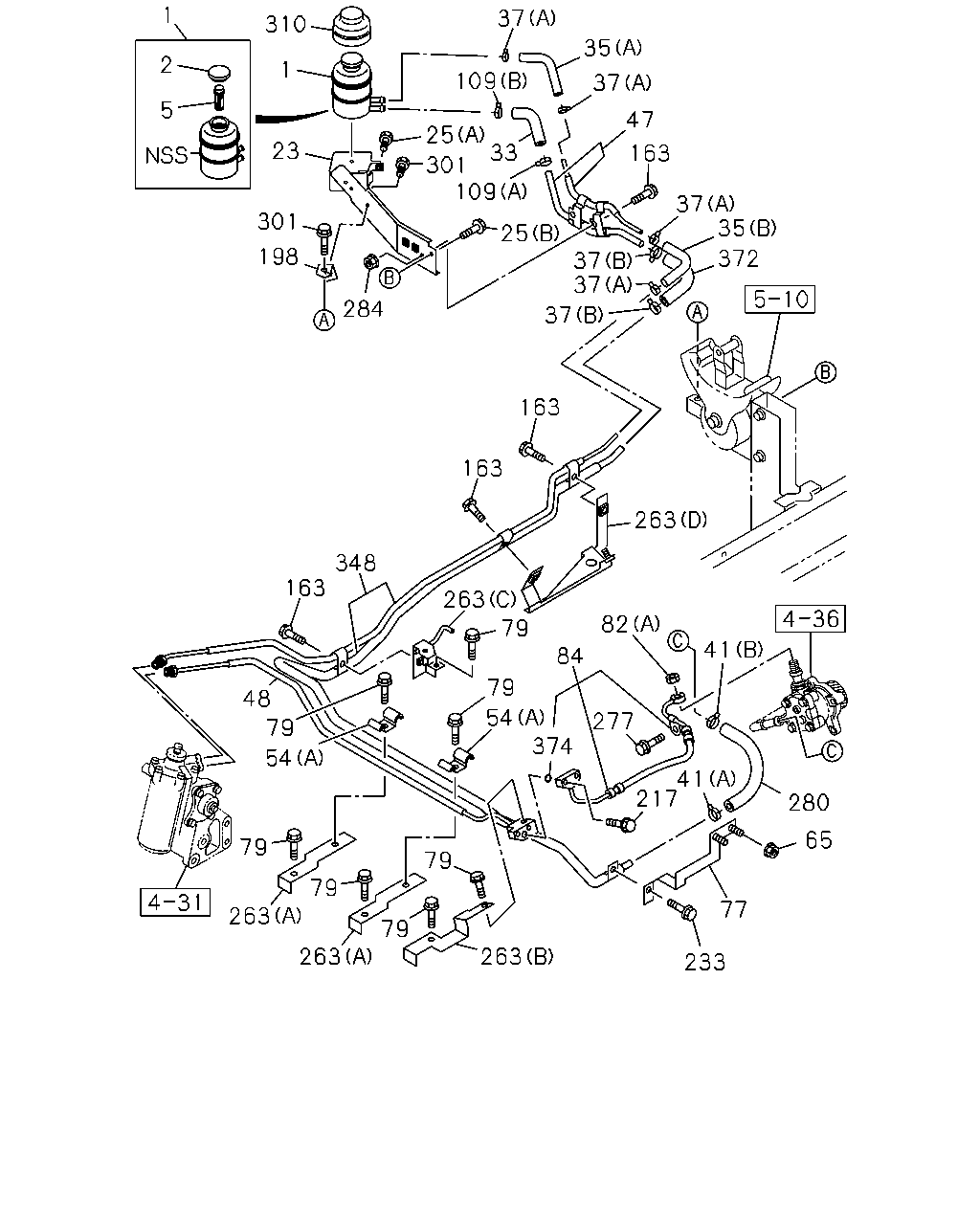

79 54 79 263 263 79 79 263 79 48 163 348 54 79 79 263 374 84 277 217 77 233 82 263 41 163 163 280 65 284 37 37 37 372 35 37 163 47 37 35 37 109 25 109 33 301 25 310 23 1 301 198 5 2 1 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1306-	●	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1306-	●	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1306-	●	●	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1306-	●	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1306-	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1306-	●	●	●
35	HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	1306-	●
35	HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1306-		●
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1306-	●	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1306-	●	●	●
35	HOSE; RETURN,P/S TANK (C)	8-98092-679-0	01	1	1306-			●
37	CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	1306-	●
37	CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	1306-		●	●
37	CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=21	8-98150-355-0	02	1	1306-	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	1306-	●	●	●
41	CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=21.7	8-97203-074-0	01	1	1306-	●
41	CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=21	8-98150-355-0	01	1	1306-	●
47	PIPE; RETURN FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1306-	●
47	PIPE; RETURN	8-98083-166-1	01	1	1306-		●	●
47	PIPE; RETURN EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	1306-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ>	8-98041-185-4	01	1	1306-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	1306-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-808-0	01	1	1306-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	1306-			●
54	CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1306-	●
54	CLIP; OIL PIPE (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1306-		●	●
54	CLIP; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-283-0	02	1	1306-	●
65	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
77	BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1306-	●
79	BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU	0-28650-825-0	05	1	1306-	●
79	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-			●
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	1306-	●	●	●
82	NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) M16	8-94370-339-0	01	1	1306-	●
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	1306-		●	●
84	HOSE; FLEX,P/S EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-698-3	01	1	1306-	●
109	CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-98150-355-0	02	1	1306-	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	02	1	1306-		●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1306-	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1306-	●	●	●
163	BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-		●	●
163	BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU	0-28650-825-0	07	1	1306-	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1306-	●	●	●
217	BOLT; FLEX HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> M6X35 FLANGE	0-28650-635-0	02	1	1306-	●
233	BOLT; PIPE CLIP,P/S EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
263	BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-233-1	01	1	1306-	●
263	BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-047-1	02	1	1306-	●
263	BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	1306-	●
263	BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98047-050-1	01	1	1306-	●
277	BOLT; HOSE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8X12 FLANGE	0-28050-812-0	01	1	1306-	●
280	HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1306-	●
280	HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1306-		●	●
280	HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	1306-	●
280	HOSE; P/S OIL PUMP,INL EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	1306-	●
284	NUT; PIPE FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	1306-	●	●
348	PIPE; OIL,P/S PRESS EXC. FRAME STRAIGHT TYPE<7KJ>	8-98101-610-1	01	1	1306-	●
372	HOSE; RUBBER EXC. FRAME STRAIGHT TYPE<7KJ>	8-98171-278-0	01	1	1306-	●
374	GASKET; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ>	8-98139-036-0	01	1	1306-	●

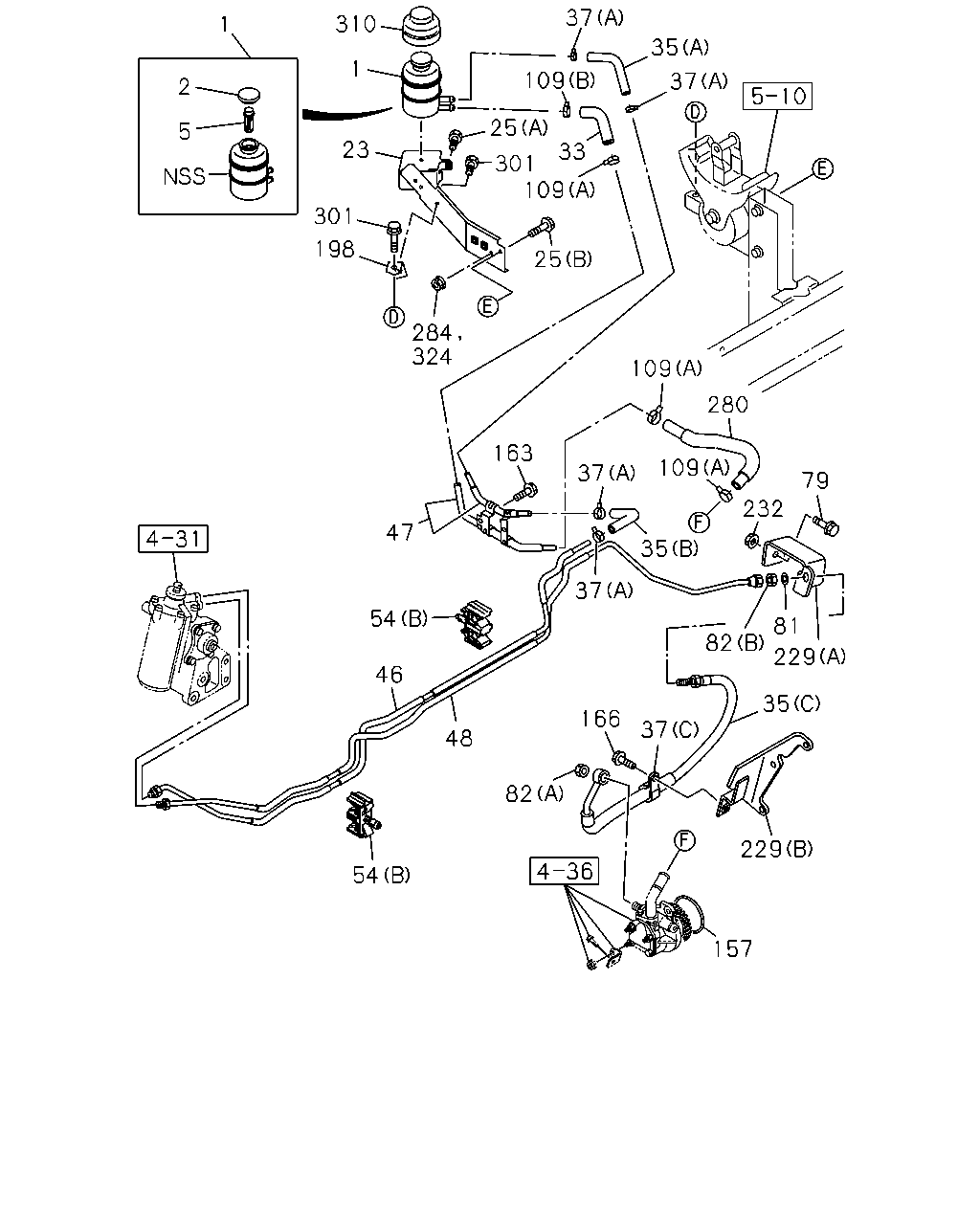

109 280 163 37 37 109 35 232 79 47 54 46 48 54 82 166 37 35 229 157 81 82 229 324 284 25 109 301 33 25 109 23 1 310 301 198 5 2 1 35 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1306-	●	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1306-	●	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1306-	●	●	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1306-	●	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1306-	●	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1306-	●	●	●
35	HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	1306-	●
35	HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1306-		●
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1306-	●	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1306-	●	●	●
35	HOSE; RETURN,P/S TANK (C)	8-98092-679-0	01	1	1306-			●
37	CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (C) ID=26 L=26	1-09701-236-0	01	1	1306-	●
37	CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	1306-		●	●
37	CLIP; HOSE,P/S EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=21	8-98150-355-0	02	1	1306-	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	1306-	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ>	8-98041-184-3	01	1	1306-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	1306-		●	●
47	PIPE; RETURN FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1306-	●
47	PIPE; RETURN	8-98083-166-1	01	1	1306-		●	●
47	PIPE; RETURN EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-933-2	01	1	1306-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ>	8-98041-185-4	01	1	1306-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	1306-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98156-808-0	01	1	1306-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	1306-			●
54	CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1306-	●
54	CLIP; OIL PIPE (B) ID=10X2 H=37.5	8-97018-546-0	02	1	1306-		●	●
54	CLIP; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-283-0	02	1	1306-	●
79	BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU	0-28650-825-0	05	1	1306-	●
79	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-			●
81	WASHER; LK,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1306-	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1306-		●	●
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	1306-	●	●	●
82	NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) M16	8-94370-339-0	01	1	1306-	●
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	1306-		●	●
109	CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-98150-355-0	02	1	1306-	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	02	1	1306-		●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1306-	●	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1306-	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCN ENG(RDQ).	8-97101-875-2	01	1	1306-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1306-		●	●
163	BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-		●	●
163	BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU	0-28650-825-0	07	1	1306-	●
166	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
166	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-		●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1306-	●	●	●
229	BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-341-0	01	1	1306-	●
229	BRACKET; HOSE,POWER STRG (A)	8-98079-341-0	01	1	1306-		●
229	BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98011-639-1	01	1	1306-	●
229	BRACKET; HOSE,POWER STRG TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98011-639-1	01	1	1306-		●	●
229	BRACKET; HOSE,POWER STRG (A)	8-98043-418-2	01	1	1306-			●
232	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
232	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	1306-		●	●
280	HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1306-	●
280	HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1306-		●	●
280	HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	1306-	●
280	HOSE; P/S OIL PUMP,INL EXC. FRAME STRAIGHT TYPE<7KJ> L=260	0-09814-400-0	01	1	1306-	●
284	NUT; PIPE FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	1306-	●	●
324	NUT; OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1306-			●
