4-30 — STEERING WHEEL AND COWL (#122691) — 12 parça

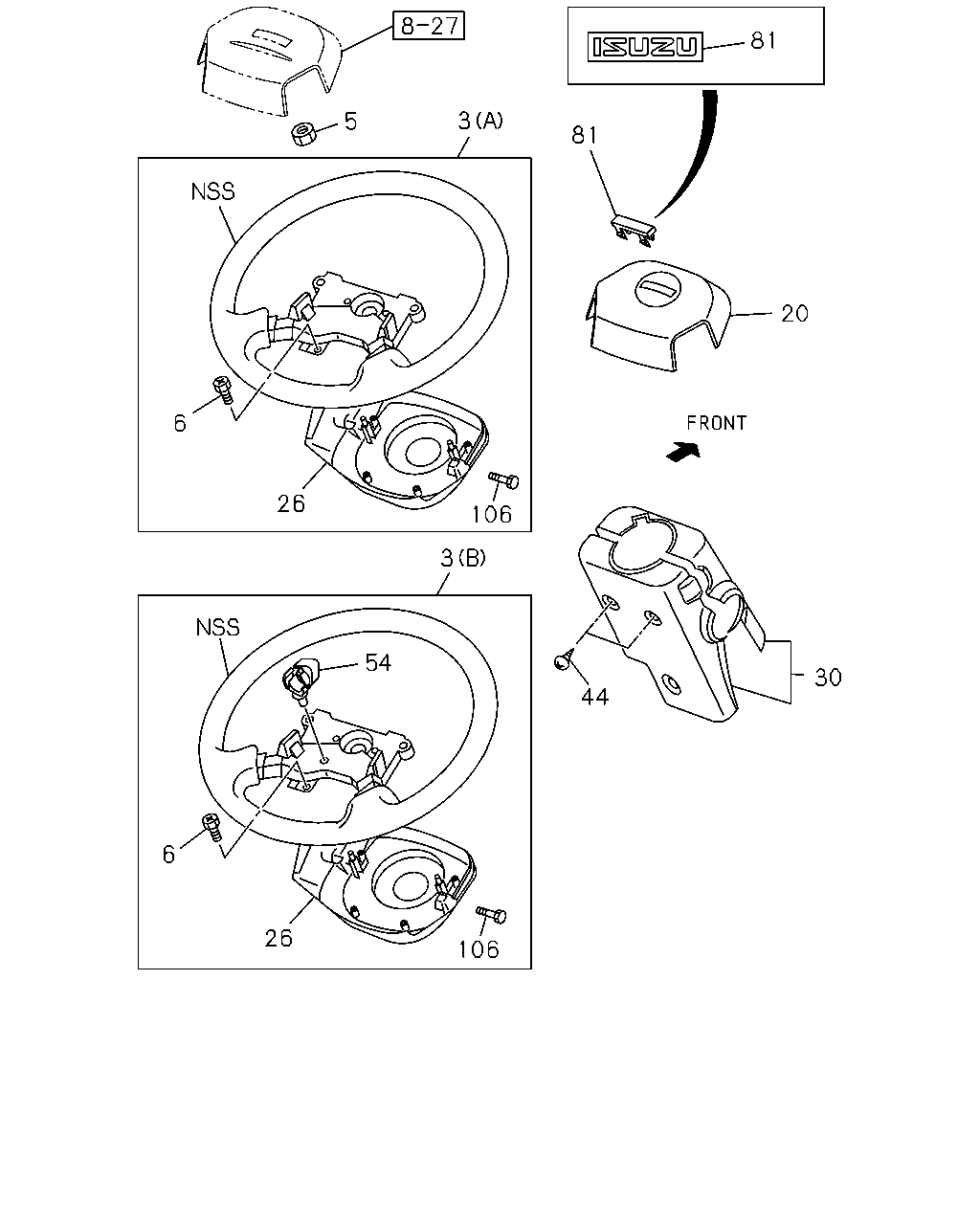

çizim 356467
20 81 81 106 26 6 5 3 3 44 30 106 26 6 54
BalonParca AdiParca NoAdetTipApplied Date A B C
3 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY 		8-97423-997-0 01 1 1306- ● ● ●
3 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY 		8-97412-556-1 01 1 1306- ● ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 SOU 		0-91111-514-0 01 1 1306- ● ● ●
6 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 1306- ● ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97405-985-1 01 1 1306- ● ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97421-978-0 01 1 1306- ● ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97409-275-2 01 1 1306- ● ● ●
30 COWL; STEERING
DARK GRAY 		8-97418-761-1 01 1 1306- ● ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1306- ● ● ●
54 CLIP; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98165-703-0 01 1 1306- ● ● ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97405-986-0 01 1 1306- ● ● ●
106 BOLT; TORX 8-98231-397-0 02 1 1306- ● ● ●
