Sayfa 4-25 - Isuzu EPC

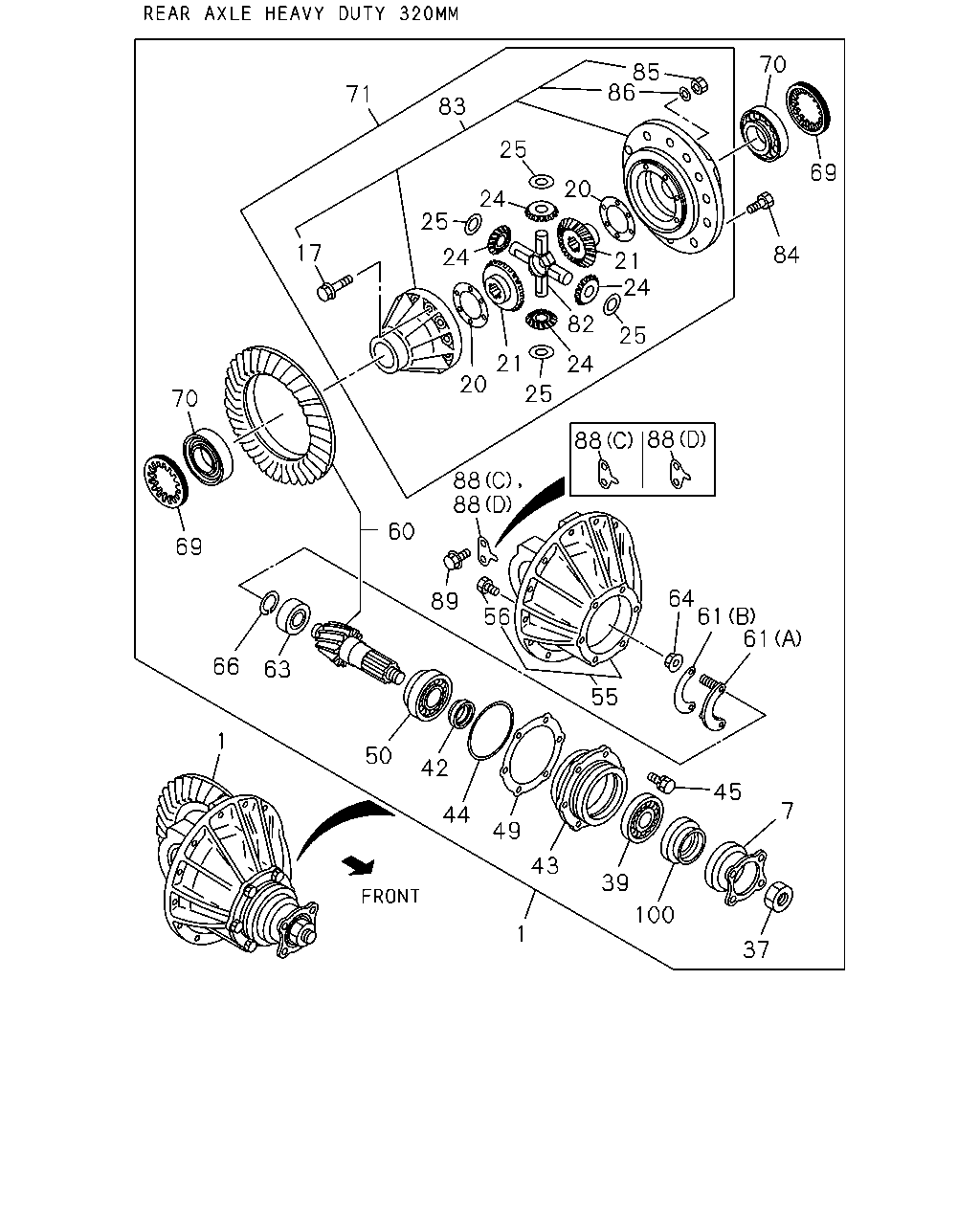

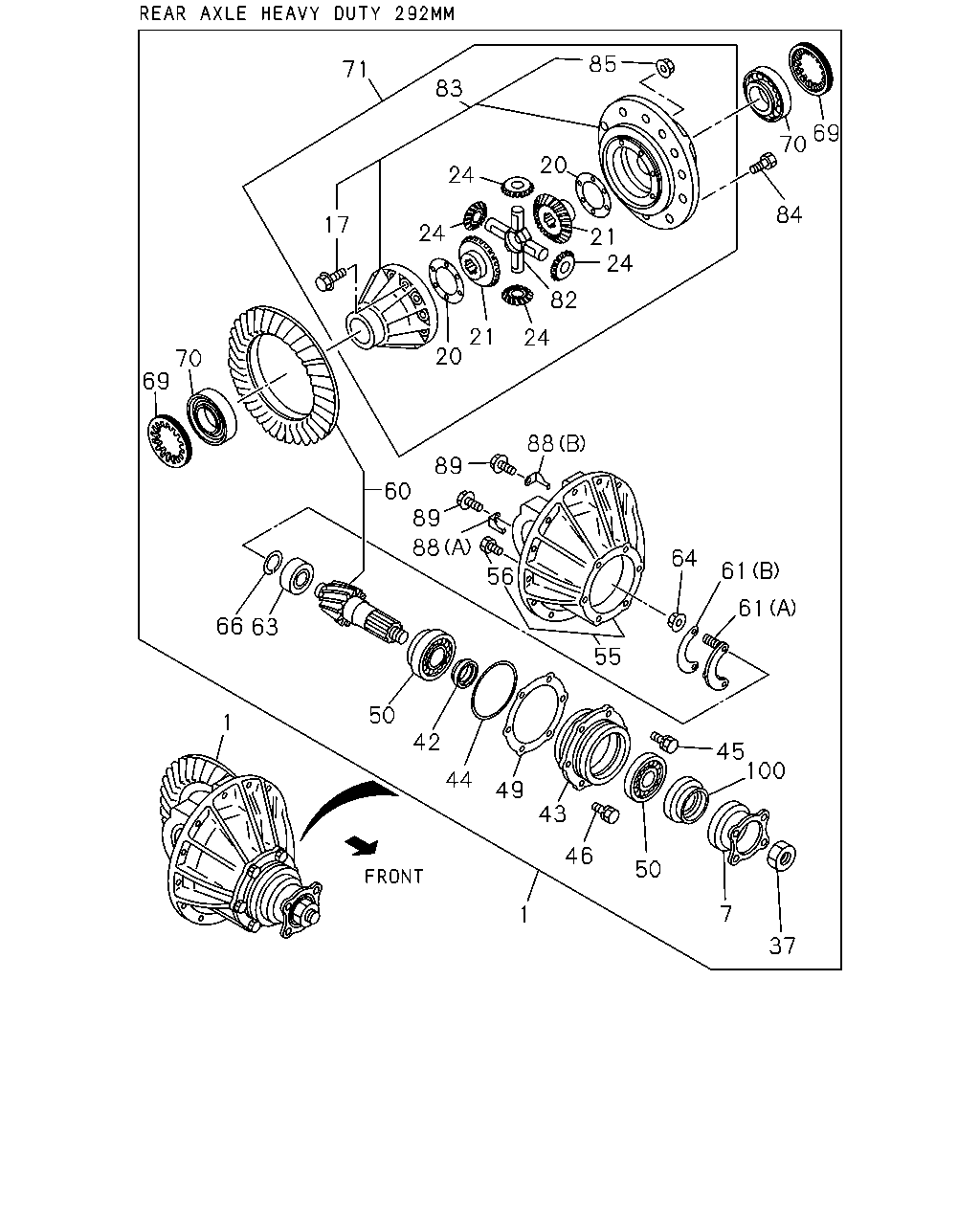

4-25 — REAR FINAL DRIVE (#122690) — 548 parça

69 70 84 85 83 71 17 24 24 20 21 24 82 24 21 20 88 89 60 89 88 56 55 64 61 61 45 100 37 7 50 46 1 43 49 44 42 50 1 63 66 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97388-700-0	01	1	1508-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	1407-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	1407-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) 41/9	8-97388-702-0	01	1	1306-1407	●
1	DRIVE ASM; FINAL,RR 41/9	8-97388-702-0	01	1	1306-1407		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	1408-1507	●
1	DRIVE ASM; FINAL,RR 41/9	8-97388-702-0	01	1	1408-1507		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	1508-	●	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 6.0-6.5TON(RPV) 43/10	8-97388-701-0	01	1	1306-1507	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97388-701-0	01	1	1508-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> 41/7	8-98015-155-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> 41/7	8-98015-129-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR 41/8	8-97388-704-0	01	1	1306-			●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-095-2	01	1	1306-	●
7	FLANGE; FINAL	8-97047-095-2	01	1	1306-		●	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	1306-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12X90	8-98219-448-0	12	1	1306-	●
17	BOLT; DIFF CAGE SETTING M12X90	8-98219-448-0	12	1	1306-		●	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	1306-1406	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	1407-	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	1306-1406	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	1407-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	1306-1406	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	1407-	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	1306-1406	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	1407-	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	1306-1406	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	1407-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1306-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1306-	●
21	GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1306-		●	●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-1	02	1	1306-1406	●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-1	02	1	1407-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1306-	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1306-		●	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1306-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1306-	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1306-		●	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1306-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1306-	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1306-		●	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1306-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1306-	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	1306-		●	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1306-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1306-	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	1306-		●	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73)	9-09720-505-0	01	1	1306-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1306-	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1306-		●	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	1306-1311	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
46	BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.50	8-97048-419-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1306-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	1-09812-041-2	01	1	1306-	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1306-		●	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	1306-	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1306-		●	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	5-09812-062-1	02	1	1306-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09812-063-0	02	1	1306-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1306-	●
55	CARRIER; DIFF	8-97094-637-0	01	1	1306-		●	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1306-	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	1306-	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1306-		●	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) M14X80	8-94365-377-3	04	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	1508-1510	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-152-0	01	1	1511-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1407-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) 41/9	8-97078-635-1	01	1	1306-1407	●
60	GEAR SET; FINAL DRIVE,RR 41/9	8-97078-635-1	01	1	1306-1407		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1408-1507	●
60	GEAR SET; FINAL DRIVE,RR 41/9	8-97078-635-1	01	1	1408-1507		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1508-	●	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 6.0-6.5TON(RPV) 43/10	8-97047-115-0	01	1	1306-1507	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	1508-1510	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-149-0	01	1	1511-	●	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) 41/7	8-98092-031-1	01	1	1306-1406	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1407-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	8-97174-099-0	01	1	1306-1505			●
60	GEAR SET; FINAL DRIVE,RR 41/8	8-98092-137-0	01	1	1506-			●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1306-	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1306-		●	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1306-	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1306-		●	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1306-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1306-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1306-	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1306-		●	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1306-	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1306-		●	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	1306-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	1306-	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1306-	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1306-		●	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1306-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1306-	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1306-		●	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1306-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1306-	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1306-		●	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1306-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-099-4	01	1	1306-	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-4	01	1	1306-		●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-98015-186-2	01	1	1306-1406	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-98015-186-2	01	1	1407-	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-1	01	1	1306-1406	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-1	01	1	1407-	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97047-100-4	01	1	1306-			●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1306-1309	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1306-1309		●	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-035-2	01	1	1310-	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-		●	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	1306-1406	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	1407-	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	5-41521-008-0	01	1	1306-1406	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	5-41521-008-0	01	1	1407-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-98219-705-0	01	1	1306-	●
83	CAGE ASM; DIFF	8-98219-705-0	01	1	1306-		●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	1306-1406	●
83	CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	1407-	●
83	CAGE ASM; DIFF	8-98219-707-0	01	1	1306-			●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1306-	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1306-		●	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	1306-1406	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	1407-	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	1306-1406	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	1407-	●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12	8-97065-214-0	12	1	1306-	●
85	NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	1306-		●	●
85	NUT; DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M10 FLANGE SOU	0-91180-210-0	12	1	1306-1406	●
85	NUT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M10 FLANGE SOU	0-91180-210-0	12	1	1407-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	1306-	●
88	PLATE; LK,ADJ NUT (D) T=2.3	8-97087-821-0	AR	1	1306-		●	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	1306-	●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	1306-		●	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	1306-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	1306-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) M8X16 FLANGE SOU	0-28050-816-0	04	1	1306-	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	04	1	1306-		●	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) M8X16 FLANGE SOU	0-28050-816-0	02	1	1306-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	1306-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1306-		●	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1306-	●

432 24 24 20 86 17 75 433 396 24 82 78 24 396 78 78 78 20 84 79 79 79 79 79 433 69 70 89 88 64 61 61 89 88 56 55 37 7 100 45 50 43 44 50 46 49 42 1 63 66 60 1 69 70 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97388-700-0	01	1	1508-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	1407-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	1407-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) 41/9	8-97388-702-0	01	1	1306-1407	●
1	DRIVE ASM; FINAL,RR 41/9	8-97388-702-0	01	1	1306-1407		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	1408-1507	●
1	DRIVE ASM; FINAL,RR 41/9	8-97388-702-0	01	1	1408-1507		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	1508-	●	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 6.0-6.5TON(RPV) 43/10	8-97388-701-0	01	1	1306-1507	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97388-701-0	01	1	1508-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> 41/7	8-98015-155-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> 41/7	8-98015-129-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR 41/8	8-97388-704-0	01	1	1306-			●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-095-2	01	1	1306-	●
7	FLANGE; FINAL	8-97047-095-2	01	1	1306-		●	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	1306-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12X90	8-98219-448-0	12	1	1306-	●
17	BOLT; DIFF CAGE SETTING M12X90	8-98219-448-0	12	1	1306-		●	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	1306-1406	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	1407-	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	1306-1406	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	1407-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	1306-1406	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	1407-	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	1306-1406	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	1407-	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	1306-1406	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	1407-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1306-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1306-	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1306-		●	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1306-	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1306-	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1306-		●	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1306-	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1306-	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1306-		●	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1306-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1306-	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	1306-		●	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1306-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1306-	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	1306-		●	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73)	9-09720-505-0	01	1	1306-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1306-	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1306-		●	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	1306-1311	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
46	BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.50	8-97048-419-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1306-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	1-09812-041-2	01	1	1306-	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1306-		●	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	1306-	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1306-		●	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	5-09812-062-1	02	1	1306-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09812-063-0	02	1	1306-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1306-	●
55	CARRIER; DIFF	8-97094-637-0	01	1	1306-		●	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1306-	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	1306-	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1306-		●	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) M14X80	8-94365-377-3	04	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	1508-1510	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-152-0	01	1	1511-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1407-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) 41/9	8-97078-635-1	01	1	1306-1407	●
60	GEAR SET; FINAL DRIVE,RR 41/9	8-97078-635-1	01	1	1306-1407		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1408-1507	●
60	GEAR SET; FINAL DRIVE,RR 41/9	8-97078-635-1	01	1	1408-1507		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1508-	●	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 6.0-6.5TON(RPV) 43/10	8-97047-115-0	01	1	1306-1507	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	1508-1510	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-149-0	01	1	1511-	●	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) 41/7	8-98092-031-1	01	1	1306-1406	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1407-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	8-97174-099-0	01	1	1306-1505			●
60	GEAR SET; FINAL DRIVE,RR 41/8	8-98092-137-0	01	1	1506-			●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1306-	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1306-		●	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1306-	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1306-		●	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1306-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1306-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1306-	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1306-		●	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1306-	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1306-		●	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	1306-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	1306-	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1306-	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1306-		●	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1306-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1306-	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1306-		●	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1306-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1306-	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1306-		●	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1306-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-099-4	01	1	1306-	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-4	01	1	1306-		●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-98015-186-2	01	1	1306-1406	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-98015-186-2	01	1	1407-	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-1	01	1	1306-1406	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-1	01	1	1407-	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97047-100-4	01	1	1306-			●
75	PLATE; BEVEL FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	1306-1406	●
75	PLATE; BEVEL FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	1407-	●
75	PLATE; BEVEL FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	1306-1406	●
75	PLATE; BEVEL FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	1407-	●
75	PLATE; BEVEL FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	1306-1406	●
75	PLATE; BEVEL FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	1407-	●
75	PLATE; BEVEL FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	1306-1406	●
75	PLATE; BEVEL FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	1407-	●
75	PLATE; BEVEL FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	1306-1406	●
75	PLATE; BEVEL FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	1407-	●
75	PLATE; BEVEL FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	1306-1406	●
75	PLATE; BEVEL FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	1407-	●
75	PLATE; BEVEL FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	1306-1406	●
75	PLATE; BEVEL FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	1407-	●
78	DISC; FRICTION FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	1306-1406	●
78	DISC; FRICTION FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	1407-	●
79	PLATE; FRICTION FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	1306-1406	●
79	PLATE; FRICTION FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	1407-	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1306-1309	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1306-1309		●	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-035-2	01	1	1310-	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-		●	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	1306-1406	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	1407-	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	5-41521-008-0	01	1	1306-1406	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	5-41521-008-0	01	1	1407-	●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1306-	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1306-		●	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	1306-1406	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	1407-	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	1306-1406	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	1407-	●
86	WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1306-	●
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1306-		●	●
86	WASHER; PL,DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	1306-1406	●
86	WASHER; PL,DIFF CAGE SETTING FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	1407-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	1306-	●
88	PLATE; LK,ADJ NUT (D) T=2.3	8-97087-821-0	AR	1	1306-		●	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	1306-	●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	1306-		●	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	1306-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	1306-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) M8X16 FLANGE SOU	0-28050-816-0	04	1	1306-	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	04	1	1306-		●	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) M8X16 FLANGE SOU	0-28050-816-0	02	1	1306-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	1306-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1306-		●	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1306-	●
396	GEAR; DIFF,LSD FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-598-1	01	1	1306-1406	●
396	GEAR; DIFF,LSD FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-598-1	01	1	1407-	●
396	GEAR; DIFF,LSD FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	1306-1406	●
396	GEAR; DIFF,LSD FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	1407-	●
432	SCREW FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	1306-1406	●
432	SCREW FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	1407-	●
433	PLATE; FRICTION FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	1306-1406	●
433	PLATE; FRICTION FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	1407-	●

71 83 85 86 25 20 24 25 24 17 20 21 25 24 82 25 24 21 70 69 84 88 88 88 88 60 89 56 55 64 61 61 45 7 37 100 39 43 1 49 44 42 50 63 66 1 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97388-700-0	01	1	1508-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	1407-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	1407-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) 41/9	8-97388-702-0	01	1	1306-1407	●
1	DRIVE ASM; FINAL,RR 41/9	8-97388-702-0	01	1	1306-1407		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	1408-1507	●
1	DRIVE ASM; FINAL,RR 41/9	8-97388-702-0	01	1	1408-1507		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	1508-	●	●
1	DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 6.0-6.5TON(RPV) 43/10	8-97388-701-0	01	1	1306-1507	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97388-701-0	01	1	1508-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> 41/7	8-98015-155-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> 41/7	8-98015-129-0	01	1	1306-	●
1	DRIVE ASM; FINAL,RR 41/8	8-97388-704-0	01	1	1306-			●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-095-2	01	1	1306-	●
7	FLANGE; FINAL	8-97047-095-2	01	1	1306-		●	●
7	FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	1306-	●
17	BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12X90	8-98219-448-0	12	1	1306-	●
17	BOLT; DIFF CAGE SETTING M12X90	8-98219-448-0	12	1	1306-		●	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	1306-1406	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	1407-	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	1306-1406	●
17	BOLT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	1407-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	1306-	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1306-		●	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	1306-1406	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	1407-	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	1306-1406	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	1407-	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	1306-1406	●
20	WASHER; THRUST,SIDE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	1407-	●
20	WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1306-	●
21	GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1306-	●
21	GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1306-		●	●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-1	02	1	1306-1406	●
21	GEAR; SIDE,DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-1	02	1	1407-	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-050-0	04	1	1306-	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1306-		●	●
24	GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1306-	●
25	WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	1306-	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	1306-		●	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1306-	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1306-		●	●
37	NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1306-	●
39	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	5-09812-062-1	01	1	1306-	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1306-		●	●
39	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	5-09812-063-0	01	1	1306-	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1306-		●	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1306-	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1306-		●	●
42	COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1306-	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1306-	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	1306-		●	●
43	CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1306-	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1306-	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	1306-		●	●
44	GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73)	9-09720-505-0	01	1	1306-	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1306-	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1306-		●	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	1306-1311	●
45	BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.50	8-97048-419-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	1306-		●	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1306-	●
49	SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1306-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	1-09812-041-2	01	1	1306-	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1306-		●	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	1306-	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1306-		●	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	5-09812-062-1	02	1	1306-	●
50	BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09812-063-0	02	1	1306-	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1306-	●
55	CARRIER; DIFF	8-97094-637-0	01	1	1306-		●	●
55	CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1306-	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	1306-	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1306-		●	●
56	BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) M14X80	8-94365-377-3	04	1	1306-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	1508-1510	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-152-0	01	1	1511-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1407-	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) 41/9	8-97078-635-1	01	1	1306-1407	●
60	GEAR SET; FINAL DRIVE,RR 41/9	8-97078-635-1	01	1	1306-1407		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1408-1507	●
60	GEAR SET; FINAL DRIVE,RR 41/9	8-97078-635-1	01	1	1408-1507		●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1508-	●	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 6.0-6.5TON(RPV) 43/10	8-97047-115-0	01	1	1306-1507	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	1508-1510	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-149-0	01	1	1511-	●	●
60	GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) 41/7	8-98092-031-1	01	1	1306-1406	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1407-	●
60	GEAR SET; FINAL DRIVE,RR 41/8	8-97174-099-0	01	1	1306-1505			●
60	GEAR SET; FINAL DRIVE,RR 41/8	8-98092-137-0	01	1	1506-			●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1306-	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1306-		●	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1306-	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1306-		●	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1306-	●
61	RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1306-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1306-	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1306-		●	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1306-	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1306-		●	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	1306-	●
63	BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	1306-	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1306-	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1306-		●	●
66	RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1306-	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1306-	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1306-		●	●
69	NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1306-	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1306-	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1306-		●	●
70	BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1306-	●
71	CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-099-4	01	1	1306-	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-4	01	1	1306-		●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-98015-186-2	01	1	1306-1406	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-98015-186-2	01	1	1407-	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-1	01	1	1306-1406	●
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-1	01	1	1407-	●
71	CAGE ASM; DIFF,FINAL DRIVE	8-97047-100-4	01	1	1306-			●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-062-0	01	1	1306-1309	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1306-1309		●	●
82	SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41521-035-2	01	1	1310-	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-		●	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	1306-1406	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	1407-	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	5-41521-008-0	01	1	1306-1406	●
82	SPIDER; DIFF PINION FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	5-41521-008-0	01	1	1407-	●
83	CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-98219-705-0	01	1	1306-	●
83	CAGE ASM; DIFF	8-98219-705-0	01	1	1306-		●
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	1306-1406	●
83	CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	1407-	●
83	CAGE ASM; DIFF	8-98219-707-0	01	1	1306-			●
84	BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1306-	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1306-		●	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	1306-1406	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	1407-	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	1306-1406	●
84	BOLT; FINAL DRIVE GEAR FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	1407-	●
85	NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12	8-97065-214-0	12	1	1306-	●
85	NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	1306-		●	●
85	NUT; DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M10 FLANGE SOU	0-91180-210-0	12	1	1306-1406	●
85	NUT; DIFF CAGE SETTING FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) EXC. LIMITED SLIP DIFF<6LV> M10 FLANGE SOU	0-91180-210-0	12	1	1407-	●
86	WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1306-	●
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1306-		●	●
86	WASHER; PL,DIFF CAGE SETTING FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	1306-1406	●
86	WASHER; PL,DIFF CAGE SETTING FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	1407-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	1306-	●
88	PLATE; LK,ADJ NUT (D) T=2.3	8-97087-821-0	AR	1	1306-		●	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	1306-	●
88	PLATE; LK,ADJ NUT (C) T=2.3	9-41124-015-0	AR	1	1306-		●	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	1306-	●
88	PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	1306-	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) M8X16 FLANGE SOU	0-28050-816-0	04	1	1306-	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	04	1	1306-		●	●
89	BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) M8X16 FLANGE SOU	0-28050-816-0	02	1	1306-	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	1306-	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1306-		●	●
100	SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1306-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
