4-20 — REAR AXLE CASE AND SHAFT (#122689) — 176 parça

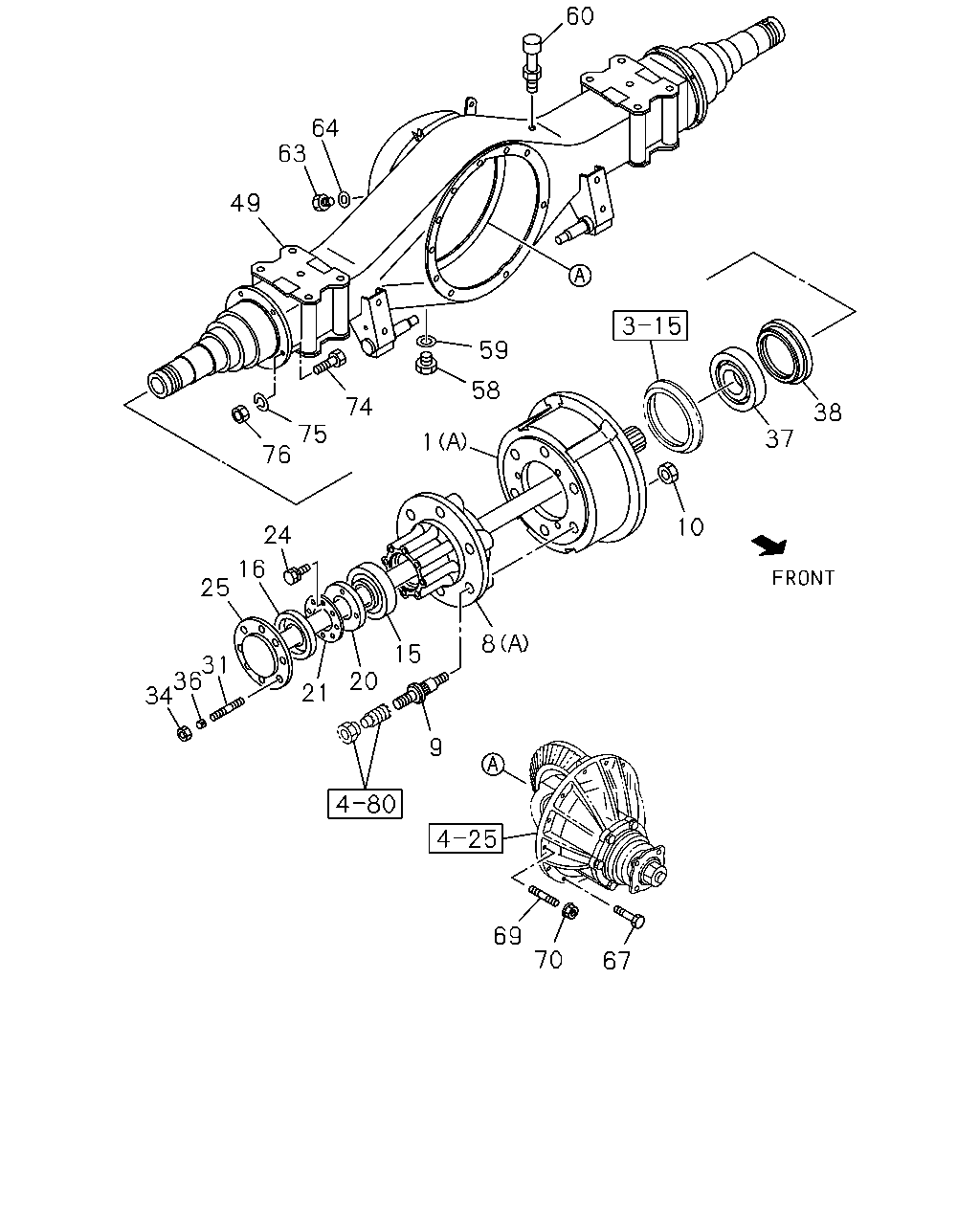

38 37 10 8 15 20 21 31 36 34 9 69 70 67 1 58 59 74 75 76 24 16 25 49 63 64 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRUM; BRK,RR G.V.W. 7.5-8.0TON(RPY) (A)	8-97102-001-3	02	1	1306-	●
1	DRUM; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97102-001-3	02	1	1306-		●
1	DRUM; BRK,RR (A)	8-97102-001-3	02	1	1306-			●
1	DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) (A)	8-97081-219-2	02	1	1306-	●
1	DRUM; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97331-291-4	02	1	1306-		●
8	HUB; RR AXLE FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (A)	8-97250-321-1	02	1	1306-1507	●
8	HUB; RR AXLE (A)	8-97250-321-1	02	1	1306-1507			●
8	HUB; RR AXLE G.V.W. 7.5-8.0TON(RPY) (A)	8-97250-321-1	02	1	1508-	●
8	HUB; RR AXLE (A)	8-97250-321-1	02	1	1508-			●
8	HUB; RR AXLE G.V.W. 6.0-6.5TON(RPV) (A)	8-97172-164-0	02	1	1306-	●
8	HUB; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97207-044-1	02	1	1306-		●
8	HUB; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97107-549-2	02	1	1306-		●
9	PIN; WHEEL,RR AXLE M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1306-	●		●
9	PIN; WHEEL,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1306-		●
9	PIN; WHEEL,RR AXLE M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1306-	●		●
9	PIN; WHEEL,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1306-		●
9	PIN; WHEEL,RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> RH THREAD M20X67	8-97147-612-2	06	1	1306-		●
9	PIN; WHEEL,RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> LH THREAD M20X67	8-97147-614-2	06	1	1306-		●
10	NUT; WHEEL PIN,RR AXLE M22	0-91110-522-0	12	1	1306-	●		●
10	NUT; WHEEL PIN,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M22	0-91110-522-0	12	1	1306-		●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-607-0	02	1	1306-	●		●
15	BEARING; HUB OUTER,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NSK	9-00093-607-0	02	1	1306-		●
15	BEARING; HUB OUTER,RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> JTEKT	8-97023-965-1	02	1	1306-		●
15	BEARING; HUB OUTER,RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> NSK	8-97188-223-0	02	1	1306-		●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-139-0	02	1	1306-	●		●
15	BEARING; HUB OUTER,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-139-0	02	1	1306-		●
16	SEAL; OIL,RR HUB,OUTER NOK	8-98202-912-0	02	1	1306-	●		●
16	SEAL; OIL,RR HUB,OUTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-98202-912-0	02	1	1306-		●
16	SEAL; OIL,RR HUB,OUTER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97023-976-1	02	1	1306-		●
20	NUT; BRG,RR HUB M55	8-97137-094-0	02	1	1306-	●	●	●
21	WASHER; LK,BRG NUT ID=55	9-09653-002-1	02	1	1306-	●	●	●
24	BOLT; LK WASHER M6X10 FLANGE SOU	0-28050-610-0	04	1	1306-1508	●	●	●
24	BOLT; LK WASHER M6X12 FLANGE SOU	0-28050-612-0	04	1	1509-	●	●	●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP) L=885	8-97134-439-0	02	1	1306-	●
25	SHAFT; AXLE,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=885	8-97134-439-0	02	1	1306-		●
25	SHAFT; AXLE,RR L=885	8-97134-439-0	02	1	1306-			●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) L=830	8-94341-974-1	02	1	1306-	●
25	SHAFT; AXLE,RR 4 WHEEL ANTI LOCK BRAKE<JE5> L=894.5	8-97350-603-0	02	1	1306-		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1306-	●	●	●
34	NUT; AXLE SHAFT M10 FLANGE SOU	0-91180-210-0	16	1	1306-	●	●	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1306-	●	●	●
37	BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) NSK	8-97122-938-0	02	1	1306-	●
37	BEARING; HUB INNER,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NSK	8-97122-938-0	02	1	1306-		●
37	BEARING; HUB INNER,RR AXLE NSK	8-97122-938-0	02	1	1306-			●
37	BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) JTEKT	8-97123-119-0	02	1	1306-	●
37	BEARING; HUB INNER,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> JTEKT	8-97123-119-0	02	1	1306-		●
37	BEARING; HUB INNER,RR AXLE JTEKT	8-97123-119-0	02	1	1306-			●
37	BEARING; HUB INNER,RR AXLE G.V.W. 6.0-6.5TON(RPV) NSK	9-00093-624-0	02	1	1306-	●
37	BEARING; HUB INNER,RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> NSK	8-97188-222-0	02	1	1306-		●
37	BEARING; HUB INNER,RR AXLE G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS	5-87610-141-0	02	1	1306-	●
38	SEAL; OIL,RR HUB,INNER G.V.W. 7.5-8.0TON(RPY) NOK	8-97122-937-0	02	1	1306-	●
38	SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97122-937-0	02	1	1306-		●
38	SEAL; OIL,RR HUB,INNER NOK	8-97122-937-0	02	1	1306-			●
38	SEAL; OIL,RR HUB,INNER G.V.W. 6.0-6.5TON(RPV) TKK	8-94336-316-1	02	1	1306-	●
38	SEAL; OIL,RR HUB,INNER G.V.W. 6.0-6.5TON(RPV) NOK	8-94367-958-0	02	1	1306-	●
38	SEAL; OIL,RR HUB,INNER 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97147-681-0	02	1	1306-		●
49	CASE; RR AXLE FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97250-319-3	01	1	1306-1507	●
49	CASE; RR AXLE	8-97250-319-3	01	1	1306-1507			●
49	CASE; RR AXLE G.V.W. 7.5-8.0TON(RPY)	8-97250-319-3	01	1	1508-	●
49	CASE; RR AXLE	8-97250-319-3	01	1	1508-			●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 6.0-6.5TON(RPV)	8-97302-439-2	01	1	1306-1407	●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV)	8-97302-439-2	01	1	1408-	●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-97321-626-4	01	1	1306-	●
49	CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98049-681-2	01	1	1306-		●
49	CASE; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97222-079-4	01	1	1306-		●
58	PLUG; DRAIN,AXLE CASE M16X12.5 SOU	8-97307-060-0	01	1	1306-	●	●	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	1306-	●	●	●
60	BREATHER; RR AXLE CASE L=29 SOU	8-98006-960-0	01	1	1306-	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1306-	●		●
63	PLUG; OIL FILLER,AXLE CASE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M20X10.5	8-98009-333-0	01	1	1306-		●
63	PLUG; OIL FILLER,AXLE CASE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-821-0	01	1	1306-		●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30 SOU	8-94462-734-0	01	1	1306-	●	●	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X40 W/LK WASHER	0-50561-040-0	07	1	1306-	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	07	1	1306-		●	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER	0-50561-050-0	04	1	1306-	●
67	BOLT; FINAL DRIVE SETTING M10X50 W/LK WASHER	0-50561-050-0	04	1	1306-		●	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER	0-50561-040-0	11	1	1306-	●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1306-	●	●	●
70	NUT; CARRIER M10 FLANGE SOU	0-91180-210-0	02	1	1306-	●	●	●
74	BOLT; RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) M14X40	8-98007-879-0	12	1	1306-	●
74	BOLT; RR BRK ASM SETTING M14X40	8-98007-879-0	12	1	1306-		●	●
74	BOLT; RR BRK ASM SETTING G.V.W. 6.0-6.5TON(RPV) M12X32	8-97359-819-0	12	1	1306-	●
75	WASHER; LK,RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) ID=14.2 SOU	0-91510-814-0	12	1	1306-	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2 SOU	0-91510-814-0	12	1	1306-		●	●
75	WASHER; LK,RR BRK ASM SETTING G.V.W. 6.0-6.5TON(RPV) ID=12.2	0-91510-812-0	12	1	1306-	●
76	NUT; RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) M14 SOU	0-91110-514-0	12	1	1306-	●
76	NUT; RR BRK ASM SETTING M14 SOU	0-91110-514-0	12	1	1306-		●	●
76	NUT; RR BRK ASM SETTING G.V.W. 6.0-6.5TON(RPV) M12 SOU	0-91110-512-0	12	1	1306-	●

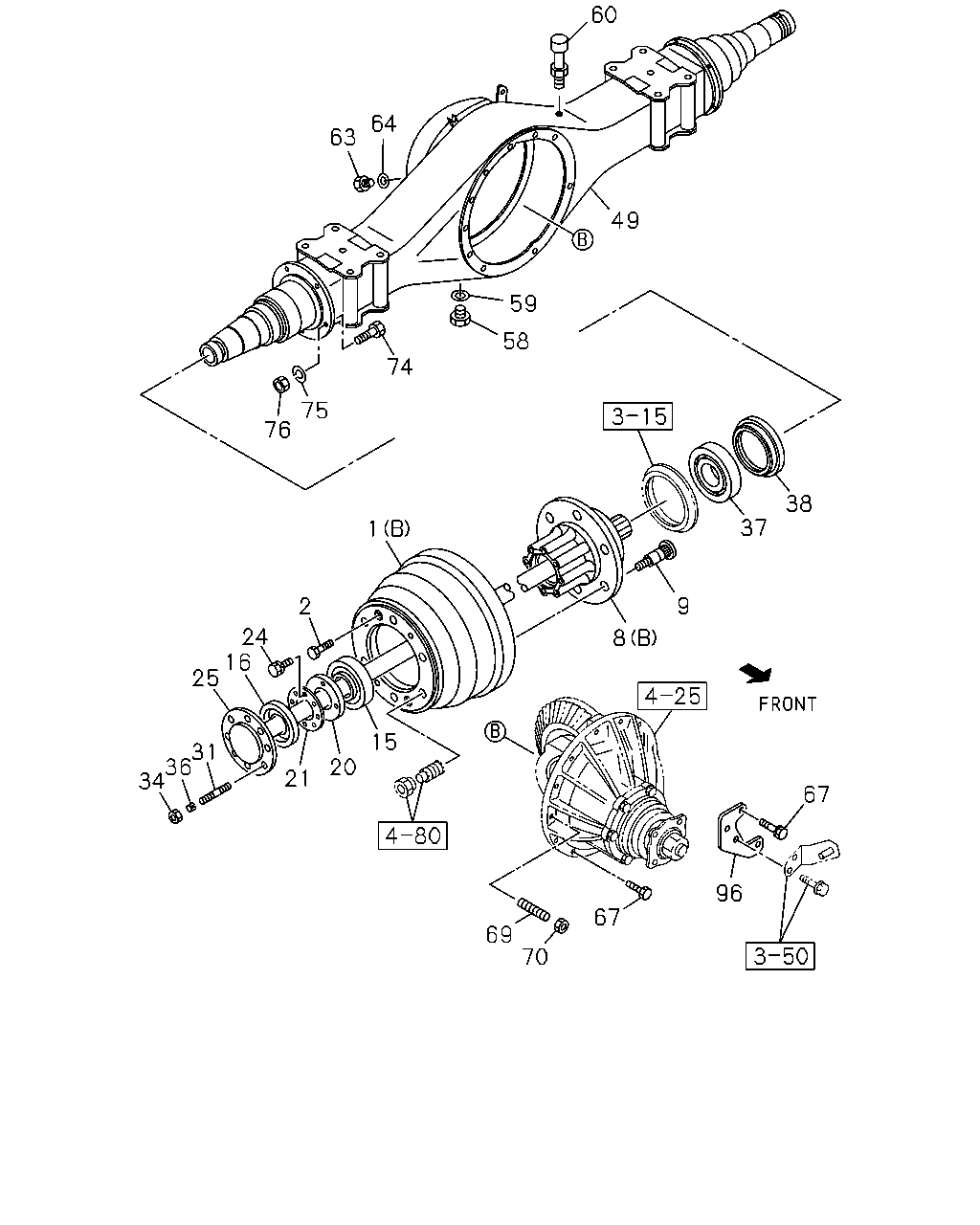

38 37 9 8 67 96 67 70 69 15 20 21 31 36 34 25 16 24 2 1 75 76 74 58 59 49 60 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRUM; BRK,RR G.V.W. 7.5-8.0TON(RPY) (A)	8-97102-001-3	02	1	1306-	●
1	DRUM; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97102-001-3	02	1	1306-		●
1	DRUM; BRK,RR (A)	8-97102-001-3	02	1	1306-			●
1	DRUM; BRK,RR G.V.W. 6.0-6.5TON(RPV) (A)	8-97081-219-2	02	1	1306-	●
1	DRUM; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97331-291-4	02	1	1306-		●
2	BOLT; BRK DRUM 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20	0-20850-820-0	04	1	1306-		●
8	HUB; RR AXLE FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (A)	8-97250-321-1	02	1	1306-1507	●
8	HUB; RR AXLE (A)	8-97250-321-1	02	1	1306-1507			●
8	HUB; RR AXLE G.V.W. 7.5-8.0TON(RPY) (A)	8-97250-321-1	02	1	1508-	●
8	HUB; RR AXLE (A)	8-97250-321-1	02	1	1508-			●
8	HUB; RR AXLE G.V.W. 6.0-6.5TON(RPV) (A)	8-97172-164-0	02	1	1306-	●
8	HUB; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97207-044-1	02	1	1306-		●
8	HUB; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97107-549-2	02	1	1306-		●
9	PIN; WHEEL,RR AXLE M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1306-	●		●
9	PIN; WHEEL,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1306-		●
9	PIN; WHEEL,RR AXLE M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1306-	●		●
9	PIN; WHEEL,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1306-		●
9	PIN; WHEEL,RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> RH THREAD M20X67	8-97147-612-2	06	1	1306-		●
9	PIN; WHEEL,RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> LH THREAD M20X67	8-97147-614-2	06	1	1306-		●
15	BEARING; HUB OUTER,RR AXLE NSK	9-00093-607-0	02	1	1306-	●		●
15	BEARING; HUB OUTER,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NSK	9-00093-607-0	02	1	1306-		●
15	BEARING; HUB OUTER,RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> JTEKT	8-97023-965-1	02	1	1306-		●
15	BEARING; HUB OUTER,RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> NSK	8-97188-223-0	02	1	1306-		●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-139-0	02	1	1306-	●		●
15	BEARING; HUB OUTER,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-139-0	02	1	1306-		●
16	SEAL; OIL,RR HUB,OUTER NOK	8-98202-912-0	02	1	1306-	●		●
16	SEAL; OIL,RR HUB,OUTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-98202-912-0	02	1	1306-		●
16	SEAL; OIL,RR HUB,OUTER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97023-976-1	02	1	1306-		●
20	NUT; BRG,RR HUB M55	8-97137-094-0	02	1	1306-	●	●	●
21	WASHER; LK,BRG NUT ID=55	9-09653-002-1	02	1	1306-	●	●	●
24	BOLT; LK WASHER M6X10 FLANGE SOU	0-28050-610-0	04	1	1306-1508	●	●	●
24	BOLT; LK WASHER M6X12 FLANGE SOU	0-28050-612-0	04	1	1509-	●	●	●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP) L=885	8-97134-439-0	02	1	1306-	●
25	SHAFT; AXLE,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=885	8-97134-439-0	02	1	1306-		●
25	SHAFT; AXLE,RR L=885	8-97134-439-0	02	1	1306-			●
25	SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) L=830	8-94341-974-1	02	1	1306-	●
25	SHAFT; AXLE,RR 4 WHEEL ANTI LOCK BRAKE<JE5> L=894.5	8-97350-603-0	02	1	1306-		●
31	STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1306-	●	●	●
34	NUT; AXLE SHAFT M10 FLANGE SOU	0-91180-210-0	16	1	1306-	●	●	●
36	WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1306-	●	●	●
37	BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) NSK	8-97122-938-0	02	1	1306-	●
37	BEARING; HUB INNER,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NSK	8-97122-938-0	02	1	1306-		●
37	BEARING; HUB INNER,RR AXLE NSK	8-97122-938-0	02	1	1306-			●
37	BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) JTEKT	8-97123-119-0	02	1	1306-	●
37	BEARING; HUB INNER,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> JTEKT	8-97123-119-0	02	1	1306-		●
37	BEARING; HUB INNER,RR AXLE JTEKT	8-97123-119-0	02	1	1306-			●
37	BEARING; HUB INNER,RR AXLE G.V.W. 6.0-6.5TON(RPV) NSK	9-00093-624-0	02	1	1306-	●
37	BEARING; HUB INNER,RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> NSK	8-97188-222-0	02	1	1306-		●
37	BEARING; HUB INNER,RR AXLE G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS	5-87610-141-0	02	1	1306-	●
38	SEAL; OIL,RR HUB,INNER G.V.W. 7.5-8.0TON(RPY) NOK	8-97122-937-0	02	1	1306-	●
38	SEAL; OIL,RR HUB,INNER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97122-937-0	02	1	1306-		●
38	SEAL; OIL,RR HUB,INNER NOK	8-97122-937-0	02	1	1306-			●
38	SEAL; OIL,RR HUB,INNER G.V.W. 6.0-6.5TON(RPV) TKK	8-94336-316-1	02	1	1306-	●
38	SEAL; OIL,RR HUB,INNER G.V.W. 6.0-6.5TON(RPV) NOK	8-94367-958-0	02	1	1306-	●
38	SEAL; OIL,RR HUB,INNER 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97147-681-0	02	1	1306-		●
49	CASE; RR AXLE FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97250-319-3	01	1	1306-1507	●
49	CASE; RR AXLE	8-97250-319-3	01	1	1306-1507			●
49	CASE; RR AXLE G.V.W. 7.5-8.0TON(RPY)	8-97250-319-3	01	1	1508-	●
49	CASE; RR AXLE	8-97250-319-3	01	1	1508-			●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) G.V.W. 6.0-6.5TON(RPV)	8-97302-439-2	01	1	1306-1407	●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV)	8-97302-439-2	01	1	1408-	●
49	CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-97321-626-4	01	1	1306-	●
49	CASE; RR AXLE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98049-681-2	01	1	1306-		●
49	CASE; RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97222-079-4	01	1	1306-		●
58	PLUG; DRAIN,AXLE CASE M16X12.5 SOU	8-97307-060-0	01	1	1306-	●	●	●
59	GASKET; DRAIN PLUG ID=16.2 OD=24	9-09571-416-0	01	1	1306-	●	●	●
60	BREATHER; RR AXLE CASE L=29 SOU	8-98006-960-0	01	1	1306-	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1306-	●		●
63	PLUG; OIL FILLER,AXLE CASE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M20X10.5	8-98009-333-0	01	1	1306-		●
63	PLUG; OIL FILLER,AXLE CASE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-821-0	01	1	1306-		●
64	GASKET; OIL FILLER,AXLE CASE ID=20 OD=30 SOU	8-94462-734-0	01	1	1306-	●	●	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X40 W/LK WASHER	0-50561-040-0	07	1	1306-	●
67	BOLT; FINAL DRIVE SETTING M10X40 W/LK WASHER	0-50561-040-0	07	1	1306-		●	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER	0-50561-050-0	04	1	1306-	●
67	BOLT; FINAL DRIVE SETTING M10X50 W/LK WASHER	0-50561-050-0	04	1	1306-		●	●
67	BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X40 W/LK WASHER	0-50561-040-0	11	1	1306-	●
69	STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1306-	●	●	●
70	NUT; CARRIER M10 FLANGE SOU	0-91180-210-0	02	1	1306-	●	●	●
74	BOLT; RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) M14X40	8-98007-879-0	12	1	1306-	●
74	BOLT; RR BRK ASM SETTING M14X40	8-98007-879-0	12	1	1306-		●	●
74	BOLT; RR BRK ASM SETTING G.V.W. 6.0-6.5TON(RPV) M12X32	8-97359-819-0	12	1	1306-	●
75	WASHER; LK,RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) ID=14.2 SOU	0-91510-814-0	12	1	1306-	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2 SOU	0-91510-814-0	12	1	1306-		●	●
75	WASHER; LK,RR BRK ASM SETTING G.V.W. 6.0-6.5TON(RPV) ID=12.2	0-91510-812-0	12	1	1306-	●
76	NUT; RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) M14 SOU	0-91110-514-0	12	1	1306-	●
76	NUT; RR BRK ASM SETTING M14 SOU	0-91110-514-0	12	1	1306-		●	●
76	NUT; RR BRK ASM SETTING G.V.W. 6.0-6.5TON(RPV) M12 SOU	0-91110-512-0	12	1	1306-	●
96	BRACKET; LSPV,AXLE CASE BRK WHL LK CONT LSPV<6PH>	8-98037-102-0	01	1	1306-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
