◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶

4-01 — PROPELLER SHAFT (#122686) — 134 parça

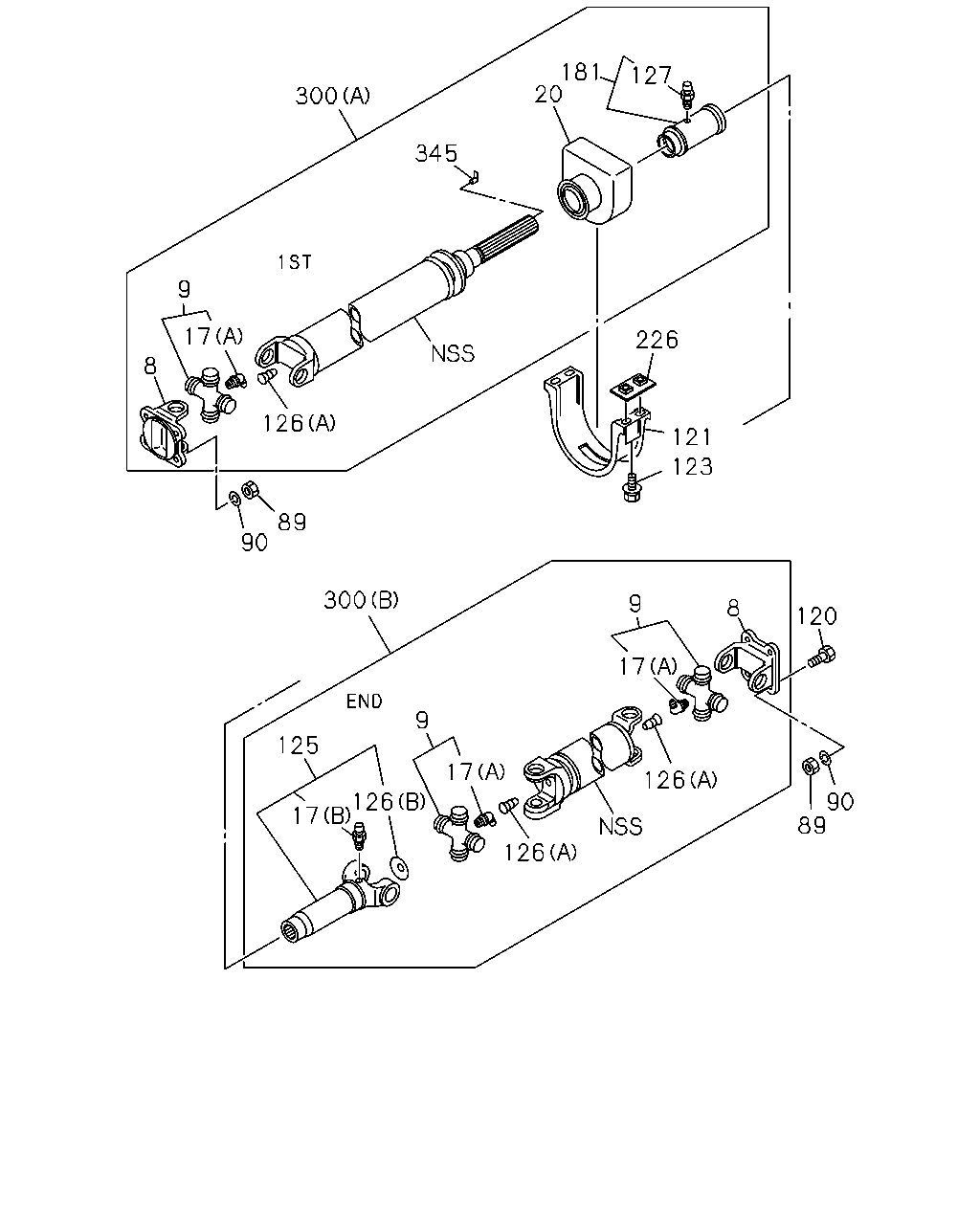

8 120 90 89 126 17 9 123 121 120 226 6 59 20 300 9 8 17 126 89 90 300 9 17 125 128 127 126 89 90 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	COUPLING ASM; DRIVER,PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-796-0	01	1	1306-	●
6	COUPLING ASM; DRIVER,PROP SHAFT	8-98020-796-0	01	1	1306-		●	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	01	1	1306-	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	1306-		●	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	02	1	1306-	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	1306-		●	●
8	YOKE; FLANGE,PROP SHAFT 4JJ1-TCC ENG(RDU) D=80	8-97322-663-0	01	1	1306-	●
8	YOKE; FLANGE,PROP SHAFT 4JJ1-TCC ENG(RDU) D=80	8-97322-663-0	01	1	1306-	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	01	1	1306-	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1306-		●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	02	1	1306-	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1306-		●	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-605-1	02	1	1306-	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-605-1	01	1	1306-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	1306-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1306-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 4JJ1-TCC ENG(RDU) (B) M6 STRAIGHT SOU	0-90301-406-0	02	1	1306-	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-880-0	01	1	1306-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	1306-		●	●
20	BEARING ASM; CTR,PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-936-0	01	1	1306-	●
59	NUT; RET TO SUPPORT 4HK1-TCN ENG(RDQ) M30	8-97160-857-0	01	1	1306-	●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	1306-		●	●
89	NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12	8-97365-450-1	12	1	1306-	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	1306-		●	●
89	NUT; YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) M12	8-97365-450-1	08	1	1306-	●
90	WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) ID=12.2	0-91510-812-0	12	1	1306-	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	12	1	1306-		●	●
90	WASHER; LK,YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) ID=12.2	0-91510-812-0	08	1	1306-	●
120	BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12X35	8-97365-451-1	08	1	1306-	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	1306-		●	●
120	BOLT; YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) M12X35	8-97365-451-1	04	1	1306-	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1306-	●	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1306-	●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ) L=224	8-98044-229-0	01	1	1306-	●
125	YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	1306-		●	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCC ENG(RDU) L=183	8-98033-647-2	01	1	1306-	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1306-	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1306-	●	●	●
126	PLUG; SPLINED YOKE 4JJ1-TCC ENG(RDU) (A)	1-09600-023-0	02	1	1306-	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1306-	●	●	●
127	NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ) M6 STRAIGHT SOU	0-90301-406-0	01	1	1306-	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT SOU	0-90301-406-0	01	1	1306-		●	●
128	SEAL; SLEEVE 4HK1-TCN ENG(RDQ)	8-97145-746-0	01	1	1306-	●
128	SEAL; SLEEVE	8-97145-746-0	01	1	1306-		●	●
226	PLATE; LK,CENTER BRG	8-97371-572-0	02	1	1306-	●	●	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1308-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1367	8-98019-423-1	01	1	1308-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=555	8-98024-909-1	01	1	1306-	●	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=630	8-98024-913-1	01	1	1306-	●	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=995	8-98024-911-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=995	8-98024-911-1	01	1	1306-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=995	8-98024-911-1	01	1	1306-			●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1306-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1306-			●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1306-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=1011	8-98040-477-1	01	1	1306-			●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (B) L=1066	8-97387-806-4	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (B) L=1066	8-97387-806-4	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3800MM(38W) (B) L=1076	8-97383-854-4	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=845	8-98039-649-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1280	8-98039-639-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=715	8-98039-638-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=785	8-98039-655-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1225	8-98039-641-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) (B) L=1061	8-98113-044-2	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1306-		●

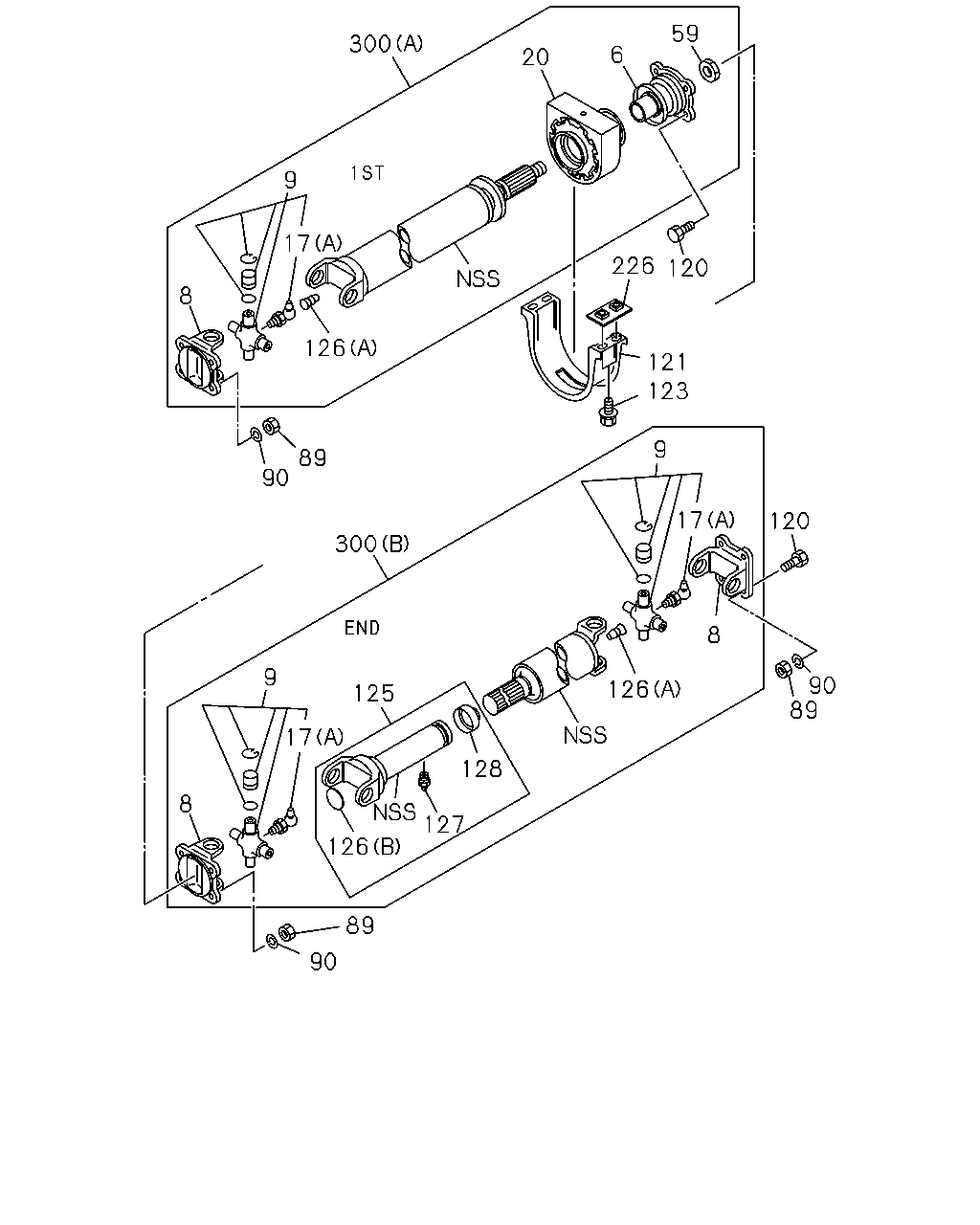

89 90 120 8 9 17 126 126 17 9 125 300 17 126 90 89 126 17 8 9 300 345 20 181 127 226 121 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	01	1	1306-	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	1306-		●	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	02	1	1306-	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	1306-		●	●
8	YOKE; FLANGE,PROP SHAFT 4JJ1-TCC ENG(RDU) D=80	8-97322-663-0	01	1	1306-	●
8	YOKE; FLANGE,PROP SHAFT 4JJ1-TCC ENG(RDU) D=80	8-97322-663-0	01	1	1306-	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	01	1	1306-	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1306-		●	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	02	1	1306-	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1306-		●	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-605-1	02	1	1306-	●
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-605-1	01	1	1306-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	1306-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1306-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 4JJ1-TCC ENG(RDU) (B) M6 STRAIGHT SOU	0-90301-406-0	02	1	1306-	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-880-0	01	1	1306-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	1306-		●	●
20	BEARING ASM; CTR,PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-936-0	01	1	1306-	●
89	NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12	8-97365-450-1	12	1	1306-	●
89	NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	1306-		●	●
89	NUT; YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) M12	8-97365-450-1	08	1	1306-	●
90	WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) ID=12.2	0-91510-812-0	12	1	1306-	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	0-91510-812-0	12	1	1306-		●	●
90	WASHER; LK,YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) ID=12.2	0-91510-812-0	08	1	1306-	●
120	BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12X35	8-97365-451-1	08	1	1306-	●
120	BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	1306-		●	●
120	BOLT; YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) M12X35	8-97365-451-1	04	1	1306-	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1306-	●	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1306-	●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ) L=224	8-98044-229-0	01	1	1306-	●
125	YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	1306-		●	●
125	YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCC ENG(RDU) L=183	8-98033-647-2	01	1	1306-	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1306-	●	●	●
126	PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1306-	●	●	●
126	PLUG; SPLINED YOKE 4JJ1-TCC ENG(RDU) (A)	1-09600-023-0	02	1	1306-	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1306-	●	●	●
127	NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ) M6 STRAIGHT SOU	0-90301-406-0	01	1	1306-	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT SOU	0-90301-406-0	01	1	1306-		●	●
181	COVER; BRG,PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98046-526-0	01	1	1306-	●
226	PLATE; LK,CENTER BRG	8-97371-572-0	02	1	1306-	●	●	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1308-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1367	8-98019-423-1	01	1	1308-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=555	8-98024-909-1	01	1	1306-	●	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=630	8-98024-913-1	01	1	1306-	●	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=995	8-98024-911-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=995	8-98024-911-1	01	1	1306-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=995	8-98024-911-1	01	1	1306-			●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1306-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1306-			●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1306-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=1011	8-98040-477-1	01	1	1306-			●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (B) L=1066	8-97387-806-4	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (B) L=1066	8-97387-806-4	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3800MM(38W) (B) L=1076	8-97383-854-4	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=845	8-98039-649-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1280	8-98039-639-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=715	8-98039-638-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=785	8-98039-655-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1225	8-98039-641-1	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) (B) L=1061	8-98113-044-2	01	1	1306-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1306-		●
345	PLUG; PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98042-692-0	01	1	1306-	●
