3-60 — BRAKE PIPING; VACUUM (#122685) — 873 parça

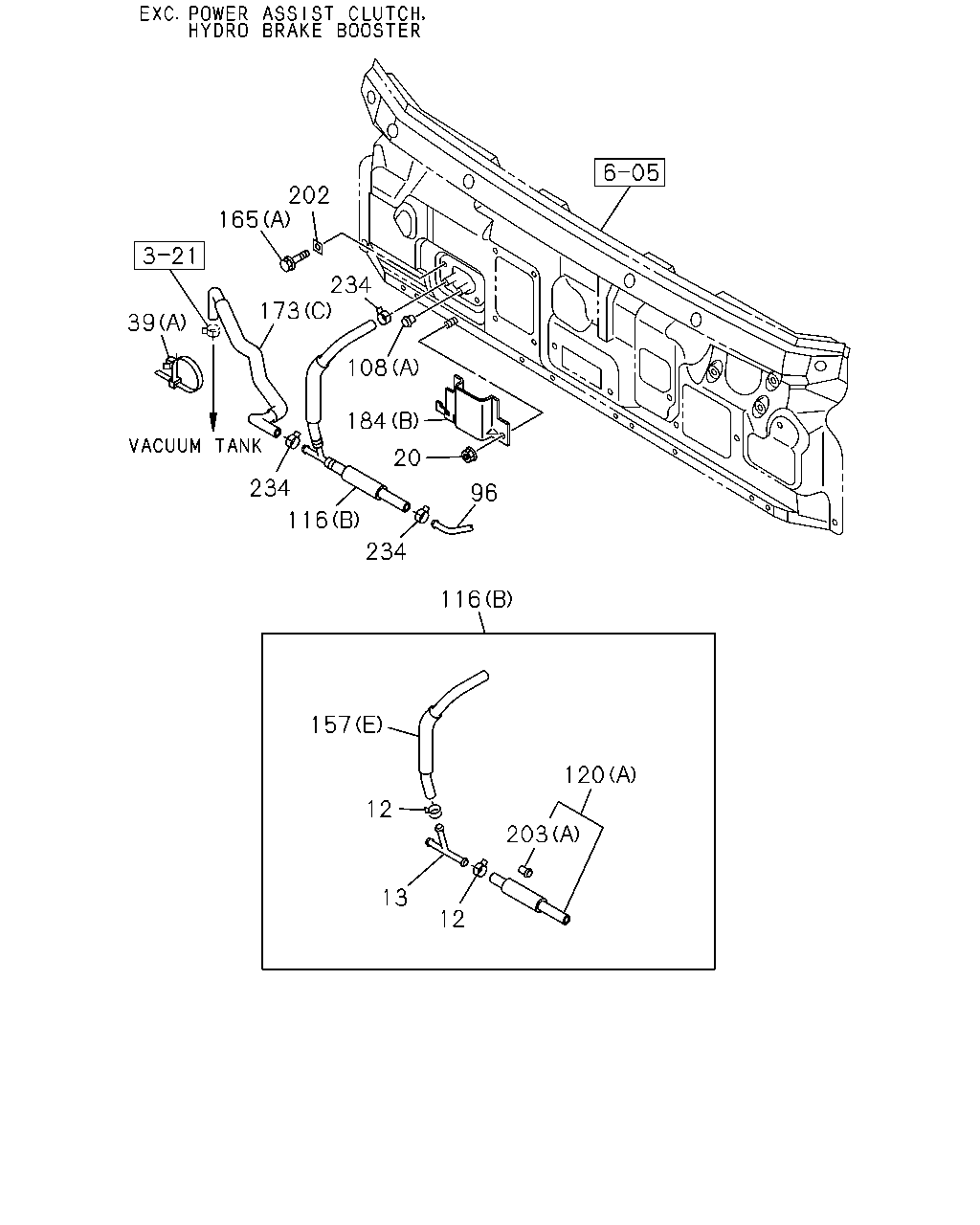

çizim 355923
13 12 203 120 12 157 116 234 96 116 234 20 184 108 173 39 234 165 202
BalonParca AdiParca NoAdetTipApplied Date A B C
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 02 1 1306- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 02 1 1306- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1306- ● ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 08 1 1306- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1306- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1306- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1306- ● ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 03 1 1306- ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE SOU 		0-91180-106-0 01 1 1306- ● ● ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (A) L=170.3 		1-09987-182-0 01 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (E) ID=16 		8-97329-628-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 04 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (D) ID=21.7 		8-97203-074-0 02 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1306- ● ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1306-1509 ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1306-1509 ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1306-1509 ● ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1306-1509 ● ●
108 GROMMET; PIPE
EXHAUST BRAKE<NF8> (B) ID=17 		8-94128-319-2 01 1 1510- ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1510- ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1510- ● ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1510- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		9-09956-353-0 01 1 1306- ● ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (H) 		8-98158-378-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1306- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 1306- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 1306- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1306- ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1306- ●
165 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ● ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1306- ● ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 1306- ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 1306- ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98107-558-0 01 1 1306- ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1306- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1306- ● ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A) 		8-98183-462-1 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
202 SEAL
SOU 		8-97856-616-0 02 1 1306- ● ● ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) SOU 		8-94104-021-0 01 1 1306- ●
203 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) SOU 		8-94386-540-0 01 1 1306- ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU 		8-94238-568-0 03 1 1306- ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU 		8-94238-568-0 03 1 1306- ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 SOU 		8-94238-568-0 03 1 1306- ● ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU 		8-94238-568-0 04 1 1306- ●

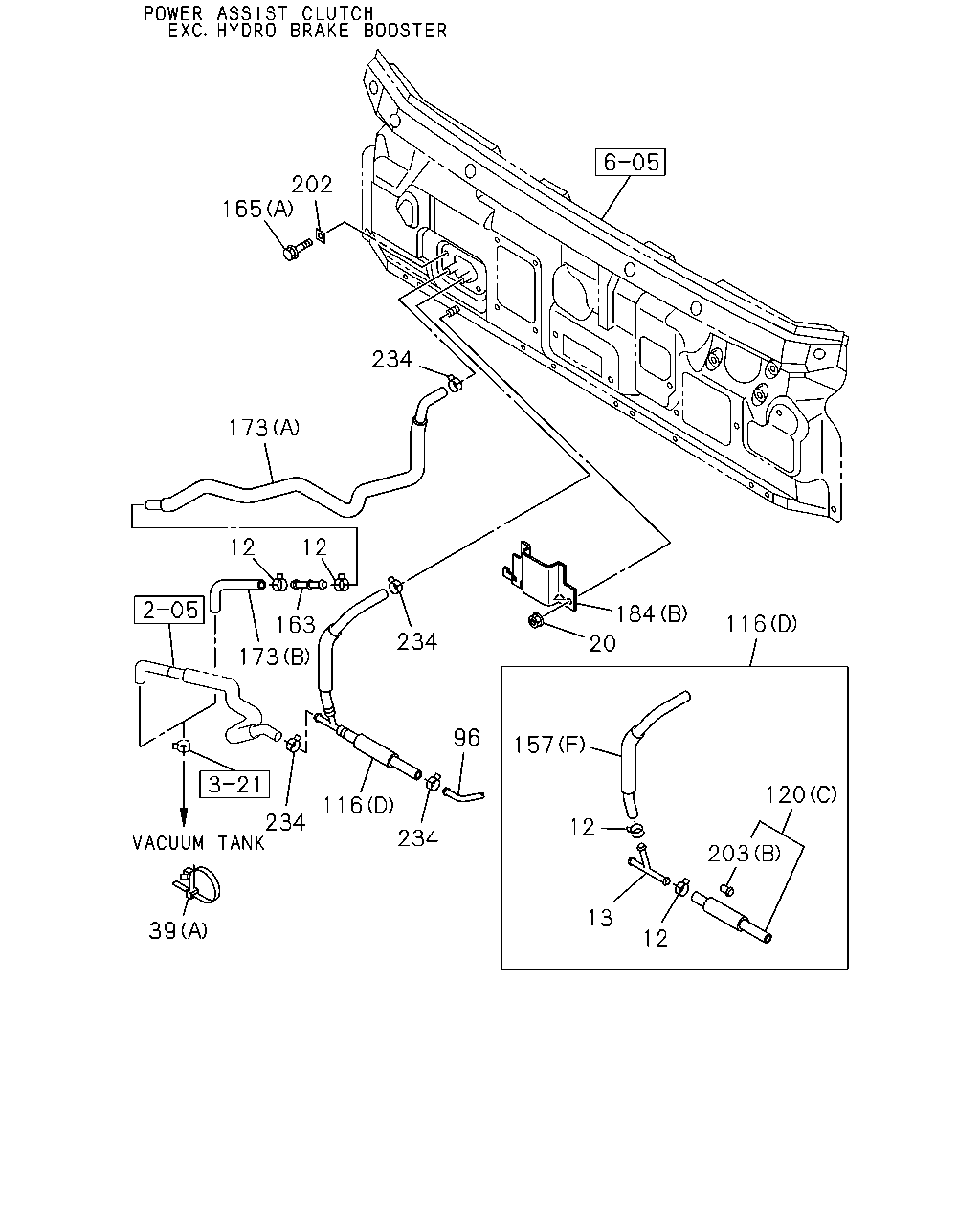

çizim 355998
173 165 202 234 184 116 20 120 203 12 13 12 157 96 234 234 116 234 39 173 12 12 163
BalonParca AdiParca NoAdetTipApplied Date A B C
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 02 1 1306- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 02 1 1306- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1306- ● ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 08 1 1306- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1306- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1306- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1306- ● ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 03 1 1306- ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE SOU 		0-91180-106-0 01 1 1306- ● ● ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (A) L=170.3 		1-09987-182-0 01 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (E) ID=16 		8-97329-628-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 04 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (D) ID=21.7 		8-97203-074-0 02 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (H) 		8-98158-378-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1306- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 1306- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 1306- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1306- ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1306- ●
163 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97353-668-0 01 1 1306- ●
165 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ● ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1306- ● ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98121-940-0 01 1 1306- ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98121-941-0 01 1 1306- ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98107-558-0 01 1 1306- ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1306- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1306- ● ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A) 		8-98183-462-1 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
202 SEAL
SOU 		8-97856-616-0 02 1 1306- ● ● ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) SOU 		8-94104-021-0 01 1 1306- ●
203 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) SOU 		8-94386-540-0 01 1 1306- ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU 		8-94238-568-0 03 1 1306- ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU 		8-94238-568-0 03 1 1306- ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 SOU 		8-94238-568-0 03 1 1306- ● ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU 		8-94238-568-0 04 1 1306- ●

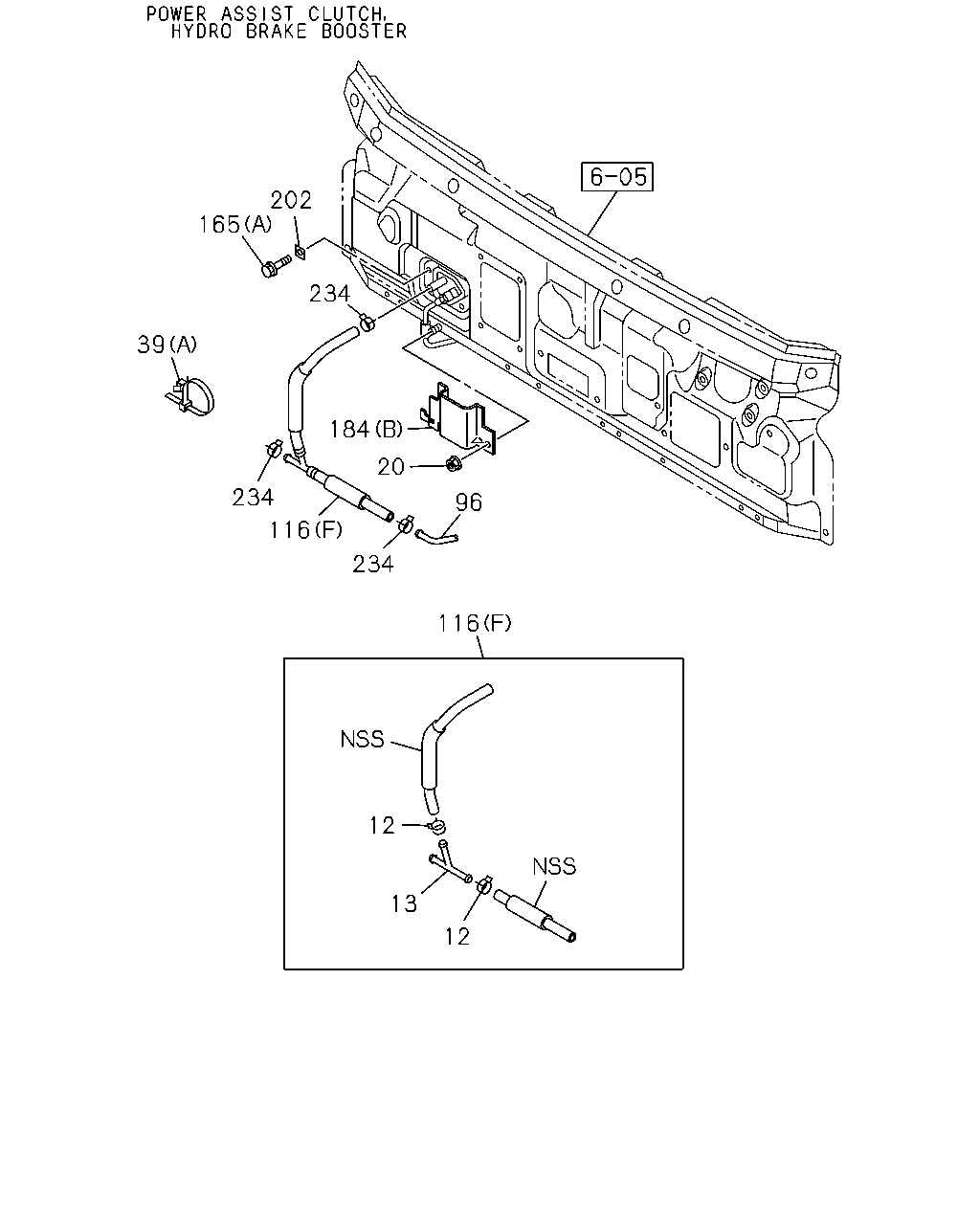

çizim 356095
13 12 12 116 234 116 234 96 20 184 234 202 165 39
BalonParca AdiParca NoAdetTipApplied Date A B C
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 02 1 1306- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 02 1 1306- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1306- ● ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 08 1 1306- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1306- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1306- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1306- ● ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 03 1 1306- ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE SOU 		0-91180-106-0 01 1 1306- ● ● ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (A) L=170.3 		1-09987-182-0 01 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (E) ID=16 		8-97329-628-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 04 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (D) ID=21.7 		8-97203-074-0 02 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (H) 		8-98158-378-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1306- ●
165 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ● ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1306- ● ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1306- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1306- ● ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A) 		8-98183-462-1 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
202 SEAL
SOU 		8-97856-616-0 02 1 1306- ● ● ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU 		8-94238-568-0 03 1 1306- ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU 		8-94238-568-0 03 1 1306- ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 SOU 		8-94238-568-0 03 1 1306- ● ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU 		8-94238-568-0 04 1 1306- ●
çizim 356161
85 66 66 108 80 116 116 78 80 39 98 96 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (A) L=170.3 		1-09987-182-0 01 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (E) ID=16 		8-97329-628-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 04 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (D) ID=21.7 		8-97203-074-0 02 1 1306- ●
66 CLIP; VAC HOSE,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 06 1 1306- ●
66 CLIP; VAC HOSE,M/VAC
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 06 1 1306- ● ●
66 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (D) 		8-98112-680-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (E) 		8-97386-589-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (E) 		8-97386-589-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98136-613-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (F) 		8-98136-613-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98106-711-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98171-288-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (I) 		8-98220-704-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (J) 		8-98096-135-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
(C) 		8-98189-103-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98097-788-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) (B) 		8-98097-788-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97386-605-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) (A) 		8-97386-605-0 01 1 1306- ● ●
80 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98051-652-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYPE<7KJ> (E) 		8-98135-521-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98058-596-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-580-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) (C) 		8-98092-258-1 01 1 1306- ●
85 HOSE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97389-705-2 01 1 1306- ●
85 HOSE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYPE<7KJ> 		8-98135-573-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1306- ● ●
98 BOLT; VAC PIPE FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1306- ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1306- ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1306- ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1306- ● ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1306- ● ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) M6X12 FLANGE SOU 		0-28050-612-0 02 1 1306- ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1306-1509 ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1306-1509 ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1306-1509 ● ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1306-1509 ● ●
108 GROMMET; PIPE
EXHAUST BRAKE<NF8> (B) ID=17 		8-94128-319-2 01 1 1510- ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1510- ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1510- ● ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1510- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		9-09956-353-0 01 1 1306- ● ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (H) 		8-98158-378-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1306- ●

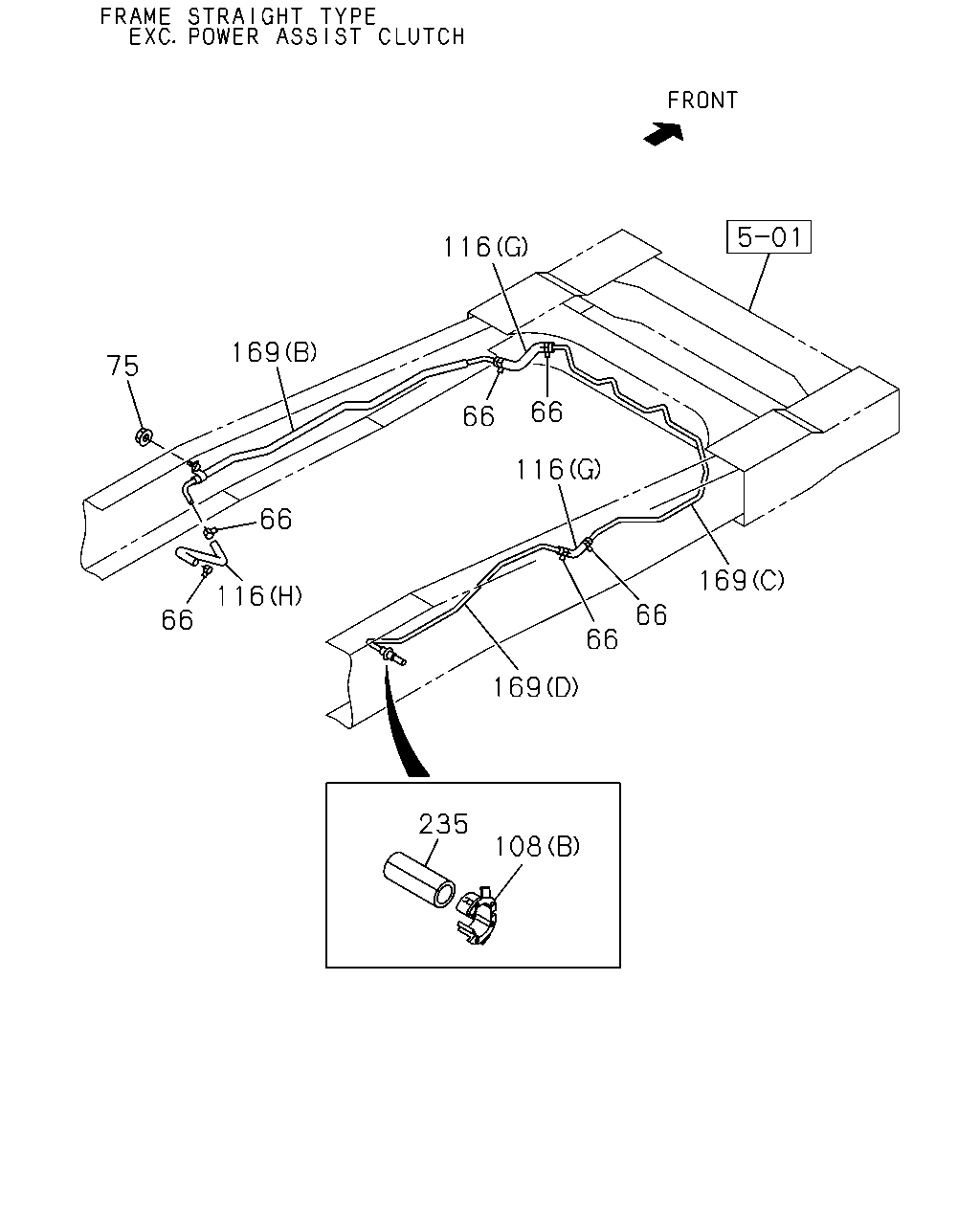

çizim 356163
75 169 116 66 66 116 169 66 66 169 108 235 66 116 66
BalonParca AdiParca NoAdetTipApplied Date A B C
66 CLIP; VAC HOSE,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 06 1 1306- ●
66 CLIP; VAC HOSE,M/VAC
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 06 1 1306- ● ●
66 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1306- ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
75 NUT; CLIP,VAC HOSE
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1306-1509 ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1306-1509 ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1306-1509 ● ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1306-1509 ● ●
108 GROMMET; PIPE
EXHAUST BRAKE<NF8> (B) ID=17 		8-94128-319-2 01 1 1510- ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1510- ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1510- ● ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1510- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		9-09956-353-0 01 1 1306- ● ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (H) 		8-98158-378-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (C) 		8-98041-053-4 01 1 1306- ● ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98067-259-2 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98067-259-2 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A) 		8-98067-259-2 01 1 1306- ● ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98048-901-0 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98048-901-0 01 1 1306- ● ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98048-903-0 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98048-903-0 01 1 1306- ● ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 1306- ● ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 1306- ● ●
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ● ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ● ●
235 RUBBER; SUPPORT,PIPE
EXHAUST BRAKE<NF8> OD=16.5 L=50 		8-97214-235-0 01 1 1510- ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1510- ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1510- ● ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1510- ● ●

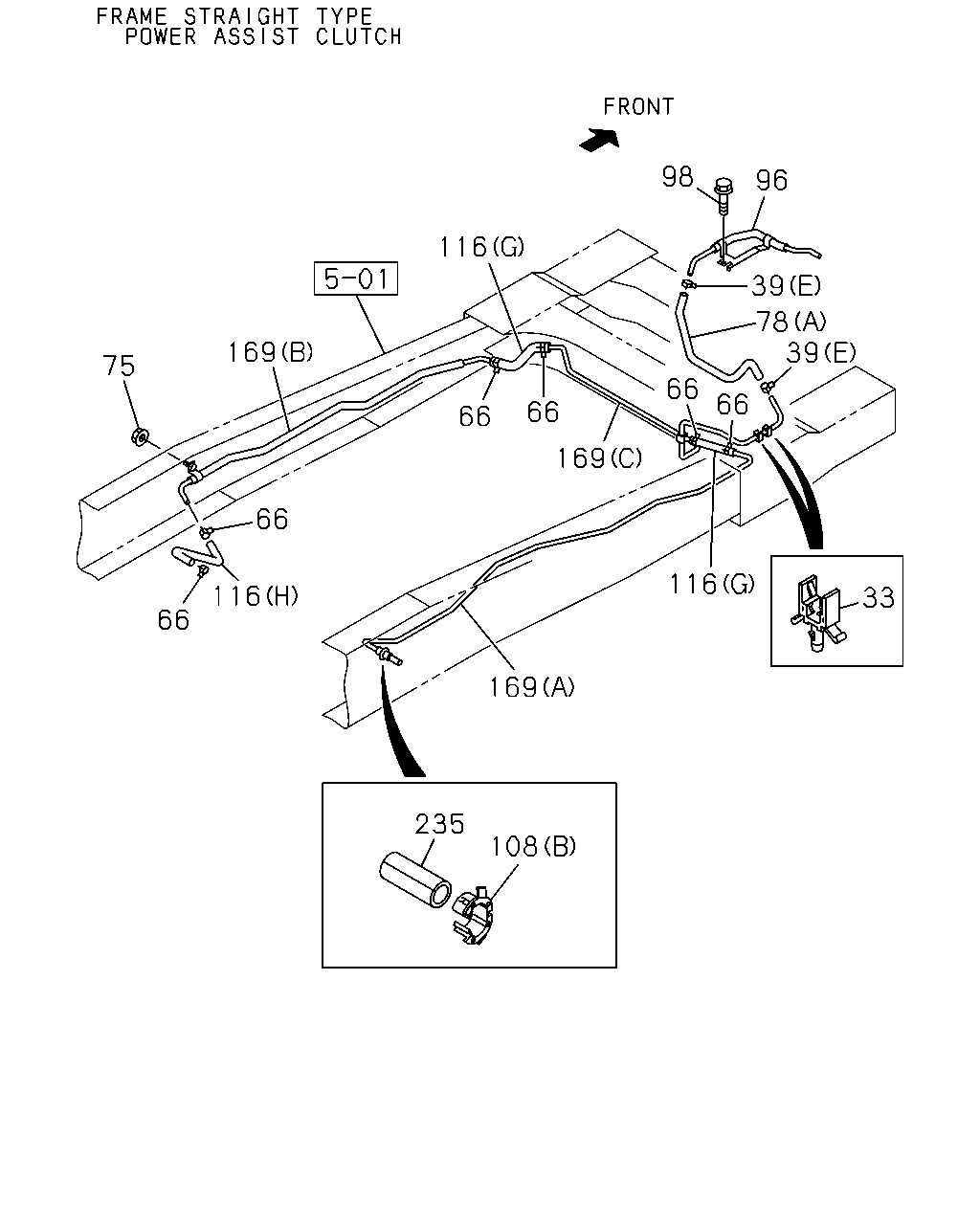

çizim 356192
75 169 66 116 66 235 108 169 116 33 39 78 39 96 98 116 66 66 169 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C
33 CLIP; VAC PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 1306- ●
33 CLIP; VAC PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40 		8-94462-219-0 02 1 1306- ●
33 CLIP; VAC PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) ID=10 H=40 		8-94462-219-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (A) L=170.3 		1-09987-182-0 01 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (E) ID=16 		8-97329-628-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 04 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (D) ID=21.7 		8-97203-074-0 02 1 1306- ●
66 CLIP; VAC HOSE,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 06 1 1306- ●
66 CLIP; VAC HOSE,M/VAC
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 06 1 1306- ● ●
66 CLIP; VAC HOSE,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1306- ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
75 NUT; CLIP,VAC HOSE
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (D) 		8-98112-680-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (E) 		8-97386-589-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (E) 		8-97386-589-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98136-613-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (F) 		8-98136-613-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98106-711-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98171-288-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (I) 		8-98220-704-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (J) 		8-98096-135-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
(C) 		8-98189-103-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98220-579-0 01 1 1306- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) 		8-98220-579-0 01 1 1306- ● ●
98 BOLT; VAC PIPE FIX
EXC. HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1306- ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1306- ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1306- ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1306- ● ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1306- ● ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
98 BOLT; VAC PIPE FIX
4HK1-TCN ENG(RDQ) M6X12 FLANGE SOU 		0-28050-612-0 02 1 1306- ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1306-1509 ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1306-1509 ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1306-1509 ● ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1306-1509 ● ●
108 GROMMET; PIPE
EXHAUST BRAKE<NF8> (B) ID=17 		8-94128-319-2 01 1 1510- ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1510- ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1510- ● ●
108 GROMMET; PIPE
4HK1-TCN ENG(RDQ) (B) ID=17 		8-94128-319-2 01 1 1510- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		9-09956-353-0 01 1 1306- ● ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (H) 		8-98158-378-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98041-053-4 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (C) 		8-98041-053-4 01 1 1306- ● ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98067-259-2 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98067-259-2 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A) 		8-98067-259-2 01 1 1306- ● ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98048-901-0 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98048-901-0 01 1 1306- ● ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98048-903-0 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) (D) 		8-98048-903-0 01 1 1306- ● ●
169 PIPE; VAC,BOOSTER SIDE
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-805-0 01 1 1306- ● ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 1306- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-052-2 01 1 1306- ● ●
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ● ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ● ●
235 RUBBER; SUPPORT,PIPE
EXHAUST BRAKE<NF8> OD=16.5 L=50 		8-97214-235-0 01 1 1510- ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1510- ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1510- ● ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1510- ● ●
çizim 356218
236 136 122 136 136 78 136 136 44 136 78 158
BalonParca AdiParca NoAdetTipApplied Date A B C
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98070-194-0 01 1 1306-1509 ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) (A) 		8-98070-194-0 01 1 1306-1509 ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98070-194-0 01 1 1510- ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) (A) 		8-98070-194-0 01 1 1510- ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-425-1 01 1 1306-1509 ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) (B) 		8-98057-425-1 01 1 1306-1509 ● ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-425-1 01 1 1510- ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) (B) 		8-98057-425-1 01 1 1510- ● ●
44 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98063-777-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (D) 		8-98112-680-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (E) 		8-97386-589-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (E) 		8-97386-589-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98136-613-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (F) 		8-98136-613-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98106-711-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98171-288-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (I) 		8-98220-704-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (J) 		8-98096-135-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
(C) 		8-98189-103-0 01 1 1306- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98189-104-0 01 1 1306-1509 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) 		8-98189-104-0 01 1 1306-1509 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 		8-98189-104-0 01 1 1510- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) 		8-98189-104-0 01 1 1510- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1306- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-105-0 01 1 1306- ●
136 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1306-1509 ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1306-1509 ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 02 1 1306-1509 ●
136 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1510- ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1510- ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 02 1 1510- ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 06 1 1306-1509 ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 06 1 1306-1509 ● ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 06 1 1510- ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 06 1 1510- ● ●
136 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 04 1 1306- ●
158 CLIP; HOSE
ID=14-20 		8-97061-603-0 01 1 1306-1509 ●
158 CLIP; HOSE
4HK1-TCN ENG(RDQ) ID=14-20 		8-97061-603-0 01 1 1306-1509 ●
158 CLIP; HOSE
EXHAUST BRAKE<NF8> ID=14-20 		8-97061-603-0 01 1 1510- ●
158 CLIP; HOSE
4HK1-TCN ENG(RDQ) ID=14-20 		8-97061-603-0 01 1 1510- ●
236 BOLT; PIPE
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306-1509 ●
236 BOLT; PIPE
4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306-1509 ●
236 BOLT; PIPE
EXHAUST BRAKE<NF8> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1510- ●
236 BOLT; PIPE
4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1510- ●
çizim 356245
39 39 165 184 165 184 165 184 184 120 203 12 12 13 12 157 12 12 13 12 157 157 157 116 39 116 39
BalonParca AdiParca NoAdetTipApplied Date A B C
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 02 1 1306- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 02 1 1306- ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1306- ● ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5 		8-98008-097-0 08 1 1306- ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1306- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 01 1 1306- ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1306- ● ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98035-106-0 03 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (A) L=170.3 		1-09987-182-0 01 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (E) ID=16 		8-97329-628-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 04 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (D) ID=21.7 		8-97203-074-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (H) 		8-98158-378-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1306- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-695-2 01 1 1306- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-352-3 01 1 1306- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97389-696-2 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98017-168-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98027-350-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98027-351-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98027-353-3 01 1 1306- ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98027-354-2 01 1 1306- ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98022-868-3 01 1 1306- ●
165 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ● ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1306- ● ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1306- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1306- ● ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A) 		8-98183-462-1 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) SOU 		8-94104-021-0 01 1 1306- ●
203 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) SOU 		8-94386-540-0 01 1 1306- ●
çizim 356247
235 122 136 136 136 78 136 44 136 78 136 236 158 44 136 78 136
BalonParca AdiParca NoAdetTipApplied Date A B C
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98070-194-0 01 1 1306-1509 ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) (A) 		8-98070-194-0 01 1 1306-1509 ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98070-194-0 01 1 1510- ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) (A) 		8-98070-194-0 01 1 1510- ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-425-1 01 1 1306-1509 ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) (B) 		8-98057-425-1 01 1 1306-1509 ● ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-425-1 01 1 1510- ●
44 PIPE; VAC,MAG VLV
4HK1-TCN ENG(RDQ) (B) 		8-98057-425-1 01 1 1510- ● ●
44 PIPE; VAC,MAG VLV
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98063-777-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (D) 		8-98112-680-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (E) 		8-97386-589-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (E) 		8-97386-589-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98136-613-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (F) 		8-98136-613-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98106-711-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98171-288-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (I) 		8-98220-704-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (J) 		8-98096-135-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
(C) 		8-98189-103-0 01 1 1306- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98189-104-0 01 1 1306-1509 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) 		8-98189-104-0 01 1 1306-1509 ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 		8-98189-104-0 01 1 1510- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
4HK1-TCN ENG(RDQ) 		8-98189-104-0 01 1 1510- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98092-677-0 01 1 1306- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-105-0 01 1 1306- ●
136 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1306-1509 ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1306-1509 ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 02 1 1306-1509 ●
136 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1510- ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1510- ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 02 1 1510- ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 06 1 1306-1509 ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 06 1 1306-1509 ● ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 06 1 1510- ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 06 1 1510- ● ●
136 CLIP; VAC HOSE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 04 1 1306- ●
158 CLIP; HOSE
ID=14-20 		8-97061-603-0 01 1 1306-1509 ●
158 CLIP; HOSE
4HK1-TCN ENG(RDQ) ID=14-20 		8-97061-603-0 01 1 1306-1509 ●
158 CLIP; HOSE
EXHAUST BRAKE<NF8> ID=14-20 		8-97061-603-0 01 1 1510- ●
158 CLIP; HOSE
4HK1-TCN ENG(RDQ) ID=14-20 		8-97061-603-0 01 1 1510- ●
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ● ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1306-1509 ● ●
235 RUBBER; SUPPORT,PIPE
EXHAUST BRAKE<NF8> OD=16.5 L=50 		8-97214-235-0 01 1 1510- ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1510- ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1510- ● ●
235 RUBBER; SUPPORT,PIPE
4HK1-TCN ENG(RDQ) OD=16.5 L=50 		8-97214-235-0 01 1 1510- ● ●
236 BOLT; PIPE
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306-1509 ●
236 BOLT; PIPE
4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306-1509 ●
236 BOLT; PIPE
EXHAUST BRAKE<NF8> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1510- ●
236 BOLT; PIPE
4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1510- ●
çizim 356248
80 39 39 39 78 39 39 78 39 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (A) L=170.3 		1-09987-182-0 01 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (E) ID=16 		8-97329-628-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 04 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (D) ID=21.7 		8-97203-074-0 02 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (D) 		8-98112-680-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (E) 		8-97386-589-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (E) 		8-97386-589-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98136-613-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (F) 		8-98136-613-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98106-711-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98171-288-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (I) 		8-98220-704-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (J) 		8-98096-135-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
(C) 		8-98189-103-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98097-788-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) (B) 		8-98097-788-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97386-605-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) (A) 		8-97386-605-0 01 1 1306- ● ●
80 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98051-652-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYPE<7KJ> (E) 		8-98135-521-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98058-596-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-580-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) (C) 		8-98092-258-1 01 1 1306- ●
çizim 356249
78 39 39 39 39 78 39 39 78 39 80 39 39 80
BalonParca AdiParca NoAdetTipApplied Date A B C
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (A) L=170.3 		1-09987-182-0 01 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (E) ID=16 		8-97329-628-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 04 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (D) ID=21.7 		8-97203-074-0 02 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-833-1 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A) 		8-98080-833-1 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (B) 		8-98057-462-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1306-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98171-287-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (D) 		8-98112-680-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (E) 		8-97386-589-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (E) 		8-97386-589-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98136-613-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (F) 		8-98136-613-0 01 1 1306- ● ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98106-711-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-98171-288-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (I) 		8-98220-704-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (J) 		8-98096-135-0 01 1 1306- ●
78 HOSE; VAC,PIPE TO PIPE
(C) 		8-98189-103-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98097-788-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) (B) 		8-98097-788-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97386-605-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) (A) 		8-97386-605-0 01 1 1306- ● ●
80 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98051-652-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FRAME STRAIGHT TYPE<7KJ> (E) 		8-98135-521-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98058-596-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98220-580-0 01 1 1306- ●
80 PIPE; VAC,ENG SIDE
4HK1-TCN ENG(RDQ) (C) 		8-98092-258-1 01 1 1306- ●
çizim 356308
116 39 184 184 184 165 39
BalonParca AdiParca NoAdetTipApplied Date A B C
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (A) L=170.3 		1-09987-182-0 01 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (E) ID=16 		8-97329-628-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 04 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (D) ID=21.7 		8-97203-074-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (H) 		8-98158-378-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1306- ●
165 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ● ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1306- ● ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1306- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1306- ● ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A) 		8-98183-462-1 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
çizim 358436
39 165 184 165 184 165 116 39 184 184
BalonParca AdiParca NoAdetTipApplied Date A B C
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (C) ID=11-17 		8-98173-762-1 08 1 1306- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU 		8-94238-568-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3 		1-09987-182-0 01 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (A) L=170.3 		1-09987-182-0 01 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) (E) ID=16 		8-97329-628-0 02 1 1306- ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (E) ID=16 		8-97329-628-0 02 1 1306- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU 		8-94238-568-0 04 1 1306- ●
39 CLIP; HOSE,VAC
4HK1-TCN ENG(RDQ) (D) ID=21.7 		8-97203-074-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1306-1509 ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (G) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1510- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) 		8-98158-378-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (H) 		8-98158-378-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=170 SERVICED BY L=3000 		0-08158-300-0 02 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (E) 		8-98067-702-0 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (E) 		8-98067-702-0 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (F) 		8-98081-002-2 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (F) 		8-98081-002-2 01 1 1306- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-97389-674-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-97389-689-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97389-690-3 01 1 1306- ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98094-547-0 01 1 1306- ●
165 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ●
165 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306- ● ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1306- ● ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98255-541-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (H) 		8-98255-548-0 01 1 1312- ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (F) 		8-98156-526-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98193-145-0 01 1 1306- ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (C) 		8-98193-144-0 01 1 1306-1311 ● ●
184 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-539-0 01 1 1312- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98183-467-1 01 1 1306- ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98017-628-1 01 1 1306- ● ● ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (A) 		8-98183-462-1 01 1 1306-1311 ●
184 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACKVAR.4<7TV> (G) 		8-98255-535-0 01 1 1312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
