3-58 — FIXING PARTS; OIL PIPING (#122684) — 134 parça

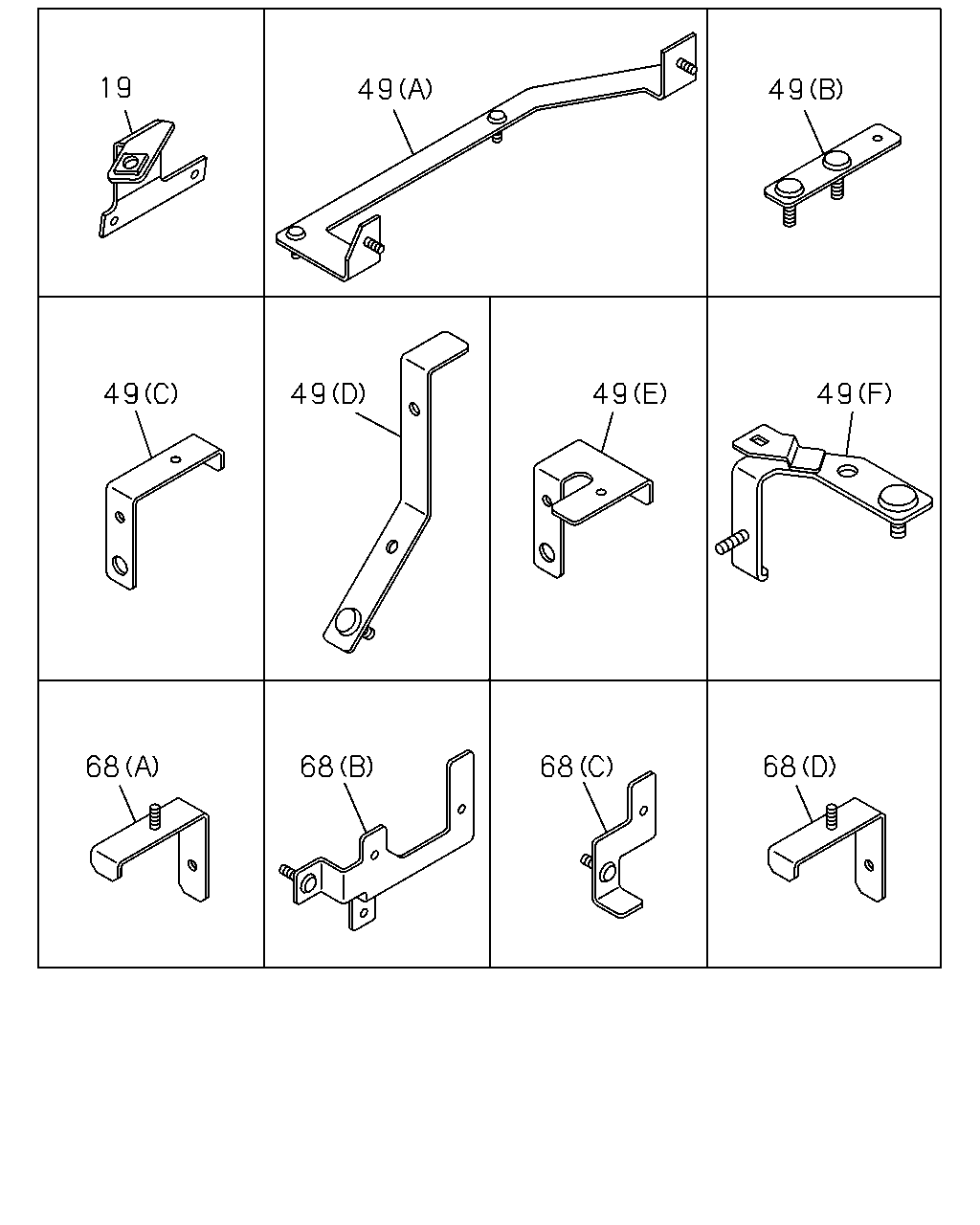

çizim 356127
49 49 49 49 49 49 68 68 68 19 68
BalonParca AdiParca NoAdetTipApplied Date A B C
19 BRACKET; OIL PIPE 8-97389-845-2 01 1 1306- ● ● ●
49 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97387-196-0 01 1 1306- ●
49 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-97387-196-0 01 1 1306- ● ●
49 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98033-802-1 01 1 1306- ●
49 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) (C) 		8-98033-802-1 01 1 1306- ● ●
49 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98041-600-0 01 1 1306- ●
49 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) (A) 		8-98041-600-0 01 1 1306- ● ●
49 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) (D) 		8-97251-896-1 01 1 1306- ●
49 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) (E) 		8-98033-803-1 01 1 1306- ●
49 BRACKET; BRK PIPE
4HK1-TCN ENG(RDQ) (F) 		8-98096-202-1 01 1 1306- ●
68 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-98049-137-1 01 1 1306- ●
68 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (D) 		8-98060-016-3 01 1 1306- ●
68 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98017-159-0 01 1 1306- ●
68 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-786-0 01 1 1306- ●

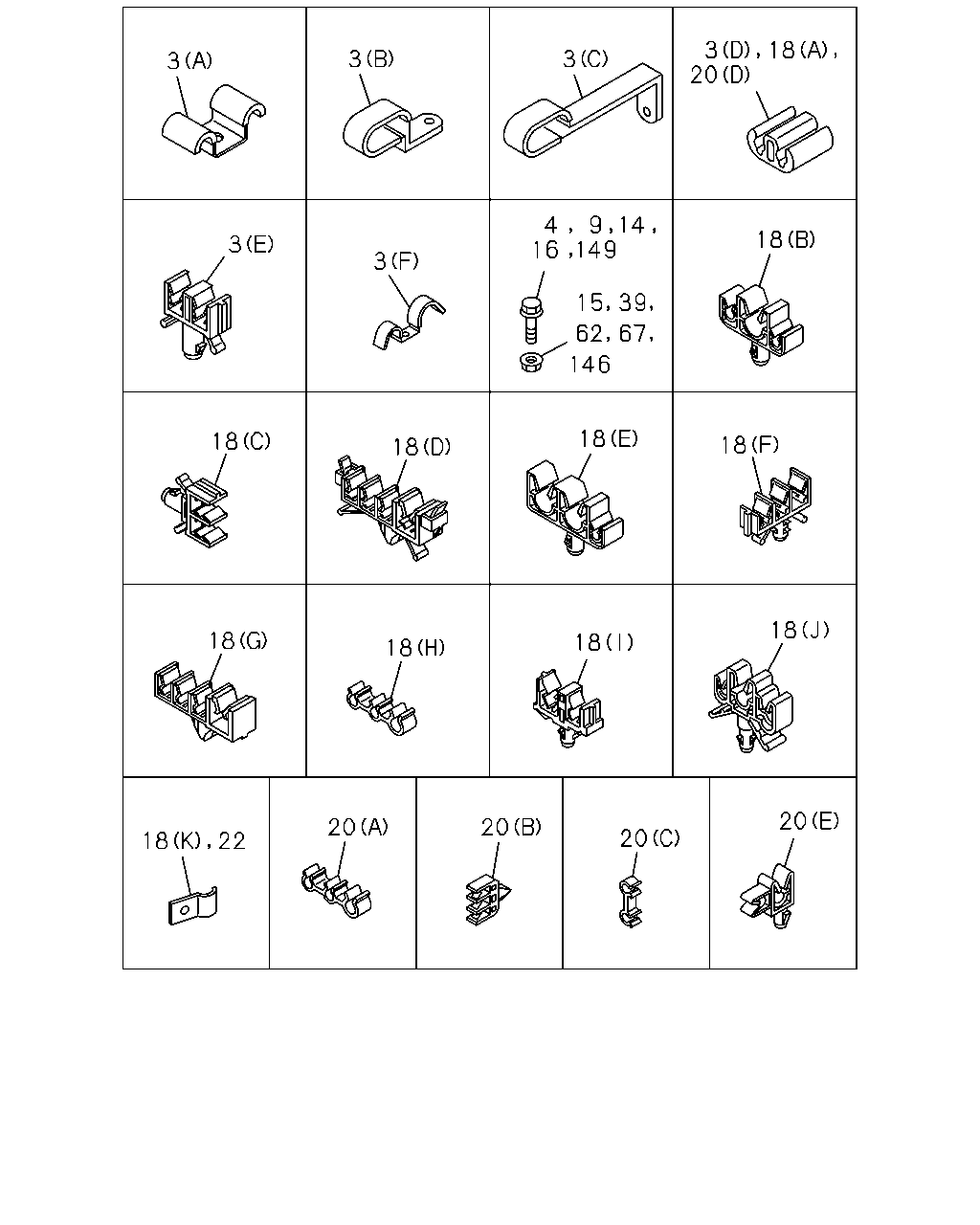

çizim 356509
18 20 20 20 18 18 18 18 18 3 20 3 14 9 4 16 149 39 15 62 67 146 3 3 3 3 18 18 18 20 22 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 1306- ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 1306- ● ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1306- ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1306- ● ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1306- ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1306- ● ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=10X2 H=22 		8-94252-455-2 01 1 1306- ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (D) ID=10X2 H=22 		8-94252-455-2 01 1 1306- ● ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=10X2 H=22 		8-94252-455-2 03 1 1306- ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (D) ID=10X2 H=22 		8-94252-455-2 03 1 1306- ● ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (E) ID=10X2 H=37.5 		8-97018-546-0 01 1 1306- ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (E) ID=10X2 H=37.5 		8-97018-546-0 01 1 1306- ● ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (E) ID=10X2 H=37.5 		8-97018-546-0 02 1 1306- ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (E) ID=10X2 H=37.5 		8-97018-546-0 02 1 1306- ● ●
3 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (F) ID=13 & 18 L=17 & 19 		8-98067-703-0 03 1 1306- ●
4 BOLT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M10X25 FLANGE SOU 		0-28651-025-0 01 1 1306- ●
4 BOLT; BRKT
4HK1-TCN ENG(RDQ) M10X25 FLANGE SOU 		0-28651-025-0 01 1 1306- ● ●
4 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ● ● ●
4 BOLT; BRKT
4HK1-TCN ENG(RDQ) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ●
4 BOLT; BRKT
4HK1-TCN ENG(RDQ) M10X25 FLANGE SOU 		0-28651-025-0 02 1 1306- ●
9 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
9 BOLT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
9 BOLT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
9 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
9 BOLT; BRKT
4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
9 BOLT; BRKT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
9 BOLT; BRKT
4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
14 BOLT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ●
14 BOLT; CLIP,OIL PIPE
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ● ●
14 BOLT; CLIP,OIL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
15 NUT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ●
15 NUT; CLIP,OIL PIPE
M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
15 NUT; CLIP,OIL PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
15 NUT; CLIP,OIL PIPE
4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
16 BOLT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> M8X20 FLANGE 		0-28650-820-0 02 1 1306- ●
16 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ) DISC BRAKE FRT<J52> FRAME STRAIGHT TYPE<7KJ> M8X20 FLANGE 		0-28650-820-0 02 1 1306- ●
16 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ) DISC BRAKE FRT<J52> M8X20 FLANGE 		0-28650-820-0 02 1 1306- ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76 		8-97202-954-1 02 1 1408- ●
18 CLIP; BRK PIPE
(J) ID=12 & 6.35 & 4.76 		8-97202-954-1 02 1 1408- ● ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 SOU 		8-94389-060-0 01 1 1306-1407 ●
18 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 SOU 		8-94389-060-0 01 1 1306-1407 ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> (A) ID=4.8X2 SOU 		8-94389-060-0 01 1 1306-1407 ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (A) ID=4.8X2 SOU 		8-94389-060-0 01 1 1306-1407 ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (A) ID=4.8X2 SOU 		8-94389-060-0 01 1 1306-1407 ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 SOU 		8-94389-060-0 01 1 1408- ●
18 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 SOU 		8-94389-060-0 01 1 1408- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X2 SOU 		8-94389-060-0 01 1 1408- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (A) ID=4.8X2 SOU 		8-94389-060-0 01 1 1408- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (A) ID=4.8X2 SOU 		8-94389-060-0 01 1 1408- ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (K) B=18 L=20 		1-09700-372-0 02 1 1306- ●
18 CLIP; BRK PIPE
(K) B=18 L=20 		1-09700-372-0 02 1 1306- ● ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (H) ID=6.4 & 4.8X2 SOU 		8-94146-043-0 01 1 1306- ●
18 CLIP; BRK PIPE
(H) ID=6.4 & 4.8X2 SOU 		8-94146-043-0 01 1 1306- ● ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1306- ●
18 CLIP; BRK PIPE
(F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1306- ● ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76 		8-97202-954-1 03 1 1306-1407 ●
18 CLIP; BRK PIPE
(J) ID=12 & 6.35 & 4.76 		8-97202-954-1 03 1 1306-1407 ● ●
18 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1408- ●
18 CLIP; BRK PIPE
(J) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1408- ● ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (I) ID=4.8X2 		8-94455-816-0 01 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (I) ID=4.8X2 		8-94455-816-0 01 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (I) ID=4.8X2 		8-94455-816-0 01 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1306- ●
18 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 02 1 1306- ●
18 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1306- ●
18 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 06 1 1306- ●
18 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1306- ●
18 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1306- ●
18 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1306- ●
18 CLIP; BRK PIPE
WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 1306- ●
18 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 02 1 1306- ● ● ●
18 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1306-1307 ● ● ●
18 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1308- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1308- ● ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1308- ●
18 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94316-410-0 01 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2 		8-94316-410-0 01 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) (C) ID=4.8X2 		8-94316-410-0 01 1 1306- ●
18 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (D) ID=10 & 4.76X3 		8-97326-158-1 06 1 1306- ●
20 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (D) ID=6.35 & 6.35 		8-94474-113-0 03 1 1306- ●
20 CLIP; BRK PIPE
(D) ID=6.35 & 6.35 		8-94474-113-0 03 1 1306- ● ●
20 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (E) ID=12 & 6.35 		8-97215-437-0 01 1 1306- ●
20 CLIP; BRK PIPE
(E) ID=12 & 6.35 		8-97215-437-0 01 1 1306- ● ●
20 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 SOU 		8-94250-923-2 01 1 1306- ● ● ●
20 CLIP; BRK PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) ID=6.4 & 4.8X2 SOU 		8-94146-043-0 01 1 1306- ●
20 CLIP; BRK PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) (C) 		8-94338-104-0 01 1 1306- ●
22 CLIP; PIPE TO FRAME
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> B=18 L=20 		1-09700-372-0 01 1 1306- ●
22 CLIP; PIPE TO FRAME
4JJ1-TCC ENG(RDU) DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> B=18 L=20 		1-09700-372-0 01 1 1306- ●
39 NUT; BRKT FIX
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
39 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
39 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
39 NUT; BRKT FIX
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
39 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
39 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
39 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
62 NUT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE SOU 		0-91180-110-0 02 1 1306- ●
62 NUT
4HK1-TCN ENG(RDQ) M10 FLANGE SOU 		0-91180-110-0 02 1 1306- ● ●
67 NUT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M14 SOU 		0-91111-514-0 01 1 1306- ●
67 NUT; BRKT
4HK1-TCN ENG(RDQ) M14 SOU 		0-91111-514-0 01 1 1306- ● ●
67 NUT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
67 NUT; BRKT
4HK1-TCN ENG(RDQ) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
67 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ●
67 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
67 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> M10 		8-98034-487-1 01 1 1306- ●
67 NUT; BRKT
4HK1-TCN ENG(RDQ) M10 FLANGE SOU 		0-91180-110-0 02 1 1306- ●
146 NUT; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
146 NUT; PIPE
4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
146 NUT; PIPE
4HK1-TCN ENG(RDQ) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
146 NUT; PIPE
4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
146 NUT; PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE SOU 		0-91180-110-0 02 1 1306- ●
146 NUT; PIPE
4HK1-TCN ENG(RDQ) M10 FLANGE SOU 		0-91180-110-0 02 1 1306- ● ●
146 NUT; PIPE
4HK1-TCN ENG(RDQ) M6 FLANGE SOU 		0-91180-106-0 01 1 1306- ●
149 BOLT; HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) M6X20 FLANGE SOU 		0-28650-620-0 01 1 1306- ●
149 BOLT; HOSE
4HK1-TCN ENG(RDQ) M6X20 FLANGE SOU 		0-28650-620-0 01 1 1306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
