3-55 — BRAKE PIPING; OIL,REAR (#122683) — 82 parça

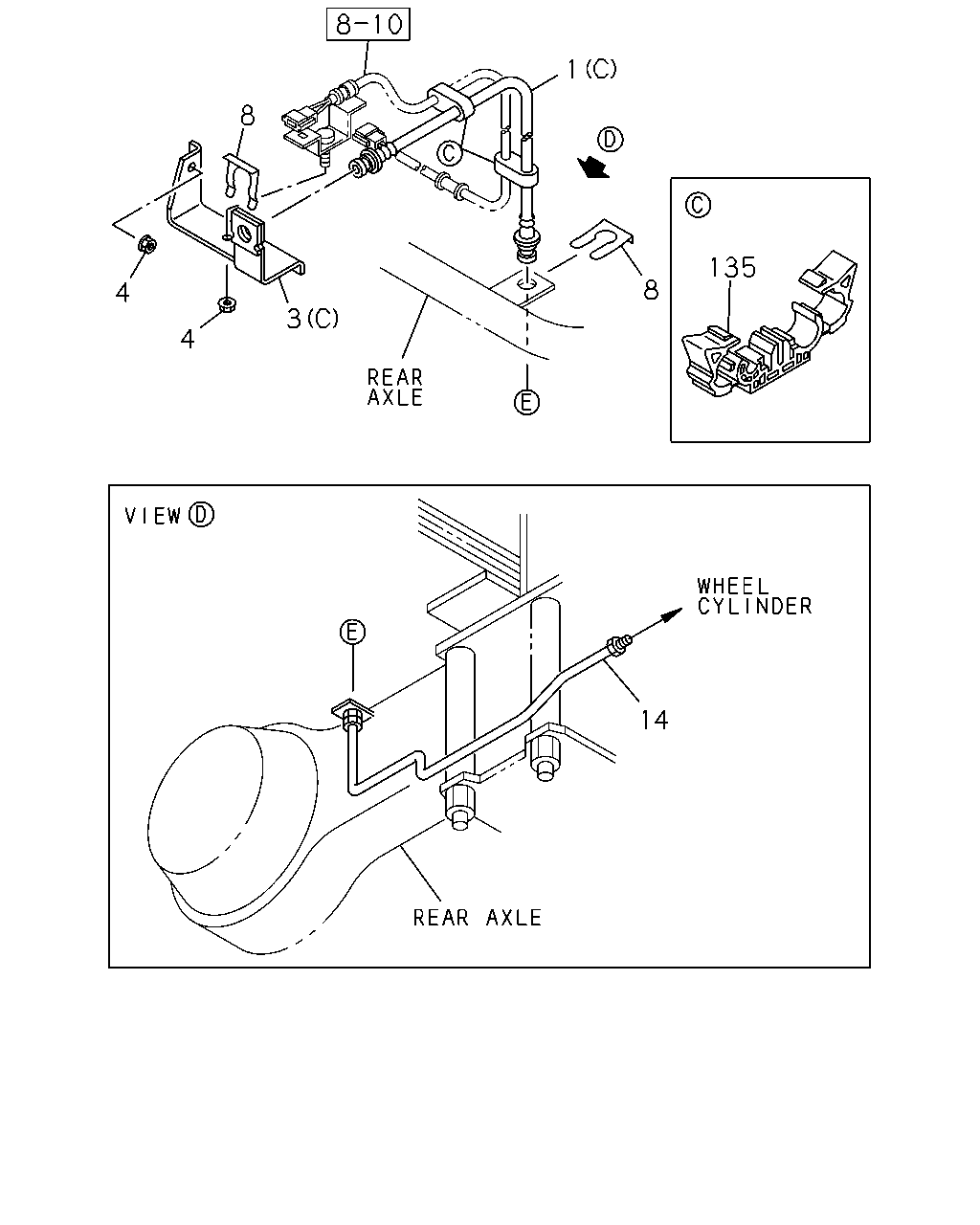

çizim 355912
4 4 3 8 1 135 8 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97253-569-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97253-570-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1306- ●
1 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1306- ●
1 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 1306- ●
3 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1306- ●
3 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1306- ●
3 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ) (C) 		8-97205-714-1 01 1 1306- ● ●
3 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97205-714-1 01 1 1306- ●
3 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ) (C) 		8-97205-714-1 01 1 1306- ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-199-1 01 1 1306- ●
3 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98117-514-1 01 1 1306- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ●
8 CLIP; RR BRK 8-97360-054-0 04 1 1306- ● ●
8 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1306- ●
8 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-212-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98026-043-1 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98006-755-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98006-757-0 01 1 1306- ●
135 CLIP; FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 1306- ●
135 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97207-699-0 04 1 1306- ●
135 CLIP; FLEX HOSE 8-97207-699-0 04 1 1306- ●
çizim 355914
3 3 25
BalonParca AdiParca NoAdetTipApplied Date A B C
3 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1306- ●
3 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-714-1 01 1 1306- ●
3 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ) (C) 		8-97205-714-1 01 1 1306- ● ●
3 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97205-714-1 01 1 1306- ●
3 BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ) (C) 		8-97205-714-1 01 1 1306- ●
3 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-199-1 01 1 1306- ●
3 BRACKET; FLEX HOSE,RR BRK
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98117-514-1 01 1 1306- ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1306- ●
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1306- ●
25 CONNECTOR
4HK1-TCN ENG(RDQ) M10 STRAIGHT 		0-92107-005-0 01 1 1306- ● ●
25 CONNECTOR
4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1306- ●
25 CONNECTOR
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1306- ●
25 CONNECTOR
4HK1-TCN ENG(RDQ) M10 STRAIGHT 		0-92107-005-0 01 1 1306- ●

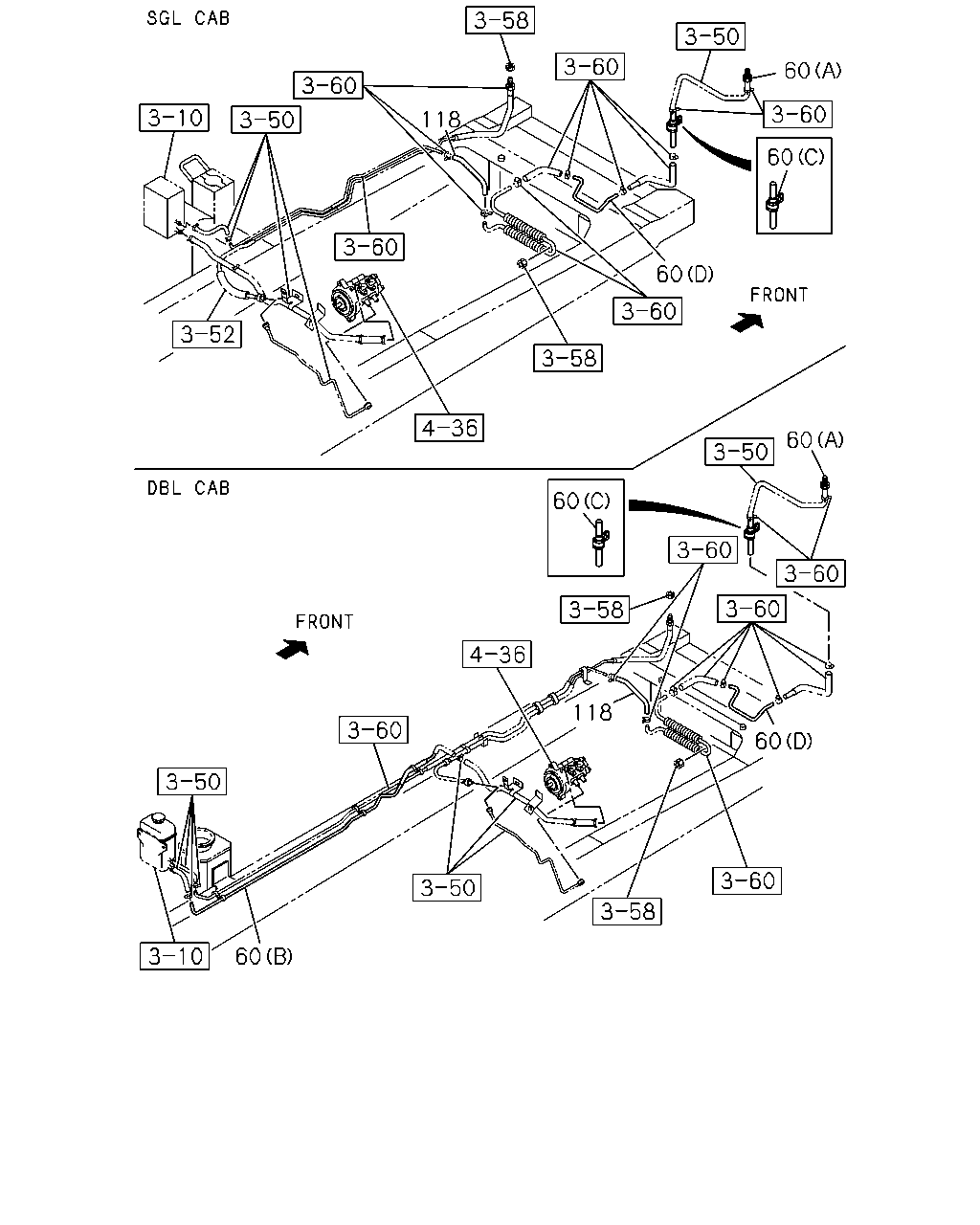

çizim 355919
118 60 60 60 60 118 60 60 60
BalonParca AdiParca NoAdetTipApplied Date A B C
60 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 1306- ●
60 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) (D) 		8-98041-326-1 01 1 1306- ● ●
60 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 1306- ●
60 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) (A) 		8-98080-549-0 01 1 1306- ● ●
60 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 1306- ●
60 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) (C) 		8-98088-313-1 01 1 1306- ● ●
60 PIPE ASM; BRK
4HK1-TCN ENG(RDQ) (B) 		8-98092-259-1 01 1 1306- ●
118 HOSE; PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1306- ●
118 HOSE; PIPE TO PIPE
4HK1-TCN ENG(RDQ) 		8-98158-200-0 01 1 1306- ● ●

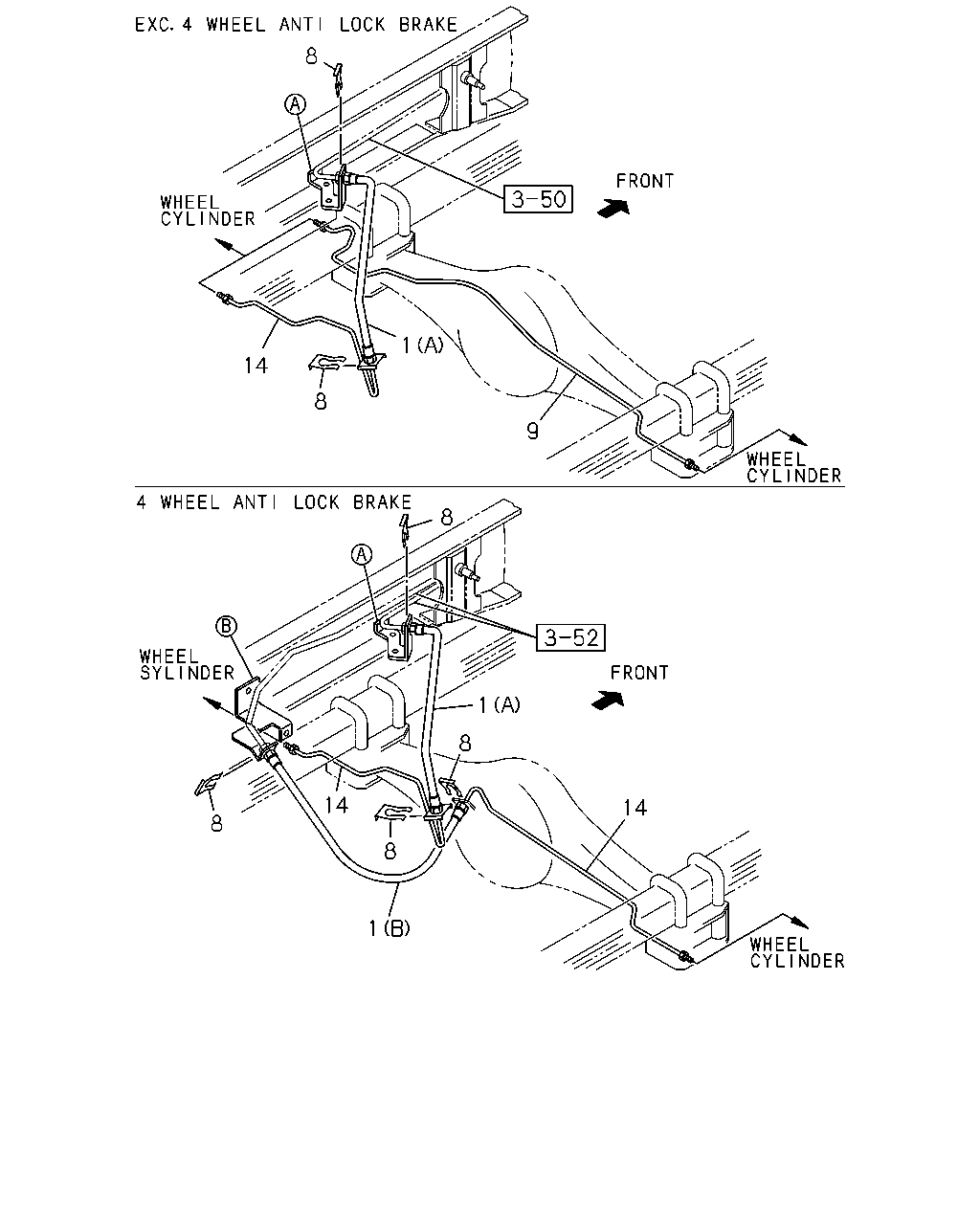

çizim 356274
8 14 8 1 9 8 1 8 14 1 8 14 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97253-569-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97253-570-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 1306- ●
1 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1306- ●
1 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1306- ●
1 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 1306- ●
8 CLIP; RR BRK 8-97360-054-0 04 1 1306- ● ●
8 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1306- ●
8 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1306- ●
9 PIPE; BRK,RR AXLE
MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-212-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98026-043-1 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-746-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-748-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
MINI BUS CHASSIS VAR.2(6GQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-748-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98006-755-0 01 1 1306- ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. MINI BUS CHASSIS VAR.2(6GQ) 		8-98006-757-0 01 1 1306- ●
