Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#122681) — 169 parça

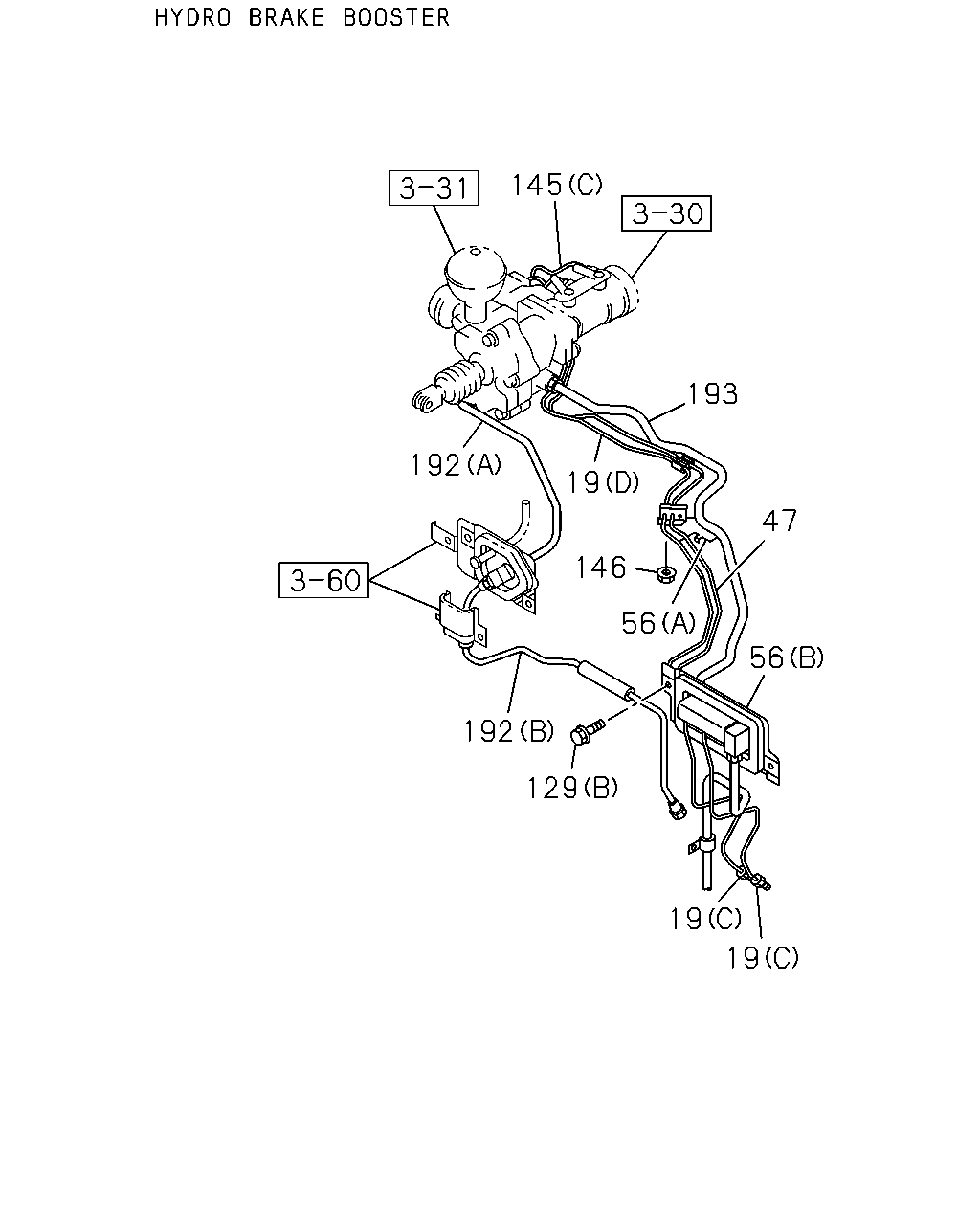

145 193 192 19 146 47 56 56 192 129 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	1306-	●
19	PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) (C)	8-98043-501-2	02	1	1306-		●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98098-682-1	01	1	1306-	●
19	PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1306-		●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	1306-	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	1306-	●
47	PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	1306-	●
47	PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1148	8-98133-414-0	01	1	1306-		●
47	PIPE; OIL,FRT BRK L=1148	8-98133-414-0	01	1	1306-			●
47	PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	1306-	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	1306-	●
56	BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	1306-		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1306-	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1306-		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1306-	●
56	BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1306-		●	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98154-265-1	01	1	1306-	●
56	BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-264-1	01	1	1306-	●
129	BOLT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-	●
129	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-		●	●
129	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1306-	●	●	●
145	PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (C) L=268	8-98133-409-0	01	1	1306-	●
145	PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=268	8-98133-409-0	01	1	1306-		●
145	PIPE; BRK,METERING VLV TO UNION (C) L=268	8-98133-409-0	01	1	1306-			●
145	PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	1306-	●
145	PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98098-680-1	01	1	1306-		●
146	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 W/LK WASHER SOU	8-94279-050-0	01	1	1306-	●
146	NUT; BRKT M8 W/LK WASHER SOU	8-94279-050-0	01	1	1306-		●	●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98127-262-0	01	1	1306-	●
192	PIPE; PRESSURE (A)	8-98127-262-0	01	1	1306-		●	●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98193-137-0	01	1	1306-	●
192	PIPE; PRESSURE (B)	8-98193-137-0	01	1	1306-		●	●
193	PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98098-683-0	01	1	1306-	●
193	PIPE; RETURN	8-98098-683-0	01	1	1306-		●	●

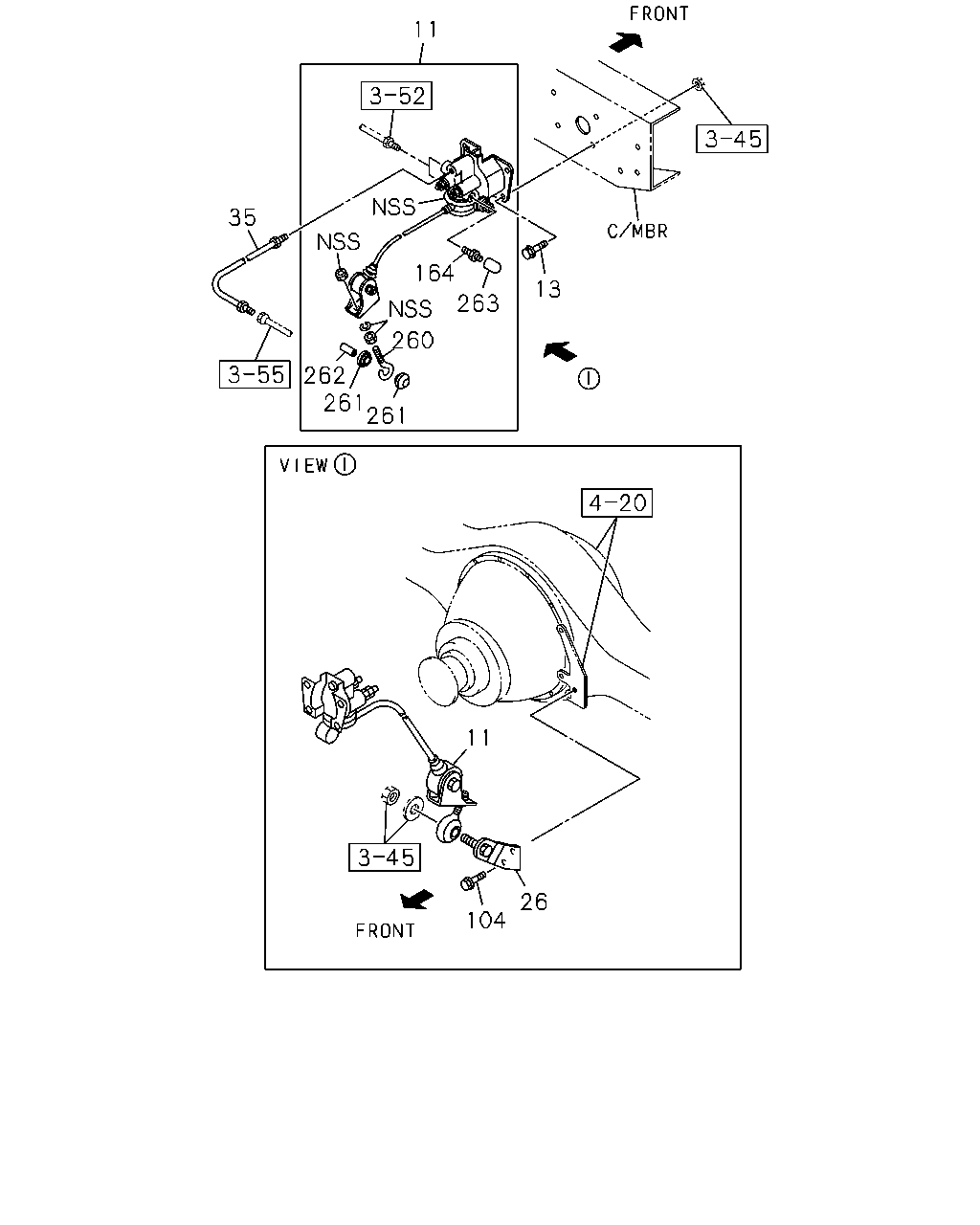

11 104 26 260 262 261 261 263 13 164 35 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
11	VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH>	8-94427-224-2	01	1	1306-	●
13	BOLT; VLV TO BRKT BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE SOU	0-28050-816-0	04	1	1306-	●
26	BRACKET; PROPORTIONING VLV BRK WHL LK CONT LSPV<6PH>	8-98029-821-0	01	1	1306-	●
35	PIPE; BRK,VLV TO RR AXLE 4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98057-271-0	01	1	1306-	●
104	BOLT; BRKT TO BODY BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE SOU	0-28050-816-0	02	1	1306-	●
164	SCREW; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-663-0	01	1	1306-	●
260	SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	1306-	●
261	BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	1306-	●
262	COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	01	1	1306-	●
263	CAP; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	1306-	●

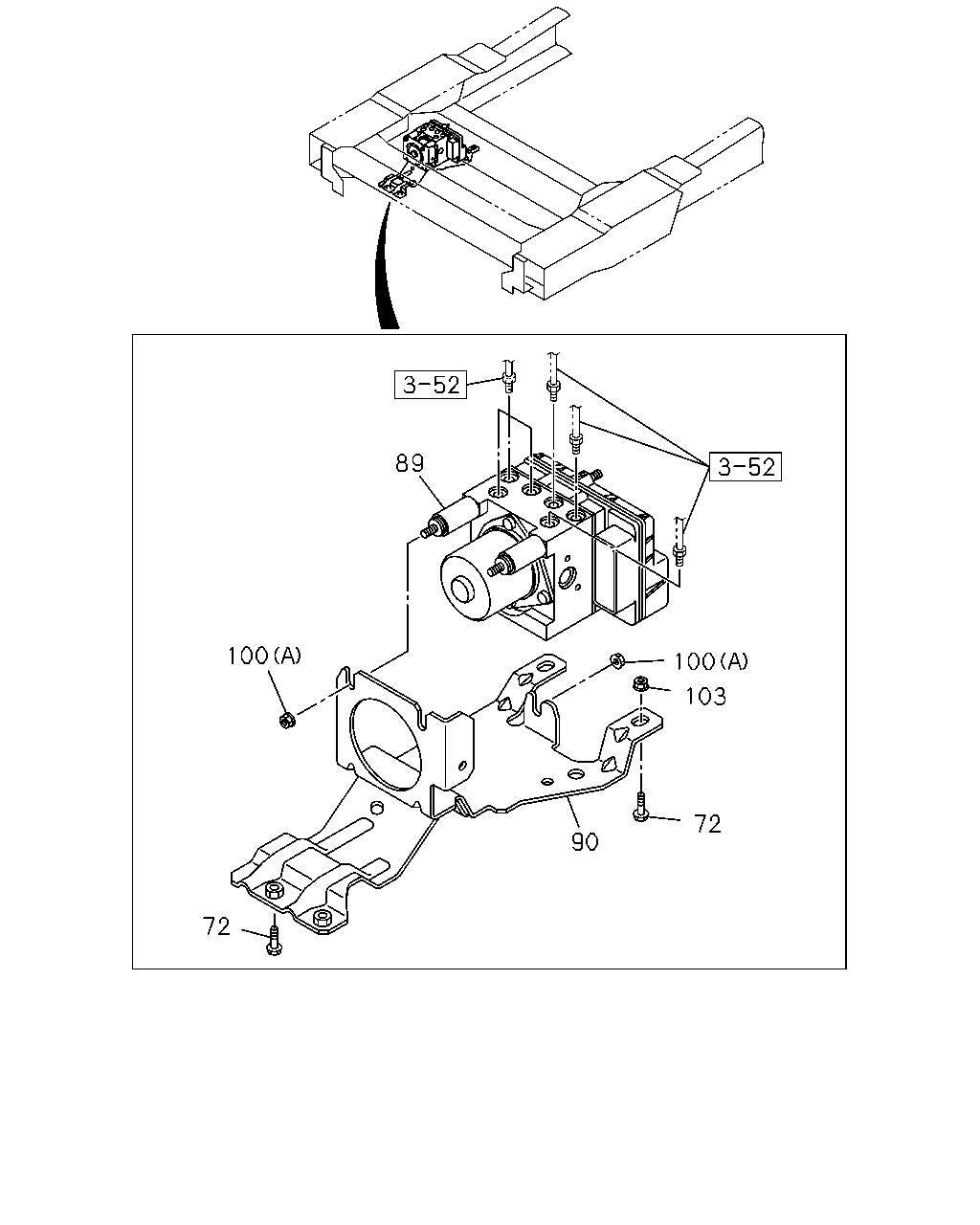

89 100 72 90 72 103 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
72	BOLT; BRKT TO BODY M8X25 FLANGE SOU	0-28650-825-0	04	1	1306-	●		●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE SOU	0-28650-825-0	04	1	1306-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER(7QQ)	8-98158-008-1	01	1	1306-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-98158-008-1	01	1	1306-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98158-007-1	01	1	1306-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK EXC. DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1306-1409	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1306-1409		●
89	HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-006-1	01	1	1306-1409			●
89	HYDRAULIC UNIT; ANTI LOCK BRK HYDRO BRAKE BOOSTER(7QQ) EXC. DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1410-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1410-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-006-1	01	1	1410-			●
90	BRACKET; HYDRAULIC UNIT,ABS	8-97385-320-0	01	1	1306-	●		●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	1306-		●
100	NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1306-	●
100	NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1306-		●	●
100	NUT; HYDRAULIC UNIT (A) M8 FLANGE SOU	0-91180-108-0	03	1	1306-	●		●
100	NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M8 FLANGE SOU	0-91180-108-0	03	1	1306-		●
103	NUT; HYDRAULIC UNIT BRKT FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●
103	NUT; HYDRAULIC UNIT BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1306-			●
103	NUT; HYDRAULIC UNIT BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●

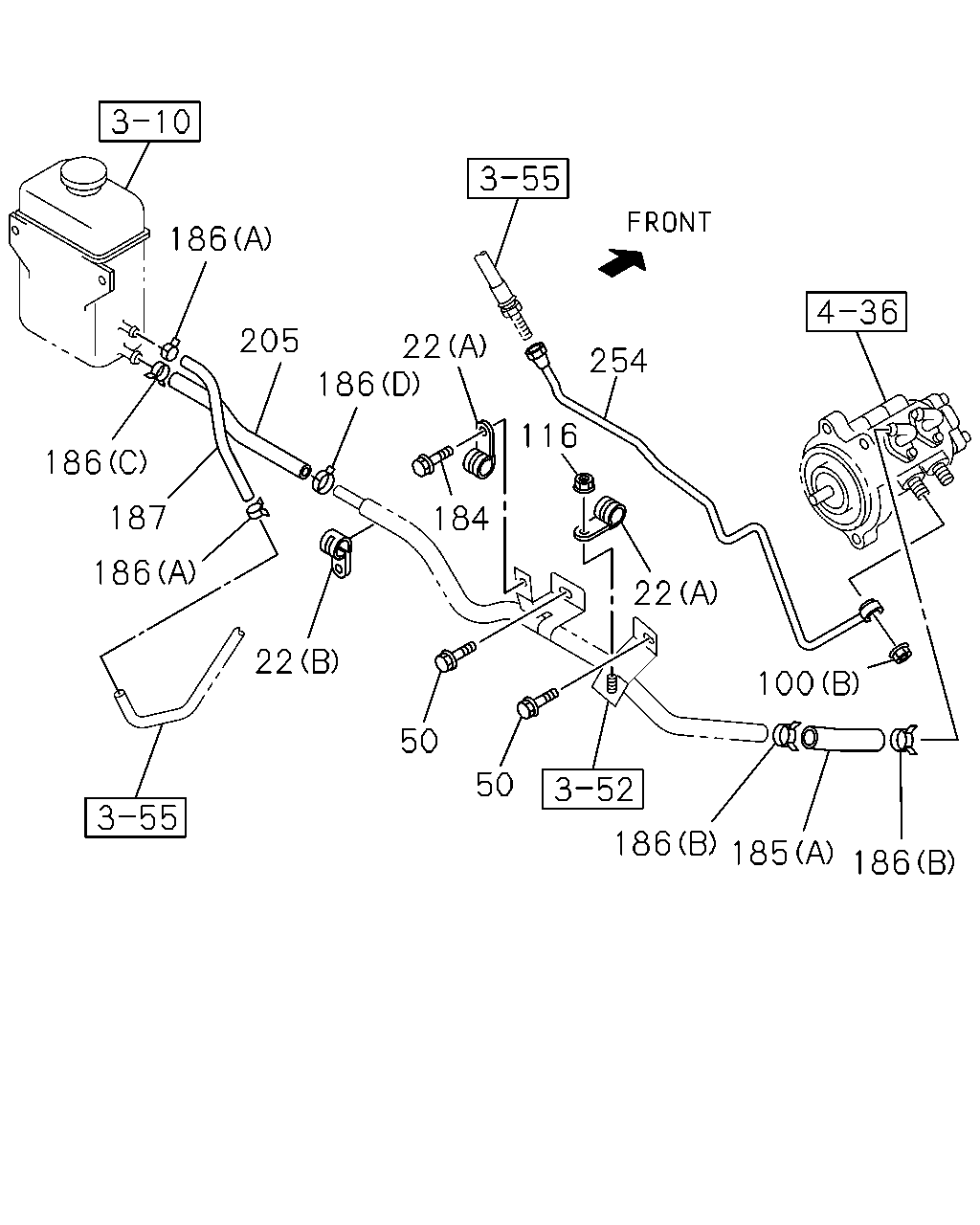

22 186 187 186 185 186 100 50 50 22 116 254 22 186 205 186 186 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	CLIP 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	1306-	●
22	CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	1306-		●	●
22	CLIP 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	1306-	●
22	CLIP (B) ID=17 L=21	8-98082-035-0	01	1	1306-		●	●
50	BOLT; PIPE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE SOU	0-28050-816-0	03	1	1306-	●
50	BOLT; PIPE M8X16 FLANGE SOU	0-28050-816-0	03	1	1306-		●	●
100	NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1306-	●
100	NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1306-		●	●
100	NUT; HYDRAULIC UNIT (A) M8 FLANGE SOU	0-91180-108-0	03	1	1306-	●		●
100	NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M8 FLANGE SOU	0-91180-108-0	03	1	1306-		●
116	NUT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
116	NUT M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●	●
184	BOLT; CLIP 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE SOU	0-28050-816-0	01	1	1306-	●
184	BOLT; CLIP M8X16 FLANGE SOU	0-28050-816-0	01	1	1306-		●	●
185	HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	1306-	●
185	HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) (B)	8-98085-720-0	01	1	1306-		●	●
185	HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1306-	●
185	HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1306-		●	●
186	CLIP; HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C) ID=22	8-97359-141-0	01	1	1306-	●
186	CLIP; HOSE 4HK1-TCN ENG(RDQ) (C) ID=22	8-97359-141-0	01	1	1306-		●	●
186	CLIP; HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (A) ID=16	8-98008-098-0	02	1	1306-	●
186	CLIP; HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1306-		●	●
186	CLIP; HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (D) ID=21	8-98150-355-0	01	1	1306-	●
186	CLIP; HOSE 4HK1-TCN ENG(RDQ) (D) ID=21	8-98150-355-0	01	1	1306-		●	●
186	CLIP; HOSE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-94242-034-0	02	1	1306-	●
186	CLIP; HOSE (B) ID=21	8-94242-034-0	02	1	1306-		●	●
187	HOSE; RUBBER,OIL TANK 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1306-	●
187	HOSE; RUBBER,OIL TANK 4HK1-TCN ENG(RDQ) L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1306-		●
187	HOSE; RUBBER,OIL TANK 4HK1-TCN ENG(RDQ) L=200 SERVICED BY L=3000	0-19809-300-0	01	1	1306-			●
205	HOSE; TANK TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) SERVICED BY L=300	0-09814-300-0	01	1	1306-	●
205	HOSE; TANK TO PIPE 4HK1-TCN ENG(RDQ) SERVICED BY L=300	0-09814-300-0	01	1	1306-		●
205	HOSE; TANK TO PIPE 4HK1-TCN ENG(RDQ) L=200 SERVICED BY L=300	0-09814-300-0	01	1	1306-			●
254	PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	1306-	●
254	PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ)	8-98036-161-0	01	1	1306-		●
254	PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ)	8-98053-548-0	01	1	1306-			●

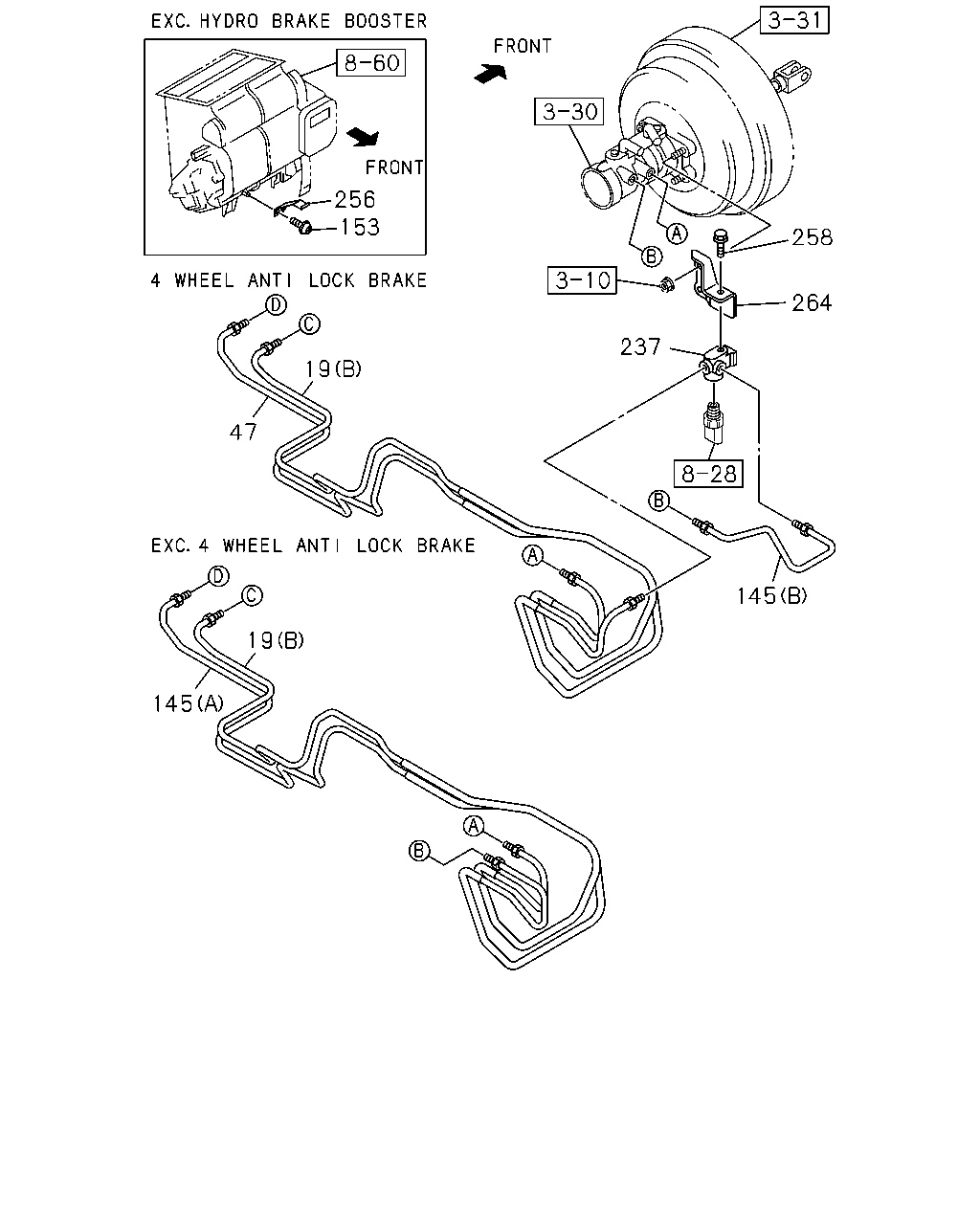

256 153 19 47 258 264 237 145 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	1306-	●
19	PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) (C)	8-98043-501-2	02	1	1306-		●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98098-682-1	01	1	1306-	●
19	PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1306-		●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	1306-	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	1306-	●
47	PIPE; OIL,FRT BRK HYDRO BRAKE BOOSTER(7QQ) L=1148	8-98133-414-0	01	1	1306-	●
47	PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1148	8-98133-414-0	01	1	1306-		●
47	PIPE; OIL,FRT BRK L=1148	8-98133-414-0	01	1	1306-			●
47	PIPE; OIL,FRT BRK EXC. HYDRO BRAKE BOOSTER(7QQ) L=1173	8-98133-413-0	01	1	1306-	●
145	PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (C) L=268	8-98133-409-0	01	1	1306-	●
145	PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=268	8-98133-409-0	01	1	1306-		●
145	PIPE; BRK,METERING VLV TO UNION (C) L=268	8-98133-409-0	01	1	1306-			●
145	PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B) L=201	8-98133-407-0	01	1	1306-	●
145	PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98098-680-1	01	1	1306-		●
153	SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1306-	●	●	●
237	CONNECTOR; MODULATOR	8-98111-748-1	01	1	1306-	●		●
237	CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-748-1	01	1	1306-		●
256	BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1306-	●	●	●
258	BOLT; PIPE,BRK M8X12 FLANGE	0-28050-812-0	01	1	1306-	●		●
258	BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	01	1	1306-		●
264	BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	1306-	●		●
264	BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1306-		●

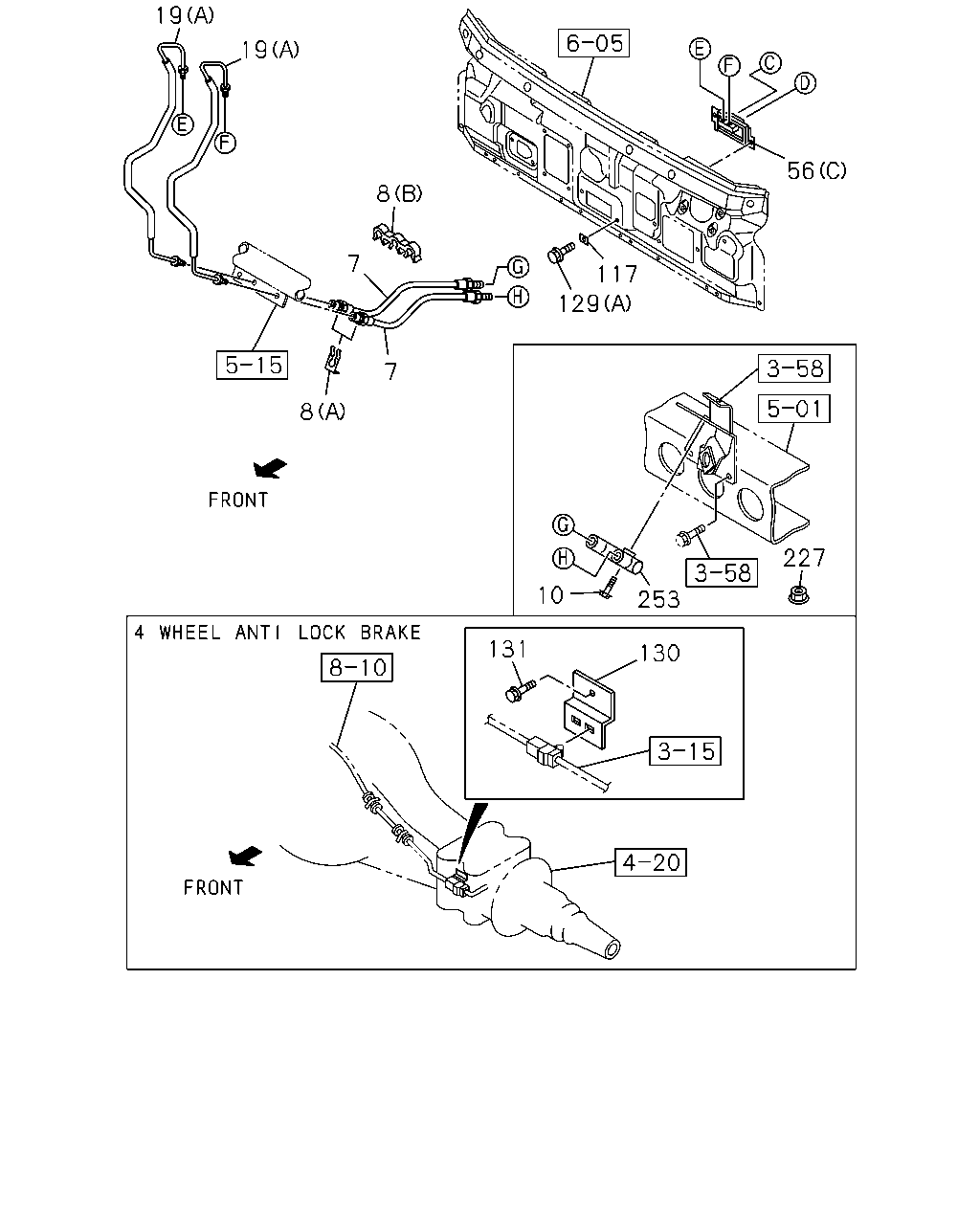

19 19 8 7 7 8 129 117 56 131 130 10 253 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1306-	●	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (B)	8-97076-471-0	01	1	1306-	●	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1306-	●	●	●
10	BOLT; JOINT M6X40 FLANGE	0-28650-640-0	01	1	1306-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	1306-	●
19	PIPE; BRK,M/CYL TO UNION 4HK1-TCN ENG(RDQ) (C)	8-98043-501-2	02	1	1306-		●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98098-682-1	01	1	1306-	●
19	PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1306-		●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	1306-	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	1306-	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98098-679-0	01	1	1306-	●
56	BRACKET; UNION,BRK (A)	8-98098-679-0	01	1	1306-		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1306-	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-267-1	01	1	1306-		●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1306-	●
56	BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98154-266-1	01	1	1306-		●	●
56	BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98154-265-1	01	1	1306-	●
56	BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98154-264-1	01	1	1306-	●
117	SEAL; UNION,BRK PIPE JOINT SOU	8-97856-616-0	02	1	1306-	●	●	●
129	BOLT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-	●
129	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-		●	●
129	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1306-	●	●	●
130	BRACKET; SPEED SENSOR	8-97080-060-2	02	1	1306-	●		●
130	BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	1306-		●
131	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-	●		●
131	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	02	1	1306-		●
227	NUT; JOINT 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●
227	NUT; JOINT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●
227	NUT; JOINT 4HK1-TCN ENG(RDQ) M8 FLANGE SOU	0-91180-108-0	02	1	1306-		●	●
253	JOINT	8-97038-940-1	01	1	1306-1407	●
253	JOINT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1306-1407		●
253	JOINT 4HK1-TCN ENG(RDQ)	8-97038-940-1	01	1	1306-1407			●
253	JOINT	8-97038-940-1	01	1	1408-	●
253	JOINT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH>	8-97038-940-1	01	1	1408-		●
253	JOINT 4HK1-TCN ENG(RDQ)	8-97038-940-1	01	1	1408-			●
253	JOINT 4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-2	01	1	1306-		●
253	JOINT 4HK1-TCN ENG(RDQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<6PH>	5-47456-009-1	01	1	1306-		●

11 35

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	11	VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH>	8-94427-224-2	01	1	1306-		●
	35	PIPE; BRK,VLV TO RR AXLE 4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98057-271-0	01	1	1306-		●

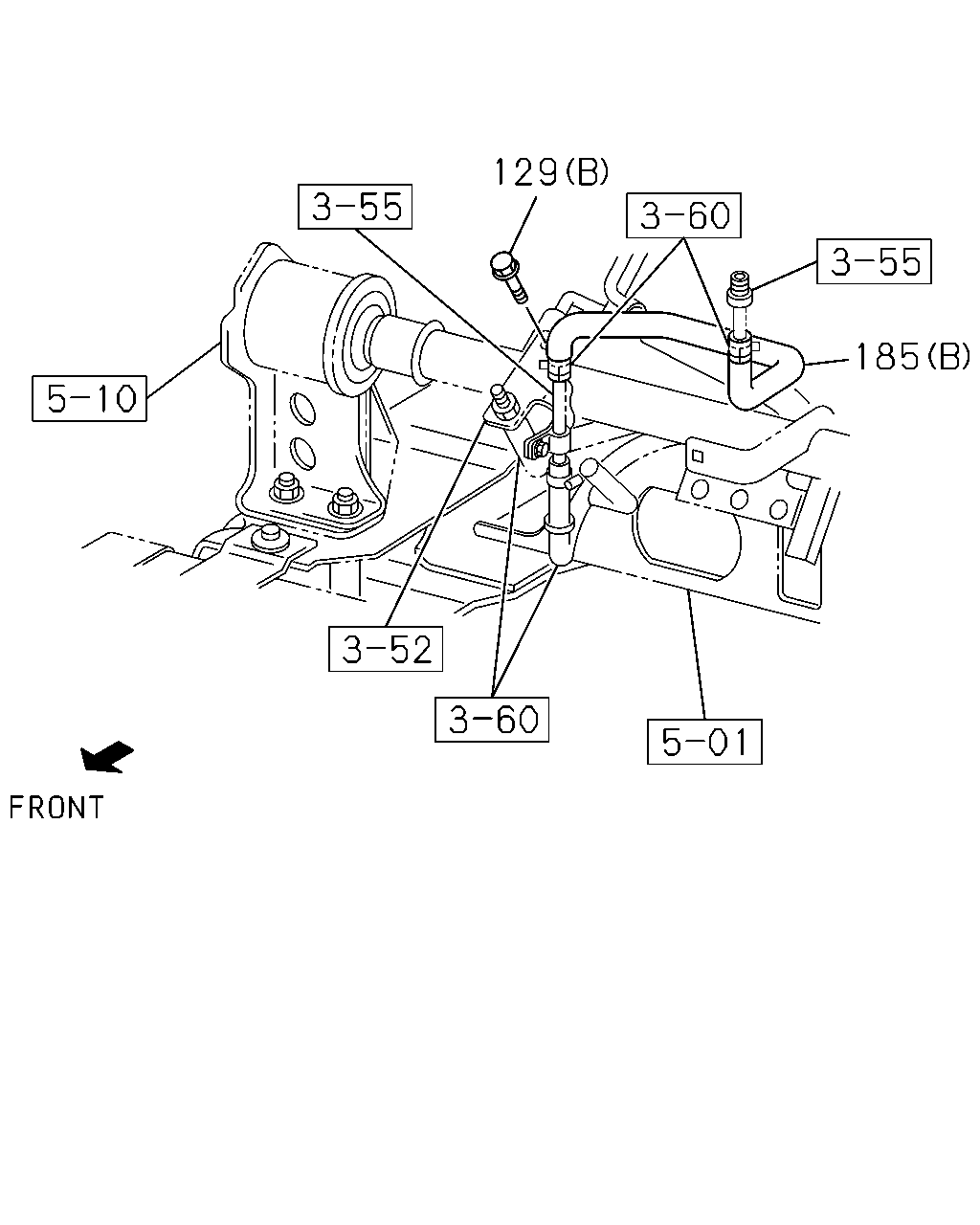

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
129	BOLT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-	●
129	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-		●	●
129	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1306-	●	●	●
185	HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	1306-	●
185	HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) (B)	8-98085-720-0	01	1	1306-		●	●
185	HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1306-	●
185	HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1306-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
