Isuzu WW
▶
TRUCKS
▶
NPR
▶
51487 - NPR/NQR(SOUTHAFRICA)
▶
3 - Brakes, Brake System
▶
3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#122679) — 29 parça
Tümü
A - NPR5SN
B - NPR5SS
C - NPR5WN
◀

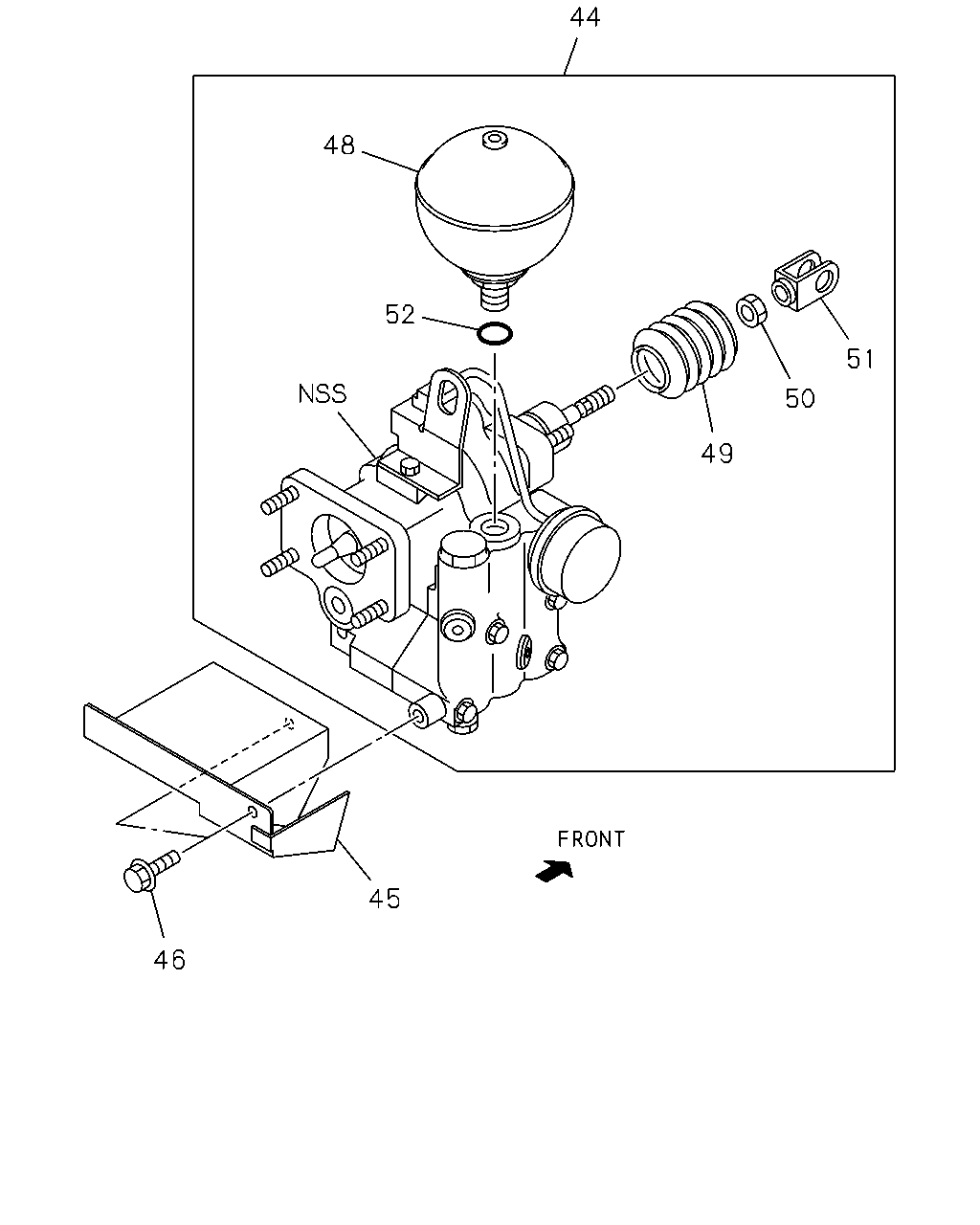

[331A] HYDRO BRAKE BOOSTER (16 parça)
[331A] EXC.HYDRO BRAKE BOOSTER (13 parça)
▶
50
51
49
45
46
52
48
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
44
BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER(7QQ)
8-98031-414-0
01
1
1306-
●
44
BOOSTER; HYDRAULIC BRK
8-98031-414-0
01
1
1306-
●
●
45
PROTECTOR; HEAT
HYDRO BRAKE BOOSTER(7QQ)
8-98031-415-1
01
1
1306-
●
45
PROTECTOR; HEAT
8-98031-415-1
01
1
1306-
●
●
46
BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER(7QQ) M6X10 FLANGE SOU
0-28050-610-0
02
1
1306-
●
46
BOLT; HEAT PROTECTOR
M6X10 FLANGE SOU
0-28050-610-0
02
1
1306-
●
●
48
ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-346-0
01
1
1306-
●
48
ACCUMULATOR; HYDRO BOOSTER
8-98038-346-0
01
1
1306-
●
●
49
GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) SOU
8-97191-043-0
01
1
1306-
●
49
GUARD; HYDRO BRK BOOSTER
SOU
8-97191-043-0
01
1
1306-
●
●
50
NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-349-0
01
1
1306-
●
50
NUT; HYDRO BRK BOOSTER
8-98038-349-0
01
1
1306-
●
●
51
CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-347-0
01
1
1306-
●
51
CLEVIS; HYDRO BRK BOOSTER
8-98038-347-0
01
1
1306-
●
●
52
GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) SOU
8-97191-038-0
01
1
1306-
●
52
GASKET; HYDRO BRK BOOSTER
SOU
8-97191-038-0
01
1
1306-
●
●
17
16
24
15
12
1
11
23
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ)
8-97162-800-1
01
1
1306-
●
1
MASTER VAC ASM; BRK
G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ)
8-97162-800-1
01
1
1306-
●
1
MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ)
8-97162-798-1
01
1
1306-
●
3
RETAINER; FRT SHELL,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
9-83315-319-0
01
1
1306-
●
11
FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97205-576-0
01
1
1306-
●
12
SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97205-577-0
01
1
1306-
●
15
RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-94375-083-0
01
1
1306-
●
16
NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) M10 SOU
1-52139-008-0
01
1
1306-
●
17
CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97224-610-0
01
1
1306-
●
23
SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97079-350-0
01
1
1306-
●
23
SEAL; M/VAC
G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97079-350-0
01
1
1306-
●
23
SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTER(7QQ)
8-97261-943-0
01
1
1306-
●
24
GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97205-578-0
01
1
1306-
●
