3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#122676) — 81 parça

36 37 24 29 24 22 24 24 22 24 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	SENSOR; SPEED REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97388-899-1	02	1	1306-1401	●
22	SENSOR; SPEED REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-98244-877-0	02	1	1402-	●
22	SENSOR; SPEED REAR AXLE HEAVY DUTY 320MM(6CP) (A)	8-98002-215-1	02	1	1306-1401	●
22	SENSOR; SPEED (A)	8-98002-215-1	02	1	1306-1401		●
22	SENSOR; SPEED REAR AXLE HEAVY DUTY 320MM(6CP) (A)	8-98219-354-0	02	1	1402-	●
22	SENSOR; SPEED (A)	8-98219-354-0	02	1	1402-		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-216-1	02	1	1306-1401			●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98219-355-0	02	1	1402-			●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98006-184-0	01	1	1306-1408	●		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98219-391-0	01	1	1409-	●		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98006-185-0	01	1	1306-1408	●		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98219-392-0	01	1	1409-	●		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98006-186-0	01	1	1306-1408	●		●
22	SENSOR; SPEED (B)	8-98006-186-0	01	1	1306-1408		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98219-393-0	01	1	1409-	●		●
22	SENSOR; SPEED (B)	8-98219-393-0	01	1	1409-		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98006-187-0	01	1	1306-1408	●		●
22	SENSOR; SPEED (B)	8-98006-187-0	01	1	1306-1408		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98219-394-0	01	1	1409-	●		●
22	SENSOR; SPEED (B)	8-98219-394-0	01	1	1409-		●
24	BOLT; SENSOR (A) M6X10 FLANGE SOU	0-28050-610-0	02	1	1306-1401	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X10 FLANGE SOU	0-28050-610-0	02	1	1306-1401			●
24	BOLT; SENSOR (A) M6X16 FLANGE SOU	0-28050-616-0	02	1	1402-	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X16 FLANGE SOU	0-28050-616-0	02	1	1402-			●
24	BOLT; SENSOR (B) M6X10 FLANGE SOU	0-28050-610-0	02	1	1306-1310	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X10 FLANGE SOU	0-28050-610-0	02	1	1306-1310			●
24	BOLT; SENSOR (B) M6X16 FLANGE SOU	0-28050-616-0	02	1	1311-	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X16 FLANGE SOU	0-28050-616-0	02	1	1311-			●
24	BOLT; SENSOR (C) M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M8X12 FLANGE	0-28050-812-0	02	1	1306-			●
24	BOLT; SENSOR (C) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-			●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (D) M10X12 FLANGE	0-28051-012-0	02	1	1306-	●		●
29	NUT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●		●
29	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1306-		●
36	PROTECTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98188-198-0	01	1	1306-			●
36	PROTECTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98188-199-0	01	1	1306-			●
37	BOLT; PROTECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> M6X10 FLANGE SOU	0-28050-610-0	02	1	1306-			●

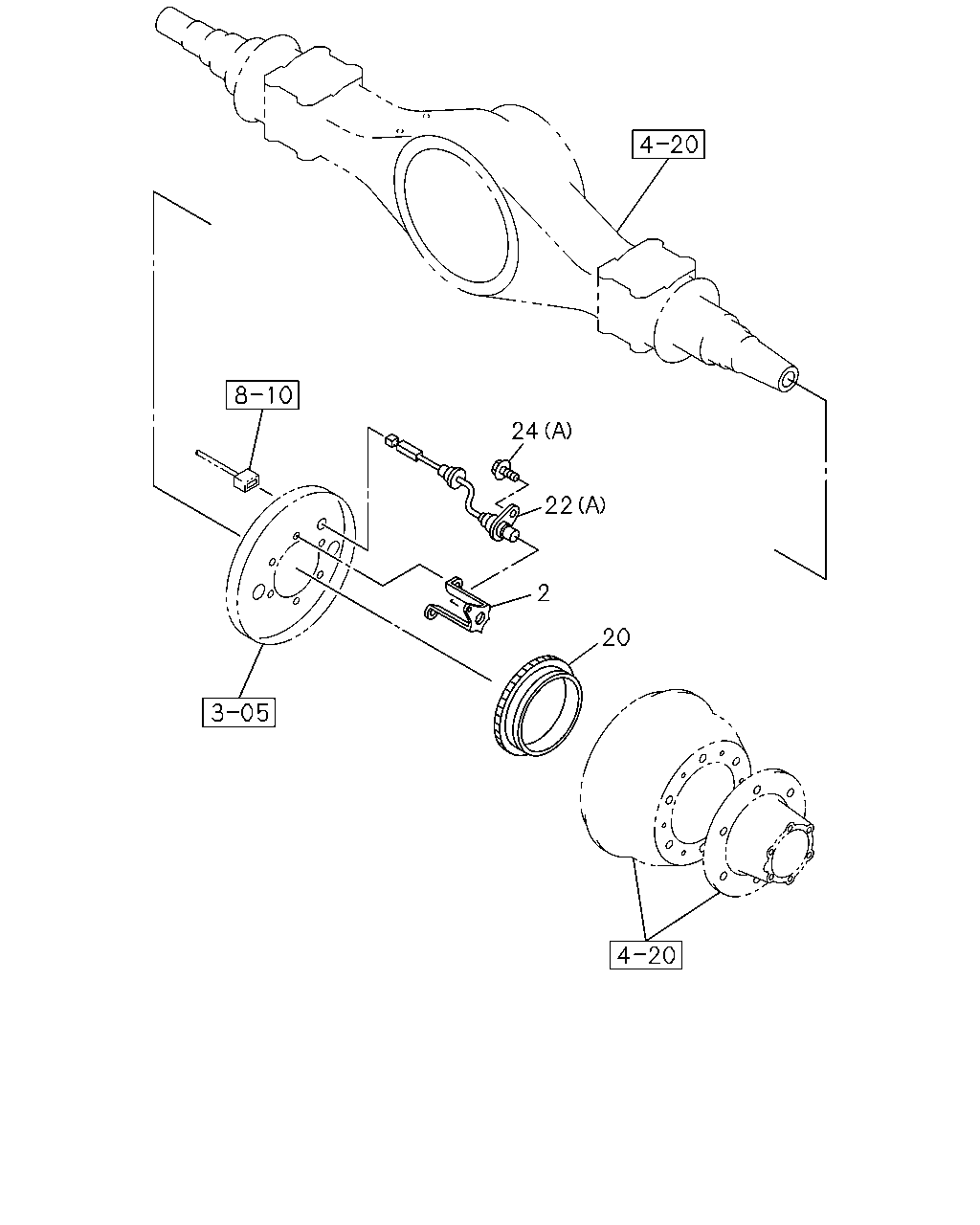

24 22 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BRACKET; SENSOR FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-98002-440-1	02	1	1306-1507	●
2	BRACKET; SENSOR	8-98002-440-1	02	1	1306-1507		●
2	BRACKET; SENSOR G.V.W. 7.5-8.0TON(RPY)	8-98002-440-1	02	1	1508-	●
2	BRACKET; SENSOR	8-98002-440-1	02	1	1508-		●
2	BRACKET; SENSOR G.V.W. 6.0-6.5TON(RPV)	8-98000-019-2	02	1	1306-	●
2	BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98002-441-1	02	1	1306-			●
20	ROTOR; SENSOR G.V.W. 7.5-8.0TON(RPY)	8-97206-775-3	02	1	1306-	●
20	ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97206-775-3	02	1	1306-			●
20	ROTOR; SENSOR	8-97206-775-3	02	1	1306-		●
20	ROTOR; SENSOR G.V.W. 6.0-6.5TON(RPV)	8-97206-774-4	02	1	1306-	●
22	SENSOR; SPEED REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97388-899-1	02	1	1306-1401	●
22	SENSOR; SPEED REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-98244-877-0	02	1	1402-	●
22	SENSOR; SPEED REAR AXLE HEAVY DUTY 320MM(6CP) (A)	8-98002-215-1	02	1	1306-1401	●
22	SENSOR; SPEED (A)	8-98002-215-1	02	1	1306-1401		●
22	SENSOR; SPEED REAR AXLE HEAVY DUTY 320MM(6CP) (A)	8-98219-354-0	02	1	1402-	●
22	SENSOR; SPEED (A)	8-98219-354-0	02	1	1402-		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-216-1	02	1	1306-1401			●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98219-355-0	02	1	1402-			●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98006-184-0	01	1	1306-1408	●		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98219-391-0	01	1	1409-	●		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98006-185-0	01	1	1306-1408	●		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98219-392-0	01	1	1409-	●		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98006-186-0	01	1	1306-1408	●		●
22	SENSOR; SPEED (B)	8-98006-186-0	01	1	1306-1408		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98219-393-0	01	1	1409-	●		●
22	SENSOR; SPEED (B)	8-98219-393-0	01	1	1409-		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98006-187-0	01	1	1306-1408	●		●
22	SENSOR; SPEED (B)	8-98006-187-0	01	1	1306-1408		●
22	SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98219-394-0	01	1	1409-	●		●
22	SENSOR; SPEED (B)	8-98219-394-0	01	1	1409-		●
24	BOLT; SENSOR (A) M6X10 FLANGE SOU	0-28050-610-0	02	1	1306-1401	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X10 FLANGE SOU	0-28050-610-0	02	1	1306-1401			●
24	BOLT; SENSOR (A) M6X16 FLANGE SOU	0-28050-616-0	02	1	1402-	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X16 FLANGE SOU	0-28050-616-0	02	1	1402-			●
24	BOLT; SENSOR (B) M6X10 FLANGE SOU	0-28050-610-0	02	1	1306-1310	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X10 FLANGE SOU	0-28050-610-0	02	1	1306-1310			●
24	BOLT; SENSOR (B) M6X16 FLANGE SOU	0-28050-616-0	02	1	1311-	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X16 FLANGE SOU	0-28050-616-0	02	1	1311-			●
24	BOLT; SENSOR (C) M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M8X12 FLANGE	0-28050-812-0	02	1	1306-			●
24	BOLT; SENSOR (C) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (C) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-			●
24	BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (D) M10X12 FLANGE	0-28051-012-0	02	1	1306-	●		●
