3-11 — PARKING BRAKE CONTROL (#122675) — 113 parça

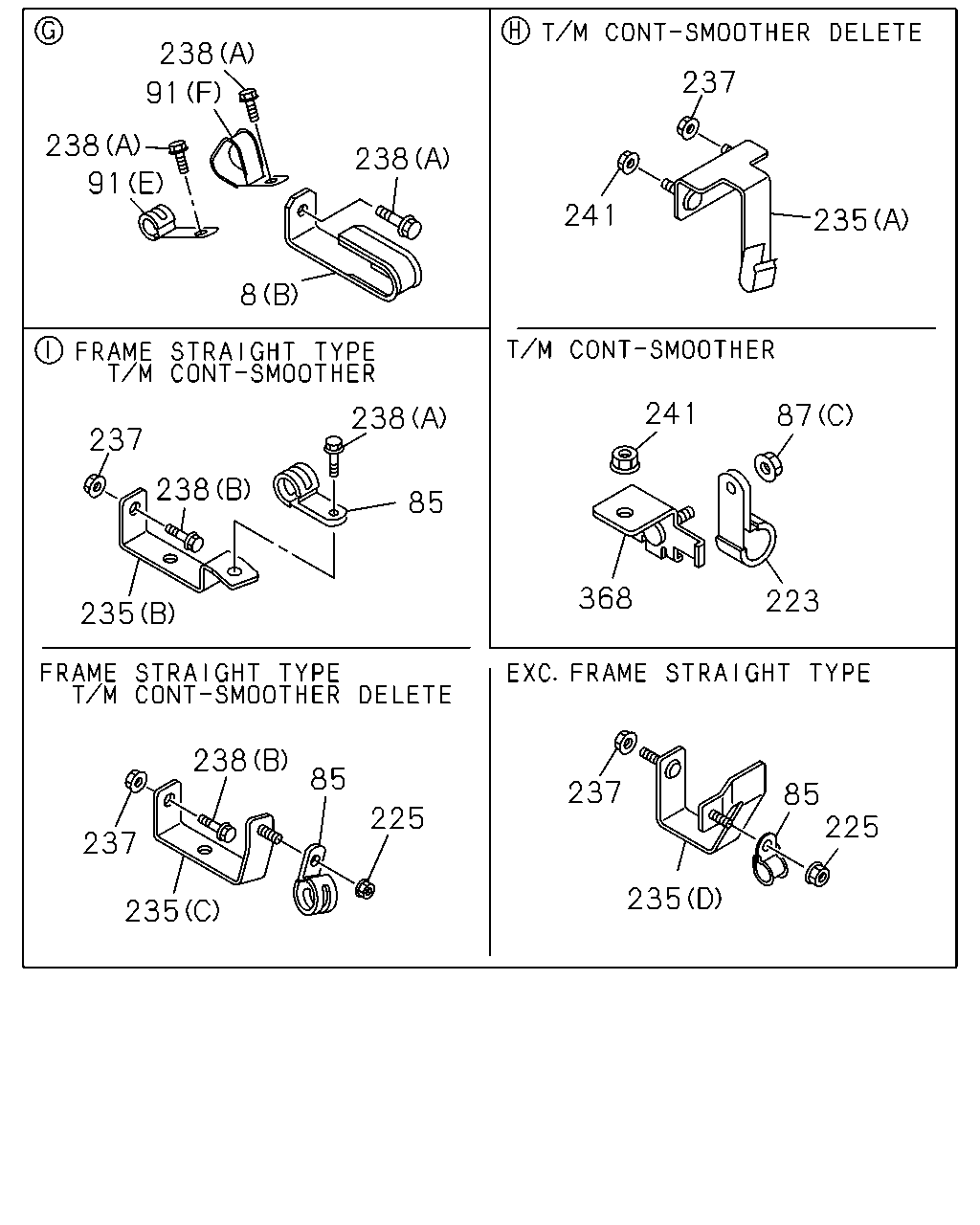

çizim 355944
237 235 241 241 87 223 368 85 225 235 237 225 85 238 237 235 238 85 238 235 237 91 238 91 238 238 8
BalonParca AdiParca NoAdetTipApplied Date A B C
8 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98110-964-0 01 1 1306- ●
8 GUIDE; PARKING BRK
(B) 		8-98110-964-0 01 1 1306- ● ●
8 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 1306- ● ● ●
85 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1306- ● ● ●
87 NUT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
87 NUT
(B) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ● ●
87 NUT
(A) M6 		8-98034-313-1 01 1 1306- ● ● ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=28 		0-95235-255-0 01 1 1306- ● ● ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=28 		0-95235-255-0 01 1 1306- ● ● ●
91 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=28 		0-95235-255-0 01 1 1306- ●
91 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=28 		0-95235-255-0 01 1 1306- ● ●
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97036-333-1 01 1 1306- ● ● ●
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97036-333-1 01 1 1306- ● ● ●
91 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97036-333-1 01 1 1306- ●
91 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97036-333-1 01 1 1306- ● ●
91 CLIP; PARKING BRK CABLE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97036-332-1 01 1 1306- ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19 L=32 		1-09701-235-0 01 1 1306- ● ● ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1306- ●
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-622-0 01 1 1306- ● ● ●
223 CLIP; PARKING BRK CABLE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=13 L=20 		1-09701-138-1 01 1 1306- ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ● ●
225 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ● ●
235 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98106-986-1 01 1 1306- ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98106-986-1 01 1 1306- ● ●
235 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 1306- ●
235 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98033-907-0 01 1 1306- ● ●
235 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 1306- ●
235 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98087-322-0 01 1 1306- ● ●
235 BRACKET; CONT CABLE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-410-3 01 1 1306- ●
237 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
237 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
237 NUT; BRKT TO FRAME
M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ● ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1306- ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1306- ● ●
238 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
238 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
238 BOLT; CLIP TO BRKT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
241 NUT; BRKT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
241 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ●
241 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
368 BRACKET; T/M SIDE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97372-863-1 01 1 1306- ●

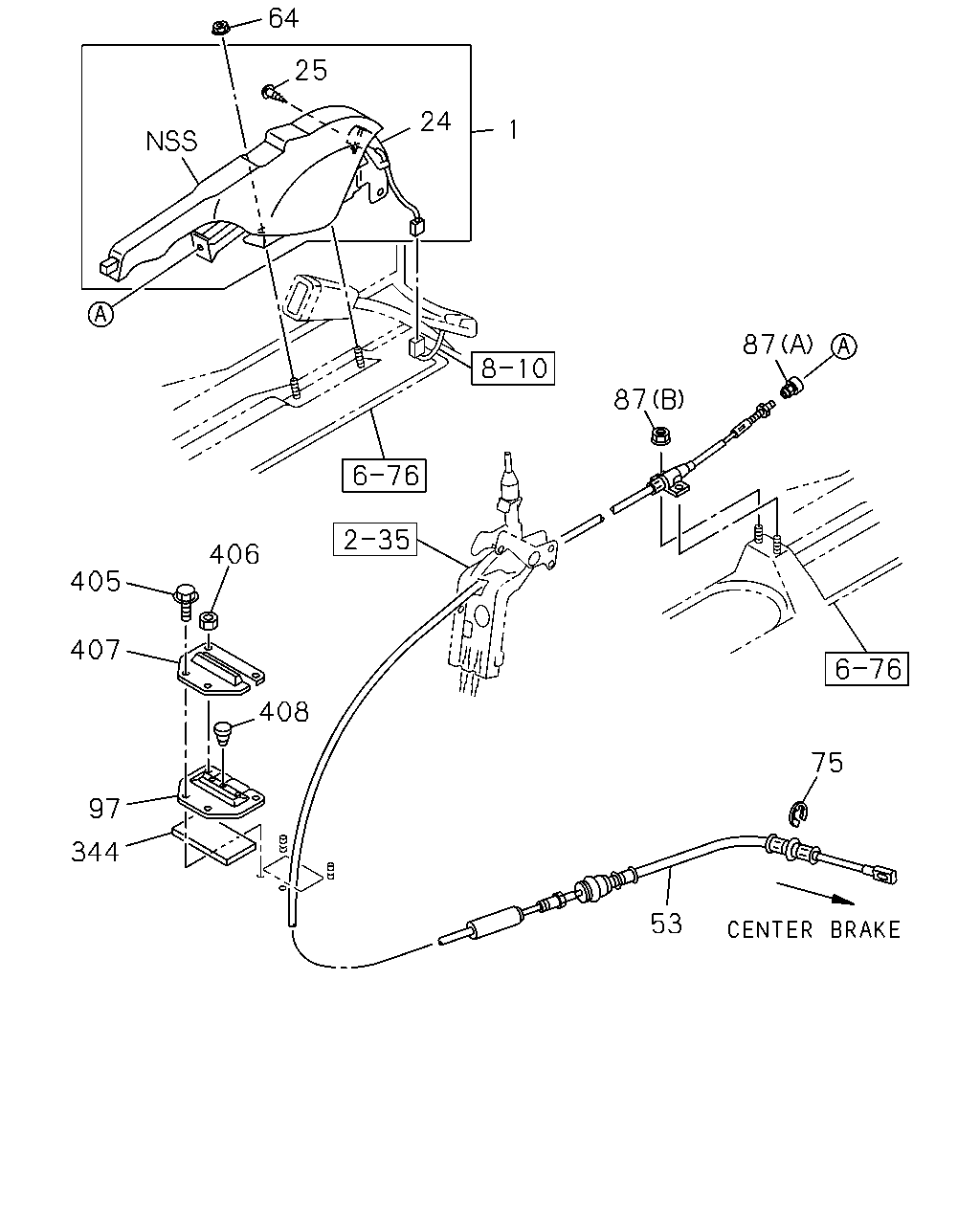

çizim 356177
87 87 1 24 53 75 97 344 408 405 407 406 64 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1306- ● ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306- ● ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1306- ● ● ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-233-3 01 1 1306- ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-233-3 01 1 1306- ● ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1306- ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1306- ● ●
53 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 1306- ●
53 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-118-1 01 1 1306- ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1306- ● ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1306- ● ● ●
87 NUT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
87 NUT
(B) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ● ●
87 NUT
(A) M6 		8-98034-313-1 01 1 1306- ● ● ●
97 GROMMET; PARKING BRK CABLE 8-97065-212-1 01 1 1306- ● ● ●
344 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 1306- ● ●
405 BOLT; GROMMET
M6X20 FLANGE 		0-28450-620-0 02 1 1306- ● ● ●
406 NUT; GROMMET
M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ● ● ●
407 RETAINER; GROMMET 1-33657-674-0 01 1 1306- ● ● ●
408 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97371-108-0 02 1 1306- ● ● ●

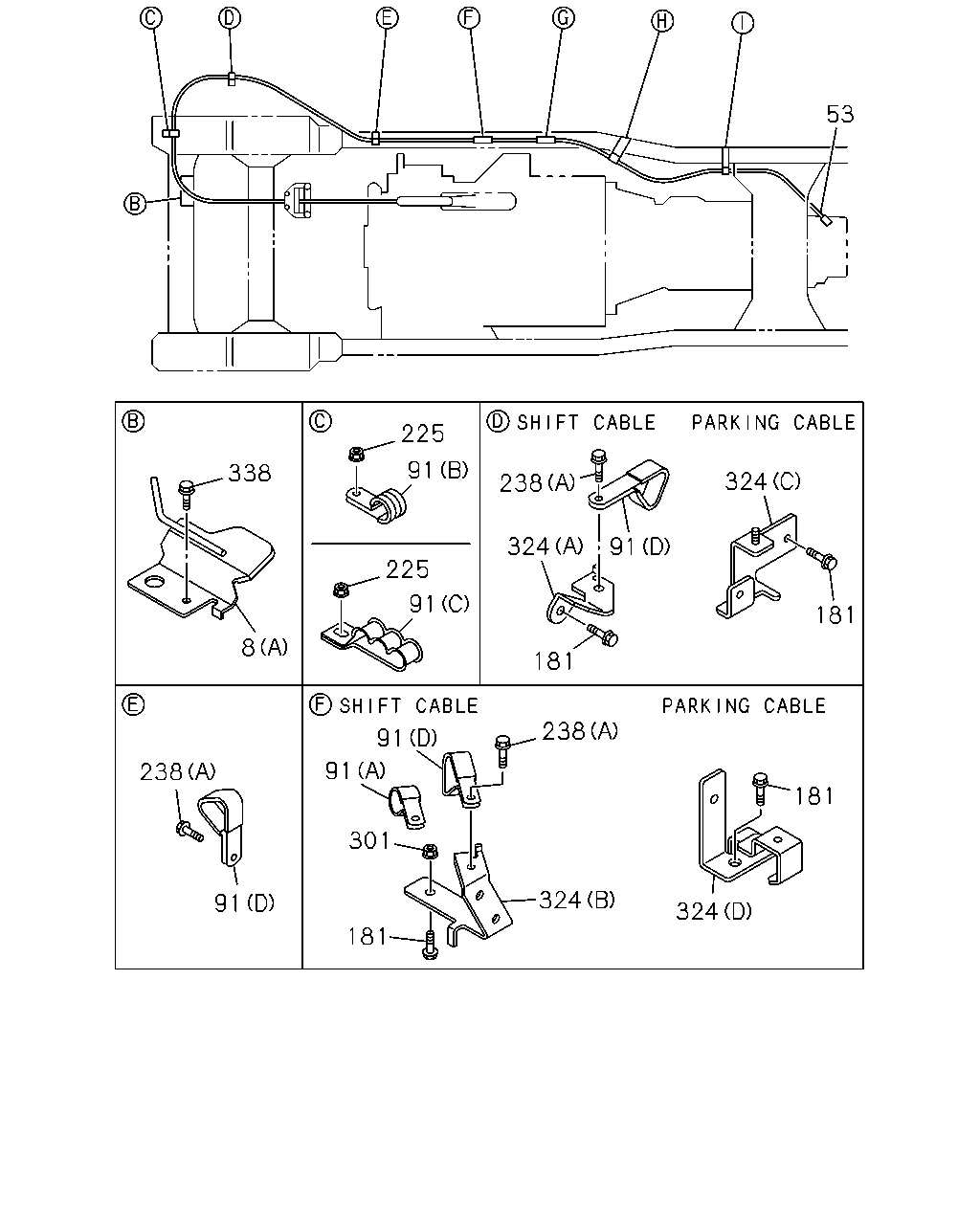

çizim 356294
53 324 181 181 324 324 238 91 91 301 181 91 238 8 338 225 91 225 91 181 324 238 91
BalonParca AdiParca NoAdetTipApplied Date A B C
8 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98110-964-0 01 1 1306- ●
8 GUIDE; PARKING BRK
(B) 		8-98110-964-0 01 1 1306- ● ●
8 GUIDE; PARKING BRK
(A) 		8-98096-374-0 01 1 1306- ● ● ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-233-3 01 1 1306- ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-233-3 01 1 1306- ● ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1306- ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-315-3 01 1 1306- ● ●
53 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98052-066-1 01 1 1306- ●
53 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98057-118-1 01 1 1306- ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=28 		0-95235-255-0 01 1 1306- ● ● ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=28 		0-95235-255-0 01 1 1306- ● ● ●
91 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=28 		0-95235-255-0 01 1 1306- ●
91 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=28 		0-95235-255-0 01 1 1306- ● ●
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97036-333-1 01 1 1306- ● ● ●
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97036-333-1 01 1 1306- ● ● ●
91 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97036-333-1 01 1 1306- ●
91 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97036-333-1 01 1 1306- ● ●
91 CLIP; PARKING BRK CABLE
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97036-332-1 01 1 1306- ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19 L=32 		1-09701-235-0 01 1 1306- ● ● ●
91 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=24 L=40 		1-09701-139-0 01 1 1306- ●
91 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98023-622-0 01 1 1306- ● ● ●
181 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU 		0-28650-825-0 03 1 1306- ●
181 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 03 1 1306- ● ●
181 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 01 1 1306- ● ● ●
225 NUT; CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ● ●
225 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ● ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ● ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1306- ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1306- ● ●
238 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
238 BOLT; CLIP TO BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
238 BOLT; CLIP TO BRKT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
301 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
301 NUT; BRKT,BRK & CLU PEDAL
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98111-394-1 01 1 1306- ●
324 BRACKET
(D) 		8-98111-394-1 01 1 1306- ● ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-185-1 01 1 1306- ●
324 BRACKET
(B) 		8-98034-185-1 01 1 1306- ● ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 1306-1508 ●
324 BRACKET
(C) 		8-98099-516-0 01 1 1306-1508 ● ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98216-763-1 01 1 1509- ●
324 BRACKET
(C) 		8-98216-763-1 01 1 1509- ● ●
324 BRACKET
(A) 		8-98034-115-0 01 1 1306- ● ● ●
338 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
338 SCREW; GUIDE
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
338 SCREW; GUIDE
M8X35 FLANGE 		8-98046-876-0 01 1 1306- ● ● ●
