3-05 — REAR WHEEL BRAKE (#122672) — 335 parça

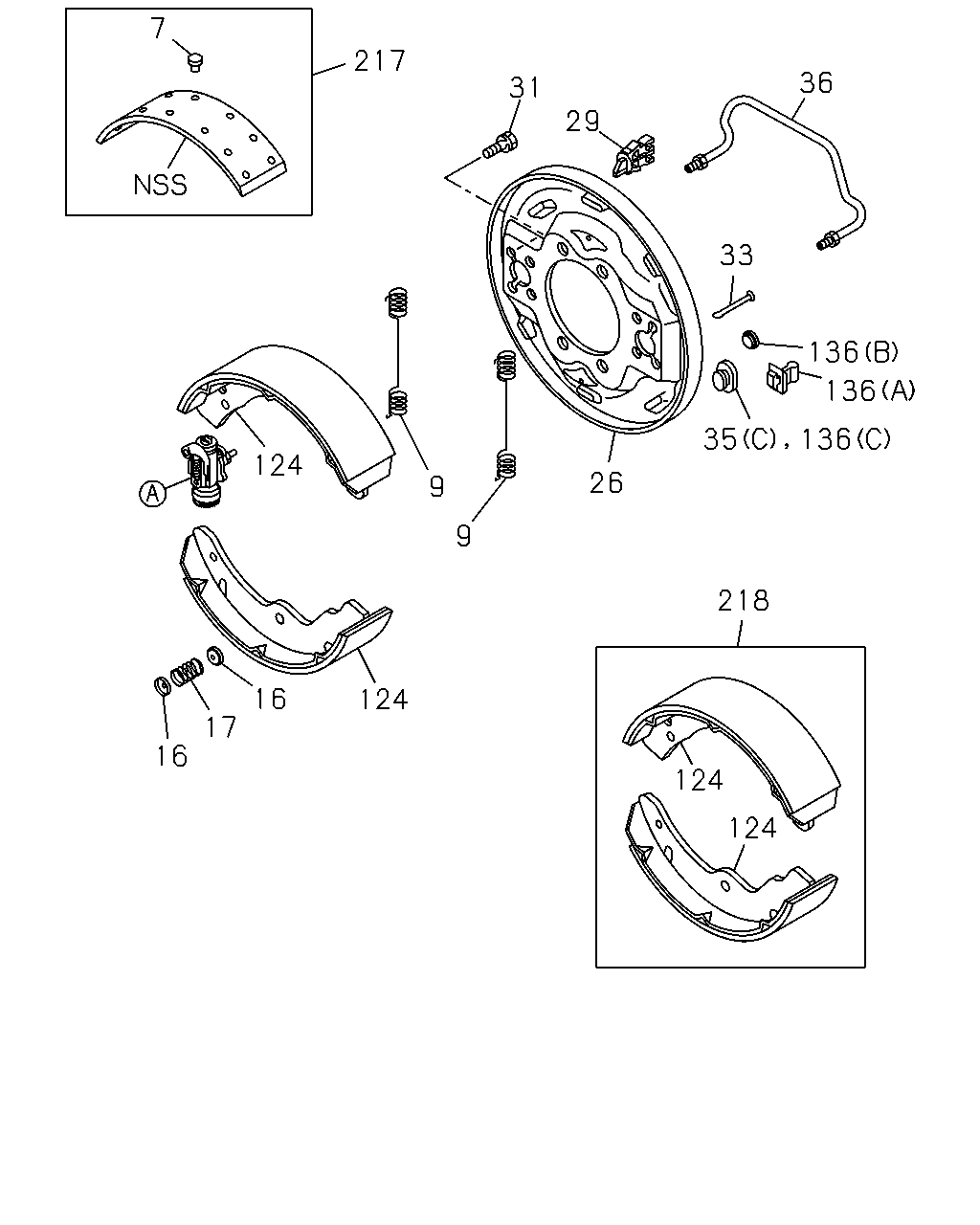

7 217 31 29 36 33 136 136 136 35 26 9 9 124 124 16 17 16 218 124 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	RIVET; LINING,RR BRK G.V.W. 7.5-8.0TON(RPY) SOU	1-09732-029-0	64	1	1306-	●
7	RIVET; LINING,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	1-09732-029-0	64	1	1306-		●
7	RIVET; LINING,RR BRK SOU	1-09732-029-0	64	1	1306-			●
7	RIVET; LINING,RR BRK G.V.W. 6.0-6.5TON(RPV) SOU	1-09732-029-0	48	1	1306-	●
7	RIVET; LINING,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	1-09732-029-0	96	1	1306-		●
9	SPRING; RETURN,BRK SHOE G.V.W. 7.5-8.0TON(RPY)	8-97122-869-0	04	1	1306-	●
9	SPRING; RETURN,BRK SHOE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-869-0	04	1	1306-		●
9	SPRING; RETURN,BRK SHOE	8-97122-869-0	04	1	1306-			●
9	SPRING; RETURN,BRK SHOE G.V.W. 6.0-6.5TON(RPV)	8-97022-087-0	04	1	1306-	●
9	SPRING; RETURN,BRK SHOE 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09583-346-0	04	1	1306-		●
16	CUP; SHOE HOLDING SOU	9-47165-096-0	08	1	1306-	●		●
16	CUP; SHOE HOLDING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	9-47165-096-0	08	1	1306-		●
17	SPRING; SHOE HOLD DOWN SOU	5-09580-101-1	04	1	1306-	●		●
17	SPRING; SHOE HOLD DOWN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	5-09580-101-1	04	1	1306-		●
26	PLATE; BACK,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97207-157-0	01	1	1306-1507	●
26	PLATE; BACK,RR BRK	8-97207-157-0	01	1	1306-1507			●
26	PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-97207-157-0	01	1	1508-	●
26	PLATE; BACK,RR BRK	8-97207-157-0	01	1	1508-			●
26	PLATE; BACK,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97207-158-0	01	1	1306-1507	●
26	PLATE; BACK,RR BRK	8-97207-158-0	01	1	1306-1507			●
26	PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-97207-158-0	01	1	1508-	●
26	PLATE; BACK,RR BRK	8-97207-158-0	01	1	1508-			●
26	PLATE; BACK,RR BRK G.V.W. 6.0-6.5TON(RPV)	8-97192-080-0	01	1	1306-	●
26	PLATE; BACK,RR BRK G.V.W. 6.0-6.5TON(RPV)	8-97192-081-0	01	1	1306-	●
26	PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-818-0	01	1	1306-		●
26	PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-819-0	01	1	1306-		●
26	PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97134-731-0	01	1	1306-		●
26	PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97134-732-0	01	1	1306-		●
29	CLIP; PIPE,BRK	8-97022-086-0	02	1	1306-	●		●
29	CLIP; PIPE,BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-086-0	02	1	1306-		●
29	CLIP; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47143-008-0	02	1	1306-		●
31	BOLT; RR WHEEL CYL	8-97081-305-0	16	1	1306-	●		●
31	BOLT; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97081-305-0	16	1	1306-		●
31	BOLT; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> M12	1-47159-184-0	16	1	1306-		●
33	PIN; SHOE HOLD DOWN G.V.W. 7.5-8.0TON(RPY)	8-97122-870-0	04	1	1306-	●
33	PIN; SHOE HOLD DOWN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-870-0	04	1	1306-		●
33	PIN; SHOE HOLD DOWN	8-97122-870-0	04	1	1306-			●
33	PIN; SHOE HOLD DOWN G.V.W. 6.0-6.5TON(RPV)	8-97022-089-0	04	1	1306-	●
35	GROMMET; CHECK HOLE FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (C)	8-97017-507-0	06	1	1306-1507	●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	06	1	1306-1507			●
35	GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) (C)	8-97017-507-0	06	1	1508-	●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	06	1	1508-			●
35	GROMMET; CHECK HOLE G.V.W. 6.0-6.5TON(RPV) (C)	8-97017-507-0	02	1	1306-	●
35	GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97017-507-0	02	1	1306-		●
35	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	1-09333-033-0	04	1	1306-		●
35	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	9-09956-640-0	04	1	1306-		●
36	PIPE; OIL,RR BRK	8-97192-215-0	02	1	1306-	●		●
36	PIPE; OIL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-826-0	02	1	1306-		●
36	PIPE; OIL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97079-847-0	02	1	1306-		●
124	SHOE ASM; BRK,RR G.V.W. 7.5-8.0TON(RPY)	8-97188-455-0	04	1	1306-	●
124	SHOE ASM; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97188-455-0	04	1	1306-		●
124	SHOE ASM; BRK,RR	8-97188-455-0	04	1	1306-			●
124	SHOE ASM; BRK,RR G.V.W. 6.0-6.5TON(RPV)	8-97201-061-0	04	1	1306-	●
124	SHOE ASM; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97373-425-0	04	1	1306-		●
136	GROMMET (B)	1-47154-008-0	04	1	1306-	●		●
136	GROMMET 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	1-47154-008-0	04	1	1306-		●
136	GROMMET G.V.W. 6.0-6.5TON(RPV) (C)	8-97017-507-0	04	1	1306-	●
136	GROMMET EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97044-742-1	04	1	1306-		●
217	LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY)	5-87831-692-0	01	1	1306-	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-692-0	01	1	1306-		●
217	LINING KIT; RR BRK	5-87831-692-0	01	1	1306-			●
217	LINING KIT; RR BRK G.V.W. 6.0-6.5TON(RPV)	5-87831-774-0	01	1	1306-	●
217	LINING KIT; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-134-0	01	1	1306-		●
217	LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY) BEST VALUE PARTS	5-87610-119-0	01	1	1306-	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-119-0	01	1	1306-		●
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-119-0	01	1	1306-			●
217	LINING KIT; RR BRK G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS	5-87610-120-0	01	1	1306-	●
218	SHOE KIT; BRK,RR G.V.W. 7.5-8.0TON(RPY)	5-87831-693-0	01	1	1306-	●
218	SHOE KIT; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-693-0	01	1	1306-		●
218	SHOE KIT; BRK,RR	5-87831-693-0	01	1	1306-			●
218	SHOE KIT; BRK,RR G.V.W. 6.0-6.5TON(RPV)	5-87831-775-0	01	1	1306-	●
218	SHOE KIT; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-132-0	01	1	1306-		●

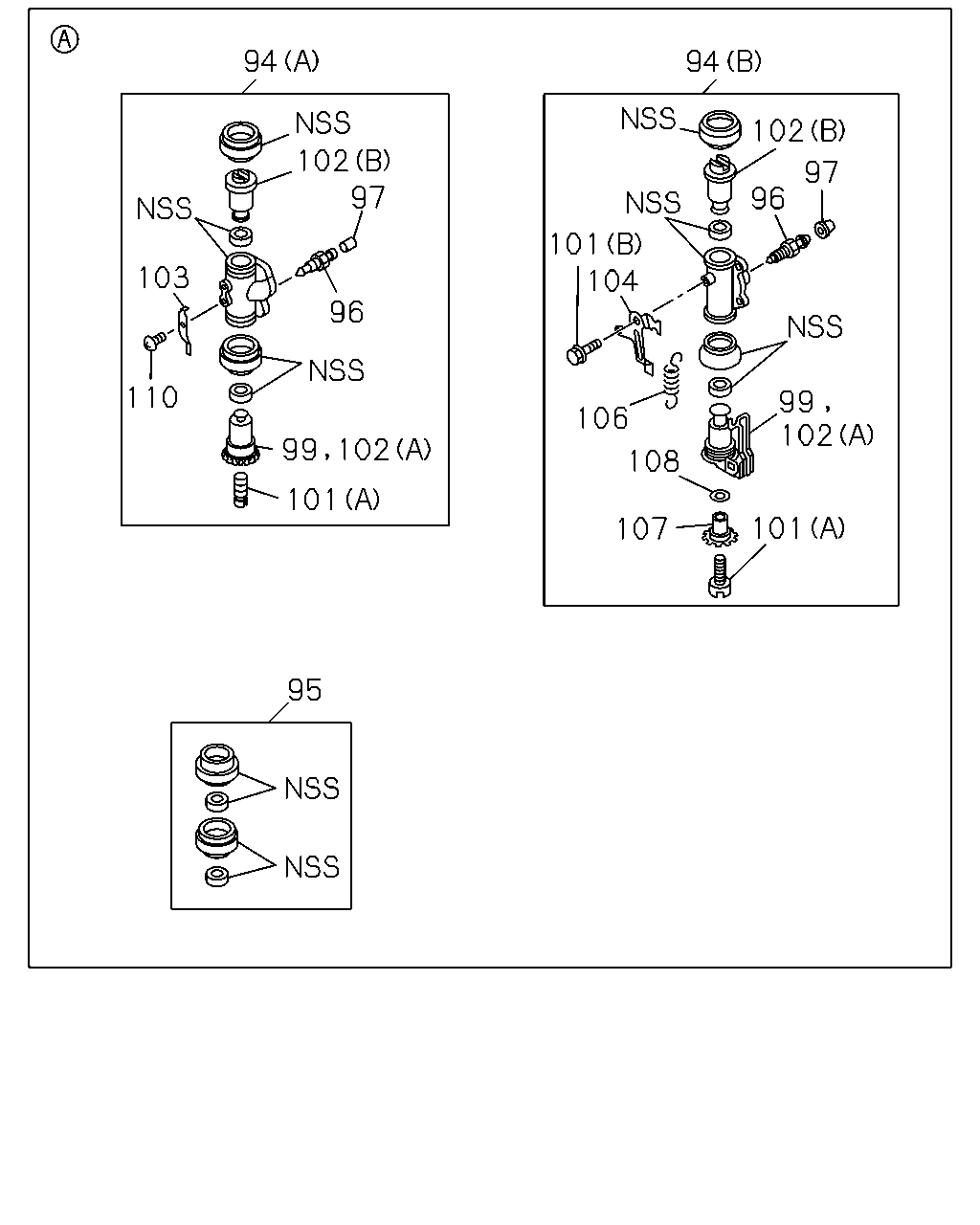

94 102 97 96 99 102 101 110 103 94 102 97 96 99 102 101 107 108 106 104 101 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
94	CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-878-0	01	1	1306-1507	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-878-0	01	1	1306-1507			●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-878-0	01	1	1508-	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-878-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-879-0	01	1	1306-1507	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-879-0	01	1	1306-1507			●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-879-0	01	1	1508-	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-879-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-880-0	01	1	1306-1507	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-880-0	01	1	1306-1507			●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-880-0	01	1	1508-	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-880-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-881-0	01	1	1306-1507	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-881-0	01	1	1306-1507			●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-881-0	01	1	1508-	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-881-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) REAR	8-97349-705-0	01	1	1306-	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) REAR	8-97349-706-0	01	1	1306-	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) FRONT	8-97349-707-0	01	1	1306-	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) FRONT	8-97349-708-0	01	1	1306-	●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-97372-820-0	01	1	1306-1510		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-98317-282-0	01	1	1511-		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-97372-821-0	01	1	1306-1510		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-98317-280-0	01	1	1511-		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97372-822-0	01	1	1306-1510		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-98317-281-0	01	1	1511-		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97372-823-0	01	1	1306-1510		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-98317-278-0	01	1	1511-		●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97353-570-0	02	1	1306-		●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97353-571-0	01	1	1306-		●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97353-572-0	01	1	1306-		●
95	CUP SET; RR WHEEL CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	5-87832-051-0	02	1	1306-1507	●
95	CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	1306-1507			●
95	CUP SET; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	5-87832-051-0	02	1	1508-	●
95	CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	1508-			●
95	CUP SET; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	5-87832-070-0	01	1	1306-	●
95	CUP SET; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-131-0	01	1	1306-1507		●
95	CUP SET; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-359-0	01	1	1508-		●
95	CUP SET; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-080-0	02	1	1306-		●
96	SCREW; BLEEDER,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-98050-477-0	02	1	1306-	●
96	SCREW; BLEEDER,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	02	1	1306-		●
96	SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	1306-			●
96	SCREW; BLEEDER,RR BRK G.V.W. 6.0-6.5TON(RPV) SOU	8-98050-476-0	02	1	1306-	●
96	SCREW; BLEEDER,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	01	1	1306-		●
97	CAP; BLEEDER,RR WHEEL CYL SOU	8-98050-479-0	02	1	1306-	●		●
97	CAP; BLEEDER,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	8-98050-479-0	02	1	1306-		●
97	CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	8-98050-479-0	01	1	1306-		●
99	PISTON; RR WHEEL CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97349-731-0	02	1	1306-1507	●
99	PISTON; RR WHEEL CYL	8-97349-731-0	02	1	1306-1507			●
99	PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	8-97349-731-0	02	1	1508-	●
99	PISTON; RR WHEEL CYL	8-97349-731-0	02	1	1508-			●
99	PISTON; RR WHEEL CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97349-732-0	02	1	1306-1507	●
99	PISTON; RR WHEEL CYL	8-97349-732-0	02	1	1306-1507			●
99	PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	8-97349-732-0	02	1	1508-	●
99	PISTON; RR WHEEL CYL	8-97349-732-0	02	1	1508-			●
99	PISTON; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-729-0	01	1	1306-	●
99	PISTON; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-730-0	02	1	1306-	●
99	PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-831-0	02	1	1306-		●
99	PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-832-0	02	1	1306-		●
99	PISTON; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97353-579-0	03	1	1306-		●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	1306-	●		●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	1306-	●		●
101	SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	1306-	●		●
101	SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97372-837-0	02	1	1306-		●
101	SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97372-838-0	02	1	1306-		●
101	SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94414-702-0	04	1	1306-		●
102	PISTON; REAR WHEEL CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (B)	8-97332-043-0	04	1	1306-1507	●
102	PISTON; REAR WHEEL CYL (B)	8-97332-043-0	04	1	1306-1507			●
102	PISTON; REAR WHEEL CYL G.V.W. 7.5-8.0TON(RPY) (B)	8-97332-043-0	04	1	1508-	●
102	PISTON; REAR WHEEL CYL (B)	8-97332-043-0	04	1	1508-			●
102	PISTON; REAR WHEEL CYL G.V.W. 6.0-6.5TON(RPV) (B)	8-97078-045-0	04	1	1306-	●
102	PISTON; REAR WHEEL CYL G.V.W. 6.0-6.5TON(RPV) (A)	8-97349-729-0	01	1	1306-	●
102	PISTON; REAR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97372-833-0	04	1	1306-		●
102	PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97353-578-0	04	1	1306-		●
102	PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97353-579-0	01	1	1306-		●
103	SPRING; LK,RR WHEEL CYL,ADJ EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-486-0	04	1	1306-		●
104	LEVER; ADJ	8-97349-743-0	02	1	1306-	●		●
104	LEVER; ADJ	8-97349-744-0	02	1	1306-	●		●
104	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47619-133-0	02	1	1306-		●
104	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47619-134-0	02	1	1306-		●
106	SPRING; ADJ LEVER	8-97349-745-0	04	1	1306-	●		●
106	SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09583-345-0	04	1	1306-		●
107	GEAR; ADJ,RR W/CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97358-894-0	02	1	1306-1507	●
107	GEAR; ADJ,RR W/CYL	8-97358-894-0	02	1	1306-1507			●
107	GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY)	8-97358-894-0	02	1	1508-	●
107	GEAR; ADJ,RR W/CYL	8-97358-894-0	02	1	1508-			●
107	GEAR; ADJ,RR W/CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97358-895-0	02	1	1306-1507	●
107	GEAR; ADJ,RR W/CYL	8-97358-895-0	02	1	1306-1507			●
107	GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY)	8-97358-895-0	02	1	1508-	●
107	GEAR; ADJ,RR W/CYL	8-97358-895-0	02	1	1508-			●
107	GEAR; ADJ,RR W/CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-738-0	02	1	1306-	●
107	GEAR; ADJ,RR W/CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-740-0	02	1	1306-	●
107	GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-835-0	02	1	1306-		●
107	GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-836-0	02	1	1306-		●
108	WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	1306-	●		●
108	WASHER; THRUST,GEAR ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47629-135-0	04	1	1306-		●
110	SCREW; LOCK SPRING,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-94128-727-0	04	1	1306-		●

7 7 217 31 136 36 29 35 26 35 32 199 200 9 9 94 124 124 72 86 218 95 124 124 104 106 297 94 102 97 96 99 108 83 107 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	RIVET; LINING,RR BRK G.V.W. 7.5-8.0TON(RPY) SOU	1-09732-029-0	64	1	1306-	●
7	RIVET; LINING,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	1-09732-029-0	64	1	1306-		●
7	RIVET; LINING,RR BRK SOU	1-09732-029-0	64	1	1306-			●
7	RIVET; LINING,RR BRK G.V.W. 6.0-6.5TON(RPV) SOU	1-09732-029-0	48	1	1306-	●
7	RIVET; LINING,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	1-09732-029-0	96	1	1306-		●
9	SPRING; RETURN,BRK SHOE G.V.W. 7.5-8.0TON(RPY)	8-97122-869-0	04	1	1306-	●
9	SPRING; RETURN,BRK SHOE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97122-869-0	04	1	1306-		●
9	SPRING; RETURN,BRK SHOE	8-97122-869-0	04	1	1306-			●
9	SPRING; RETURN,BRK SHOE G.V.W. 6.0-6.5TON(RPV)	8-97022-087-0	04	1	1306-	●
9	SPRING; RETURN,BRK SHOE 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09583-346-0	04	1	1306-		●
26	PLATE; BACK,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97207-157-0	01	1	1306-1507	●
26	PLATE; BACK,RR BRK	8-97207-157-0	01	1	1306-1507			●
26	PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-97207-157-0	01	1	1508-	●
26	PLATE; BACK,RR BRK	8-97207-157-0	01	1	1508-			●
26	PLATE; BACK,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97207-158-0	01	1	1306-1507	●
26	PLATE; BACK,RR BRK	8-97207-158-0	01	1	1306-1507			●
26	PLATE; BACK,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-97207-158-0	01	1	1508-	●
26	PLATE; BACK,RR BRK	8-97207-158-0	01	1	1508-			●
26	PLATE; BACK,RR BRK G.V.W. 6.0-6.5TON(RPV)	8-97192-080-0	01	1	1306-	●
26	PLATE; BACK,RR BRK G.V.W. 6.0-6.5TON(RPV)	8-97192-081-0	01	1	1306-	●
26	PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-818-0	01	1	1306-		●
26	PLATE; BACK,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-819-0	01	1	1306-		●
26	PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97134-731-0	01	1	1306-		●
26	PLATE; BACK,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97134-732-0	01	1	1306-		●
29	CLIP; PIPE,BRK	8-97022-086-0	02	1	1306-	●		●
29	CLIP; PIPE,BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97022-086-0	02	1	1306-		●
29	CLIP; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47143-008-0	02	1	1306-		●
31	BOLT; RR WHEEL CYL	8-97081-305-0	16	1	1306-	●		●
31	BOLT; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97081-305-0	16	1	1306-		●
31	BOLT; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> M12	1-47159-184-0	16	1	1306-		●
32	WASHER; LK 4 WHEEL ANTI LOCK BRAKE<JE5> ID=12.2 SOU	0-91510-512-0	04	1	1306-		●
35	GROMMET; CHECK HOLE FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (C)	8-97017-507-0	06	1	1306-1507	●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	06	1	1306-1507			●
35	GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) (C)	8-97017-507-0	06	1	1508-	●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	06	1	1508-			●
35	GROMMET; CHECK HOLE G.V.W. 6.0-6.5TON(RPV) (C)	8-97017-507-0	02	1	1306-	●
35	GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97017-507-0	02	1	1306-		●
35	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	1-09333-033-0	04	1	1306-		●
35	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	9-09956-640-0	04	1	1306-		●
36	PIPE; OIL,RR BRK	8-97192-215-0	02	1	1306-	●		●
36	PIPE; OIL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-826-0	02	1	1306-		●
36	PIPE; OIL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97079-847-0	02	1	1306-		●
72	PIN; SPLIT 4 WHEEL ANTI LOCK BRAKE<JE5>	9-09874-040-0	04	1	1306-		●
83	WASHER; PL 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47629-136-0	04	1	1306-		●
86	NUT; FLANGE 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09440-003-0	04	1	1306-		●
94	CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-878-0	01	1	1306-1507	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-878-0	01	1	1306-1507			●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-878-0	01	1	1508-	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-878-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-879-0	01	1	1306-1507	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-879-0	01	1	1306-1507			●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (B) REAR	8-97358-879-0	01	1	1508-	●
94	CYLINDER; WHEEL,RR BRK (B) REAR	8-97358-879-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-880-0	01	1	1306-1507	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-880-0	01	1	1306-1507			●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-880-0	01	1	1508-	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-880-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-881-0	01	1	1306-1507	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-881-0	01	1	1306-1507			●
94	CYLINDER; WHEEL,RR BRK G.V.W. 7.5-8.0TON(RPY) (B) FRONT	8-97358-881-0	01	1	1508-	●
94	CYLINDER; WHEEL,RR BRK (B) FRONT	8-97358-881-0	01	1	1508-			●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) REAR	8-97349-705-0	01	1	1306-	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) REAR	8-97349-706-0	01	1	1306-	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) FRONT	8-97349-707-0	01	1	1306-	●
94	CYLINDER; WHEEL,RR BRK G.V.W. 6.0-6.5TON(RPV) (B) FRONT	8-97349-708-0	01	1	1306-	●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-97372-820-0	01	1	1306-1510		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-98317-282-0	01	1	1511-		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-97372-821-0	01	1	1306-1510		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) FRONT	8-98317-280-0	01	1	1511-		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97372-822-0	01	1	1306-1510		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-98317-281-0	01	1	1511-		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-97372-823-0	01	1	1306-1510		●
94	CYLINDER; WHEEL,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C) REAR	8-98317-278-0	01	1	1511-		●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97353-570-0	02	1	1306-		●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR	8-97353-571-0	01	1	1306-		●
94	CYLINDER; WHEEL,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97353-572-0	01	1	1306-		●
95	CUP SET; RR WHEEL CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	5-87832-051-0	02	1	1306-1507	●
95	CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	1306-1507			●
95	CUP SET; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	5-87832-051-0	02	1	1508-	●
95	CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	1508-			●
95	CUP SET; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	5-87832-070-0	01	1	1306-	●
95	CUP SET; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-131-0	01	1	1306-1507		●
95	CUP SET; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-359-0	01	1	1508-		●
95	CUP SET; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-080-0	02	1	1306-		●
96	SCREW; BLEEDER,RR BRK G.V.W. 7.5-8.0TON(RPY)	8-98050-477-0	02	1	1306-	●
96	SCREW; BLEEDER,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	02	1	1306-		●
96	SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	1306-			●
96	SCREW; BLEEDER,RR BRK G.V.W. 6.0-6.5TON(RPV) SOU	8-98050-476-0	02	1	1306-	●
96	SCREW; BLEEDER,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-477-0	01	1	1306-		●
97	CAP; BLEEDER,RR WHEEL CYL SOU	8-98050-479-0	02	1	1306-	●		●
97	CAP; BLEEDER,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	8-98050-479-0	02	1	1306-		●
97	CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU	8-98050-479-0	01	1	1306-		●
99	PISTON; RR WHEEL CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97349-731-0	02	1	1306-1507	●
99	PISTON; RR WHEEL CYL	8-97349-731-0	02	1	1306-1507			●
99	PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	8-97349-731-0	02	1	1508-	●
99	PISTON; RR WHEEL CYL	8-97349-731-0	02	1	1508-			●
99	PISTON; RR WHEEL CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97349-732-0	02	1	1306-1507	●
99	PISTON; RR WHEEL CYL	8-97349-732-0	02	1	1306-1507			●
99	PISTON; RR WHEEL CYL G.V.W. 7.5-8.0TON(RPY)	8-97349-732-0	02	1	1508-	●
99	PISTON; RR WHEEL CYL	8-97349-732-0	02	1	1508-			●
99	PISTON; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-729-0	01	1	1306-	●
99	PISTON; RR WHEEL CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-730-0	02	1	1306-	●
99	PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-831-0	02	1	1306-		●
99	PISTON; RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-832-0	02	1	1306-		●
99	PISTON; RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97353-579-0	03	1	1306-		●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	1306-	●		●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	1306-	●		●
101	SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	1306-	●		●
101	SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97372-837-0	02	1	1306-		●
101	SCREW; ADJ,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97372-838-0	02	1	1306-		●
101	SCREW; ADJ,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-94414-702-0	04	1	1306-		●
102	PISTON; REAR WHEEL CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY) (B)	8-97332-043-0	04	1	1306-1507	●
102	PISTON; REAR WHEEL CYL (B)	8-97332-043-0	04	1	1306-1507			●
102	PISTON; REAR WHEEL CYL G.V.W. 7.5-8.0TON(RPY) (B)	8-97332-043-0	04	1	1508-	●
102	PISTON; REAR WHEEL CYL (B)	8-97332-043-0	04	1	1508-			●
102	PISTON; REAR WHEEL CYL G.V.W. 6.0-6.5TON(RPV) (B)	8-97078-045-0	04	1	1306-	●
102	PISTON; REAR WHEEL CYL G.V.W. 6.0-6.5TON(RPV) (A)	8-97349-729-0	01	1	1306-	●
102	PISTON; REAR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97372-833-0	04	1	1306-		●
102	PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97353-578-0	04	1	1306-		●
102	PISTON; REAR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97353-579-0	01	1	1306-		●
104	LEVER; ADJ	8-97349-743-0	02	1	1306-	●		●
104	LEVER; ADJ	8-97349-744-0	02	1	1306-	●		●
104	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47619-133-0	02	1	1306-		●
104	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47619-134-0	02	1	1306-		●
106	SPRING; ADJ LEVER	8-97349-745-0	04	1	1306-	●		●
106	SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09583-345-0	04	1	1306-		●
107	GEAR; ADJ,RR W/CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97358-894-0	02	1	1306-1507	●
107	GEAR; ADJ,RR W/CYL	8-97358-894-0	02	1	1306-1507			●
107	GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY)	8-97358-894-0	02	1	1508-	●
107	GEAR; ADJ,RR W/CYL	8-97358-894-0	02	1	1508-			●
107	GEAR; ADJ,RR W/CYL FINAL GEAR RATIO 41/9(HC6) G.V.W. 7.5-8.0TON(RPY)	8-97358-895-0	02	1	1306-1507	●
107	GEAR; ADJ,RR W/CYL	8-97358-895-0	02	1	1306-1507			●
107	GEAR; ADJ,RR W/CYL G.V.W. 7.5-8.0TON(RPY)	8-97358-895-0	02	1	1508-	●
107	GEAR; ADJ,RR W/CYL	8-97358-895-0	02	1	1508-			●
107	GEAR; ADJ,RR W/CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-738-0	02	1	1306-	●
107	GEAR; ADJ,RR W/CYL G.V.W. 6.0-6.5TON(RPV)	8-97349-740-0	02	1	1306-	●
107	GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-835-0	02	1	1306-		●
107	GEAR; ADJ,RR W/CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97372-836-0	02	1	1306-		●
108	WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	1306-	●		●
108	WASHER; THRUST,GEAR ADJ 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47629-135-0	04	1	1306-		●
124	SHOE ASM; BRK,RR G.V.W. 7.5-8.0TON(RPY)	8-97188-455-0	04	1	1306-	●
124	SHOE ASM; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97188-455-0	04	1	1306-		●
124	SHOE ASM; BRK,RR	8-97188-455-0	04	1	1306-			●
124	SHOE ASM; BRK,RR G.V.W. 6.0-6.5TON(RPV)	8-97201-061-0	04	1	1306-	●
124	SHOE ASM; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97373-425-0	04	1	1306-		●
136	GROMMET (B)	1-47154-008-0	04	1	1306-	●		●
136	GROMMET 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	1-47154-008-0	04	1	1306-		●
136	GROMMET G.V.W. 6.0-6.5TON(RPV) (C)	8-97017-507-0	04	1	1306-	●
136	GROMMET EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97044-742-1	04	1	1306-		●
199	NUT 4 WHEEL ANTI LOCK BRAKE<JE5>	1-09400-100-0	04	1	1306-		●
200	BOLT 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47162-050-0	04	1	1306-		●
217	LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY)	5-87831-692-0	01	1	1306-	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-692-0	01	1	1306-		●
217	LINING KIT; RR BRK	5-87831-692-0	01	1	1306-			●
217	LINING KIT; RR BRK G.V.W. 6.0-6.5TON(RPV)	5-87831-774-0	01	1	1306-	●
217	LINING KIT; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-134-0	01	1	1306-		●
217	LINING KIT; RR BRK G.V.W. 7.5-8.0TON(RPY) BEST VALUE PARTS	5-87610-119-0	01	1	1306-	●
217	LINING KIT; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS	5-87610-119-0	01	1	1306-		●
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-119-0	01	1	1306-			●
217	LINING KIT; RR BRK G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS	5-87610-120-0	01	1	1306-	●
218	SHOE KIT; BRK,RR G.V.W. 7.5-8.0TON(RPY)	5-87831-693-0	01	1	1306-	●
218	SHOE KIT; BRK,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87831-693-0	01	1	1306-		●
218	SHOE KIT; BRK,RR	5-87831-693-0	01	1	1306-			●
218	SHOE KIT; BRK,RR G.V.W. 6.0-6.5TON(RPV)	5-87831-775-0	01	1	1306-	●
218	SHOE KIT; BRK,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	5-87832-132-0	01	1	1306-		●
297	RING; SNAP 4 WHEEL ANTI LOCK BRAKE<JE5>	1-47629-263-0	04	1	1306-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
