◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#122671) — 41 parça

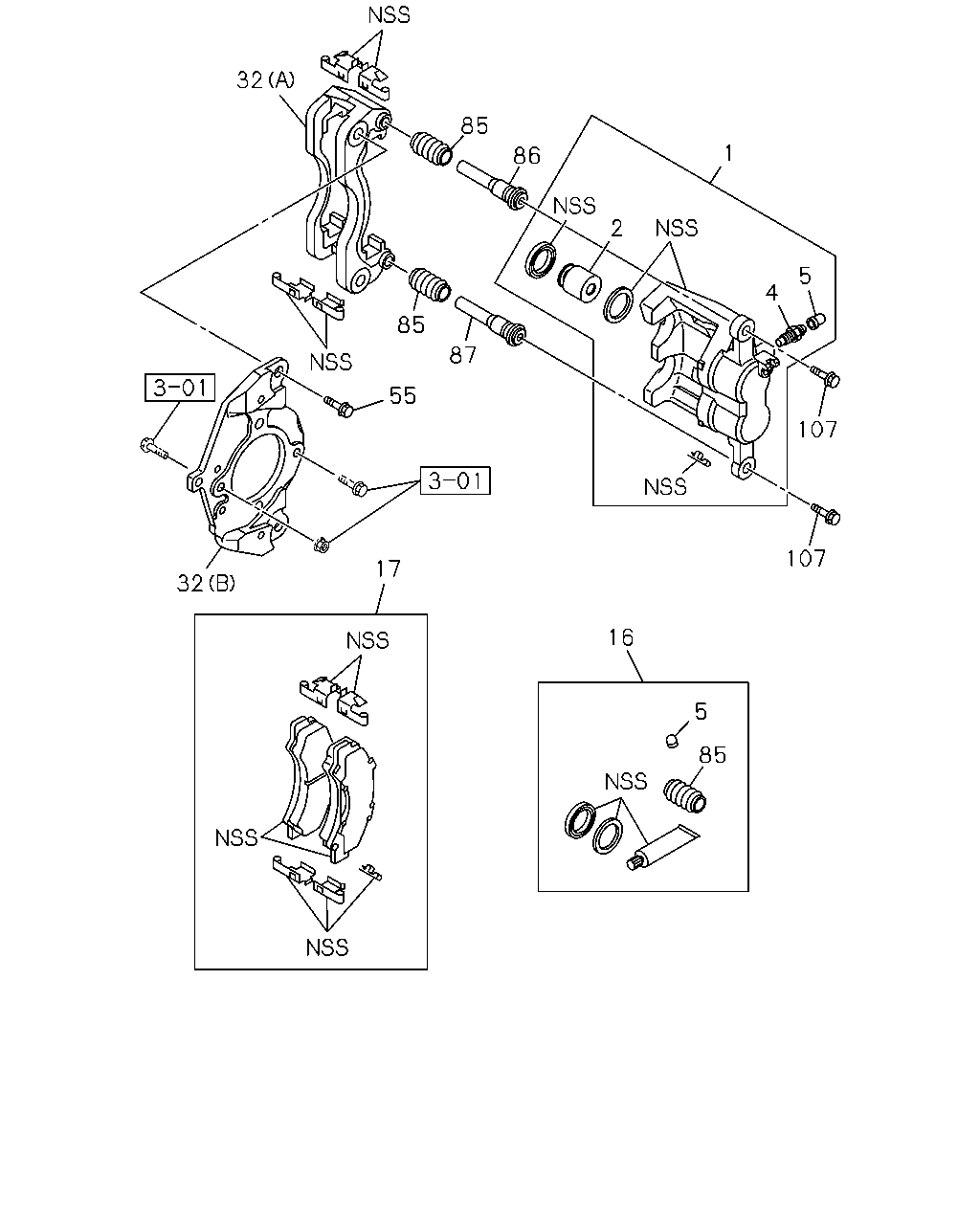

çizim 355938
107 107 4 5 1 2 86 85 32 85 87 55 32 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-97365-907-0 01 1 1306-1310 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98247-730-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-461-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-97365-908-0 01 1 1306-1310 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98247-731-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-462-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-97365-909-0 01 1 1306-1412 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-469-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-97365-910-0 01 1 1306-1412 ●
1 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-470-0 01 1 1501- ●
2 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-97365-269-0 04 1 1306- ●
2 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-97365-279-0 04 1 1306- ●
4 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> SOU 		8-98050-476-0 02 1 1311-1412 ●
4 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> SOU 		8-98050-476-0 02 1 1501- ● ●
4 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 1306-1310 ● ●
4 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> SOU 		8-98050-479-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> SOU 		8-98050-479-0 02 1 1501- ● ●
5 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> SOU 		1-47619-009-0 02 1 1306-1310 ● ●
5 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> SOU 		1-47619-009-0 02 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98120-357-0 01 1 1306-1310 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98248-904-0 01 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98302-531-0 01 1 1501- ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98120-358-0 01 1 1306-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-98302-532-0 01 1 1501- ●
17 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98216-922-0 01 1 1306- ●
17 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> W/GREASE 		8-97211-691-0 01 1 1306- ●
32 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-97365-271-0 02 1 1306- ●
32 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (B) 		8-98009-726-0 01 1 1306- ●
32 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (B) 		8-98009-727-0 01 1 1306- ●
32 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (A) 		8-97365-284-0 02 1 1306- ●
32 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (B) 		8-98188-551-0 01 1 1306- ●
32 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> (B) 		8-98188-552-0 01 1 1306- ●
55 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> M16X31 FLANGE 		8-97359-816-0 04 1 1306- ●
55 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> M16X40 FLANGE 		8-97359-817-0 04 1 1306- ●
85 BOOT; PIN
DISC BRAKE FRT<J52> 		8-98120-354-0 04 1 1306- ● ●
86 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-98047-529-0 02 1 1306- ● ●
87 PIN; LOCK
DISC BRAKE FRT<J52> 		8-98248-005-0 02 1 1311- ●
87 PIN; LOCK
DISC BRAKE FRT<J52> 		8-98047-531-0 02 1 1306-1310 ● ●
87 PIN; LOCK
DISC BRAKE FRT<J52> 		8-98047-531-0 02 1 1311- ●
107 BOLT; PIN
DISC BRAKE FRT<J52> 		8-97365-264-0 04 1 1306- ● ●
