3-01 — FRONT WHEEL BRAKE (#122670) — 162 parça

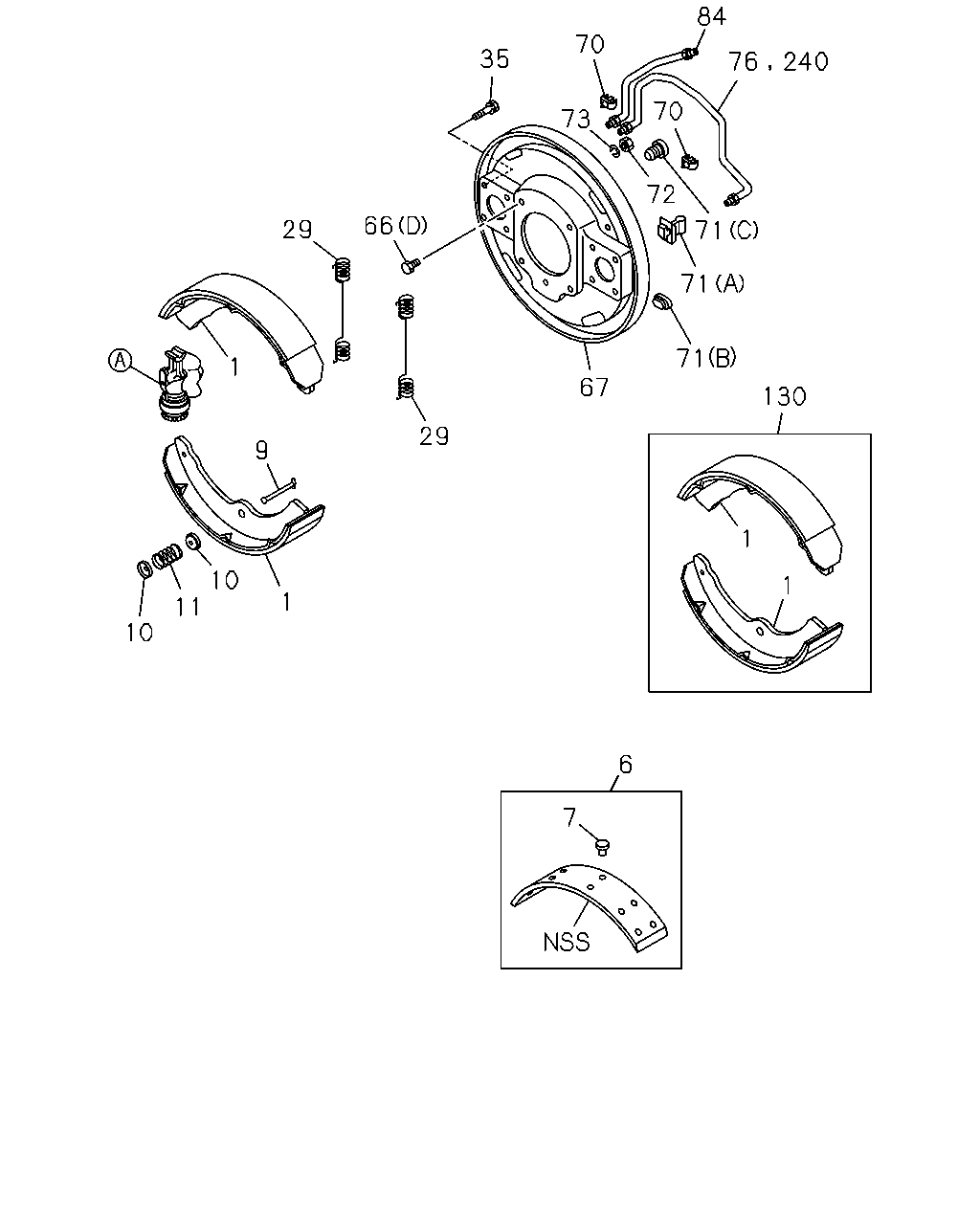

1 1 130 71 71 71 72 70 76 240 84 73 70 35 67 29 66 29 1 9 1 10 11 10 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,FRT EXC. DISC BRAKE FRT<J52>	8-97188-455-0	04	1	1306-	●	●
1	SHOE; BRK,FRT	8-97188-455-0	04	1	1306-			●
6	LINING KIT; FRT BRK EXC. DISC BRAKE FRT<J52>	5-87831-692-0	01	1	1306-	●	●
6	LINING KIT; FRT BRK	5-87831-692-0	01	1	1306-			●
6	LINING KIT; FRT BRK EXC. DISC BRAKE FRT<J52> BEST VALUE PARTS	5-87610-119-0	01	1	1306-	●	●
6	LINING KIT; FRT BRK BEST VALUE PARTS	5-87610-119-0	01	1	1306-			●
7	RIVET; LINING,FRT BRK EXC. DISC BRAKE FRT<J52> SOU	1-09732-029-0	64	1	1306-	●	●
7	RIVET; LINING,FRT BRK SOU	1-09732-029-0	64	1	1306-			●
9	PIN; SHOE HOLDER EXC. DISC BRAKE FRT<J52>	8-97122-870-0	04	1	1306-	●	●
9	PIN; SHOE HOLDER	8-97122-870-0	04	1	1306-			●
10	CUP; SHOE HOLDING EXC. DISC BRAKE FRT<J52> SOU	9-47165-096-0	08	1	1306-	●	●
10	CUP; SHOE HOLDING SOU	9-47165-096-0	08	1	1306-			●
11	SPRING; SHOE HOLDING EXC. DISC BRAKE FRT<J52> SOU	5-09580-101-1	04	1	1306-	●	●
11	SPRING; SHOE HOLDING SOU	5-09580-101-1	04	1	1306-			●
29	SPRING; RETURN,FRT BRK SHOE EXC. DISC BRAKE FRT<J52>	8-97122-869-0	04	1	1306-	●	●
29	SPRING; RETURN,FRT BRK SHOE	8-97122-869-0	04	1	1306-			●
35	BOLT; FRT WHEEL CYL EXC. DISC BRAKE FRT<J52>	8-97081-305-0	16	1	1306-	●	●
35	BOLT; FRT WHEEL CYL	8-97081-305-0	16	1	1306-			●
66	BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (B) M14X43	8-97168-638-1	06	1	1306-	●
66	BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (A) M14X23.5	8-97359-814-0	02	1	1306-	●
66	BOLT; OIL SHIELD COVER EXC. DISC BRAKE FRT<J52> (D) M14X40	8-98007-879-0	08	1	1306-	●	●
66	BOLT; OIL SHIELD COVER (D) M14X40	8-98007-879-0	08	1	1306-			●
66	BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (C) M14X43	8-97168-638-1	08	1	1306-		●
67	PLATE; BACK,FRT BRK EXC. DISC BRAKE FRT<J52>	8-97358-868-0	01	1	1306-1407	●
67	PLATE; BACK,FRT BRK	8-97358-868-0	01	1	1306-1407			●
67	PLATE; BACK,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97358-868-0	01	1	1408-	●	●
67	PLATE; BACK,FRT BRK	8-97358-868-0	01	1	1408-			●
67	PLATE; BACK,FRT BRK EXC. DISC BRAKE FRT<J52>	8-97358-869-0	01	1	1306-1407	●
67	PLATE; BACK,FRT BRK	8-97358-869-0	01	1	1306-1407			●
67	PLATE; BACK,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97358-869-0	01	1	1408-	●	●
67	PLATE; BACK,FRT BRK	8-97358-869-0	01	1	1408-			●
67	PLATE; BACK,FRT BRK EXC. DISC BRAKE FRT<J52>	8-97160-410-0	01	1	1306-1402		●
67	PLATE; BACK,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52>	8-97160-410-0	01	1	1403-		●
67	PLATE; BACK,FRT BRK EXC. DISC BRAKE FRT<J52>	8-97160-411-0	01	1	1306-1402		●
67	PLATE; BACK,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52>	8-97160-411-0	01	1	1403-		●
70	CLIP; PIPE HOLD EXC. DISC BRAKE FRT<J52>	8-97022-086-0	04	1	1306-	●	●
70	CLIP; PIPE HOLD	8-97022-086-0	04	1	1306-			●
71	GROMMET; CHECK HOLE EXC. DISC BRAKE FRT<J52> (C)	1-47154-008-0	04	1	1306-1407	●
71	GROMMET; CHECK HOLE (C)	1-47154-008-0	04	1	1306-1407			●
71	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (C)	1-47154-008-0	04	1	1408-	●	●
71	GROMMET; CHECK HOLE (C)	1-47154-008-0	04	1	1408-			●
71	GROMMET; CHECK HOLE EXC. DISC BRAKE FRT<J52> (B)	8-97017-507-0	06	1	1306-1407	●
71	GROMMET; CHECK HOLE (B)	8-97017-507-0	06	1	1306-1407			●
71	GROMMET; CHECK HOLE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-97017-507-0	06	1	1408-	●	●
71	GROMMET; CHECK HOLE (B)	8-97017-507-0	06	1	1408-			●
71	GROMMET; CHECK HOLE EXC. DISC BRAKE FRT<J52> (B)	8-97017-507-0	02	1	1306-1402		●
71	GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (B)	8-97017-507-0	02	1	1403-		●
71	GROMMET; CHECK HOLE EXC. DISC BRAKE FRT<J52> (A)	8-97044-742-1	04	1	1306-1402		●
71	GROMMET; CHECK HOLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A)	8-97044-742-1	04	1	1403-		●
72	NUT; OIL SHIELD COVER DISC BRAKE FRT<J52>	8-97359-815-0	06	1	1306-	●
72	NUT; OIL SHIELD COVER EXC. DISC BRAKE FRT<J52> M14 SOU	0-91110-514-0	08	1	1306-	●	●
72	NUT; OIL SHIELD COVER M14 SOU	0-91110-514-0	08	1	1306-			●
72	NUT; OIL SHIELD COVER DISC BRAKE FRT<J52>	8-97359-815-0	08	1	1306-		●
73	WASHER; LK,OIL SHIELD COVER EXC. DISC BRAKE FRT<J52> ID=14.2 SOU	0-91510-814-0	08	1	1306-	●	●
73	WASHER; LK,OIL SHIELD COVER ID=14.2 SOU	0-91510-814-0	08	1	1306-			●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. DISC BRAKE FRT<J52>	8-97079-847-0	02	1	1306-1402		●
76	PIPE; OIL,BACKWARD,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52>	8-97079-847-0	02	1	1403-		●
84	PIPE; BRK,WHEEL CYL TO HOSE EXC. DISC BRAKE FRT<J52>	8-97039-676-0	01	1	1306-	●	●
84	PIPE; BRK,WHEEL CYL TO HOSE	8-97039-676-0	01	1	1306-			●
84	PIPE; BRK,WHEEL CYL TO HOSE EXC. DISC BRAKE FRT<J52>	8-97039-677-0	01	1	1306-	●	●
84	PIPE; BRK,WHEEL CYL TO HOSE	8-97039-677-0	01	1	1306-			●
130	SHOE KIT; BRK,FRT EXC. DISC BRAKE FRT<J52>	5-87831-693-0	01	1	1306-	●	●
130	SHOE KIT; BRK,FRT	5-87831-693-0	01	1	1306-			●
240	PIPE; OIL,FRT BRK EXC. DISC BRAKE FRT<J52>	8-97079-847-0	02	1	1306-1407	●
240	PIPE; OIL,FRT BRK	8-97079-847-0	02	1	1306-1407			●
240	PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97079-847-0	02	1	1408-	●	●
240	PIPE; OIL,FRT BRK	8-97079-847-0	02	1	1408-			●

15 15 16 17 24 25 252 253 254 302 255 17 16 18 19 24 25 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CYLINDER; WHEEL,FRT BRK EXC. DISC BRAKE FRT<J52> (B) FRONT	8-98081-290-0	01	1	1306-1407	●
15	CYLINDER; WHEEL,FRT BRK (B) FRONT	8-98081-290-0	01	1	1306-1407			●
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) FRONT	8-98081-290-0	01	1	1408-	●	●
15	CYLINDER; WHEEL,FRT BRK (B) FRONT	8-98081-290-0	01	1	1408-			●
15	CYLINDER; WHEEL,FRT BRK EXC. DISC BRAKE FRT<J52> (B) FRONT	8-98081-291-0	01	1	1306-1407	●
15	CYLINDER; WHEEL,FRT BRK (B) FRONT	8-98081-291-0	01	1	1306-1407			●
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) FRONT	8-98081-291-0	01	1	1408-	●	●
15	CYLINDER; WHEEL,FRT BRK (B) FRONT	8-98081-291-0	01	1	1408-			●
15	CYLINDER; WHEEL,FRT BRK EXC. DISC BRAKE FRT<J52> (B) REAR	8-98081-292-0	01	1	1306-1407	●
15	CYLINDER; WHEEL,FRT BRK (B) REAR	8-98081-292-0	01	1	1306-1407			●
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) REAR	8-98081-292-0	01	1	1408-	●	●
15	CYLINDER; WHEEL,FRT BRK (B) REAR	8-98081-292-0	01	1	1408-			●
15	CYLINDER; WHEEL,FRT BRK EXC. DISC BRAKE FRT<J52> (B) REAR	8-98081-293-0	01	1	1306-1407	●
15	CYLINDER; WHEEL,FRT BRK (B) REAR	8-98081-293-0	01	1	1306-1407			●
15	CYLINDER; WHEEL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) REAR	8-98081-293-0	01	1	1408-	●	●
15	CYLINDER; WHEEL,FRT BRK (B) REAR	8-98081-293-0	01	1	1408-			●
15	CYLINDER; WHEEL,FRT BRK EXC. DISC BRAKE FRT<J52> (A) FRONT	8-97353-573-0	01	1	1306-1402		●
15	CYLINDER; WHEEL,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) FRONT	8-97353-573-0	01	1	1403-		●
15	CYLINDER; WHEEL,FRT BRK EXC. DISC BRAKE FRT<J52> (A) FRONT	8-97353-574-0	01	1	1306-1402		●
15	CYLINDER; WHEEL,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) FRONT	8-97353-574-0	01	1	1403-		●
15	CYLINDER; WHEEL,FRT BRK EXC. DISC BRAKE FRT<J52> (A) REAR	8-97353-575-0	01	1	1306-1402		●
15	CYLINDER; WHEEL,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) REAR	8-97353-575-0	01	1	1403-		●
15	CYLINDER; WHEEL,FRT BRK EXC. DISC BRAKE FRT<J52> (A) REAR	8-97353-576-0	01	1	1306-1402		●
15	CYLINDER; WHEEL,FRT BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52> (A) REAR	8-97353-576-0	01	1	1403-		●
16	SCREW; BLEEDER,FRT BRK EXC. DISC BRAKE FRT<J52>	8-98050-477-0	02	1	1306-	●	●
16	SCREW; BLEEDER,FRT BRK	8-98050-477-0	02	1	1306-			●
17	CAP; BLEEDER,FRT WHEEL CYL EXC. DISC BRAKE FRT<J52> SOU	8-98050-479-0	02	1	1306-	●	●
17	CAP; BLEEDER,FRT WHEEL CYL SOU	8-98050-479-0	02	1	1306-			●
18	STOPPER; ADJ SCREW EXC. DISC BRAKE FRT<J52>	8-94128-486-0	04	1	1306-1402		●
18	STOPPER; ADJ SCREW EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52>	8-94128-486-0	04	1	1403-		●
19	SCREW; STOPPER SETTING EXC. DISC BRAKE FRT<J52>	8-94128-727-0	04	1	1306-1402		●
19	SCREW; STOPPER SETTING EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52>	8-94128-727-0	04	1	1403-		●
24	PISTON; FRT WHEEL CYL EXC. DISC BRAKE FRT<J52>	8-97349-731-0	02	1	1306-1407	●
24	PISTON; FRT WHEEL CYL	8-97349-731-0	02	1	1306-1407			●
24	PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97349-731-0	02	1	1408-	●	●
24	PISTON; FRT WHEEL CYL	8-97349-731-0	02	1	1408-			●
24	PISTON; FRT WHEEL CYL EXC. DISC BRAKE FRT<J52>	8-97349-732-0	02	1	1306-1407	●
24	PISTON; FRT WHEEL CYL	8-97349-732-0	02	1	1306-1407			●
24	PISTON; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97349-732-0	02	1	1408-	●	●
24	PISTON; FRT WHEEL CYL	8-97349-732-0	02	1	1408-			●
24	PISTON; FRT WHEEL CYL EXC. DISC BRAKE FRT<J52>	8-97353-579-0	04	1	1306-1402		●
24	PISTON; FRT WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52>	8-97353-579-0	04	1	1403-		●
25	SCREW; ADJ,FRT WHEEL CYL EXC. DISC BRAKE FRT<J52>	8-97349-741-0	02	1	1306-1407	●
25	SCREW; ADJ,FRT WHEEL CYL	8-97349-741-0	02	1	1306-1407			●
25	SCREW; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97349-741-0	02	1	1408-	●	●
25	SCREW; ADJ,FRT WHEEL CYL	8-97349-741-0	02	1	1408-			●
25	SCREW; ADJ,FRT WHEEL CYL EXC. DISC BRAKE FRT<J52>	8-97349-742-0	02	1	1306-1407	●
25	SCREW; ADJ,FRT WHEEL CYL	8-97349-742-0	02	1	1306-1407			●
25	SCREW; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97349-742-0	02	1	1408-	●	●
25	SCREW; ADJ,FRT WHEEL CYL	8-97349-742-0	02	1	1408-			●
25	SCREW; ADJ,FRT WHEEL CYL EXC. DISC BRAKE FRT<J52>	8-94414-702-0	04	1	1306-1402		●
25	SCREW; ADJ,FRT WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52>	8-94414-702-0	04	1	1403-		●
26	CUP SET; FRT WHEEL CYL EXC. DISC BRAKE FRT<J52>	5-87832-051-0	01	1	1306-1407	●
26	CUP SET; FRT WHEEL CYL	5-87832-051-0	01	1	1306-1407			●
26	CUP SET; FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	5-87832-051-0	01	1	1408-	●	●
26	CUP SET; FRT WHEEL CYL	5-87832-051-0	01	1	1408-			●
26	CUP SET; FRT WHEEL CYL EXC. DISC BRAKE FRT<J52>	5-87832-080-0	01	1	1306-1402		●
26	CUP SET; FRT WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DISC BRAKE FRT<J52>	5-87832-080-0	01	1	1403-		●
252	GEAR; ADJ,FRT WHEEL CYL EXC. DISC BRAKE FRT<J52>	8-97358-894-0	02	1	1306-1407	●
252	GEAR; ADJ,FRT WHEEL CYL	8-97358-894-0	02	1	1306-1407			●
252	GEAR; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97358-894-0	02	1	1408-	●	●
252	GEAR; ADJ,FRT WHEEL CYL	8-97358-894-0	02	1	1408-			●
252	GEAR; ADJ,FRT WHEEL CYL EXC. DISC BRAKE FRT<J52>	8-97358-895-0	02	1	1306-1407	●
252	GEAR; ADJ,FRT WHEEL CYL	8-97358-895-0	02	1	1306-1407			●
252	GEAR; ADJ,FRT WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97358-895-0	02	1	1408-	●	●
252	GEAR; ADJ,FRT WHEEL CYL	8-97358-895-0	02	1	1408-			●
253	WASHER; THRUST EXC. DISC BRAKE FRT<J52>	8-97349-736-0	04	1	1306-1407	●
253	WASHER; THRUST	8-97349-736-0	04	1	1306-1407			●
253	WASHER; THRUST 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97349-736-0	04	1	1408-	●	●
253	WASHER; THRUST	8-97349-736-0	04	1	1408-			●
254	SPRING; ADJ LEVER EXC. DISC BRAKE FRT<J52>	8-97349-745-0	04	1	1306-1407	●
254	SPRING; ADJ LEVER	8-97349-745-0	04	1	1306-1407			●
254	SPRING; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97349-745-0	04	1	1408-	●	●
254	SPRING; ADJ LEVER	8-97349-745-0	04	1	1408-			●
255	LEVER; ADJ EXC. DISC BRAKE FRT<J52>	8-97349-743-0	02	1	1306-1407	●
255	LEVER; ADJ	8-97349-743-0	02	1	1306-1407			●
255	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97349-743-0	02	1	1408-	●	●
255	LEVER; ADJ	8-97349-743-0	02	1	1408-			●
255	LEVER; ADJ EXC. DISC BRAKE FRT<J52>	8-97349-744-0	02	1	1306-1407	●
255	LEVER; ADJ	8-97349-744-0	02	1	1306-1407			●
255	LEVER; ADJ 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97349-744-0	02	1	1408-	●	●
255	LEVER; ADJ	8-97349-744-0	02	1	1408-			●
302	SCREW; ADJ LEVER EXC. DISC BRAKE FRT<J52>	8-97349-747-0	04	1	1306-1407	●
302	SCREW; ADJ LEVER	8-97349-747-0	04	1	1306-1407			●
302	SCREW; ADJ LEVER 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-97349-747-0	04	1	1408-	●	●
302	SCREW; ADJ LEVER	8-97349-747-0	04	1	1408-			●

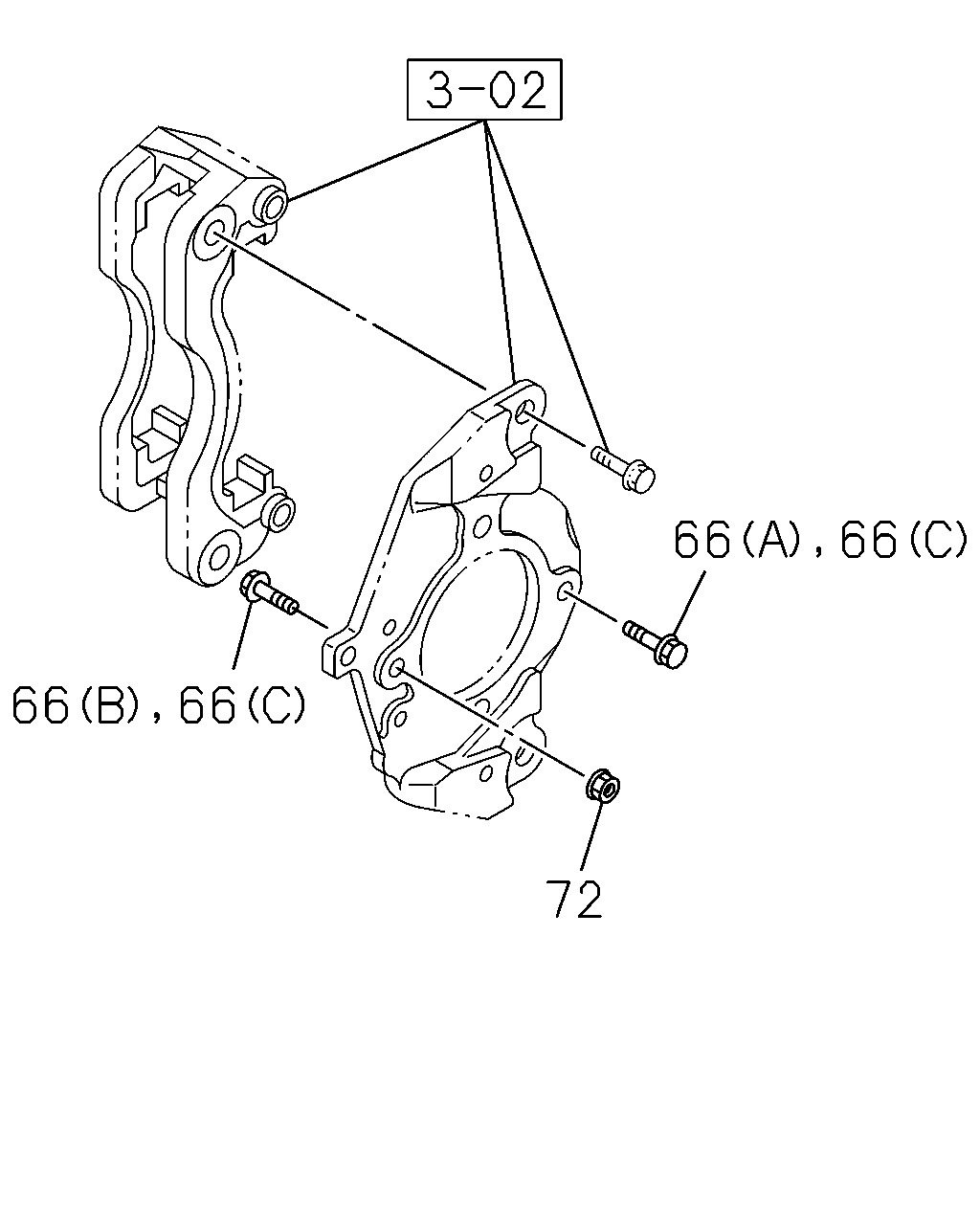

66 66 66 66 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
66	BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (B) M14X43	8-97168-638-1	06	1	1306-	●
66	BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (A) M14X23.5	8-97359-814-0	02	1	1306-	●
66	BOLT; OIL SHIELD COVER EXC. DISC BRAKE FRT<J52> (D) M14X40	8-98007-879-0	08	1	1306-	●	●
66	BOLT; OIL SHIELD COVER (D) M14X40	8-98007-879-0	08	1	1306-			●
66	BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (C) M14X43	8-97168-638-1	08	1	1306-		●
72	NUT; OIL SHIELD COVER DISC BRAKE FRT<J52>	8-97359-815-0	06	1	1306-	●
72	NUT; OIL SHIELD COVER EXC. DISC BRAKE FRT<J52> M14 SOU	0-91110-514-0	08	1	1306-	●	●
72	NUT; OIL SHIELD COVER M14 SOU	0-91110-514-0	08	1	1306-			●
72	NUT; OIL SHIELD COVER DISC BRAKE FRT<J52>	8-97359-815-0	08	1	1306-		●
