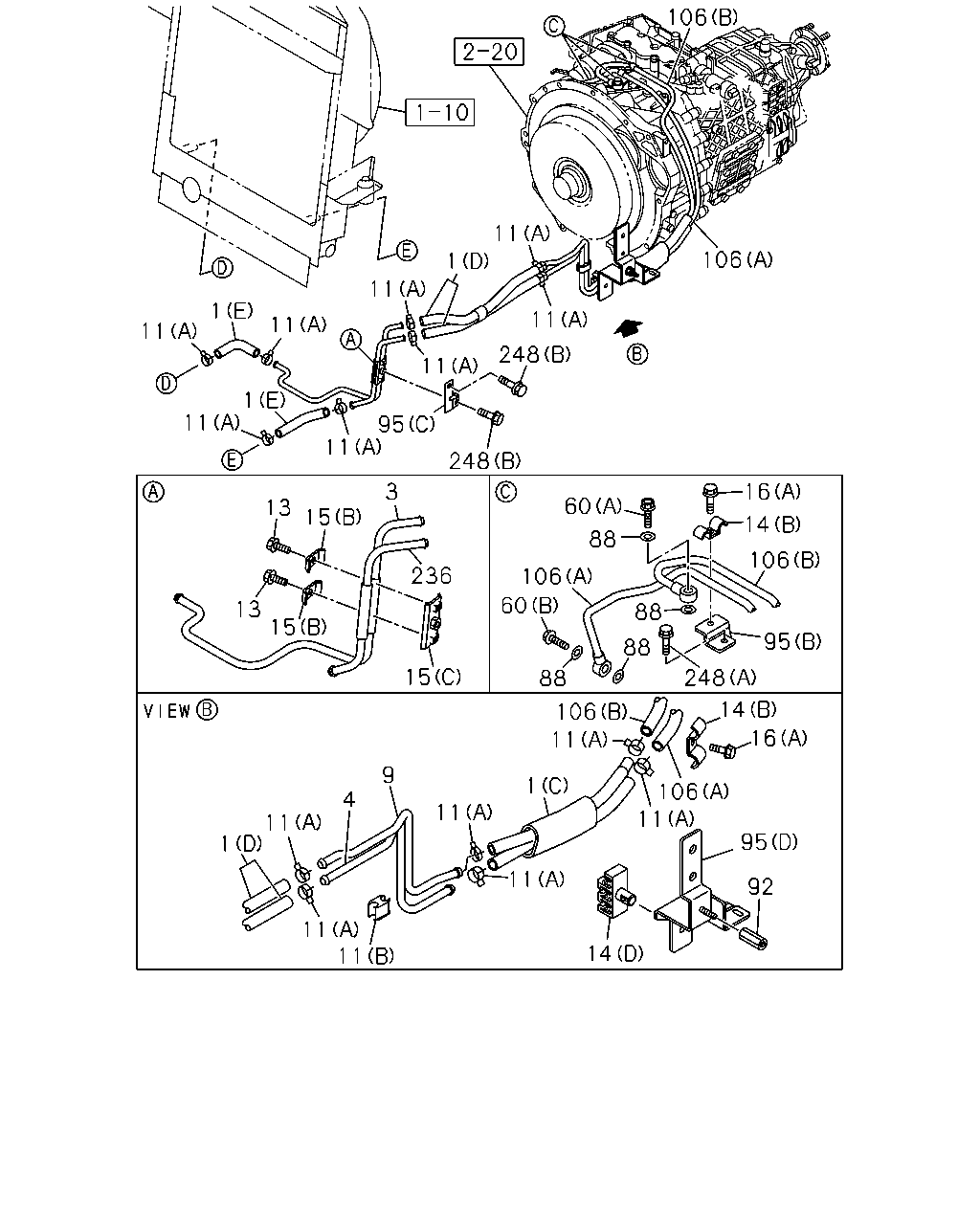

2-53 — TRANSMISSION OIL COOLER SYSTEM (#122667) — 76 parça

106 106 11 11 248 11 1 11 11 1 11 1 11 11 95 248 60 88 106 60 3 236 15 13 13 15 15 16 14 106 95 248 88 88 88 106 14 16 106 11 95 92 1 11 9 11 11 14 11 11 11 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-422-2	01	1	1306-	●
1	HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-425-2	01	1	1306-	●
1	HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	1306-	●	●
1	HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98086-374-0	01	1	1306-	●	●
1	HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98086-380-0	02	1	1306-	●	●
3	PIPE; OIL,A/T TO OIL COOLER 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-093-1	01	1	1306-	●	●
4	PIPE; ATF,OUTLET,A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-506-0	01	1	1306-	●	●
9	PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98140-324-0	01	1	1306-1402	●
9	PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1403-	●
9	PIPE; ATF,INL,A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-505-0	01	1	1306-	●	●
11	CLIP; PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=16	8-97329-628-0	08	1	1306-	●
11	CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=22	8-94252-455-2	01	1	1306-	●	●
11	CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-97329-628-0	12	1	1306-	●	●
13	BOLT; BRKT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 W/LK WASHER	0-50540-625-0	02	1	1306-	●	●
14	CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1306-	●
14	CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=10 & 4.76X3	8-97326-158-1	01	1	1306-	●
14	CLIP; PIPE TO ENG SIDE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1306-	●	●
14	CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=17.5 & 17.5 SOU	1-09700-739-0	02	1	1306-	●	●
15	BRACKET; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-180-3	01	1	1306-	●
15	BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98035-763-0	01	1	1306-	●	●
15	BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	1306-	●	●
16	BOLT; CLIP,ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X20 FLANGE SOU	0-28650-620-0	01	1	1306-	●
16	BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
60	BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1306-	●	●
60	BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	1306-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1306-	●	●
92	NUT; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> M10	8-98034-487-1	01	1	1306-	●	●
95	BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98033-840-5	01	1	1306-	●
95	BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98035-762-0	01	1	1306-	●	●
95	BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98057-619-0	01	1	1306-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-876-0	01	1	1306-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	1306-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	1306-	●	●
236	PIPE; OIL,OIL COOLER TO A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-094-1	01	1	1306-	●	●
248	BOLT; RETAINER 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
248	BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●

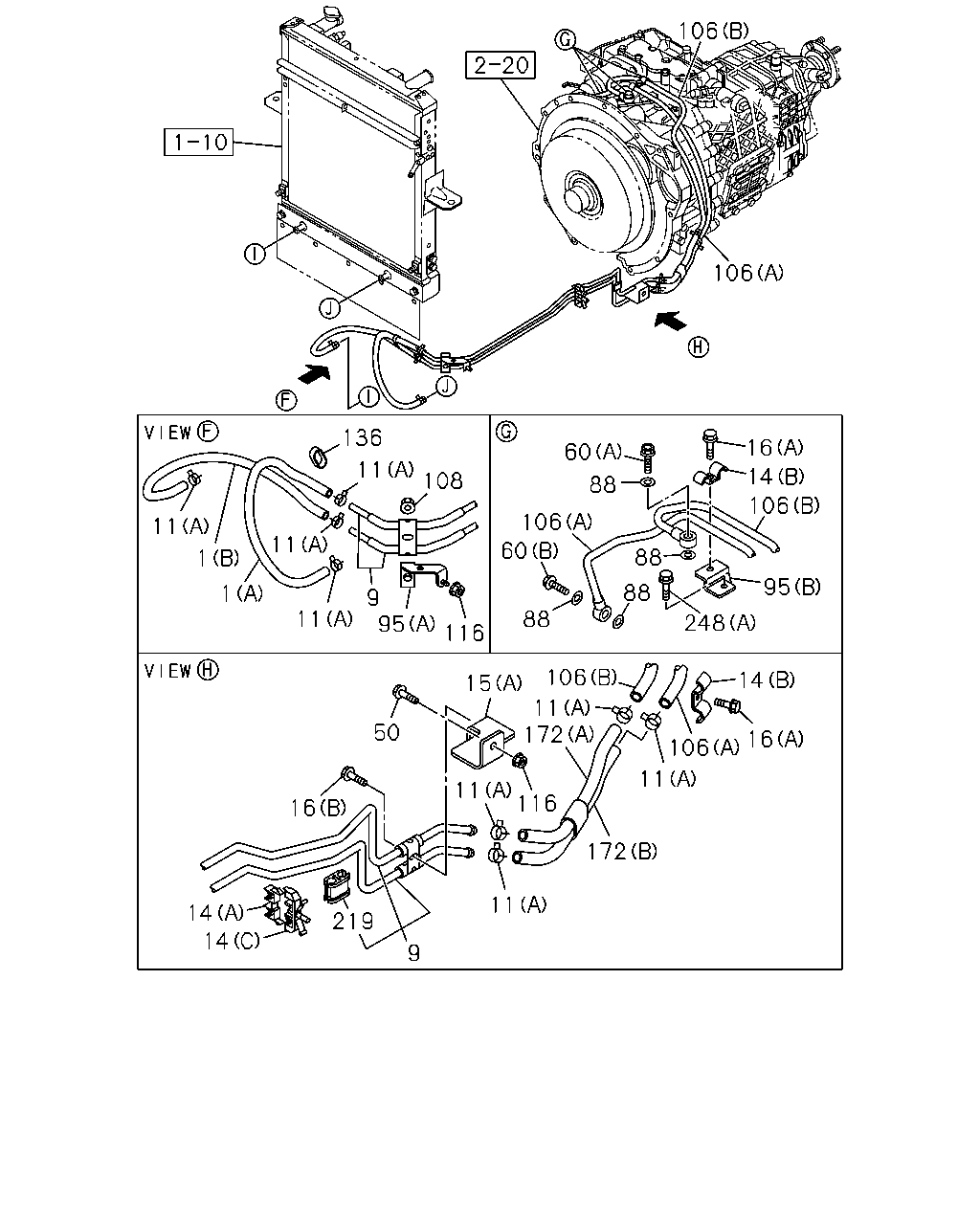

106 106 16 14 106 60 88 88 95 248 88 88 60 106 108 11 136 11 1 1 11 11 9 95 116 15 106 11 172 11 106 16 14 172 116 11 50 11 9 219 16 14 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-422-2	01	1	1306-	●
1	HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-425-2	01	1	1306-	●
1	HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	1306-	●	●
1	HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98086-374-0	01	1	1306-	●	●
1	HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98086-380-0	02	1	1306-	●	●
9	PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98140-324-0	01	1	1306-1402	●
9	PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1403-	●
9	PIPE; ATF,INL,A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-505-0	01	1	1306-	●	●
11	CLIP; PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=16	8-97329-628-0	08	1	1306-	●
11	CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=22	8-94252-455-2	01	1	1306-	●	●
11	CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-97329-628-0	12	1	1306-	●	●
14	CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1306-	●
14	CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=10 & 4.76X3	8-97326-158-1	01	1	1306-	●
14	CLIP; PIPE TO ENG SIDE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1306-	●	●
14	CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=17.5 & 17.5 SOU	1-09700-739-0	02	1	1306-	●	●
15	BRACKET; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-180-3	01	1	1306-	●
15	BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98035-763-0	01	1	1306-	●	●
15	BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	1306-	●	●
16	BOLT; CLIP,ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X20 FLANGE SOU	0-28650-620-0	01	1	1306-	●
16	BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
50	BOLT; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●	●
50	BOLT; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
60	BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	1306-	●	●
60	BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	1306-	●	●
88	GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0	9-09571-414-0	04	1	1306-	●	●
95	BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98033-840-5	01	1	1306-	●
95	BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98035-762-0	01	1	1306-	●	●
95	BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98057-619-0	01	1	1306-	●	●
95	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-876-0	01	1	1306-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	1306-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	1306-	●	●
108	NUT; PIPE CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) M6 FLANGE SOU	0-91180-106-0	01	1	1306-	●
116	NUT; BRKT,FLEX HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●
136	CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=250 SOU	5-09707-030-1	01	1	1306-	●
172	HOSE; FLEX,ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98135-562-0	01	1	1306-	●
172	HOSE; FLEX,ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98135-563-0	01	1	1306-	●
219	CLIP; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10X2 H=22	8-94252-455-2	01	1	1306-1402	●
219	CLIP; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10X2 H=22	8-94252-455-2	02	1	1403-	●
248	BOLT; RETAINER 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
248	BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
