◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#122666) — 7 parça

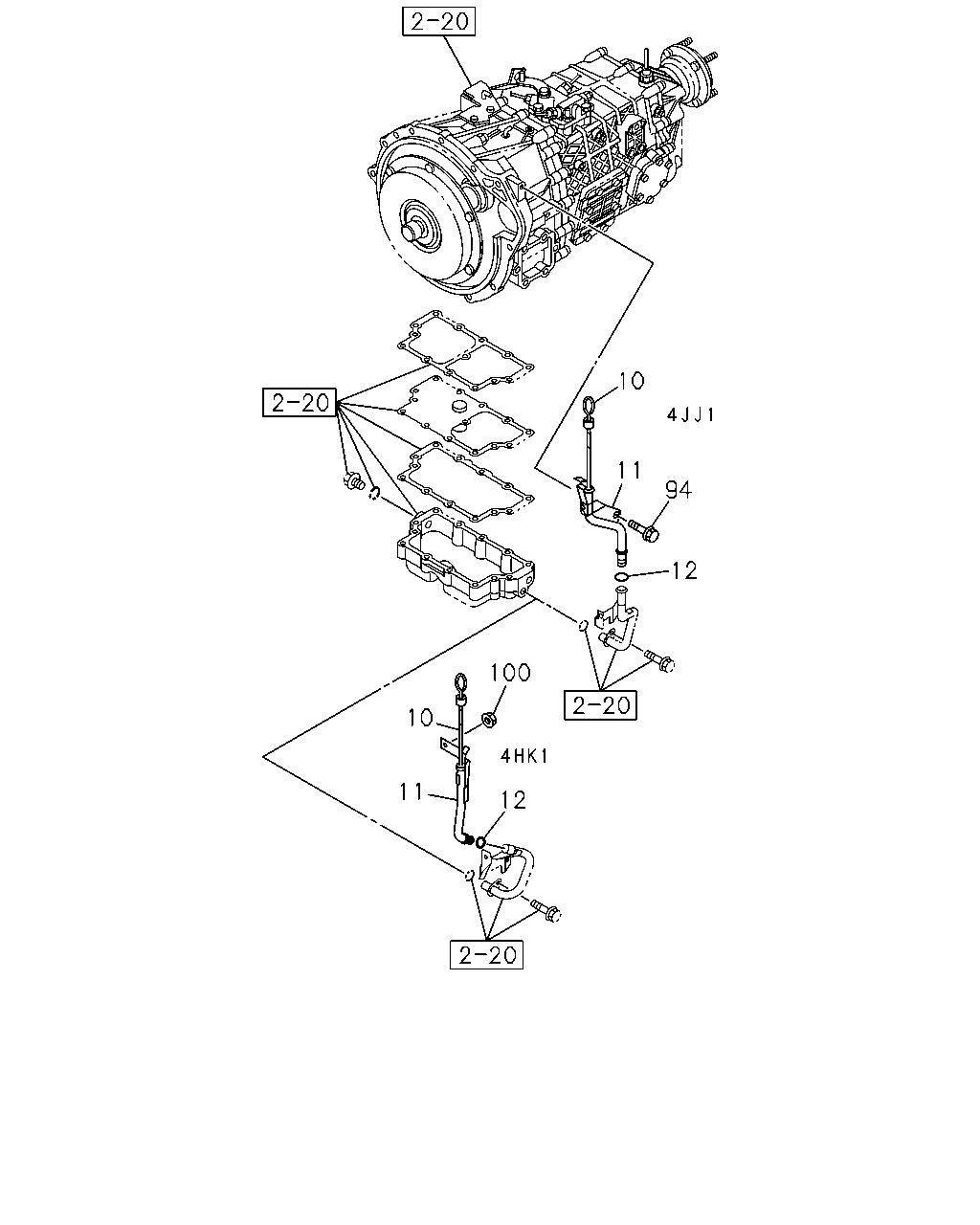

çizim 358323
10 94 11 12 10 100 12 11
BalonParca AdiParca NoAdetTipApplied Date A B
10 GAUGE; OIL LEVEL
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-446-0 01 1 1306- ●
10 GAUGE; OIL LEVEL
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97325-010-1 01 1 1306- ● ●
11 TUBE; OIL FILLER
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-185-0 01 1 1306- ●
11 TUBE; OIL FILLER
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98050-297-0 01 1 1306- ● ●
12 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3 		8-97313-558-0 01 1 1306- ● ●
94 BOLT; OIL FILLER TUBE
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X12 FLANGE 		0-28151-012-0 01 1 1306- ● ●
100 NUT; FILLER TUBE
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
