◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#122664) — 20 parça

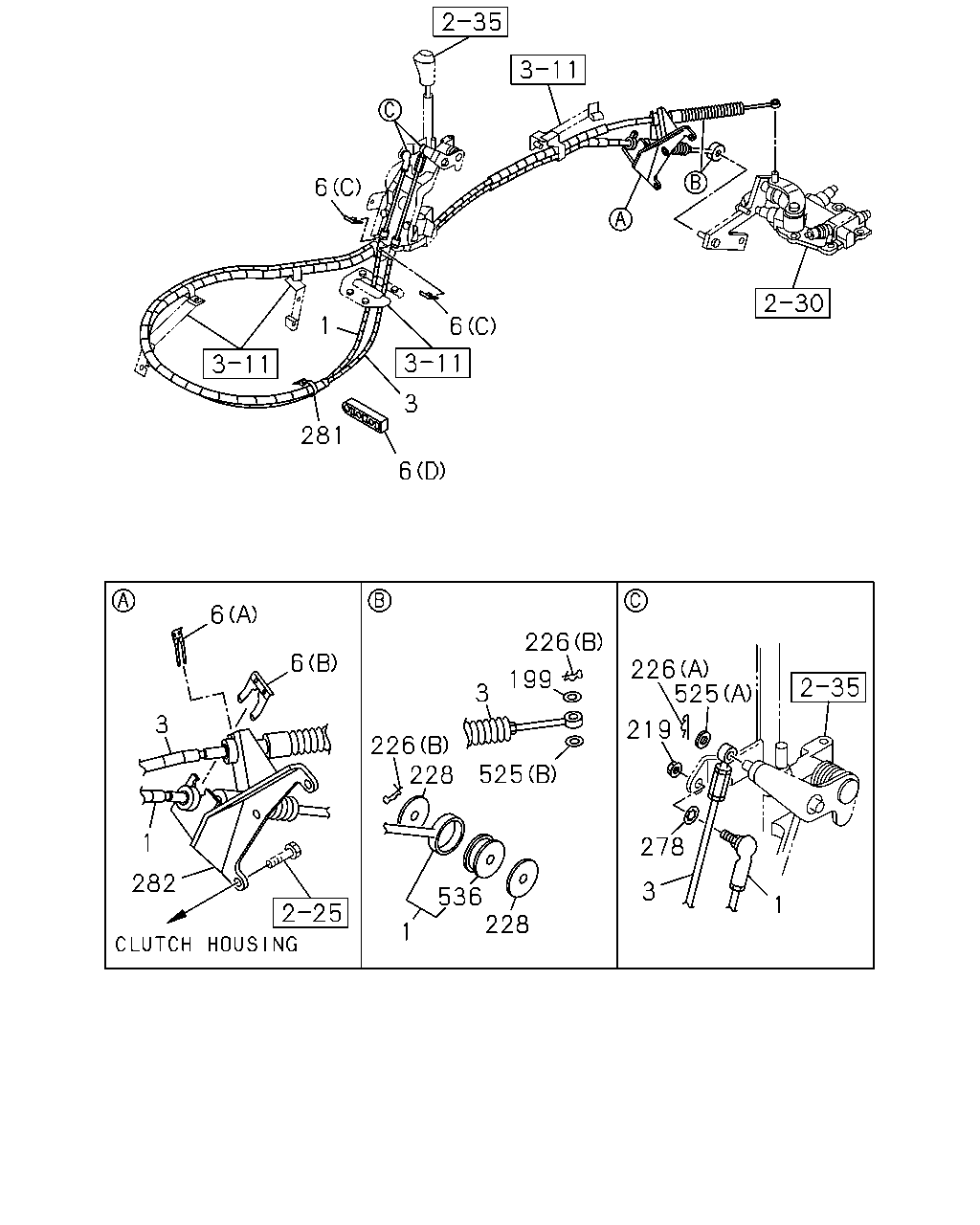

çizim 356137
6 6 1 281 3 6 6 6 3 1 282 1 226 228 3 199 226 525 536 228 226 525 219 278 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3090 		8-98146-856-0 01 1 1306- ● ●
1 CABLE; SHIFT,TRANS CONT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3095 		8-98162-849-0 01 1 1306- ● ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3202 		8-98025-442-3 01 1 1306- ● ●
3 CABLE; SELECT,TRANS CONT
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3175 		8-98162-859-0 01 1 1306- ● ●
6 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97093-491-1 01 1 1306- ● ●
6 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=22.2 		1-09701-209-1 01 1 1306- ● ●
6 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97011-448-0 02 1 1306- ● ●
6 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2 		8-97211-011-0 01 1 1306- ● ●
199 WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 OD=16 SOU 		0-91610-508-0 01 1 1306- ● ●
219 NUT; FLANGE,SHAFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 T=8.0 SOU 		8-94363-045-0 01 1 1306- ● ●
226 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=27.7 SOU 		8-94111-137-0 01 1 1306- ● ●
226 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23 		8-94170-378-0 02 1 1306- ● ●
228 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.2 OD=40 		8-97182-975-0 02 1 1306- ● ●
278 WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1306- ● ●
281 CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=140 SOU 		5-09707-031-1 01 1 1306- ● ●
282 BRACKET; TRANS SIDE
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-395-1 01 1 1306- ● ●
282 BRACKET; TRANS SIDE
4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97350-449-0 01 1 1306- ● ●
525 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.4 OD=16 SOU 		0-91614-508-0 01 1 1306- ● ●
525 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1306- ● ●
536 DAMPER; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-681-0 01 1 1306- ● ●
