2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#122663) — 41 parça

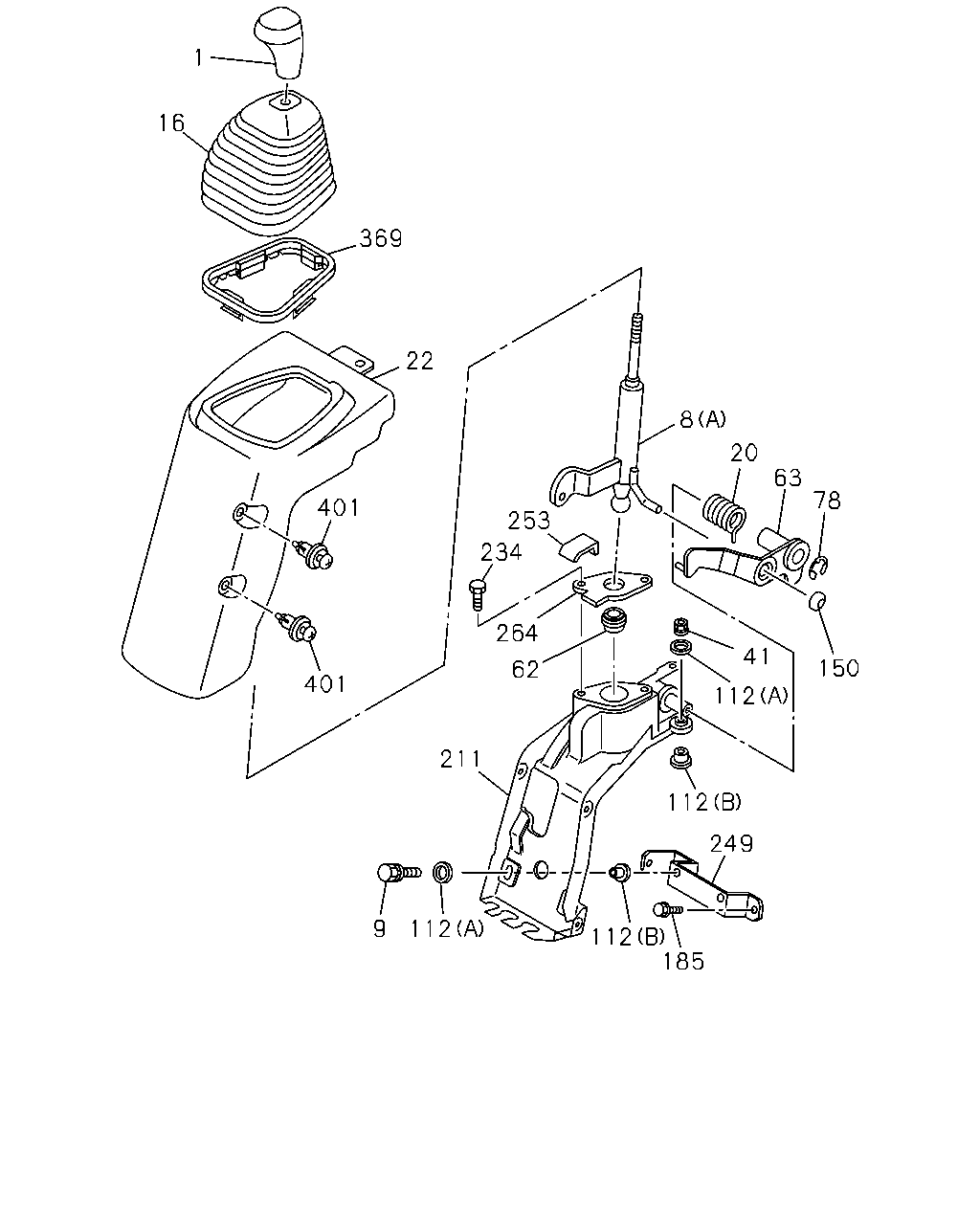

150 112 41 78 63 20 8 253 234 264 62 211 112 249 185 112 112 9 401 401 22 369 16 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-97196-286-1	01	1	1306-	●
1	KNOB; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK	8-97196-287-1	01	1	1306-		●
8	LEVER; CHANGE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SOU	8-97204-506-0	01	1	1306-	●
8	LEVER; CHANGE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SOU	8-97204-507-0	01	1	1306-		●
8	LEVER; CHANGE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY	8-97421-814-0	01	1	1306-1311	●	●
8	LEVER; CHANGE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY	8-97429-026-0	01	1	1312-1408	●	●
8	LEVER; CHANGE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY	8-97465-737-1	01	1	1409-	●	●
9	BOLT; CHANGE LEVER M8X28 W/LK&PL WASHER SOU	8-94438-324-1	02	1	1306-	●	●
16	BOOT; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98035-063-0	01	1	1306-	●	●
20	SPRING; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97204-514-1	01	1	1306-	●	●
22	COVER; DUST,CHANGE LEVER GRAY	8-97408-728-1	01	1	1306-	●	●
41	NUT; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●
41	NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER	8-97329-625-0	02	1	1306-	●	●
62	SEAT; BALL,CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SOU	8-97011-895-1	01	1	1306-	●	●
63	LEVER; RELAY,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SOU	8-97143-199-0	01	1	1306-	●
63	LEVER; RELAY,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SOU	8-97163-768-0	01	1	1306-		●
78	RING; SNAP,CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10	0-91805-510-0	01	1	1306-	●	●
112	RUBBER; CUSHION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SOU	8-97091-426-0	04	1	1306-	●	●
112	RUBBER; CUSHION EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) SOU	8-97091-427-0	04	1	1306-	●	●
150	BALL; DETENT,CONT LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SOU	8-97049-147-0	01	1	1306-	●	●
185	BOLT; BRKT,COVER M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
211	BRACKET; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97204-505-1	01	1	1306-	●	●
234	BOLT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	02	1	1306-	●	●
249	BRACKET; COVER	8-97387-767-0	01	1	1306-	●	●
253	STOPPER; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SOU	8-97204-510-0	01	1	1306-	●	●
264	PLATE; COVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) SOU	8-97204-511-0	01	1	1306-	●	●
369	RETAINER; REINF TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-213-1	01	1	1306-	●	●
401	CLIP; COVER GRAY	8-97406-179-0	04	1	1306-	●	●

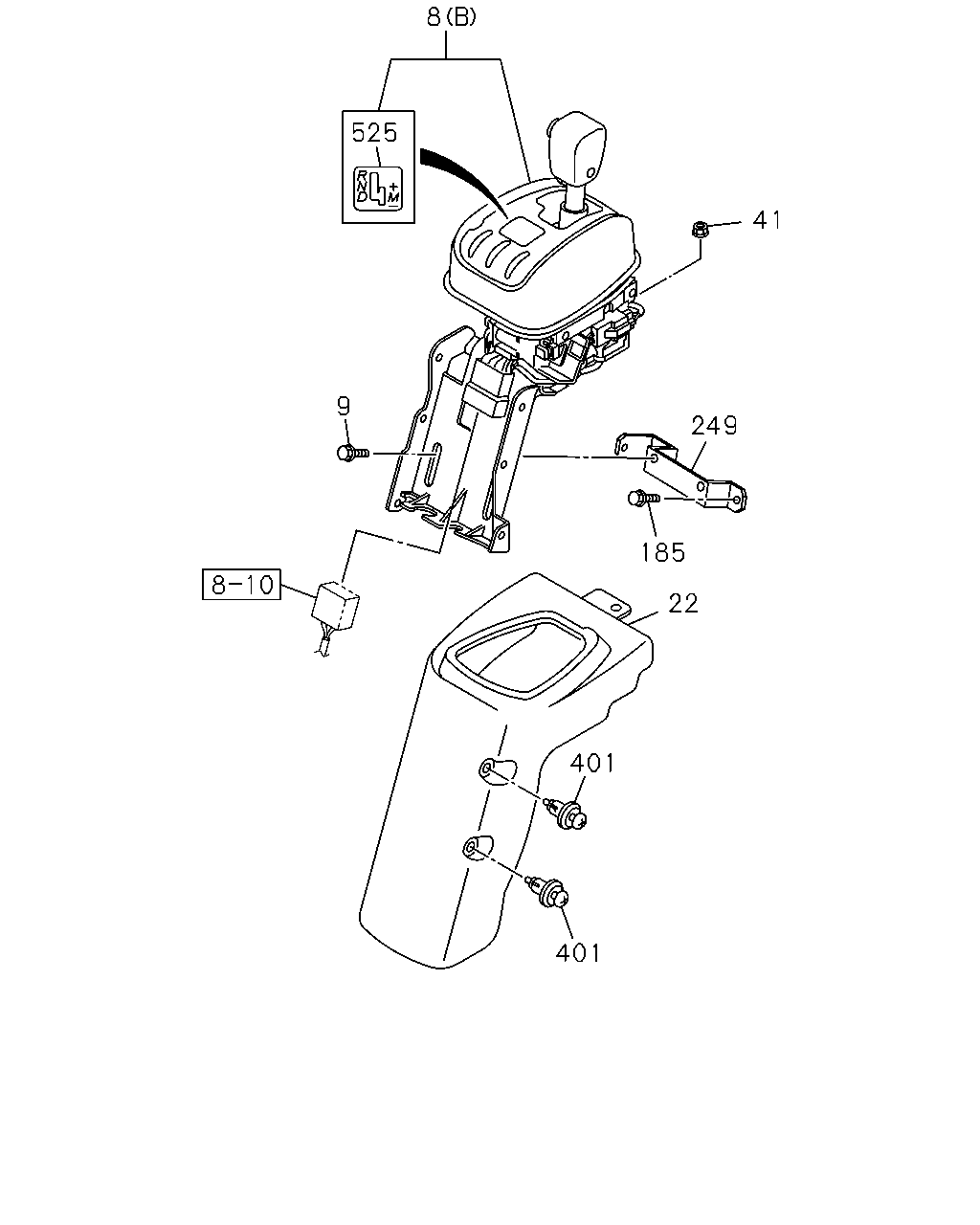

185 249 41 8 525 9 22 401 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	LEVER; CHANGE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SOU	8-97204-506-0	01	1	1306-	●
8	LEVER; CHANGE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) SOU	8-97204-507-0	01	1	1306-		●
8	LEVER; CHANGE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY	8-97421-814-0	01	1	1306-1311	●	●
8	LEVER; CHANGE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY	8-97429-026-0	01	1	1312-1408	●	●
8	LEVER; CHANGE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY	8-97465-737-1	01	1	1409-	●	●
9	BOLT; CHANGE LEVER M8X28 W/LK&PL WASHER SOU	8-94438-324-1	02	1	1306-	●	●
22	COVER; DUST,CHANGE LEVER GRAY	8-97408-728-1	01	1	1306-	●	●
41	NUT; CHANGE LEVER TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●
41	NUT; CHANGE LEVER EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER	8-97329-625-0	02	1	1306-	●	●
185	BOLT; BRKT,COVER M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
249	BRACKET; COVER	8-97387-767-0	01	1	1306-	●	●
401	CLIP; COVER GRAY	8-97406-179-0	04	1	1306-	●	●
525	LABEL; SHIFT POSITION TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-480-1	01	1	1306-	●	●
