2-05 — CLUTCH PIPING (#122654) — 31 parça

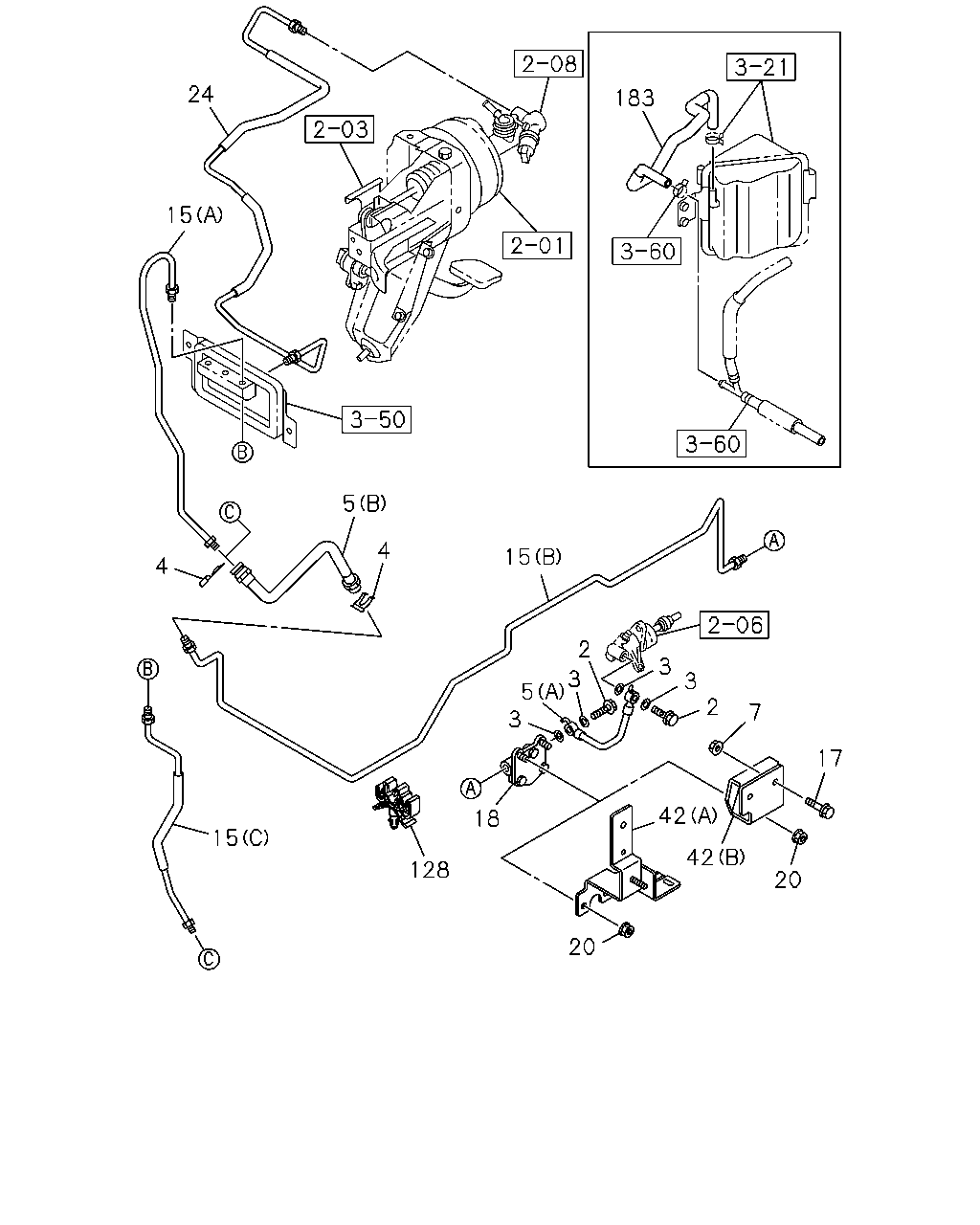

çizim 355773
24 15 183 15 5 4 4 15 128 18 20 42 20 42 17 7 2 3 3 2 3 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,SLAVE CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X22 		8-98014-005-0 02 1 1306- ● ●
3 GASKET; FLEX HOSE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 04 1 1306- ● ●
4 CLIP; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97365-304-0 02 1 1306- ● ●
5 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-611-2 01 1 1306- ● ●
5 HOSE; FLEX,CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98083-907-0 01 1 1306- ● ●
7 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU 		0-91180-108-0 01 1 1407- ●
7 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU 		0-91180-108-0 02 1 1306-1406 ●
7 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BRK WHL LK CONT LSPV<6PH> M8 FLANGE SOU 		0-91180-108-0 02 1 1407- ●
7 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE SOU 		0-91180-108-0 02 1 1407- ●
7 NUT; FLEX HOSE,CLU CONT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 		8-98034-487-1 01 1 1306- ● ●
15 PIPE; CLU,FLEX HOSE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98041-742-3 01 1 1306- ●
15 PIPE; CLU,FLEX HOSE
HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98043-499-3 01 1 1306- ● ●
15 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98046-883-0 01 1 1306- ● ●
15 PIPE; CLU,FLEX HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97389-643-0 01 1 1306-1401 ● ●
15 PIPE; CLU,FLEX HOSE
EXC. HYDRO BRAKE BOOSTER(7QQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98250-269-0 01 1 1402- ● ●
17 BOLT; BRKT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1407- ●
17 BOLT; BRKT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306-1406 ●
17 BOLT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BRK WHL LK CONT LSPV<6PH> M8X25 FLANGE SOU 		0-28650-825-0 02 1 1407- ●
17 BOLT; BRKT
4HK1-TCN ENG(RDQ) BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE SOU 		0-28650-825-0 02 1 1407- ●
18 DAMPER ASM; CLU OIL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 1306- ● ●
20 NUT; CLU OIL DAMPER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98098-684-1 01 1 1306- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97389-356-1 01 1 1306- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98098-686-1 01 1 1306- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98077-617-0 01 1 1306- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98100-943-1 01 1 1306- ●
42 BRACKET; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EURO2 SPECIFICATION(NT2) (B) 		8-98082-472-2 01 1 1306- ●
42 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-450-0 01 1 1306- ● ●
128 CLIP; AIR PIPE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 1306- ● ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 		8-98088-023-0 01 1 1306- ● ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98121-942-0 01 1 1306- ● ●
