◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#122653) — 34 parça

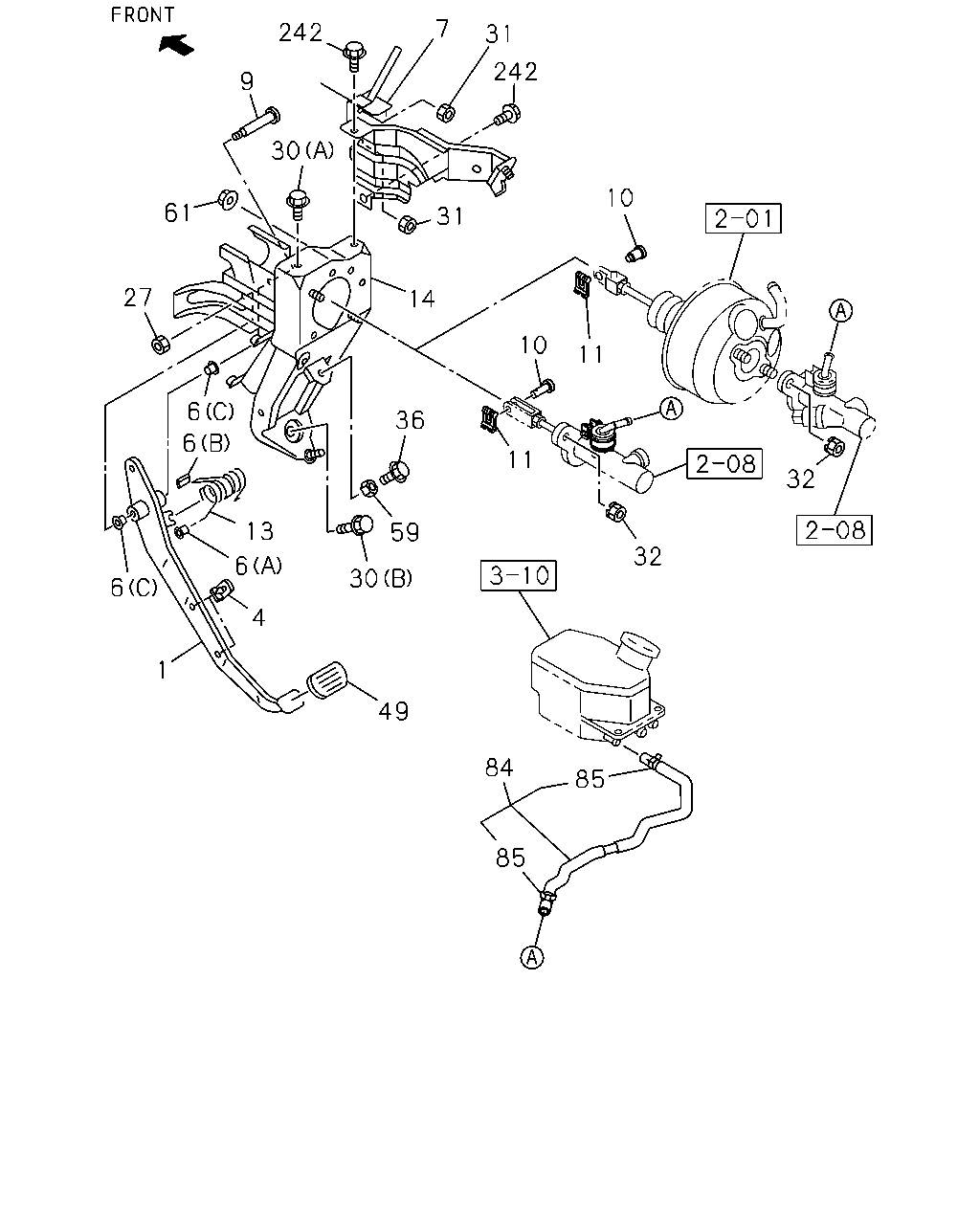

çizim 355597
242 9 30 7 31 242 31 14 10 11 10 32 32 11 36 59 30 49 84 85 85 4 1 6 13 6 6 6 27 61
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PEDAL; CLU
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-754-0 01 1 1306- ● ● ●
1 PEDAL; CLU
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-752-0 01 1 1306- ●
1 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-484-0 01 1 1306-1409 ● ● ●
1 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-484-0 01 1 1410- ●
1 PEDAL; CLU
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-484-0 01 1 1410- ● ●
4 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97853-534-1 02 1 1306- ● ● ●
6 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) SOU 		8-94238-596-0 02 1 1306- ● ● ●
6 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A) SOU 		8-97853-619-0 02 1 1306- ● ● ●
6 BUSHING; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (B) SOU 		8-97853-620-0 01 1 1306- ● ● ●
7 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98029-186-4 01 1 1306- ● ● ●
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97866-667-0 01 1 1306- ● ● ●
10 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98147-657-0 01 1 1306- ● ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98007-161-0 01 1 1306- ● ● ●
13 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 1306-1409 ● ● ●
13 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 1410- ●
13 SPRING; ASSIST,CLU PEDAL
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98023-621-1 01 1 1410- ● ●
13 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-014-0 01 1 1306- ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-482-4 01 1 1306-1409 ● ● ●
14 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-482-4 01 1 1410- ●
14 BRACKET ASM; CLU PEDAL MTG
4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98002-482-4 01 1 1410- ● ●
14 BRACKET ASM; CLU PEDAL MTG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98034-750-0 01 1 1306- ● ● ●
27 NUT; FULCRUM PIN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 1306- ● ● ●
30 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M10X25 FLANGE 		0-28661-025-0 01 1 1306- ● ● ●
30 BOLT; CLU MTG BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10X22 W/PL WASHER SOU 		8-97313-188-0 01 1 1306- ● ● ●
31 NUT; MTG BRKT TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER SOU 		8-94279-050-0 02 1 1306- ● ● ●
32 NUT; BRKT TO CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER SOU 		8-94279-050-0 02 1 1306- ● ● ●
36 BOLT; STOPPER,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EXHAUST BRAKE<NF8> M10X35 		0-20851-035-0 01 1 1510- ●
49 RUBBER; PAD,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97853-413-2 01 1 1306- ● ● ●
59 NUT; CLU PEDAL ADJ
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EXHAUST BRAKE<NF8> M10 SOU 		0-91110-510-0 01 1 1510- ●
61 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/LK WASHER SOU 		8-94279-050-0 04 1 1306- ● ● ●
84 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98218-205-1 01 1 1306- ● ● ●
84 HOSE; RUBBER,CLU LINE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-98218-207-1 01 1 1306- ● ● ●
85 CLIP; HOSE TO M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98168-080-0 02 1 1306- ● ● ●
242 BOLT; BRKT,CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28450-816-0 02 1 1306- ● ● ●
