1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#122650) — 63 parça

137 142 184 144 24 146 139 138 141 143 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	VALVE; EXH BRAKE 4JJ1-TCC ENG(RDU)	8-97360-025-1	01	1	1306-	●
24	BOLT; COVER	8-97065-029-0	02	1	1306-1509	●	●	●
24	BOLT; COVER 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-97065-029-0	02	1	1510-	●	●	●
24	BOLT; COVER 4JJ1-TCC ENG(RDU)	8-97065-029-0	02	1	1510-	●
137	CHAMBER; POWER 4HK1-TCN ENG(RDQ)	8-98070-470-0	01	1	1306-1509	●	●	●
137	CHAMBER; POWER 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-98070-470-0	01	1	1510-	●	●	●
137	CHAMBER; POWER 4JJ1-TCC ENG(RDU)	8-98043-596-0	01	1	1306-	●
138	BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ)	5-22189-004-0	01	1	1306-1509	●	●	●
138	BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	1510-	●	●	●
138	BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94311-446-0	01	1	1306-	●
139	GASKET; EXH BRK VLV	8-94328-234-0	01	1	1306-1509	●	●	●
139	GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1510-	●	●	●
139	GASKET; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94328-234-0	01	1	1510-	●
141	NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-94311-428-0	01	1	1306-1509	●	●	●
141	NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-94311-428-0	01	1	1510-	●	●	●
141	NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU)	9-88510-009-0	01	1	1306-	●
142	CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	1306-1509	●	●	●
142	CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1510-	●	●	●
142	CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1510-	●
143	PIN; EXH BRK VLV	8-94311-452-0	01	1	1306-1509	●	●	●
143	PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1510-	●	●	●
143	PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1510-	●
144	PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	1306-1509	●	●	●
144	PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1510-	●	●	●
144	PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1510-	●
146	NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) M8 FLANGE SOU	0-91180-108-0	02	1	1306-1509	●	●	●
146	NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> M8 FLANGE SOU	0-91180-108-0	02	1	1510-	●	●	●
146	NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) M8 FLANGE SOU	0-91150-108-0	02	1	1306-	●
184	COVER; BRKT 4HK1-TCN ENG(RDQ)	8-98070-514-0	01	1	1306-1509	●	●	●
184	COVER; BRKT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-98070-514-0	01	1	1510-	●	●	●
184	COVER; BRKT 4JJ1-TCC ENG(RDU)	8-97311-447-1	01	1	1306-	●

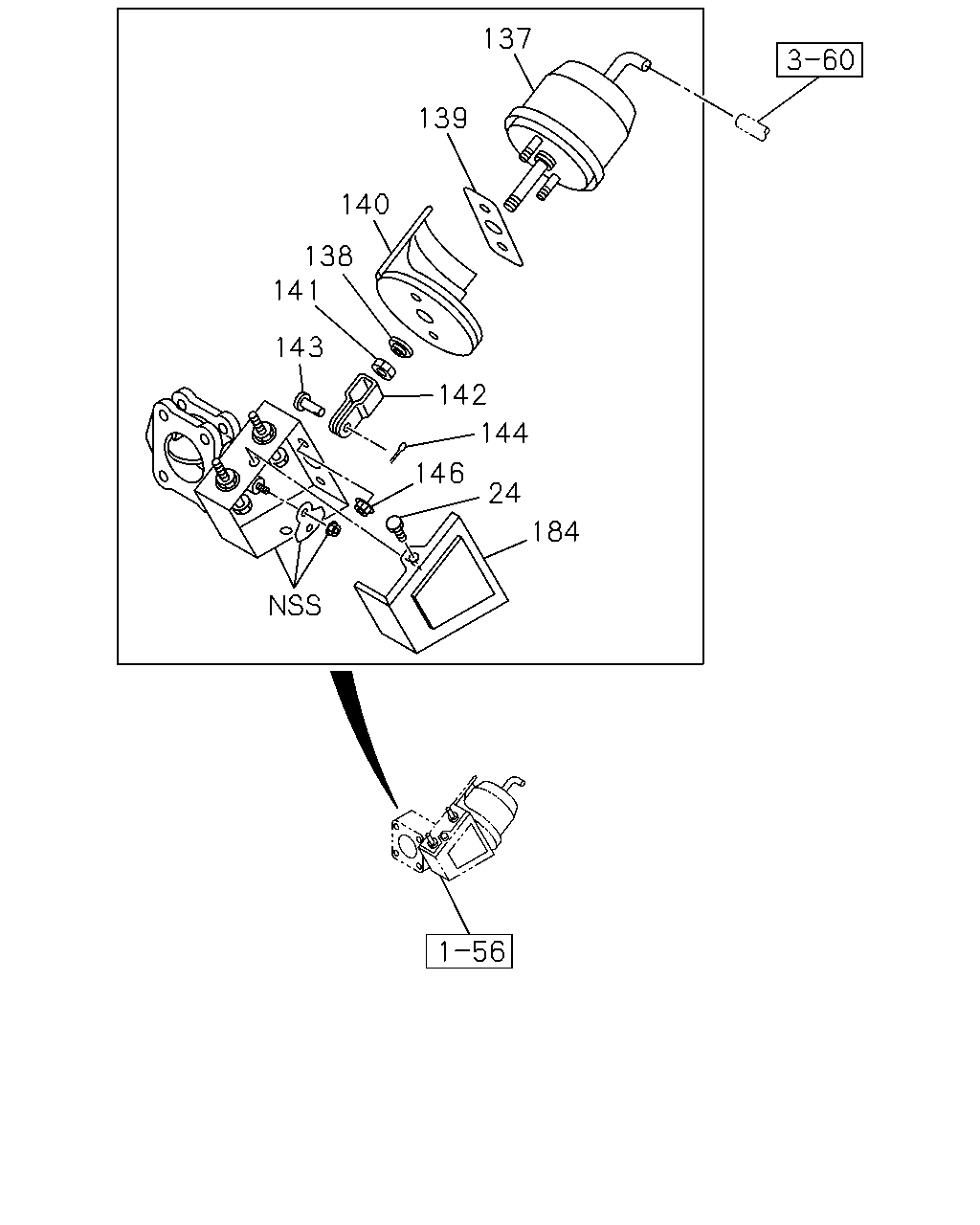

137 139 140 138 141 143 142 146 144 184 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BOLT; COVER	8-97065-029-0	02	1	1306-1509	●	●	●
24	BOLT; COVER 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-97065-029-0	02	1	1510-	●	●	●
24	BOLT; COVER 4JJ1-TCC ENG(RDU)	8-97065-029-0	02	1	1510-	●
137	CHAMBER; POWER 4HK1-TCN ENG(RDQ)	8-98070-470-0	01	1	1306-1509	●	●	●
137	CHAMBER; POWER 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-98070-470-0	01	1	1510-	●	●	●
137	CHAMBER; POWER 4JJ1-TCC ENG(RDU)	8-98043-596-0	01	1	1306-	●
138	BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ)	5-22189-004-0	01	1	1306-1509	●	●	●
138	BEARING; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	1510-	●	●	●
138	BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94311-446-0	01	1	1306-	●
139	GASKET; EXH BRK VLV	8-94328-234-0	01	1	1306-1509	●	●	●
139	GASKET; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1510-	●	●	●
139	GASKET; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94328-234-0	01	1	1510-	●
140	INSULATOR; EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-97173-333-0	01	1	1306-1509	●	●	●
140	INSULATOR; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-97173-333-0	01	1	1510-	●	●	●
141	NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ)	8-94311-428-0	01	1	1306-1509	●	●	●
141	NUT; CLEVIS,EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-94311-428-0	01	1	1510-	●	●	●
141	NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU)	9-88510-009-0	01	1	1306-	●
142	CLEVIS; EXH BRK VLV	8-97177-311-0	01	1	1306-1509	●	●	●
142	CLEVIS; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1510-	●	●	●
142	CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1510-	●
143	PIN; EXH BRK VLV	8-94311-452-0	01	1	1306-1509	●	●	●
143	PIN; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1510-	●	●	●
143	PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1510-	●
144	PIN; SPLIT,EXH BRK VLV	8-97029-428-0	01	1	1306-1509	●	●	●
144	PIN; SPLIT,EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1510-	●	●	●
144	PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1510-	●
146	NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) M8 FLANGE SOU	0-91180-108-0	02	1	1306-1509	●	●	●
146	NUT; EXH BRK VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> M8 FLANGE SOU	0-91180-108-0	02	1	1510-	●	●	●
146	NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) M8 FLANGE SOU	0-91150-108-0	02	1	1306-	●
184	COVER; BRKT 4HK1-TCN ENG(RDQ)	8-98070-514-0	01	1	1306-1509	●	●	●
184	COVER; BRKT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-98070-514-0	01	1	1510-	●	●	●
184	COVER; BRKT 4JJ1-TCC ENG(RDU)	8-97311-447-1	01	1	1306-	●
