Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#122649) — 358 parça

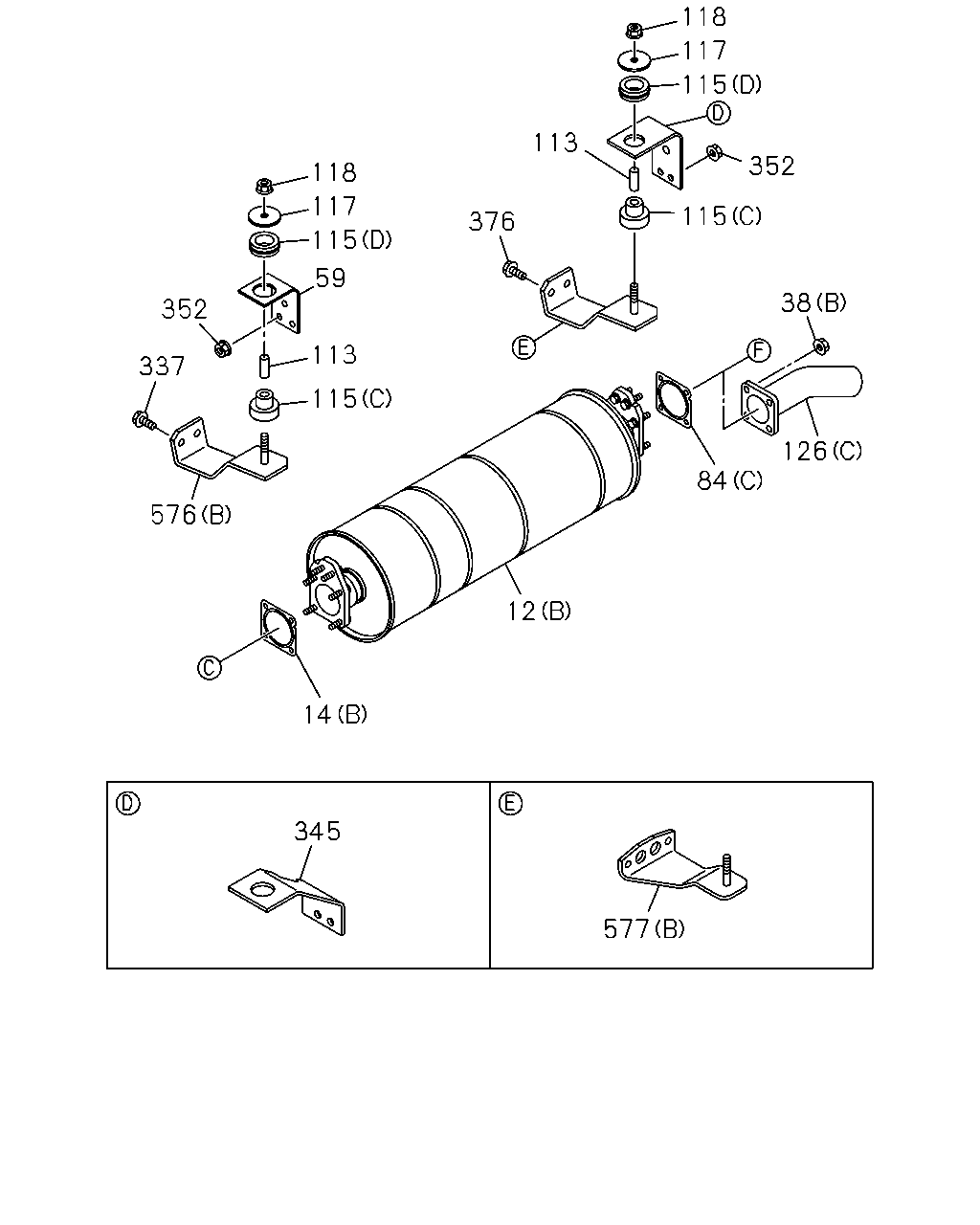

118 117 115 352 115 113 376 118 117 115 59 352 337 113 115 576 14 12 84 38 126 345 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) (A)	8-98090-839-0	01	1	1306-	●	●	●
12	SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) (B)	8-98027-813-1	01	1	1306-	●
14	GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) (A) ID=64.7 SOU	8-94328-352-0	01	1	1306-	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) (B) ID=64	8-97373-108-0	01	1	1306-	●
38	NUT; SILENCER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
38	NUT; SILENCER 4JJ1-TCC ENG(RDU) (B) M8 FLANGE SOU	0-91180-108-0	04	1	1306-	●
59	BRACKET; EXH SILENCER,FRT 4JJ1-TCC ENG(RDU)	8-98082-021-0	01	1	1306-	●
84	GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=64.7 SOU	8-94328-352-0	01	1	1306-	●	●	●
84	GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) (A) ID=64.7 SOU	8-94328-352-0	01	1	1306-	●	●	●
84	GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	1306-	●
84	GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	1306-	●
113	COLLAR; DIST,MTG BRKT L=37.5 SOU	9-22151-217-0	02	1	1306-	●	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-97379-882-0	02	1	1306-	●	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-97379-927-0	02	1	1306-	●	●	●
115	RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (C)	8-94457-277-1	02	1	1306-	●
115	RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (D)	8-94457-278-1	02	1	1306-	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1306-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	1306-	●	●	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98011-818-0	01	1	1308-1508		●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98090-128-1	01	1	1306-	●	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-798-0	01	1	1306-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-798-0	01	1	1306-			●
126	PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-057-0	01	1	1306-	●
126	PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	1306-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-346-0	01	1	1306-1508		●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98283-855-0	01	1	1509-		●
337	BOLT; RUBBER,SUPPORT 4JJ1-TCC ENG(RDU) M10X35 FLANGE SOU	0-28651-035-0	02	1	1306-	●
345	BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98081-909-0	01	1	1306-	●
352	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	1306-1307	●	●	●
352	NUT; BRKT 4JJ1-TCC ENG(RDU) M10 FLANGE SOU	0-91180-110-0	02	1	1306-1307	●
352	NUT; BRKT 4JJ1-TCC ENG(RDU) M10 FLANGE SOU	0-91180-110-0	02	1	1306-1307	●
352	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	1308-	●	●	●
352	NUT; BRKT 4JJ1-TCC ENG(RDU) M10 FLANGE SOU	0-91180-110-0	02	1	1308-	●
352	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10 FLANGE SOU	0-91180-110-0	02	1	1308-	●
376	BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
576	BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) (A)	8-98074-124-1	01	1	1306-	●	●	●
576	BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) (B)	8-98082-019-0	01	1	1306-	●
577	BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (A)	8-98074-124-1	01	1	1306-	●	●	●
577	BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-98106-886-0	01	1	1306-	●

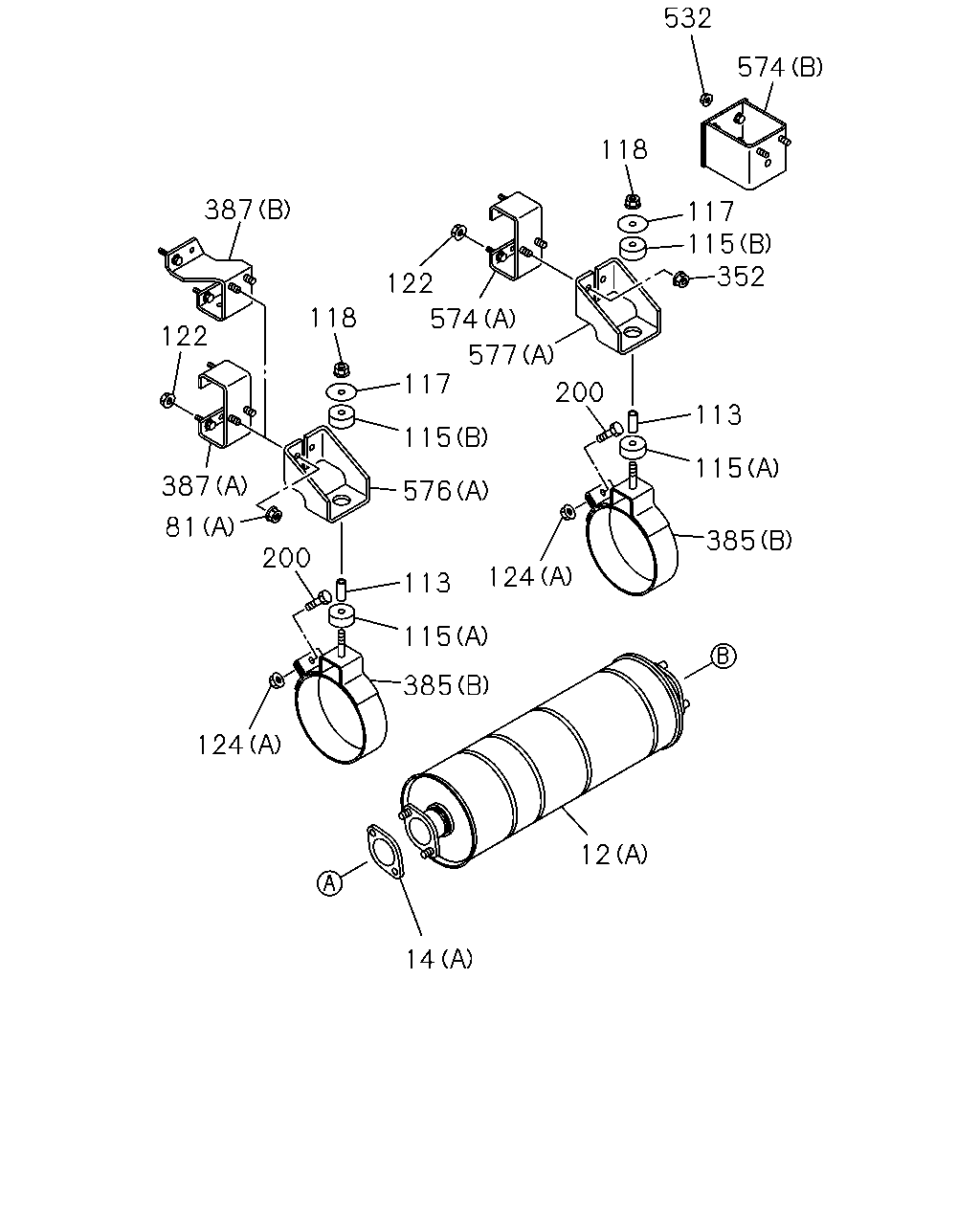

532 574 117 115 352 113 115 385 124 113 115 385 12 14 124 81 387 122 387 118 122 574 577 200 117 115 576 200 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) (A)	8-98090-839-0	01	1	1306-	●	●	●
12	SILENCER ASM; EXH 4JJ1-TCC ENG(RDU) (B)	8-98027-813-1	01	1	1306-	●
14	GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) (A) ID=64.7 SOU	8-94328-352-0	01	1	1306-	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) (B) ID=64	8-97373-108-0	01	1	1306-	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) G.V.W. 6.0-6.5TON(RPV) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-			●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) (A) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) G.V.W. 6.0-6.5TON(RPV) (A) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
113	COLLAR; DIST,MTG BRKT L=37.5 SOU	9-22151-217-0	02	1	1306-	●	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-97379-882-0	02	1	1306-	●	●	●
115	RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-97379-927-0	02	1	1306-	●	●	●
115	RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (C)	8-94457-277-1	02	1	1306-	●
115	RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (D)	8-94457-278-1	02	1	1306-	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1306-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	1306-	●	●	●
122	NUT; HANGER BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M8 SOU	0-91110-508-0	02	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
200	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M8X45 W/LK WASHER SOU	0-50540-845-0	02	1	1306-	●	●	●
352	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	1306-1307	●	●	●
352	NUT; BRKT 4JJ1-TCC ENG(RDU) M10 FLANGE SOU	0-91180-110-0	02	1	1306-1307	●
352	NUT; BRKT 4JJ1-TCC ENG(RDU) M10 FLANGE SOU	0-91180-110-0	02	1	1306-1307	●
352	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	02	1	1308-	●	●	●
352	NUT; BRKT 4JJ1-TCC ENG(RDU) M10 FLANGE SOU	0-91180-110-0	02	1	1308-	●
352	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10 FLANGE SOU	0-91180-110-0	02	1	1308-	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98074-495-1	01	1	1306-	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	1306-	●	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98101-911-0	01	1	1306-			●
387	SPACER; BRKT 4HK1-TCN ENG(RDQ) (A)	8-98044-774-0	01	1	1306-	●	●
387	SPACER; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98050-196-2	01	1	1306-			●
532	NUT 4HK1-TCN ENG(RDQ) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
532	NUT 4HK1-TCN ENG(RDQ) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
574	SPACER; DPD 4HK1-TCN ENG(RDQ) (A)	8-98044-774-0	01	1	1306-	●	●
574	SPACER; DPD 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98050-196-2	01	1	1306-			●
576	BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) (A)	8-98074-124-1	01	1	1306-	●	●	●
576	BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU) (B)	8-98082-019-0	01	1	1306-	●
577	BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (A)	8-98074-124-1	01	1	1306-	●	●	●
577	BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-98106-886-0	01	1	1306-	●

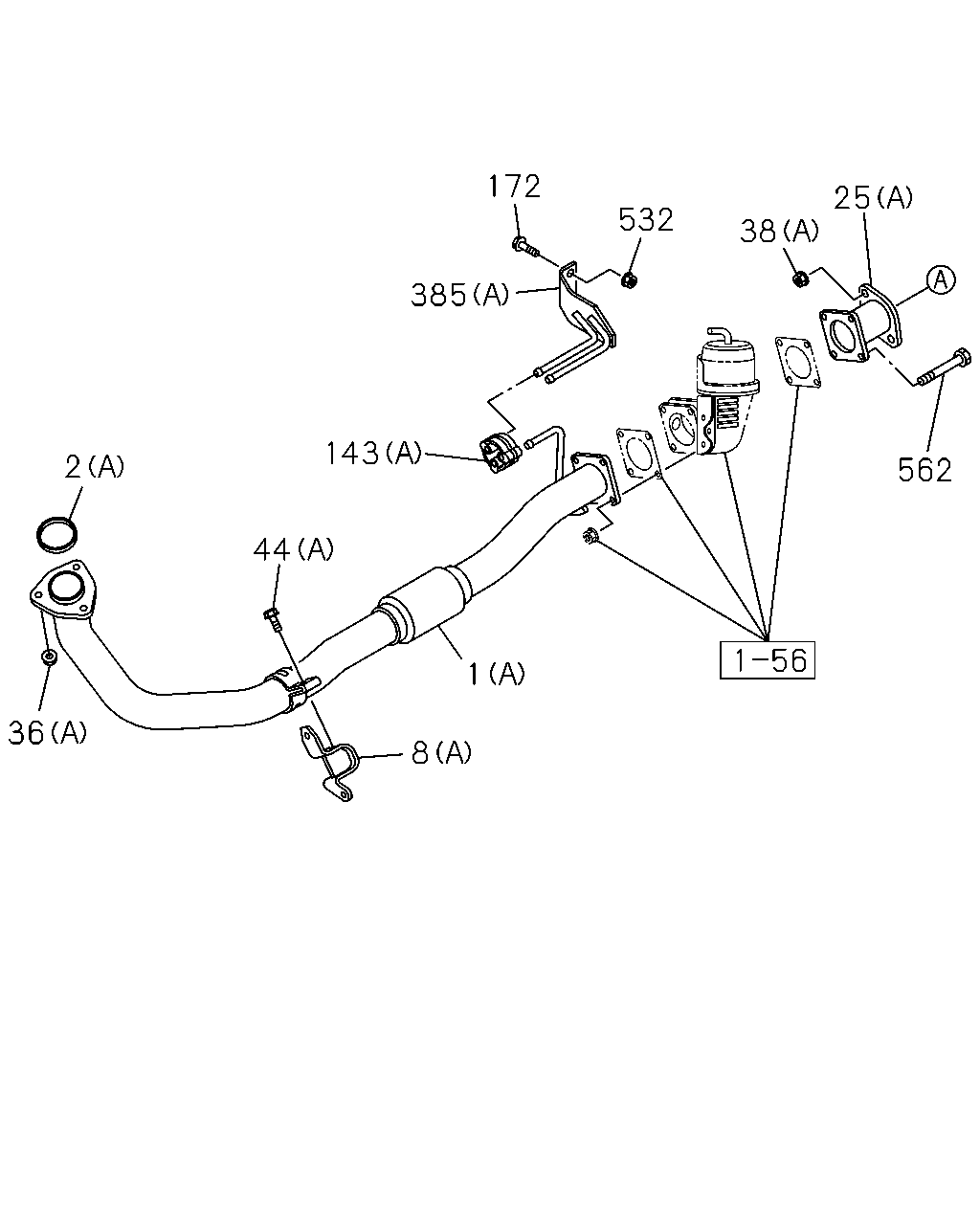

8 44 44 43 1 36 2 25 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98074-108-1	01	1	1306-	●	●	●
1	PIPE; EXH 4JJ1-TCC ENG(RDU) (B)	8-98075-966-0	01	1	1306-	●
2	GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ) (A)	8-97381-455-0	01	1	1306-	●	●	●
2	GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU) (B)	8-97384-590-0	01	1	1306-	●
8	BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) (A)	8-97365-228-0	01	1	1306-	●	●	●
8	BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU) (B)	8-98026-063-0	01	1	1306-	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) (A)	8-98074-109-0	01	1	1306-	●	●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) (B)	8-98082-064-0	01	1	1306-	●
36	NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
36	NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
36	NUT; EXH PIPE (A) M10 FLANGE SOU	8-97096-192-1	03	1	1306-	●	●	●
43	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU)	8-97351-200-1	01	1	1306-	●
44	BOLT; BRKT 4HK1-TCN ENG(RDQ) (A) M10X40 FLANGE	0-28051-040-0	01	1	1306-	●	●	●
44	BOLT; BRKT 4JJ1-TCC ENG(RDU) (C) M10X25 FLANGE	0-28151-025-0	02	1	1306-	●
44	BOLT; BRKT 4JJ1-TCC ENG(RDU) (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●
329	NUT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
329	NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) (B) M8 FLANGE SOU	0-91180-108-0	04	1	1306-	●

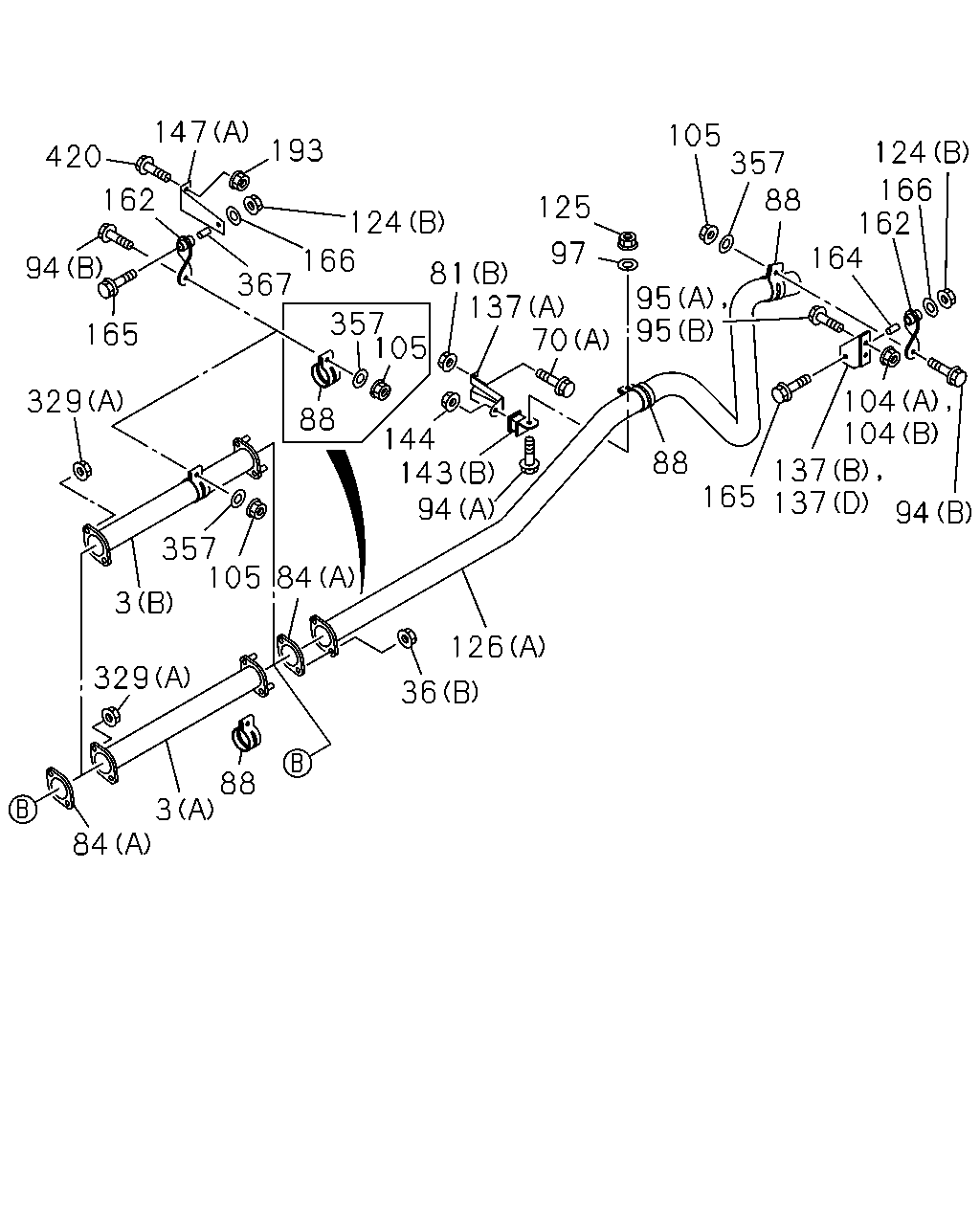

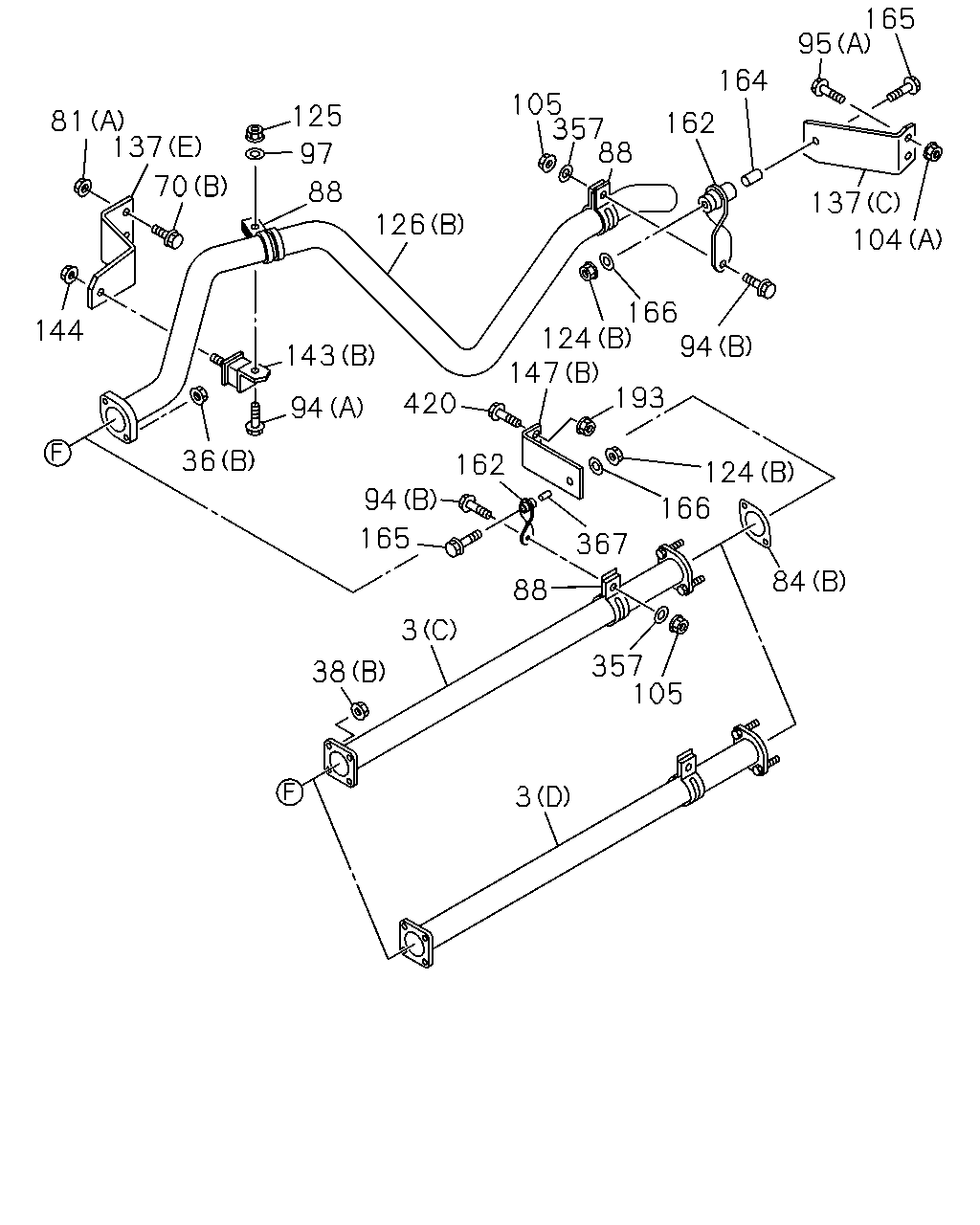

147 193 124 81 125 105 357 88 124 166 162 164 104 104 137 137 94 165 88 95 95 70 137 144 143 94 126 36 88 3 84 329 3 357 105 843 88 105 357 166 367 165 329 94 162 420 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (B)	8-98283-854-0	01	1	1509-		●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B)	8-98134-199-0	01	1	1306-1307	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (B)	8-98134-199-0	01	1	1306-1307			●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B)	8-98134-199-0	01	1	1308-1508	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (B)	8-98134-199-0	01	1	1308-1508		●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (B)	8-98134-199-0	01	1	1308-1508			●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B)	8-98134-199-0	01	1	1509-	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (B)	8-98134-199-0	01	1	1509-			●
3	PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98082-062-1	01	1	1306-	●
3	PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-063-1	01	1	1306-	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97307-804-0	01	1	1306-1508		●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98283-853-0	01	1	1509-		●
36	NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
36	NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
36	NUT; EXH PIPE (A) M10 FLANGE SOU	8-97096-192-1	03	1	1306-	●	●	●
70	BOLT; BRKT 4HK1-TCN ENG(RDQ) (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
70	BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) G.V.W. 6.0-6.5TON(RPV) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-			●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) (A) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) G.V.W. 6.0-6.5TON(RPV) (A) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
84	GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=64.7 SOU	8-94328-352-0	01	1	1306-	●	●	●
84	GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) (A) ID=64.7 SOU	8-94328-352-0	01	1	1306-	●	●	●
84	GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	1306-	●
84	GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	1306-	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1306-1508	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1306-1508	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1306-1508	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-97373-158-0	01	1	1306-1508	●	●	●
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1306-1508	●
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1306-1508	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1509-	●	●
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (A) M10X50 FLANGE	8-97301-165-0	01	1	1306-	●	●	●
94	BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X50 FLANGE	8-97301-165-0	01	1	1306-	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-	●	●	●
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-	●	●	●
94	BOLT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
95	BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-1307	●	●	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-1307		●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) M10X30 FLANGE SOU	0-28651-030-0	02	1	1308-	●	●	●
95	BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X30 FLANGE SOU	0-28651-030-0	02	1	1308-	●
97	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●	●	●
97	WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
104	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-1307	●	●	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-1307		●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1308-	●	●	●
104	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE SOU	0-91180-110-0	02	1	1308-	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 SOU	0-91110-510-0	01	1	1306-	●	●	●
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 SOU	0-91110-510-0	01	1	1306-	●	●	●
105	NUT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 SOU	0-91110-510-0	01	1	1306-	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M8 SOU	0-91110-508-0	02	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
125	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 SOU	0-91110-510-0	01	1	1306-	●	●	●
125	NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 SOU	0-91110-510-0	01	1	1306-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98011-818-0	01	1	1308-1508		●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98090-128-1	01	1	1306-	●	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-798-0	01	1	1306-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-798-0	01	1	1306-			●
126	PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-057-0	01	1	1306-	●
126	PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	1306-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-346-0	01	1	1306-1508		●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98283-855-0	01	1	1509-		●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (A)	8-97096-651-0	01	1	1306-	●	●	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97116-588-2	01	1	1306-	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97116-588-2	01	1	1306-		●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97116-588-2	01	1	1306-			●
137	BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98001-913-0	01	1	1306-	●
137	BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98019-904-2	01	1	1306-	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (D)	8-97185-801-0	01	1	1306-1307		●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D)	8-97185-801-0	01	1	1308-		●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1306-	●	●	●
143	RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	1306-	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	1306-	●	●	●
144	NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
144	NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
147	BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) (A)	8-98117-604-0	01	1	1306-	●	●	●
147	BRACKET; VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-146-0	01	1	1306-	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1306-1307	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1306-1307	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1306-1307	●
162	RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1306-1307	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) L=115	8-98034-765-0	01	1	1308-	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1308-	●
164	COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5 SOU	9-22151-217-0	01	1	1306-	●	●	●
164	COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=37.5 SOU	9-22151-217-0	01	1	1306-	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-	●	●	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-	●	●	●
165	BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-	●
165	BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●
193	NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
193	NUT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
329	NUT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
329	NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) (B) M8 FLANGE SOU	0-91180-108-0	04	1	1306-	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●	●	●
357	WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●	●	●
357	WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●
367	COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) L=37.5 SOU	9-22151-217-0	01	1	1306-	●	●	●
367	COLLAR; DIST,SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=37.5 SOU	9-22151-217-0	01	1	1306-	●
420	BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●	●	●
420	BOLT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●

165 95 164 162 137 104 94 166 124 147 193 124 84 166 367 357 105 3 3 88 38 165 94 162 420 143 94 126 105 357 88 88 125 97 70 137 81 144 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (B)	8-98283-854-0	01	1	1509-		●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B)	8-98134-199-0	01	1	1306-1307	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (B)	8-98134-199-0	01	1	1306-1307			●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B)	8-98134-199-0	01	1	1308-1508	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (B)	8-98134-199-0	01	1	1308-1508		●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (B)	8-98134-199-0	01	1	1308-1508			●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B)	8-98134-199-0	01	1	1509-	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (B)	8-98134-199-0	01	1	1509-			●
3	PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98082-062-1	01	1	1306-	●
3	PIPE; EXH,CENTER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98082-063-1	01	1	1306-	●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97307-804-0	01	1	1306-1508		●
3	PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98283-853-0	01	1	1509-		●
36	NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
36	NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
36	NUT; EXH PIPE (A) M10 FLANGE SOU	8-97096-192-1	03	1	1306-	●	●	●
38	NUT; SILENCER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
38	NUT; SILENCER 4JJ1-TCC ENG(RDU) (B) M8 FLANGE SOU	0-91180-108-0	04	1	1306-	●
70	BOLT; BRKT 4HK1-TCN ENG(RDQ) (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
70	BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) G.V.W. 6.0-6.5TON(RPV) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
81	NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-			●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> G.V.W. 6.0-6.5TON(RPV) (A) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> G.V.W. 6.0-6.5TON(RPV) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
81	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) G.V.W. 6.0-6.5TON(RPV) (A) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
84	GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=64.7 SOU	8-94328-352-0	01	1	1306-	●	●	●
84	GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) (A) ID=64.7 SOU	8-94328-352-0	01	1	1306-	●	●	●
84	GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	1306-	●
84	GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=65	8-97148-757-1	01	1	1306-	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1306-1508	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1306-1508	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1306-1508	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-97373-158-0	01	1	1306-1508	●	●	●
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1306-1508	●
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1306-1508	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ)	8-97373-158-0	01	1	1509-	●	●	●
88	CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1509-	●	●
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
88	CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1509-	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (A) M10X50 FLANGE	8-97301-165-0	01	1	1306-	●	●	●
94	BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X50 FLANGE	8-97301-165-0	01	1	1306-	●
94	BOLT; CLAMP 4HK1-TCN ENG(RDQ) (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-	●	●	●
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-	●	●	●
94	BOLT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 FLANGE SOU	0-28051-045-0	01	1	1306-	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
95	BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-1307	●	●	●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-1307		●
95	BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) M10X30 FLANGE SOU	0-28651-030-0	02	1	1308-	●	●	●
95	BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X30 FLANGE SOU	0-28651-030-0	02	1	1308-	●
97	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●	●	●
97	WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
104	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-1307	●	●	●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-1307		●
104	NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1308-	●	●	●
104	NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE SOU	0-91180-110-0	02	1	1308-	●
105	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 SOU	0-91110-510-0	01	1	1306-	●	●	●
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 SOU	0-91110-510-0	01	1	1306-	●	●	●
105	NUT; CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 SOU	0-91110-510-0	01	1	1306-	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (A) M8 SOU	0-91110-508-0	02	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
124	NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●
125	NUT; CLAMP 4HK1-TCN ENG(RDQ) M10 SOU	0-91110-510-0	01	1	1306-	●	●	●
125	NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 SOU	0-91110-510-0	01	1	1306-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98011-818-0	01	1	1308-1508		●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98090-128-1	01	1	1306-	●	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-798-0	01	1	1306-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-798-0	01	1	1306-			●
126	PIPE; EXH,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-057-0	01	1	1306-	●
126	PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	1306-	●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98134-346-0	01	1	1306-1508		●
126	PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98283-855-0	01	1	1509-		●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (A)	8-97096-651-0	01	1	1306-	●	●	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97116-588-2	01	1	1306-	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97116-588-2	01	1	1306-		●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97116-588-2	01	1	1306-			●
137	BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98001-913-0	01	1	1306-	●
137	BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98019-904-2	01	1	1306-	●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (D)	8-97185-801-0	01	1	1306-1307		●
137	BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D)	8-97185-801-0	01	1	1308-		●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1306-	●	●	●
143	RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	1306-	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	1306-	●	●	●
144	NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
144	NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
147	BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) (A)	8-98117-604-0	01	1	1306-	●	●	●
147	BRACKET; VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98082-146-0	01	1	1306-	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1306-1307	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) L=115	8-98034-765-0	01	1	1306-1307	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1306-1307	●
162	RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1306-1307	●
162	RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) L=115	8-98034-765-0	01	1	1308-	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=115	8-98034-765-0	01	1	1308-	●
164	COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5 SOU	9-22151-217-0	01	1	1306-	●	●	●
164	COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=37.5 SOU	9-22151-217-0	01	1	1306-	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-	●	●	●
165	BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-	●	●	●
165	BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-	●
165	BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE SOU	0-28051-070-0	01	1	1306-	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4HK1-TCN ENG(RDQ) ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●
193	NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
193	NUT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
357	WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●	●	●
357	WASHER; PL,CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●	●	●
357	WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5 OD=22	0-91614-610-0	01	1	1306-	●
367	COLLAR; DIST,SUPPORT RUBBER 4HK1-TCN ENG(RDQ) L=37.5 SOU	9-22151-217-0	01	1	1306-	●	●	●
367	COLLAR; DIST,SUPPORT RUBBER 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> L=37.5 SOU	9-22151-217-0	01	1	1306-	●
420	BOLT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●	●	●
420	BOLT; BRKT,VERTICAL PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●

562 25 38 532 172 385 143 44 2 1 8 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-98074-108-1	01	1	1306-	●	●	●
1	PIPE; EXH 4JJ1-TCC ENG(RDU) (B)	8-98075-966-0	01	1	1306-	●
2	GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ) (A)	8-97381-455-0	01	1	1306-	●	●	●
2	GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU) (B)	8-97384-590-0	01	1	1306-	●
8	BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) (A)	8-97365-228-0	01	1	1306-	●	●	●
8	BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU) (B)	8-98026-063-0	01	1	1306-	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) (A)	8-98074-109-0	01	1	1306-	●	●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) (B)	8-98082-064-0	01	1	1306-	●
36	NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
36	NUT; EXH PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●
36	NUT; EXH PIPE (A) M10 FLANGE SOU	8-97096-192-1	03	1	1306-	●	●	●
38	NUT; SILENCER 4HK1-TCN ENG(RDQ) (A) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
38	NUT; SILENCER 4JJ1-TCC ENG(RDU) (B) M8 FLANGE SOU	0-91180-108-0	04	1	1306-	●
44	BOLT; BRKT 4HK1-TCN ENG(RDQ) (A) M10X40 FLANGE	0-28051-040-0	01	1	1306-	●	●	●
44	BOLT; BRKT 4JJ1-TCC ENG(RDU) (C) M10X25 FLANGE	0-28151-025-0	02	1	1306-	●
44	BOLT; BRKT 4JJ1-TCC ENG(RDU) (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	1306-	●	●	●
143	RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98034-767-0	01	1	1306-	●
143	RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (A)	8-97080-694-0	01	1	1306-	●	●	●
172	BOLT 4HK1-TCN ENG(RDQ) M10X35 FLANGE SOU	0-28651-035-0	02	1	1306-	●	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98074-495-1	01	1	1306-	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	02	1	1306-	●	●	●
385	BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98101-911-0	01	1	1306-			●
532	NUT 4HK1-TCN ENG(RDQ) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
532	NUT 4HK1-TCN ENG(RDQ) M10 FLANGE SOU	0-91180-110-0	02	1	1306-	●	●	●
562	PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) M8X70	0-10855-870-0	04	1	1306-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
