Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#122648) — 394 parça

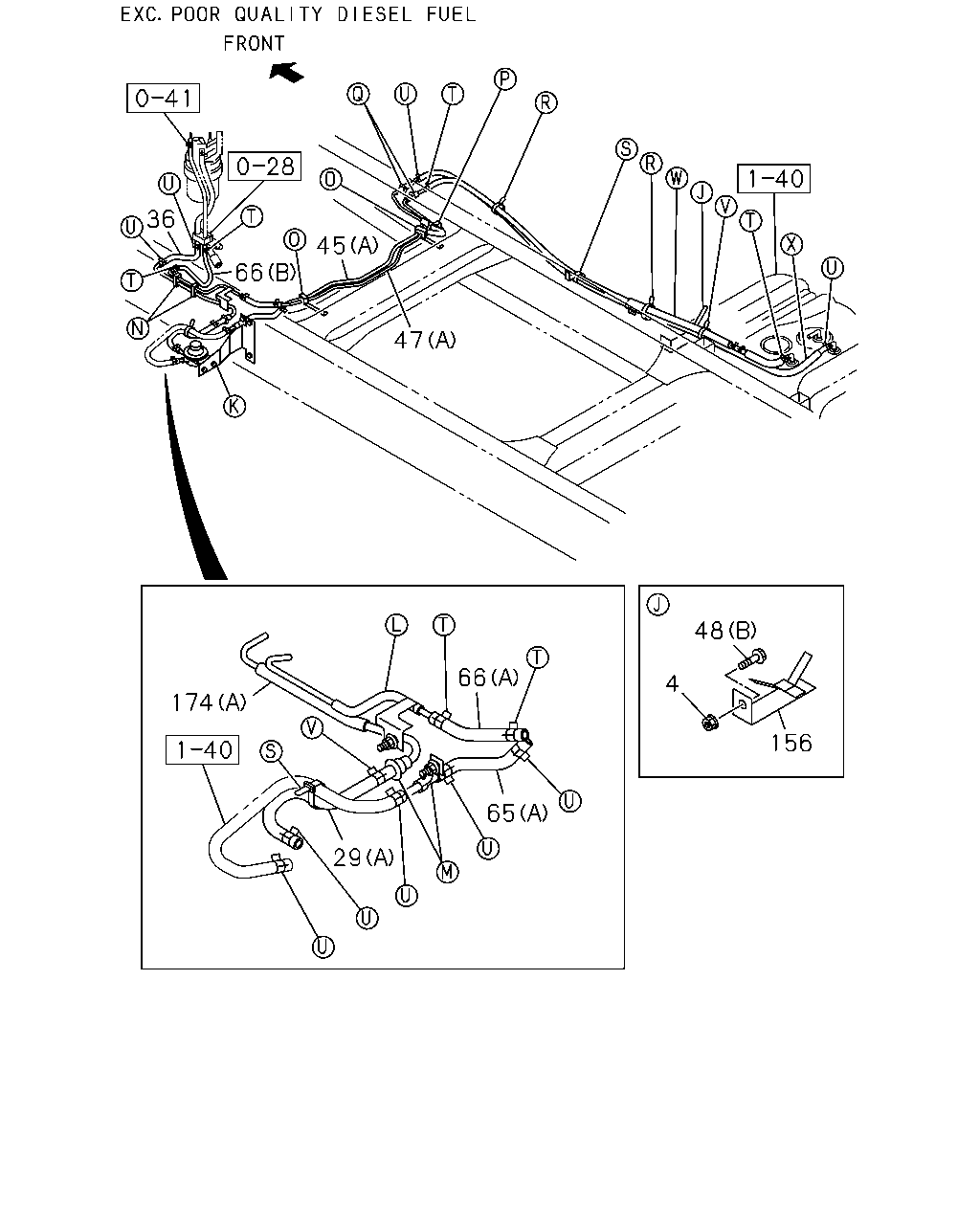

36 66 45 47 174 66 29 65 48 4 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1306-	●	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-564-4	01	1	1306-1307	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-564-4	01	1	1308-	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1306-	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-563-4	01	1	1306-		●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-563-4	01	1	1306-		●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) (B)	8-98067-563-4	01	1	1306-			●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	1306-	●	●	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98105-710-0	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98105-757-1	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0),FRAME STRAIGHTTYPE<7KJ> (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●
36	HOSE; FUEL,FILTER TO TANK 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98171-618-0	01	1	1306-	●	●	●
36	HOSE; FUEL,FILTER TO TANK 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ>	8-98034-028-1	01	1	1306-	●	●	●
45	PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-936-3	01	1	1306-	●	●	●
45	PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-681-1	01	1	1306-	●	●	●
45	PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-681-1	01	1	1306-		●
45	PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-974-0	01	1	1306-	●
45	PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98070-973-0	01	1	1306-	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1306-1307	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1306-1307	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1306-1307		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1306-1307		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (C) L=70	8-98036-483-0	01	1	1306-1307			●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1308-	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1308-	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1308-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1308-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (C) L=70	8-98036-483-0	01	1	1308-			●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	1306-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=1743	8-98070-976-0	01	1	1306-	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=1712	8-98070-975-0	01	1	1306-	●
48	BOLT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
48	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-		●
48	BOLT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-671-0	01	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98072-316-0	01	1	1306-	●
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97389-774-0	01	1	1306-	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	1306-1307	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	1308-	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C)	8-98067-566-2	01	1	1306-	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (C)	8-98067-566-2	01	1	1306-			●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98093-616-0	01	1	1306-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98072-317-1	01	1	1306-	●
156	BRACKET; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	1306-	●
156	BRACKET; FUEL HOSE 4HK1-TCN ENG(RDQ)	8-98041-250-2	01	1	1306-		●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98070-972-0	01	1	1306-	●

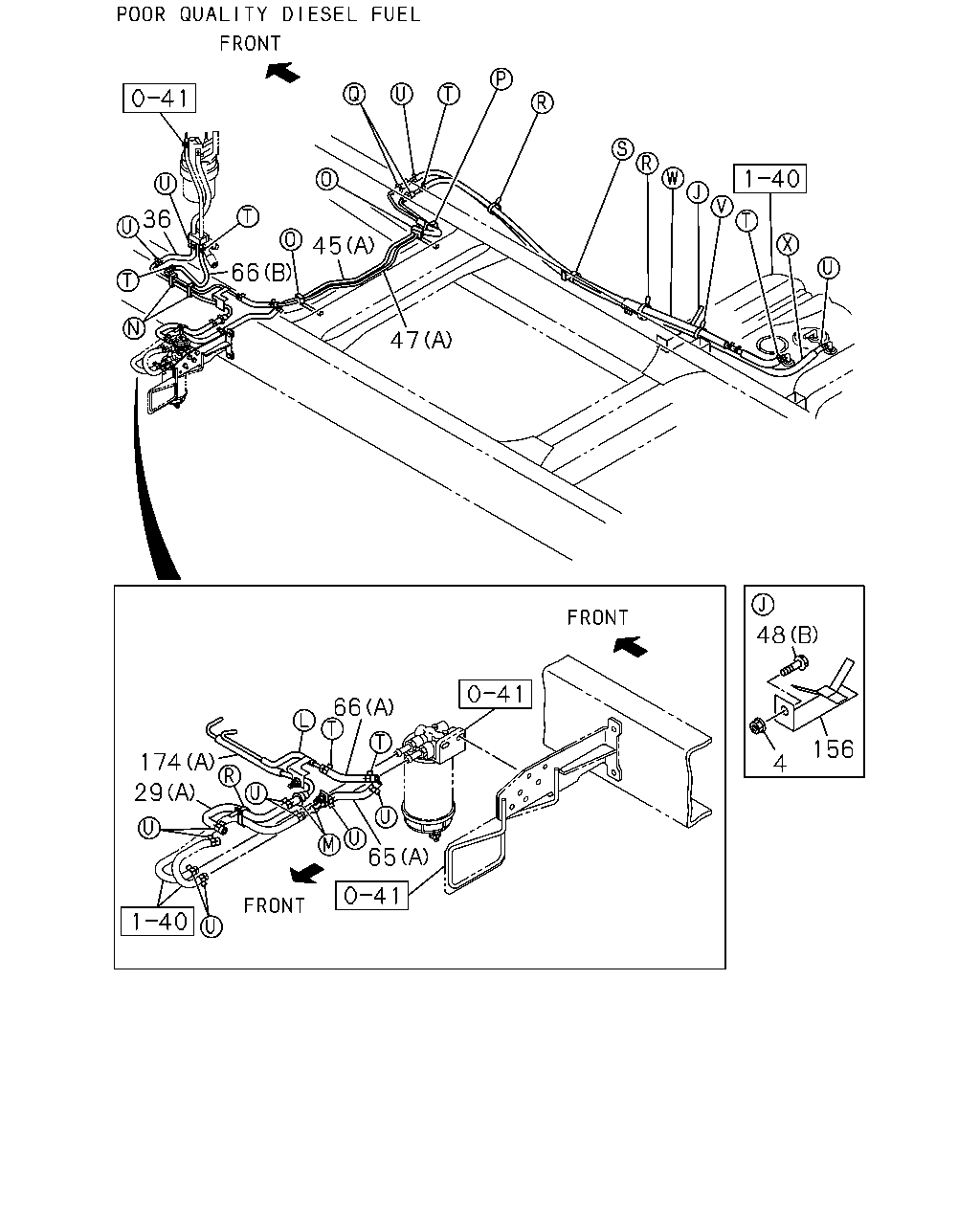

36 45 66 47 66 174 29 65 48 4 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1306-	●	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-564-4	01	1	1306-1307	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-564-4	01	1	1308-	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1306-	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-563-4	01	1	1306-		●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-563-4	01	1	1306-		●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) (B)	8-98067-563-4	01	1	1306-			●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	1306-	●	●	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98105-710-0	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98105-757-1	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0),FRAME STRAIGHTTYPE<7KJ> (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●
36	HOSE; FUEL,FILTER TO TANK 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98171-618-0	01	1	1306-	●	●	●
36	HOSE; FUEL,FILTER TO TANK 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ>	8-98034-028-1	01	1	1306-	●	●	●
45	PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-936-3	01	1	1306-	●	●	●
45	PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-681-1	01	1	1306-	●	●	●
45	PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-681-1	01	1	1306-		●
45	PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-974-0	01	1	1306-	●
45	PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98070-973-0	01	1	1306-	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1306-1307	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1306-1307	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1306-1307		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1306-1307		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (C) L=70	8-98036-483-0	01	1	1306-1307			●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1308-	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1308-	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1308-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1308-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (C) L=70	8-98036-483-0	01	1	1308-			●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	1306-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=1743	8-98070-976-0	01	1	1306-	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=1712	8-98070-975-0	01	1	1306-	●
48	BOLT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
48	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-		●
48	BOLT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-671-0	01	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98072-316-0	01	1	1306-	●
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97389-774-0	01	1	1306-	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	1306-1307	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	1308-	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C)	8-98067-566-2	01	1	1306-	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (C)	8-98067-566-2	01	1	1306-			●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98093-616-0	01	1	1306-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98072-317-1	01	1	1306-	●
156	BRACKET; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	1306-	●
156	BRACKET; FUEL HOSE 4HK1-TCN ENG(RDQ)	8-98041-250-2	01	1	1306-		●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98070-972-0	01	1	1306-	●

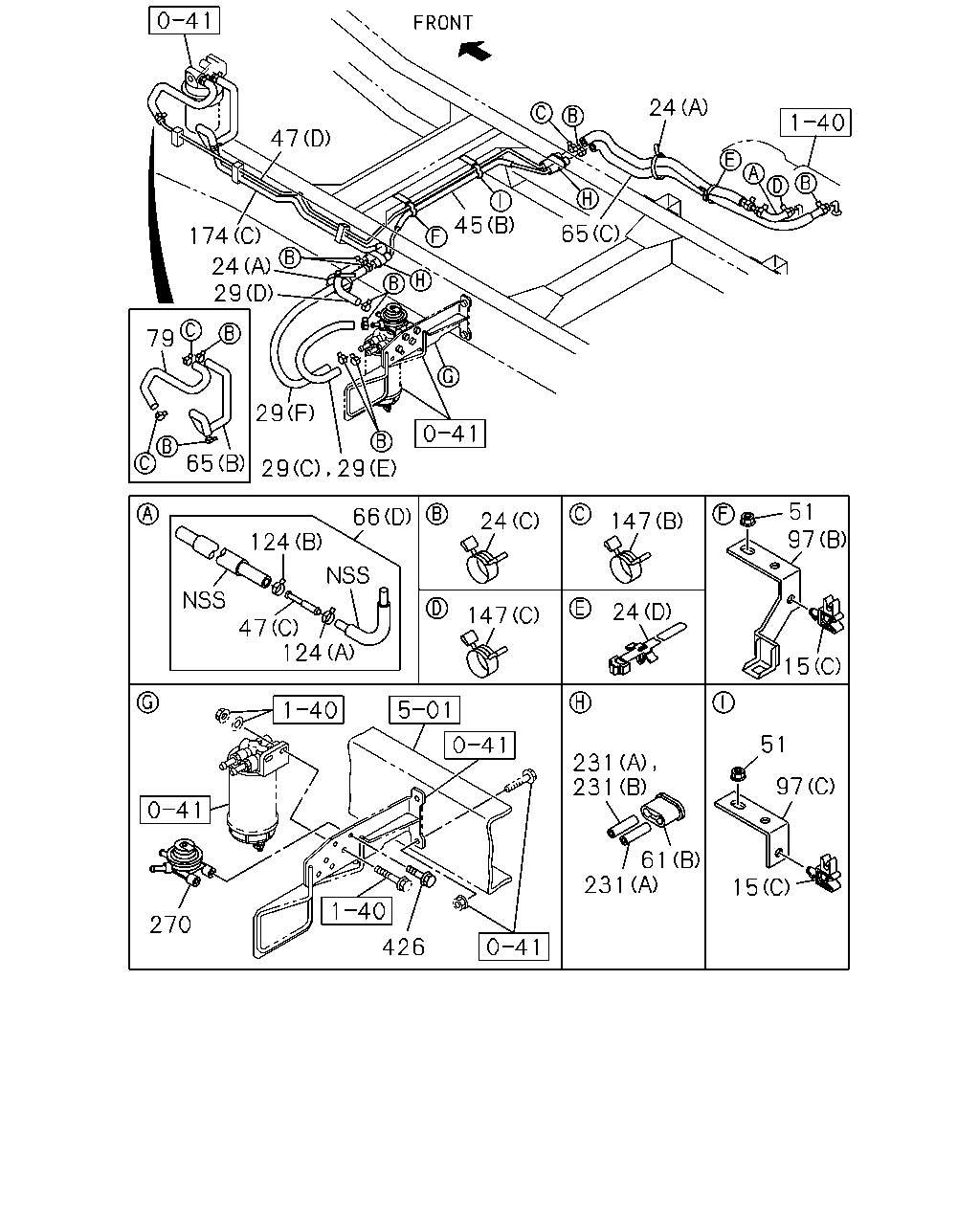

66 124 47 124 29 147 311 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1306-	●	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-564-4	01	1	1306-1307	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-564-4	01	1	1308-	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1306-	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-563-4	01	1	1306-		●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-563-4	01	1	1306-		●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) (B)	8-98067-563-4	01	1	1306-			●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	1306-	●	●	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98105-710-0	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98105-757-1	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0),FRAME STRAIGHTTYPE<7KJ> (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1306-1307	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1306-1307	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1306-1307		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1306-1307		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (C) L=70	8-98036-483-0	01	1	1306-1307			●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1308-	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1308-	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1308-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1308-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (C) L=70	8-98036-483-0	01	1	1308-			●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	1306-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=1743	8-98070-976-0	01	1	1306-	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=1712	8-98070-975-0	01	1	1306-	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	1306-1307	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	1308-	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C)	8-98067-566-2	01	1	1306-	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (C)	8-98067-566-2	01	1	1306-			●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98093-616-0	01	1	1306-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98072-317-1	01	1	1306-	●
124	CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1306-1307	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1306-1307	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (A) ID=13	8-98150-357-0	01	1	1306-1307		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=13	8-98150-357-0	01	1	1306-1307		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) (A) ID=13	8-98150-357-0	01	1	1306-1307			●
124	CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1308-	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1308-	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (A) ID=13	8-98150-357-0	01	1	1308-		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=13	8-98150-357-0	01	1	1308-		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) (A) ID=13	8-98150-357-0	01	1	1308-			●
124	CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	01	1	1306-1307	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	01	1	1306-1307	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (B) ID=12	8-98150-358-0	01	1	1306-1307		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (B) ID=12	8-98150-358-0	01	1	1306-1307		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) (B) ID=12	8-98150-358-0	01	1	1306-1307			●
124	CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	01	1	1308-	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	01	1	1308-	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (B) ID=12	8-98150-358-0	01	1	1308-		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (B) ID=12	8-98150-358-0	01	1	1308-		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) (B) ID=12	8-98150-358-0	01	1	1308-			●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	01	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	03	1	1306-	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
311	JOINT; HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97353-668-0	01	1	1306-	●	●	●

47 174 24 29 29 29 29 45 65 24 79 65 66 124 47 124 24 147 147 24 51 97 15 270 426 231 231 231 51 97 15 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-1307	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-1307	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-1307		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-1307		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-1307		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1308-	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1308-	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1308-		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1308-		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1308-		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1306-	●	●	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1306-	●	●	●
15	CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	1306-	●	●	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) (E) ID=28 L=60	1-09700-585-1	01	1	1306-			●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) L=170.3	1-09987-182-0	01	1	1306-	●
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=170.3	1-09987-182-0	01	1	1306-	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (D) L=170.3	1-09987-182-0	01	1	1306-		●	●
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SOU	5-09707-031-1	01	1	1306-	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) L=140 SOU	5-09707-031-1	01	1	1306-	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (A) L=140 SOU	5-09707-031-1	01	1	1306-		●	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) L=140 SOU	5-09707-031-1	02	1	1306-	●	●	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) ID=16	8-98008-098-0	04	1	1306-	●	●	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	02	1	1306-	●	●	●
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=16	8-98008-098-0	02	1	1306-	●
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=250 SOU	5-09707-030-1	01	1	1306-	●
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=16	8-98008-098-0	08	1	1306-	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (A) L=450	1-09707-142-1	01	1	1306-			●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1306-	●	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-564-4	01	1	1306-1307	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-564-4	01	1	1308-	●	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1306-	●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-563-4	01	1	1306-		●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (B)	8-98067-563-4	01	1	1306-		●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) (B)	8-98067-563-4	01	1	1306-			●
29	HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	1306-	●	●	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98105-710-0	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98105-757-1	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0),FRAME STRAIGHTTYPE<7KJ> (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●
29	HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●
45	PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-936-3	01	1	1306-	●	●	●
45	PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-681-1	01	1	1306-	●	●	●
45	PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-681-1	01	1	1306-		●
45	PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-974-0	01	1	1306-	●
45	PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98070-973-0	01	1	1306-	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1306-1307	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1306-1307	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1306-1307		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1306-1307		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (C) L=70	8-98036-483-0	01	1	1306-1307			●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1308-	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1308-	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1308-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1308-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (C) L=70	8-98036-483-0	01	1	1308-			●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	1306-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=1743	8-98070-976-0	01	1	1306-	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=1712	8-98070-975-0	01	1	1306-	●
51	NUT; CLIP,PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> M10	0-91111-510-0	02	1	1306-	●
61	GROMMET; PIPE TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=17	8-94128-319-2	01	1	1306-	●	●	●
61	GROMMET; PIPE TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=17	8-94128-319-2	02	1	1306-	●	●	●
61	GROMMET; PIPE TO FRAME 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98038-801-0	02	1	1306-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-671-0	01	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●	●	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1306-		●
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98072-316-0	01	1	1306-	●
65	HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97389-774-0	01	1	1306-	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	1306-1307	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-567-2	01	1	1308-	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C)	8-98067-566-2	01	1	1306-	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C)	8-98067-566-2	01	1	1306-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (C)	8-98067-566-2	01	1	1306-			●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98093-616-0	01	1	1306-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●	●	●
66	HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98072-317-1	01	1	1306-	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97389-778-1	01	1	1306-	●
97	BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-653-0	02	1	1306-	●	●	●
97	BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-203-0	02	1	1306-	●	●	●
97	BRACKET; CLIP 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-480-1	01	1	1306-	●
97	BRACKET; CLIP 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98039-929-1	01	1	1306-	●
124	CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1306-1307	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1306-1307	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (A) ID=13	8-98150-357-0	01	1	1306-1307		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=13	8-98150-357-0	01	1	1306-1307		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) (A) ID=13	8-98150-357-0	01	1	1306-1307			●
124	CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1308-	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1308-	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (A) ID=13	8-98150-357-0	01	1	1308-		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=13	8-98150-357-0	01	1	1308-		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) (A) ID=13	8-98150-357-0	01	1	1308-			●
124	CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	01	1	1306-1307	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	01	1	1306-1307	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (B) ID=12	8-98150-358-0	01	1	1306-1307		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (B) ID=12	8-98150-358-0	01	1	1306-1307		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) (B) ID=12	8-98150-358-0	01	1	1306-1307			●
124	CLIP; HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	01	1	1308-	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	01	1	1308-	●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (B) ID=12	8-98150-358-0	01	1	1308-		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (B) ID=12	8-98150-358-0	01	1	1308-		●
124	CLIP; HOSE 4HK1-TCN ENG(RDQ) (B) ID=12	8-98150-358-0	01	1	1308-			●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	01	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	03	1	1306-	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98070-972-0	01	1	1306-	●
231	RUBBER; SUPPORT,FUEL PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=17 L=50 SOU	8-94157-054-1	01	1	1306-	●
231	RUBBER; SUPPORT,FUEL PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=16.5 L=50	8-97214-235-0	03	1	1306-	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	1306-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●	●

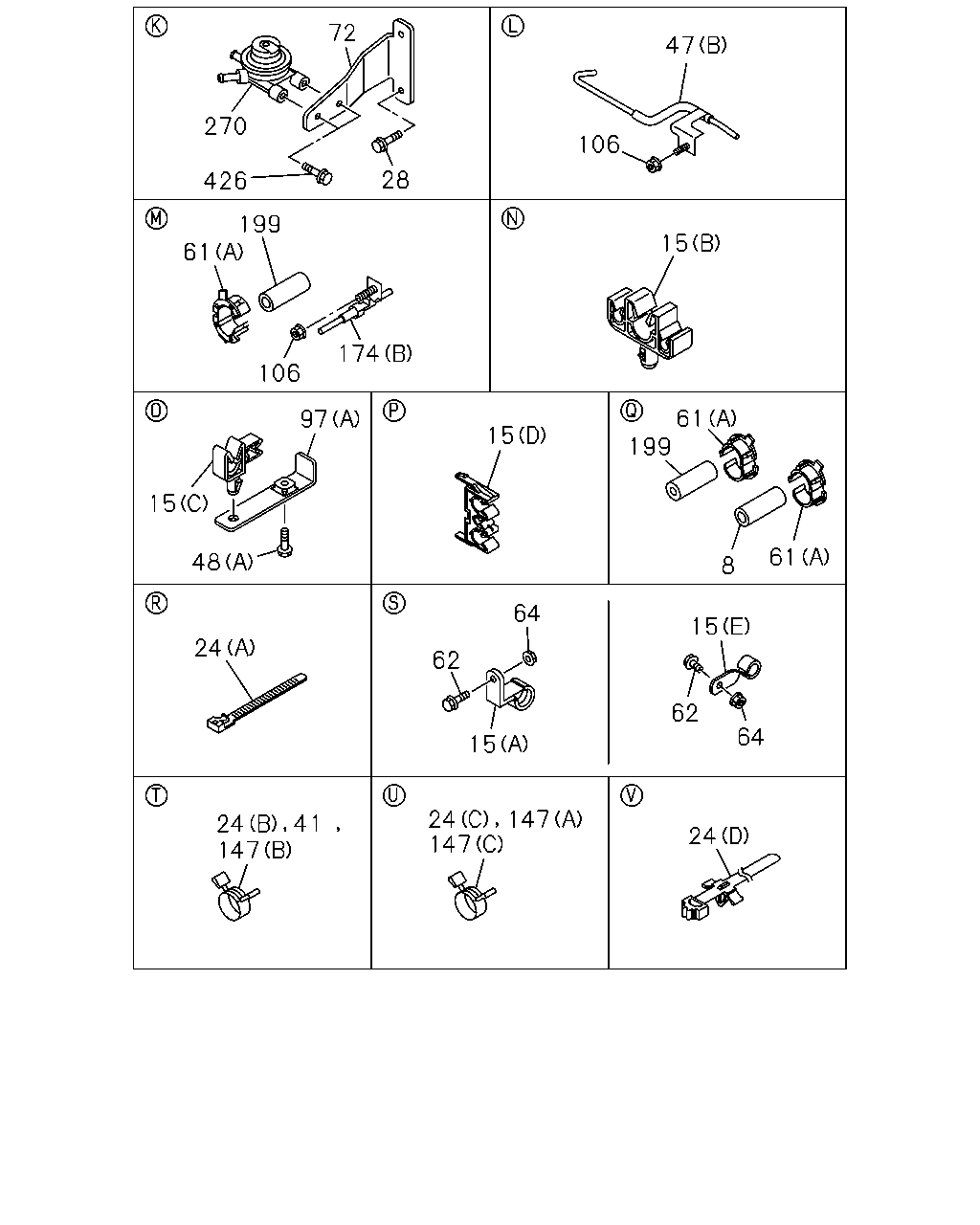

147 24 41 24 147 147 24 62 64 15 64 62 15 8 61 61 199 15 97 48 24 15 106 174 106 15 47 28 72 270 426 199 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	RUBBER; MTG 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> OD=17 L=50 SOU	8-94157-054-1	01	1	1306-	●	●	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-1307	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-1307	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-1307		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-1307		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-1307		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1308-	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1308-	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1308-		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1308-		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1308-		●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1306-	●	●	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1306-	●	●	●
15	CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	1306-	●	●	●
15	CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) (E) ID=28 L=60	1-09700-585-1	01	1	1306-			●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) L=170.3	1-09987-182-0	01	1	1306-	●
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=170.3	1-09987-182-0	01	1	1306-	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (D) L=170.3	1-09987-182-0	01	1	1306-		●	●
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140 SOU	5-09707-031-1	01	1	1306-	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) L=140 SOU	5-09707-031-1	01	1	1306-	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (A) L=140 SOU	5-09707-031-1	01	1	1306-		●	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) L=140 SOU	5-09707-031-1	02	1	1306-	●	●	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) ID=16	8-98008-098-0	04	1	1306-	●	●	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	02	1	1306-	●	●	●
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=16	8-98008-098-0	02	1	1306-	●
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=250 SOU	5-09707-030-1	01	1	1306-	●
24	CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=16	8-98008-098-0	08	1	1306-	●
24	CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (A) L=450	1-09707-142-1	01	1	1306-			●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS VAR.2(6GQ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-1410	●		●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU	0-28651-030-0	02	1	1411-1504	●
28	BOLT; BRKT,FUEL PUMP 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU	0-28651-030-0	02	1	1411-1504			●
28	BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU	0-28651-030-0	02	1	1505-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> ID=12	8-98150-358-0	02	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1306-1307	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1306-1307	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1306-1307		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1306-1307		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (C) L=70	8-98036-483-0	01	1	1306-1307			●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1308-	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1308-	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1308-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W), WHEEL BASE 4400MM(44W) EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) L=70	8-98036-483-0	01	1	1308-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (C) L=70	8-98036-483-0	01	1	1308-			●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) MINI BUS CHASSIS VAR.2(6GQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	1306-		●
47	PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	1306-	●	●	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=1743	8-98070-976-0	01	1	1306-	●
47	PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=1712	8-98070-975-0	01	1	1306-	●
48	BOLT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
48	BOLT; BRKT 4HK1-TCN ENG(RDQ) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-		●
48	BOLT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
61	GROMMET; PIPE TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=17	8-94128-319-2	01	1	1306-	●	●	●
61	GROMMET; PIPE TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=17	8-94128-319-2	02	1	1306-	●	●	●
61	GROMMET; PIPE TO FRAME 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98038-801-0	02	1	1306-	●
62	BOLT; CLIP FIX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●	●	●
62	BOLT; CLIP FIX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●	●
64	NUT; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
64	NUT; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0),MINI BUS CHASSIS VAR.2(6GQ)	8-98084-815-1	01	1	1306-1410	●		●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98084-815-1	01	1	1411-	●
72	BRACKET; FUEL PUMP & FILTER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98084-815-1	01	1	1411-			●
97	BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-653-0	02	1	1306-	●	●	●
97	BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-203-0	02	1	1306-	●	●	●
97	BRACKET; CLIP 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-480-1	01	1	1306-	●
97	BRACKET; CLIP 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98039-929-1	01	1	1306-	●
106	NUT; FUEL PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
106	NUT; FUEL PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	01	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-98150-358-0	03	1	1306-	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
147	CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	1306-	●	●	●
174	PIPE; FUEL,FEED,FRT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98070-972-0	01	1	1306-	●
199	PROTECTOR; FUEL PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1306-	●	●	●
199	PROTECTOR; FUEL PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1306-	●	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	1306-1408	●	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●	●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
