Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#122645) — 450 parça

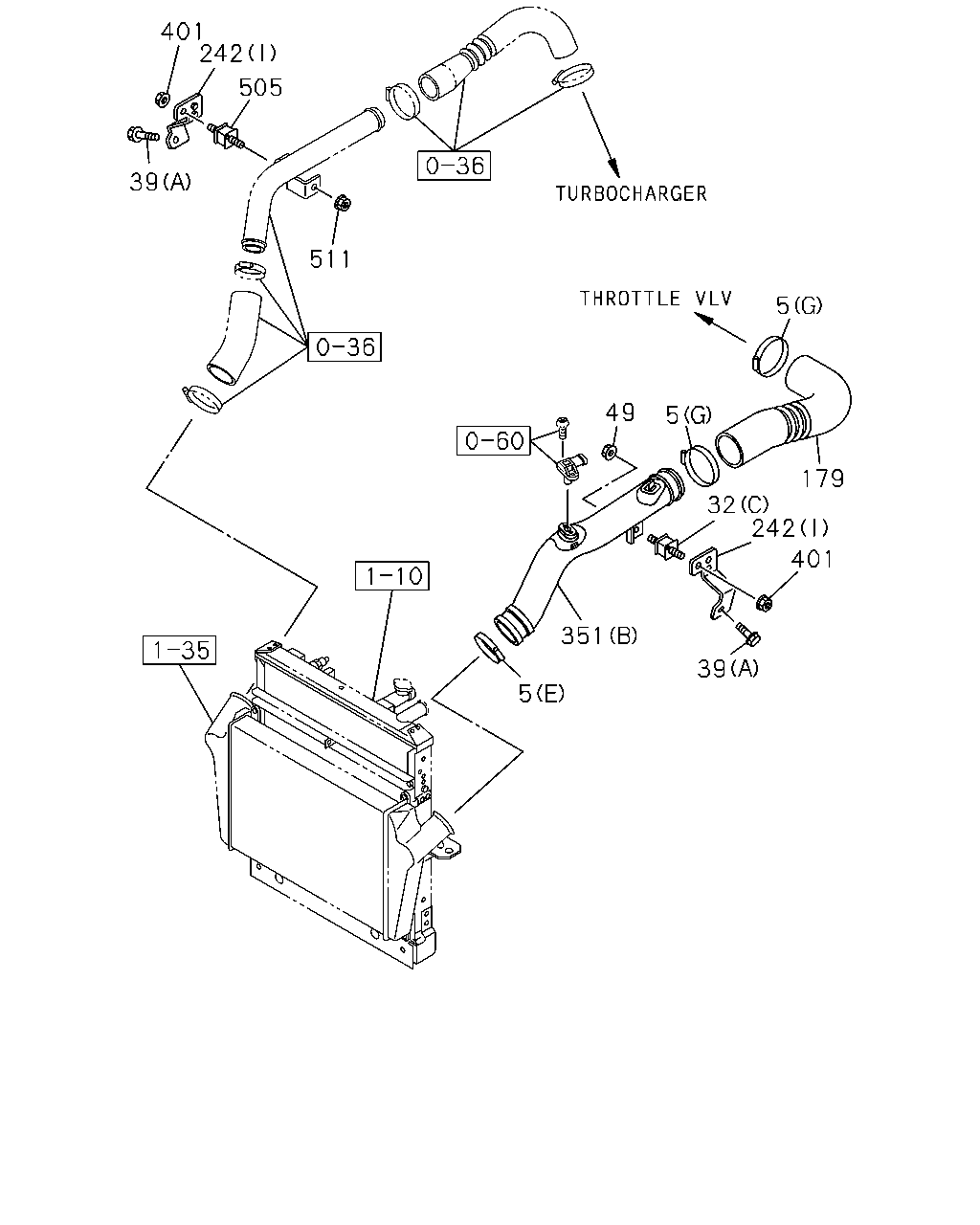

401 242 32 179 5 49 5 511 505 242 401 39 5 351 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT (C) D=101.6 SOU	9-09915-502-1	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (G) ID=75-95	8-98133-357-0	02	1	1306-	●	●	●
5	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (B) ID=45-65	8-98133-348-0	01	1	1306-	●
5	CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (E) ID=65-85	8-98133-350-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (E) ID=65-85	8-98133-350-0	02	1	1306-			●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (F) ID=112	9-09915-074-1	01	1	1306-			●
32	RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ) (C) SOU	8-97081-886-0	01	1	1306-	●	●	●
32	RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	01	1	1306-	●
32	RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) (A) OD=23	8-97105-689-6	01	1	1306-	●
39	BOLT; BRKT 4JJ1-TCC ENG(RDU) (B) M8X14 FLANGE	8-97378-075-0	01	1	1306-	●
39	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
49	NUT; AIR DUCT M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
179	HOSE; AIR INT 4HK1-TCN ENG(RDQ)	8-98114-719-0	01	1	1306-	●	●	●
179	HOSE; AIR INT 4JJ1-TCC ENG(RDU)	8-98050-920-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1306-	●
242	BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (C)	8-98036-646-2	01	1	1306-		●
242	BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (D)	8-98036-647-2	01	1	1306-		●
242	BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (E)	8-98036-649-2	01	1	1306-		●
242	BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (A)	8-98145-112-1	01	1	1306-		●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98049-012-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (F)	8-98055-243-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (G)	8-98055-246-2	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (H)	8-98055-247-1	01	1	1306-			●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98105-722-1	01	1	1306-	●	●	●
351	DUCT; AIR 4JJ1-TCC ENG(RDU) (A)	8-98051-032-1	01	1	1306-	●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C)	8-98070-850-0	01	1	1306-			●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98070-863-1	01	1	1306-			●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C)	8-98115-643-0	01	1	1306-			●
401	NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
401	NUT; BRKT,AIR INT M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
401	NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●	●
505	RUBBER; MTG SOU	8-97081-886-0	01	1	1306-	●	●	●
511	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●

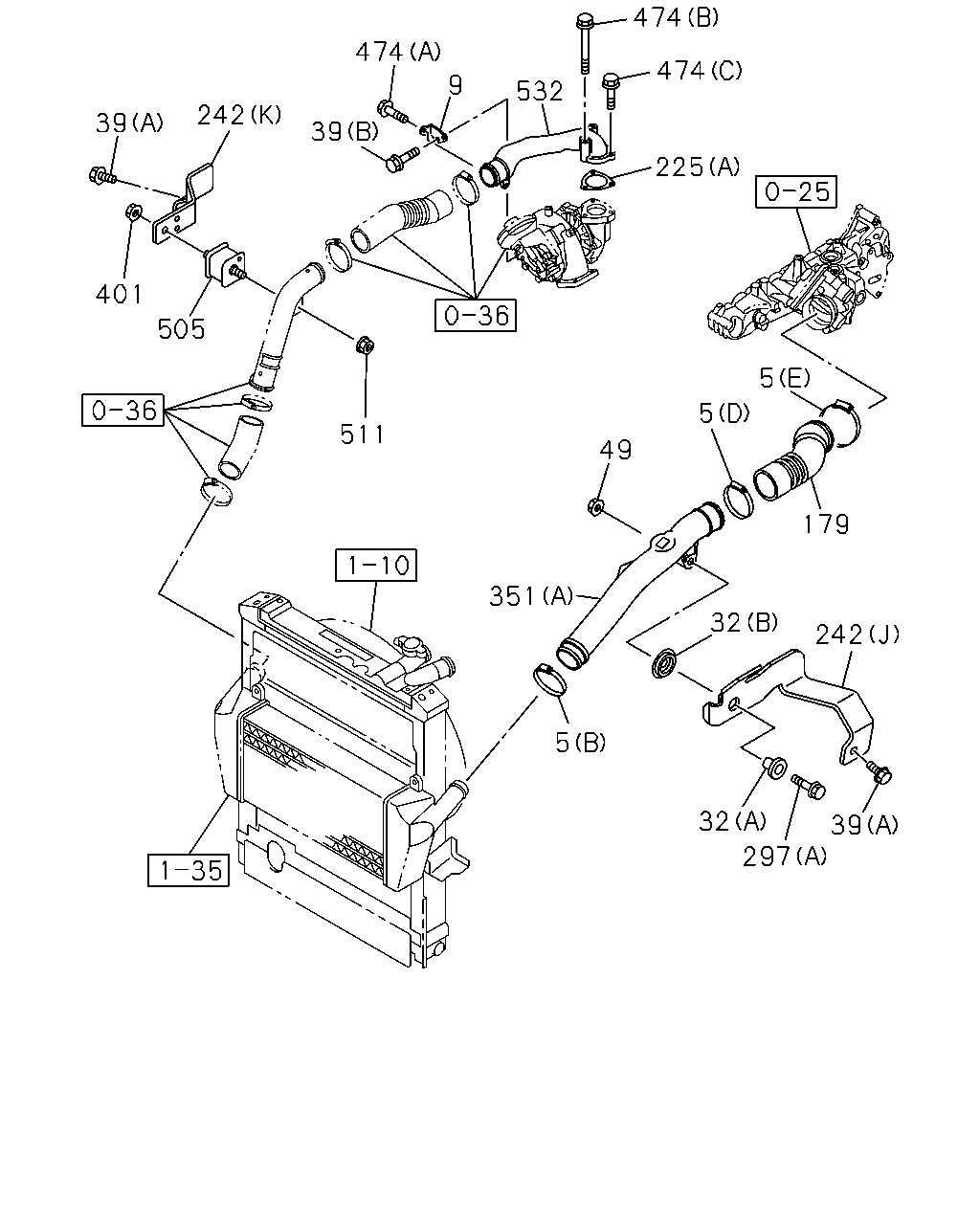

39 242 474 39 474 532 474 401 511 49 351 5 32 179 242 32 297 39 505 225 5 5 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT (C) D=101.6 SOU	9-09915-502-1	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (G) ID=75-95	8-98133-357-0	02	1	1306-	●	●	●
5	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (B) ID=45-65	8-98133-348-0	01	1	1306-	●
5	CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (E) ID=65-85	8-98133-350-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (E) ID=65-85	8-98133-350-0	02	1	1306-			●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (F) ID=112	9-09915-074-1	01	1	1306-			●
9	BRACKET; INT PIPE 4JJ1-TCC ENG(RDU)	8-98009-086-0	01	1	1306-	●
32	RUBBER; AIR DUCT MTG 4HK1-TCN ENG(RDQ) (C) SOU	8-97081-886-0	01	1	1306-	●	●	●
32	RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	01	1	1306-	●
32	RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) (A) OD=23	8-97105-689-6	01	1	1306-	●
39	BOLT; BRKT 4JJ1-TCC ENG(RDU) (B) M8X14 FLANGE	8-97378-075-0	01	1	1306-	●
39	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
49	NUT; AIR DUCT M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
179	HOSE; AIR INT 4HK1-TCN ENG(RDQ)	8-98114-719-0	01	1	1306-	●	●	●
179	HOSE; AIR INT 4JJ1-TCC ENG(RDU)	8-98050-920-2	01	1	1306-	●
225	GASKET; AIR PIPE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (B) ID=43.7	9-09561-344-0	01	1	1306-	●	●
225	GASKET; AIR PIPE 4JJ1-TCC ENG(RDU) (A) ID=47	8-97202-328-1	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1306-	●
242	BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (C)	8-98036-646-2	01	1	1306-		●
242	BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (D)	8-98036-647-2	01	1	1306-		●
242	BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (E)	8-98036-649-2	01	1	1306-		●
242	BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (A)	8-98145-112-1	01	1	1306-		●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98049-012-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (F)	8-98055-243-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (G)	8-98055-246-2	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (H)	8-98055-247-1	01	1	1306-			●
297	BOLT; DUCT 4JJ1-TCC ENG(RDU) (A) M8X40 FLANGE SOU	0-28650-840-0	01	1	1306-	●
297	BOLT; DUCT 4HK1-TCN ENG(RDQ) (B) M10X35 FLANGE SOU	0-28651-035-0	01	1	1306-			●
297	BOLT; DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1306-			●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98105-722-1	01	1	1306-	●	●	●
351	DUCT; AIR 4JJ1-TCC ENG(RDU) (A)	8-98051-032-1	01	1	1306-	●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C)	8-98070-850-0	01	1	1306-			●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98070-863-1	01	1	1306-			●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C)	8-98115-643-0	01	1	1306-			●
401	NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
401	NUT; BRKT,AIR INT M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
401	NUT; BRKT,AIR INT 4HK1-TCN ENG(RDQ) M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●	●
474	BOLT; PIPE 4JJ1-TCC ENG(RDU) (B) M6X70 FLANGE	0-28050-670-0	02	1	1306-	●
474	BOLT; PIPE 4JJ1-TCC ENG(RDU) (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1306-	●
474	BOLT; PIPE 4JJ1-TCC ENG(RDU) (C) M6X30 FLANGE	0-28650-630-0	01	1	1306-	●
505	RUBBER; MTG SOU	8-97081-886-0	01	1	1306-	●	●	●
511	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●	●
532	PIPE; INTAKE 4JJ1-TCC ENG(RDU)	8-98237-771-1	01	1	1306-	●

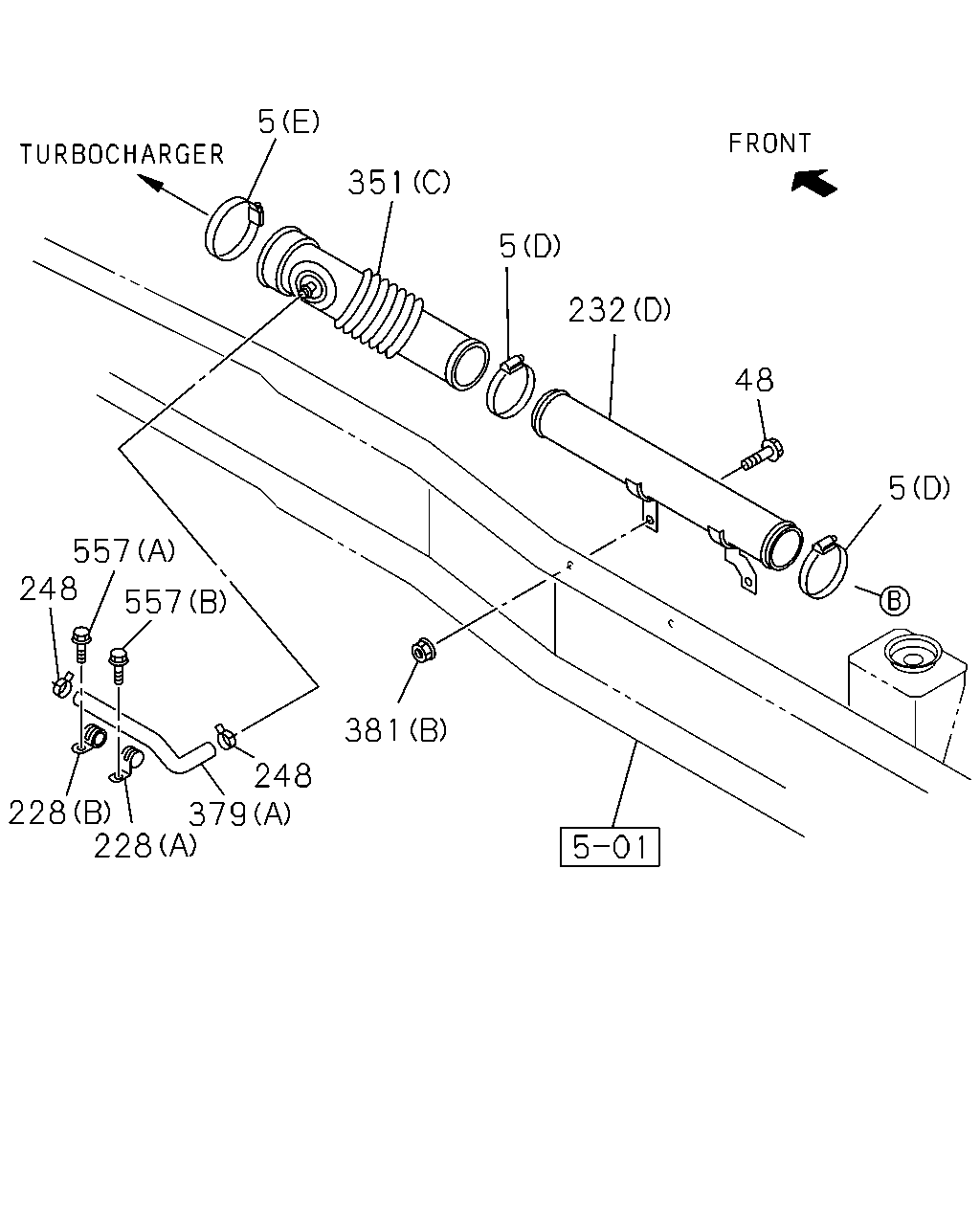

5 351 5 232 48 5 557 248 557 228 228 379 381 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT (C) D=101.6 SOU	9-09915-502-1	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (G) ID=75-95	8-98133-357-0	02	1	1306-	●	●	●
5	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (B) ID=45-65	8-98133-348-0	01	1	1306-	●
5	CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (E) ID=65-85	8-98133-350-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (E) ID=65-85	8-98133-350-0	02	1	1306-			●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (F) ID=112	9-09915-074-1	01	1	1306-			●
48	BOLT; AIR DUCT 4HK1-TCN ENG(RDQ) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-			●
48	BOLT; AIR DUCT 4HK1-TCN ENG(RDQ) M10X35 FLANGE SOU	0-28651-035-0	01	1	1306-			●
228	CLIP; PCV HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	1306-	●	●	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A) ID=25 H=40 L=50	8-98073-275-0	01	1	1306-	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) ID=22 L=22	8-98120-916-0	01	1	1306-	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1306-	●
232	HOSE; CONN (A)	8-98082-535-0	01	1	1306-1309	●	●	●
232	HOSE; CONN (A)	8-98231-785-0	01	1	1310-	●	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98070-857-1	01	1	1306-	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1306-	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (E)	8-98059-956-2	01	1	1306-	●	●
232	HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98070-065-1	01	1	1306-1409	●
232	HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98269-835-0	01	1	1410-	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98063-793-3	01	1	1306-			●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98094-582-2	01	1	1306-			●
248	CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) ID=21.7	8-97203-074-0	01	1	1306-	●	●	●
248	CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) ID=21.7	8-97203-074-0	02	1	1306-	●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98105-722-1	01	1	1306-	●	●	●
351	DUCT; AIR 4JJ1-TCC ENG(RDU) (A)	8-98051-032-1	01	1	1306-	●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C)	8-98070-850-0	01	1	1306-			●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98070-863-1	01	1	1306-			●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C)	8-98115-643-0	01	1	1306-			●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (B)	8-98075-711-0	01	1	1306-	●	●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98075-711-0	01	1	1306-			●
379	HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98135-511-0	01	1	1306-	●
379	HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A)	8-98045-343-0	01	1	1306-	●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98133-340-0	01	1	1306-			●
381	NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1306-	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1306-		●
381	NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-		●	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-			●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-			●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-			●
557	BOLT; HOSE CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C) M6X20 FLANGE	0-28050-620-0	03	1	1306-	●	●
557	BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) M6X10 FLANGE SOU	0-28050-610-0	01	1	1306-	●
557	BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) M8X12 HEX SOCKET	0-58330-812-0	01	1	1306-	●

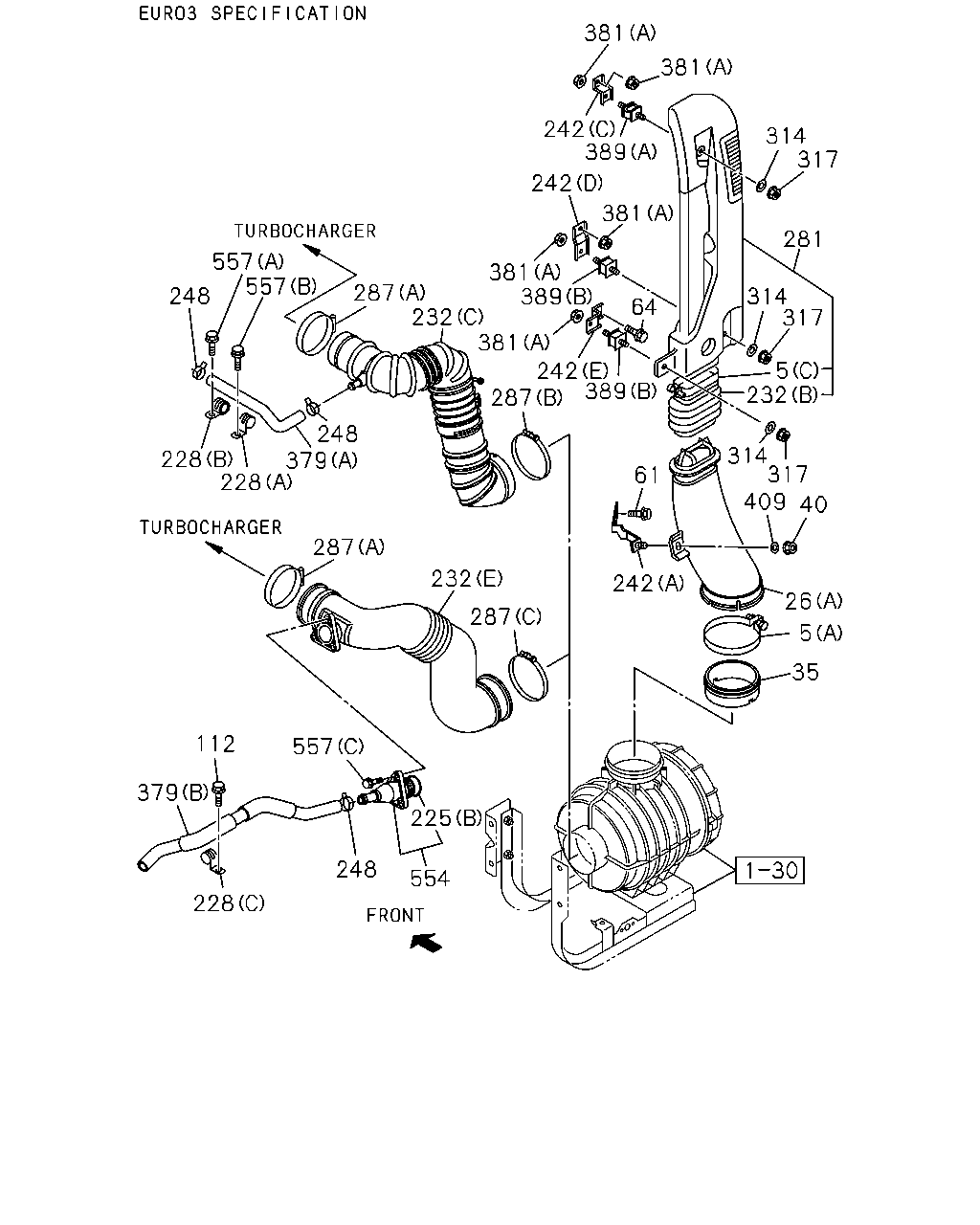

381 242 242 389 381 381 389 381 287 242 389 64 381 314 317 281 314 5 232 314 61 317 409 40 242 26 5 35 112 557 379 228 248 554 225 287 232 287 228 228 379 248 248 557 557 287 232 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT (C) D=101.6 SOU	9-09915-502-1	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (G) ID=75-95	8-98133-357-0	02	1	1306-	●	●	●
5	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (B) ID=45-65	8-98133-348-0	01	1	1306-	●
5	CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (E) ID=65-85	8-98133-350-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (E) ID=65-85	8-98133-350-0	02	1	1306-			●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (F) ID=112	9-09915-074-1	01	1	1306-			●
26	DUCT; AIR INT (A)	8-98025-626-0	01	1	1306-	●
26	DUCT; AIR INT 4HK1-TCN ENG(RDQ) (A)	8-98025-626-0	01	1	1306-		●
26	DUCT; AIR INT 4HK1-TCN ENG(RDQ) (B)	8-98025-627-0	01	1	1306-			●
35	SEAL; DUCT,INT	8-98029-332-0	01	1	1306-	●	●	●
40	NUT; AIR INT DUCT M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
61	BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-		●
61	BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M10X35 FLANGE SOU	0-28651-035-0	01	1	1306-			●
64	BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1306-	●
64	BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M8X16	0-52000-816-0	01	1	1306-		●
112	BOLT; CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) M8X12 FLANGE	0-28050-812-0	01	1	1306-	●	●	●
225	GASKET; AIR PIPE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (B) ID=43.7	9-09561-344-0	01	1	1306-	●	●
225	GASKET; AIR PIPE 4JJ1-TCC ENG(RDU) (A) ID=47	8-97202-328-1	01	1	1306-	●
228	CLIP; PCV HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	1306-	●	●	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A) ID=25 H=40 L=50	8-98073-275-0	01	1	1306-	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) ID=22 L=22	8-98120-916-0	01	1	1306-	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1306-	●
232	HOSE; CONN (A)	8-98082-535-0	01	1	1306-1309	●	●	●
232	HOSE; CONN (A)	8-98231-785-0	01	1	1310-	●	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98070-857-1	01	1	1306-	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1306-	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (E)	8-98059-956-2	01	1	1306-	●	●
232	HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98070-065-1	01	1	1306-1409	●
232	HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98269-835-0	01	1	1410-	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98063-793-3	01	1	1306-			●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98094-582-2	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1306-	●
242	BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (C)	8-98036-646-2	01	1	1306-		●
242	BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (D)	8-98036-647-2	01	1	1306-		●
242	BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (E)	8-98036-649-2	01	1	1306-		●
242	BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (A)	8-98145-112-1	01	1	1306-		●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98049-012-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (F)	8-98055-243-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (G)	8-98055-246-2	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (H)	8-98055-247-1	01	1	1306-			●
248	CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) ID=21.7	8-97203-074-0	01	1	1306-	●	●	●
248	CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) ID=21.7	8-97203-074-0	02	1	1306-	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1306-	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1306-		●	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1306-	●	●
281	DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1306-	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98061-757-2	01	1	1306-			●
287	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (C) ID=112	9-09915-074-1	01	1	1306-	●	●
287	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) ID=55-75	8-98133-349-0	01	1	1306-	●	●
287	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (A) ID=65-85	8-98133-350-0	01	1	1306-	●
287	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (B) ID=117	9-09915-075-1	01	1	1306-	●
314	WASHER; PL,AIR INT DUCT ID=10.5 OD=32	0-91614-810-0	03	1	1306-	●	●	●
317	NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1306-	●	●	●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (B)	8-98075-711-0	01	1	1306-	●	●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98075-711-0	01	1	1306-			●
379	HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98135-511-0	01	1	1306-	●
379	HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A)	8-98045-343-0	01	1	1306-	●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98133-340-0	01	1	1306-			●
381	NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1306-	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1306-		●
381	NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-		●	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-			●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-			●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-			●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1306-	●	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-98036-826-0	02	1	1306-	●	●	●
409	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●	●	●
554	FLANGE; PIPE,PCV 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3)	8-98038-208-0	01	1	1306-	●	●
557	BOLT; HOSE CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C) M6X20 FLANGE	0-28050-620-0	03	1	1306-	●	●
557	BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) M6X10 FLANGE SOU	0-28050-610-0	01	1	1306-	●
557	BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) M8X12 HEX SOCKET	0-58330-812-0	01	1	1306-	●

317 314 317 314 381 242 381 389 242 381 351 381 297 480 564 242 5 297 242 61 384 26 314 232 5 281 317 409 40 5 35 381 389 389 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT (C) D=101.6 SOU	9-09915-502-1	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (G) ID=75-95	8-98133-357-0	02	1	1306-	●	●	●
5	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (B) ID=45-65	8-98133-348-0	01	1	1306-	●
5	CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (E) ID=65-85	8-98133-350-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (E) ID=65-85	8-98133-350-0	02	1	1306-			●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (F) ID=112	9-09915-074-1	01	1	1306-			●
26	DUCT; AIR INT (A)	8-98025-626-0	01	1	1306-	●
26	DUCT; AIR INT 4HK1-TCN ENG(RDQ) (A)	8-98025-626-0	01	1	1306-		●
26	DUCT; AIR INT 4HK1-TCN ENG(RDQ) (B)	8-98025-627-0	01	1	1306-			●
35	SEAL; DUCT,INT	8-98029-332-0	01	1	1306-	●	●	●
40	NUT; AIR INT DUCT M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
61	BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-		●
61	BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M10X35 FLANGE SOU	0-28651-035-0	01	1	1306-			●
232	HOSE; CONN (A)	8-98082-535-0	01	1	1306-1309	●	●	●
232	HOSE; CONN (A)	8-98231-785-0	01	1	1310-	●	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98070-857-1	01	1	1306-	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1306-	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (E)	8-98059-956-2	01	1	1306-	●	●
232	HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98070-065-1	01	1	1306-1409	●
232	HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98269-835-0	01	1	1410-	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98063-793-3	01	1	1306-			●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98094-582-2	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1306-	●
242	BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (C)	8-98036-646-2	01	1	1306-		●
242	BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (D)	8-98036-647-2	01	1	1306-		●
242	BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (E)	8-98036-649-2	01	1	1306-		●
242	BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (A)	8-98145-112-1	01	1	1306-		●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98049-012-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (F)	8-98055-243-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (G)	8-98055-246-2	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (H)	8-98055-247-1	01	1	1306-			●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1306-	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1306-		●	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1306-	●	●
281	DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1306-	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98061-757-2	01	1	1306-			●
297	BOLT; DUCT 4JJ1-TCC ENG(RDU) (A) M8X40 FLANGE SOU	0-28650-840-0	01	1	1306-	●
297	BOLT; DUCT 4HK1-TCN ENG(RDQ) (B) M10X35 FLANGE SOU	0-28651-035-0	01	1	1306-			●
297	BOLT; DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1306-			●
314	WASHER; PL,AIR INT DUCT ID=10.5 OD=32	0-91614-810-0	03	1	1306-	●	●	●
317	NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1306-	●	●	●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) (B)	8-98105-722-1	01	1	1306-	●	●	●
351	DUCT; AIR 4JJ1-TCC ENG(RDU) (A)	8-98051-032-1	01	1	1306-	●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C)	8-98070-850-0	01	1	1306-			●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98070-863-1	01	1	1306-			●
351	DUCT; AIR 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C)	8-98115-643-0	01	1	1306-			●
381	NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1306-	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1306-		●
381	NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-		●	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-			●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-			●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-			●
384	NUT; AIR INT DUCT BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE SOU	0-91180-110-0	01	1	1306-			●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1306-	●	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-98036-826-0	02	1	1306-	●	●	●
409	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●	●	●
480	ADAPTER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98086-417-0	01	1	1306-			●
564	GASKET; ADAPTER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98071-416-0	01	1	1306-			●

381 314 281 314 64 381 389 381 5 317 232 389 242 232 287 557 248 228 248 379 228 287 232 287 563 35 5 40 409 61 317 242 26 242 381 389 381 242 557 562 287 314 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT (C) D=101.6 SOU	9-09915-502-1	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (G) ID=75-95	8-98133-357-0	02	1	1306-	●	●	●
5	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (B) ID=45-65	8-98133-348-0	01	1	1306-	●
5	CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (E) ID=65-85	8-98133-350-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (E) ID=65-85	8-98133-350-0	02	1	1306-			●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (F) ID=112	9-09915-074-1	01	1	1306-			●
26	DUCT; AIR INT (A)	8-98025-626-0	01	1	1306-	●
26	DUCT; AIR INT 4HK1-TCN ENG(RDQ) (A)	8-98025-626-0	01	1	1306-		●
26	DUCT; AIR INT 4HK1-TCN ENG(RDQ) (B)	8-98025-627-0	01	1	1306-			●
35	SEAL; DUCT,INT	8-98029-332-0	01	1	1306-	●	●	●
40	NUT; AIR INT DUCT M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
61	BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-		●
61	BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M10X35 FLANGE SOU	0-28651-035-0	01	1	1306-			●
64	BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1306-	●
64	BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M8X16	0-52000-816-0	01	1	1306-		●
228	CLIP; PCV HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	1306-	●	●	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A) ID=25 H=40 L=50	8-98073-275-0	01	1	1306-	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) ID=22 L=22	8-98120-916-0	01	1	1306-	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1306-	●
232	HOSE; CONN (A)	8-98082-535-0	01	1	1306-1309	●	●	●
232	HOSE; CONN (A)	8-98231-785-0	01	1	1310-	●	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98070-857-1	01	1	1306-	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1306-	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (E)	8-98059-956-2	01	1	1306-	●	●
232	HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98070-065-1	01	1	1306-1409	●
232	HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98269-835-0	01	1	1410-	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98063-793-3	01	1	1306-			●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98094-582-2	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1306-	●
242	BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (C)	8-98036-646-2	01	1	1306-		●
242	BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (D)	8-98036-647-2	01	1	1306-		●
242	BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (E)	8-98036-649-2	01	1	1306-		●
242	BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (A)	8-98145-112-1	01	1	1306-		●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98049-012-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (F)	8-98055-243-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (G)	8-98055-246-2	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (H)	8-98055-247-1	01	1	1306-			●
248	CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) ID=21.7	8-97203-074-0	01	1	1306-	●	●	●
248	CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) ID=21.7	8-97203-074-0	02	1	1306-	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1306-	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1306-		●	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1306-	●	●
281	DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1306-	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98061-757-2	01	1	1306-			●
287	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (C) ID=112	9-09915-074-1	01	1	1306-	●	●
287	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) ID=55-75	8-98133-349-0	01	1	1306-	●	●
287	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (A) ID=65-85	8-98133-350-0	01	1	1306-	●
287	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (B) ID=117	9-09915-075-1	01	1	1306-	●
314	WASHER; PL,AIR INT DUCT ID=10.5 OD=32	0-91614-810-0	03	1	1306-	●	●	●
317	NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1306-	●	●	●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (B)	8-98075-711-0	01	1	1306-	●	●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98075-711-0	01	1	1306-			●
379	HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98135-511-0	01	1	1306-	●
379	HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A)	8-98045-343-0	01	1	1306-	●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98133-340-0	01	1	1306-			●
381	NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1306-	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1306-		●
381	NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-		●	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-			●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-			●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-			●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1306-	●	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-98036-826-0	02	1	1306-	●	●	●
409	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●	●	●
557	BOLT; HOSE CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C) M6X20 FLANGE	0-28050-620-0	03	1	1306-	●	●
557	BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) M6X10 FLANGE SOU	0-28050-610-0	01	1	1306-	●
557	BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) M8X12 HEX SOCKET	0-58330-812-0	01	1	1306-	●
562	NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
563	BRACKET; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98090-587-0	01	1	1306-	●	●	●

381 381 242 242 389 381 314 281 314 64 317 5 232 314 40 409 61 242 26 35 5 317 287 232 563 287 379 248 228 248 557 562 228 287 381 232 287 557 389 381 242 317 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT (C) D=101.6 SOU	9-09915-502-1	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (G) ID=75-95	8-98133-357-0	02	1	1306-	●	●	●
5	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (B) ID=45-65	8-98133-348-0	01	1	1306-	●
5	CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT (E) ID=65-85	8-98133-350-0	01	1	1306-	●	●	●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (E) ID=65-85	8-98133-350-0	02	1	1306-			●
5	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (F) ID=112	9-09915-074-1	01	1	1306-			●
26	DUCT; AIR INT (A)	8-98025-626-0	01	1	1306-	●
26	DUCT; AIR INT 4HK1-TCN ENG(RDQ) (A)	8-98025-626-0	01	1	1306-		●
26	DUCT; AIR INT 4HK1-TCN ENG(RDQ) (B)	8-98025-627-0	01	1	1306-			●
35	SEAL; DUCT,INT	8-98029-332-0	01	1	1306-	●	●	●
40	NUT; AIR INT DUCT M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
61	BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-		●
61	BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M10X35 FLANGE SOU	0-28651-035-0	01	1	1306-			●
64	BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1306-	●
64	BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) M8X16	0-52000-816-0	01	1	1306-		●
228	CLIP; PCV HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	1306-	●	●	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A) ID=25 H=40 L=50	8-98073-275-0	01	1	1306-	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) ID=22 L=22	8-98120-916-0	01	1	1306-	●
228	CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1306-	●
232	HOSE; CONN (A)	8-98082-535-0	01	1	1306-1309	●	●	●
232	HOSE; CONN (A)	8-98231-785-0	01	1	1310-	●	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (B)	8-98070-857-1	01	1	1306-	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98095-507-1	01	1	1306-	●	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (E)	8-98059-956-2	01	1	1306-	●	●
232	HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98070-065-1	01	1	1306-1409	●
232	HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98269-835-0	01	1	1410-	●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98063-793-3	01	1	1306-			●
232	HOSE; CONN 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98094-582-2	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-142-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (I)	8-98032-143-1	01	1	1306-	●	●	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98070-942-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (K)	8-98070-943-0	01	1	1306-	●
242	BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (C)	8-98036-646-2	01	1	1306-		●
242	BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (D)	8-98036-647-2	01	1	1306-		●
242	BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (E)	8-98036-649-2	01	1	1306-		●
242	BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1306-	●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (A)	8-98145-112-1	01	1	1306-		●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (B)	8-98049-012-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (F)	8-98055-243-1	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (G)	8-98055-246-2	01	1	1306-			●
242	BRACKET; AIR DUCT 4HK1-TCN ENG(RDQ) (H)	8-98055-247-1	01	1	1306-			●
248	CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) ID=21.7	8-97203-074-0	01	1	1306-	●	●	●
248	CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) ID=21.7	8-97203-074-0	02	1	1306-	●
281	DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1306-	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	1306-		●	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1306-	●	●
281	DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	1306-	●
281	DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98061-757-2	01	1	1306-			●
287	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (C) ID=112	9-09915-074-1	01	1	1306-	●	●
287	CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) ID=55-75	8-98133-349-0	01	1	1306-	●	●
287	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (A) ID=65-85	8-98133-350-0	01	1	1306-	●
287	CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (B) ID=117	9-09915-075-1	01	1	1306-	●
314	WASHER; PL,AIR INT DUCT ID=10.5 OD=32	0-91614-810-0	03	1	1306-	●	●	●
317	NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1306-	●	●	●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (B)	8-98075-711-0	01	1	1306-	●	●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98075-711-0	01	1	1306-			●
379	HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98135-511-0	01	1	1306-	●
379	HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A)	8-98045-343-0	01	1	1306-	●
379	HOSE; RUBBER 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98133-340-0	01	1	1306-			●
381	NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	02	1	1306-	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	02	1	1306-		●
381	NUT; BRKT,AIR DUCT (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-		●	●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER	8-97581-234-0	03	1	1306-			●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	02	1	1306-			●
381	NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1306-			●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1306-	●	●	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-98036-826-0	02	1	1306-	●	●	●
409	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	01	1	1306-	●	●	●
557	BOLT; HOSE CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (C) M6X20 FLANGE	0-28050-620-0	03	1	1306-	●	●
557	BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) M6X10 FLANGE SOU	0-28050-610-0	01	1	1306-	●
557	BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) M8X12 HEX SOCKET	0-58330-812-0	01	1	1306-	●
562	NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
563	BRACKET; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98090-587-0	01	1	1306-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
