◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#122644) — 26 parça

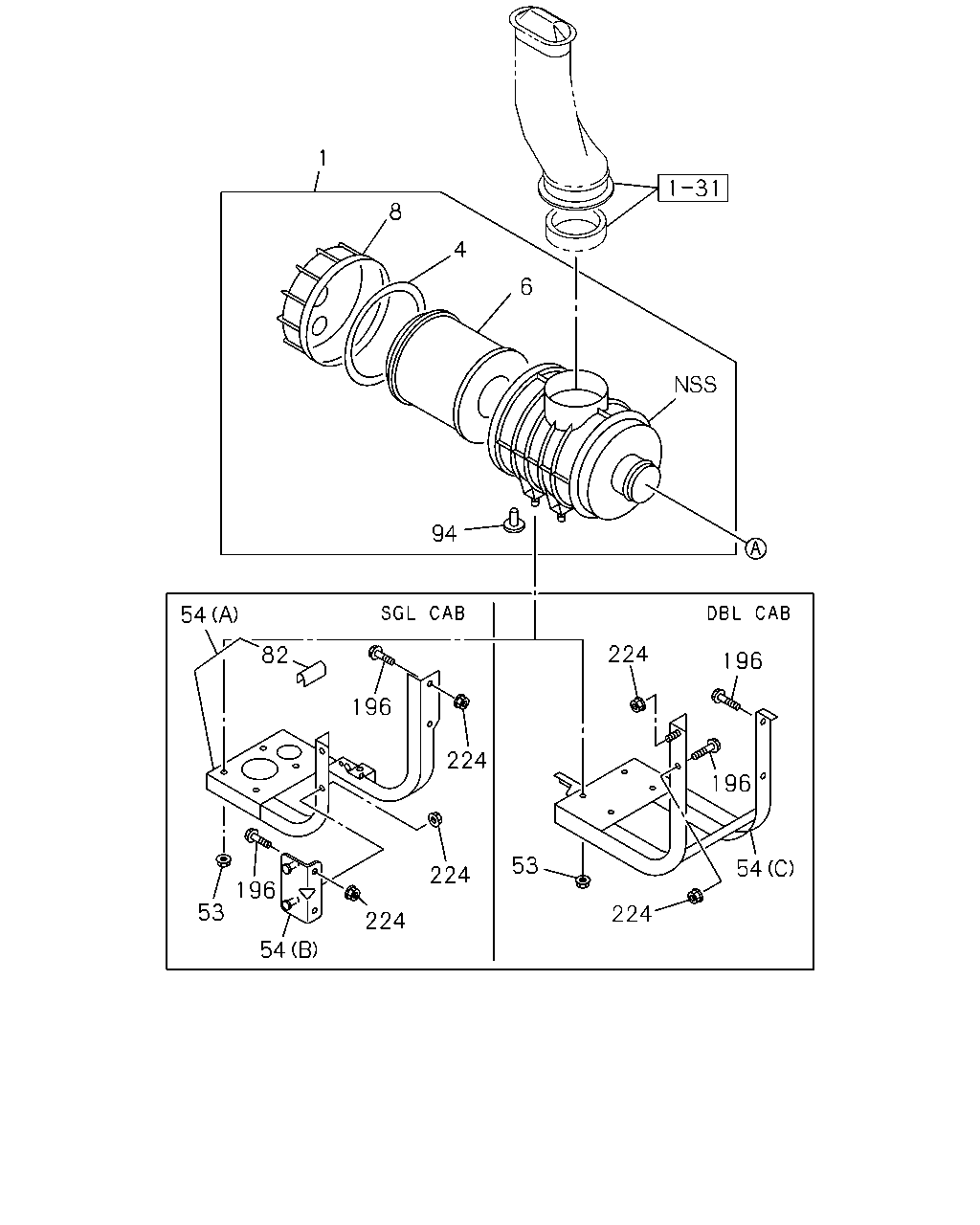

çizim 355553
196 224 196 54 224 53 224 224 196 82 54 53 196 54 224 94 6 4 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR 8-98050-415-2 01 1 1306- ● ● ●
4 GASKET; COVER TO BODY 8-97352-113-0 01 1 1306- ● ● ●
6 FILTER; ACL 8-97062-294-0 01 1 1306- ● ● ●
6 FILTER; ACL
BEST VALUE PARTS 		5-87610-020-0 01 1 1306- ● ● ●
8 COVER ASM; ACL 8-98050-434-1 01 1 1306- ● ● ●
53 NUT; ACL
M8 FLANGE SOU 		0-91180-108-0 04 1 1306- ● ● ●
54 BRACKET; ACL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98032-125-1 01 1 1306- ●
54 BRACKET; ACL
4HK1-TCN ENG(RDQ) (B) 		8-98032-125-1 01 1 1306- ●
54 BRACKET; ACL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-140-3 01 1 1306-1312 ●
54 BRACKET; ACL
4HK1-TCN ENG(RDQ) (A) 		8-98047-140-3 01 1 1306-1312 ●
54 BRACKET; ACL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98251-988-0 01 1 1401- ●
54 BRACKET; ACL
4HK1-TCN ENG(RDQ) (A) 		8-98251-988-0 01 1 1401- ●
54 BRACKET; ACL
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98026-092-3 01 1 1306- ●
54 BRACKET; ACL
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98070-835-3 01 1 1306- ●
54 BRACKET; ACL
4HK1-TCN ENG(RDQ) (C) 		8-98023-879-3 01 1 1306- ●
82 PROTECTOR
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97327-172-0 01 1 1306- ●
94 VALVE; VACUATOR 8-97093-694-0 01 1 1306- ● ● ●
196 BOLT; BRKT,ACL
M10X30 FLANGE SOU 		0-28651-030-0 02 1 1306- ●
196 BOLT; BRKT,ACL
4HK1-TCN ENG(RDQ) M10X30 FLANGE SOU 		0-28651-030-0 02 1 1306- ●
196 BOLT; BRKT,ACL
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1306- ●
196 BOLT; BRKT,ACL
4HK1-TCN ENG(RDQ) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1306- ●
196 BOLT; BRKT,ACL
4HK1-TCN ENG(RDQ) M10X35 FLANGE SOU 		0-28651-035-0 03 1 1306- ●
224 NUT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE SOU 		0-91180-110-0 05 1 1306- ●
224 NUT; BRKT
4HK1-TCN ENG(RDQ) M10 FLANGE SOU 		0-91180-110-0 05 1 1306- ●
224 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE SOU 		0-91180-110-0 06 1 1306- ●
224 NUT; BRKT
4HK1-TCN ENG(RDQ) M10 FLANGE SOU 		0-91180-110-0 02 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
