Sayfa 1-11 - Isuzu EPC

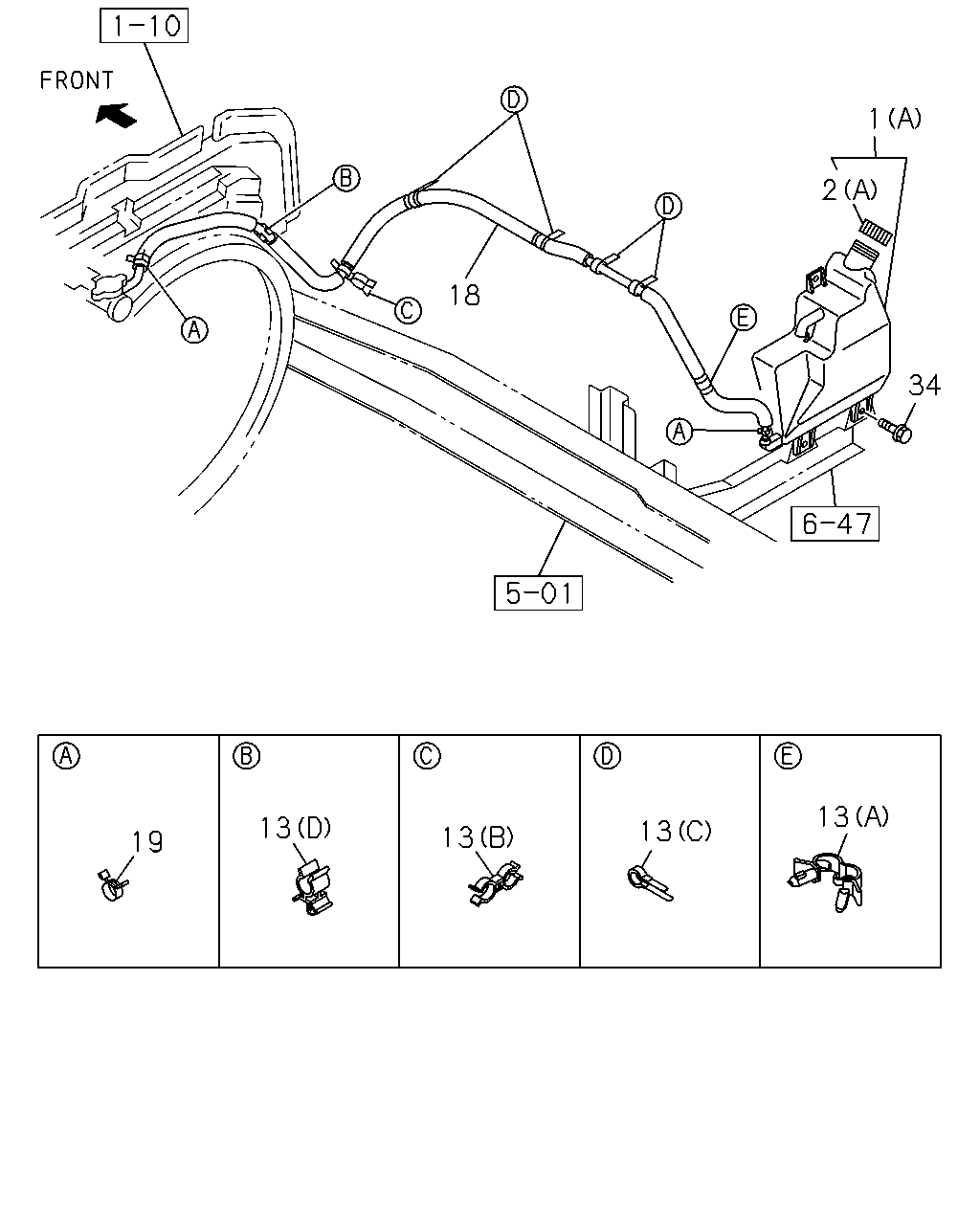

1-11 — RADIATOR HOSE AND SUB TANK (#122643) — 43 parça

18 2 1 34 19 13 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1306-	●	●
1	TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1306-			●
2	CAP; SURGE TANK (A)	8-98178-074-0	01	1	1306-	●	●
2	CAP; SURGE TANK (B) SOU	8-97130-964-0	01	1	1306-			●
13	CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1306-	●	●	●
13	CLIP; HOSE,SURGE TANK (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-	●	●	●
13	CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-			●
13	CLIP; HOSE,SURGE TANK (C) ID=14 L=47 SOU	5-09700-319-0	04	1	1306-	●	●	●
13	CLIP; HOSE,SURGE TANK (B) ID=10 & 11	8-94438-996-0	01	1	1306-	●	●	●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1690	8-98006-525-0	01	1	1306-1506	●	●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1690	8-98316-124-0	01	1	1507-	●	●
18	HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU) L=1640	8-98064-252-0	01	1	1306-	●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1840	8-98006-528-0	01	1	1306-1506			●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1840	8-98316-125-0	01	1	1507-			●
19	CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1306-	●	●	●
34	BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1306-	●	●	●

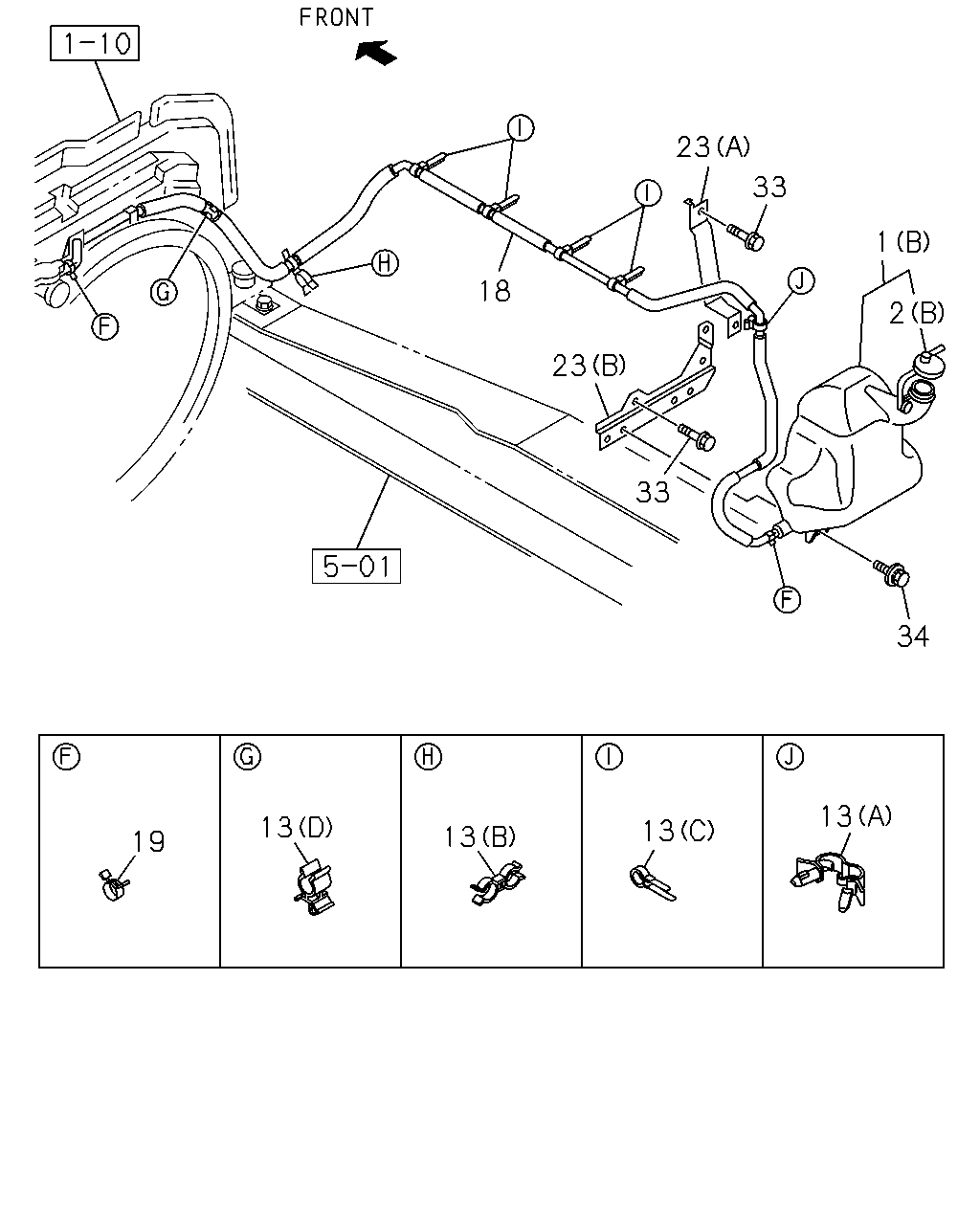

18 23 23 33 1 2 34 33 19 13 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1306-	●	●
1	TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1306-			●
2	CAP; SURGE TANK (A)	8-98178-074-0	01	1	1306-	●	●
2	CAP; SURGE TANK (B) SOU	8-97130-964-0	01	1	1306-			●
13	CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1306-	●	●	●
13	CLIP; HOSE,SURGE TANK (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-	●	●	●
13	CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ) (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-			●
13	CLIP; HOSE,SURGE TANK (C) ID=14 L=47 SOU	5-09700-319-0	04	1	1306-	●	●	●
13	CLIP; HOSE,SURGE TANK (B) ID=10 & 11	8-94438-996-0	01	1	1306-	●	●	●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1690	8-98006-525-0	01	1	1306-1506	●	●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1690	8-98316-124-0	01	1	1507-	●	●
18	HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU) L=1640	8-98064-252-0	01	1	1306-	●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1840	8-98006-528-0	01	1	1306-1506			●
18	HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ) L=1840	8-98316-125-0	01	1	1507-			●
19	CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1306-	●	●	●
23	BRACKET; RESERVE TANK (A)	8-98001-252-0	01	1	1306-			●
23	BRACKET; RESERVE TANK (B)	8-98010-502-1	01	1	1306-			●
33	BOLT; BRKT M8X16 FLANGE SOU	0-28050-816-0	03	1	1306-			●
34	BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1306-	●	●	●

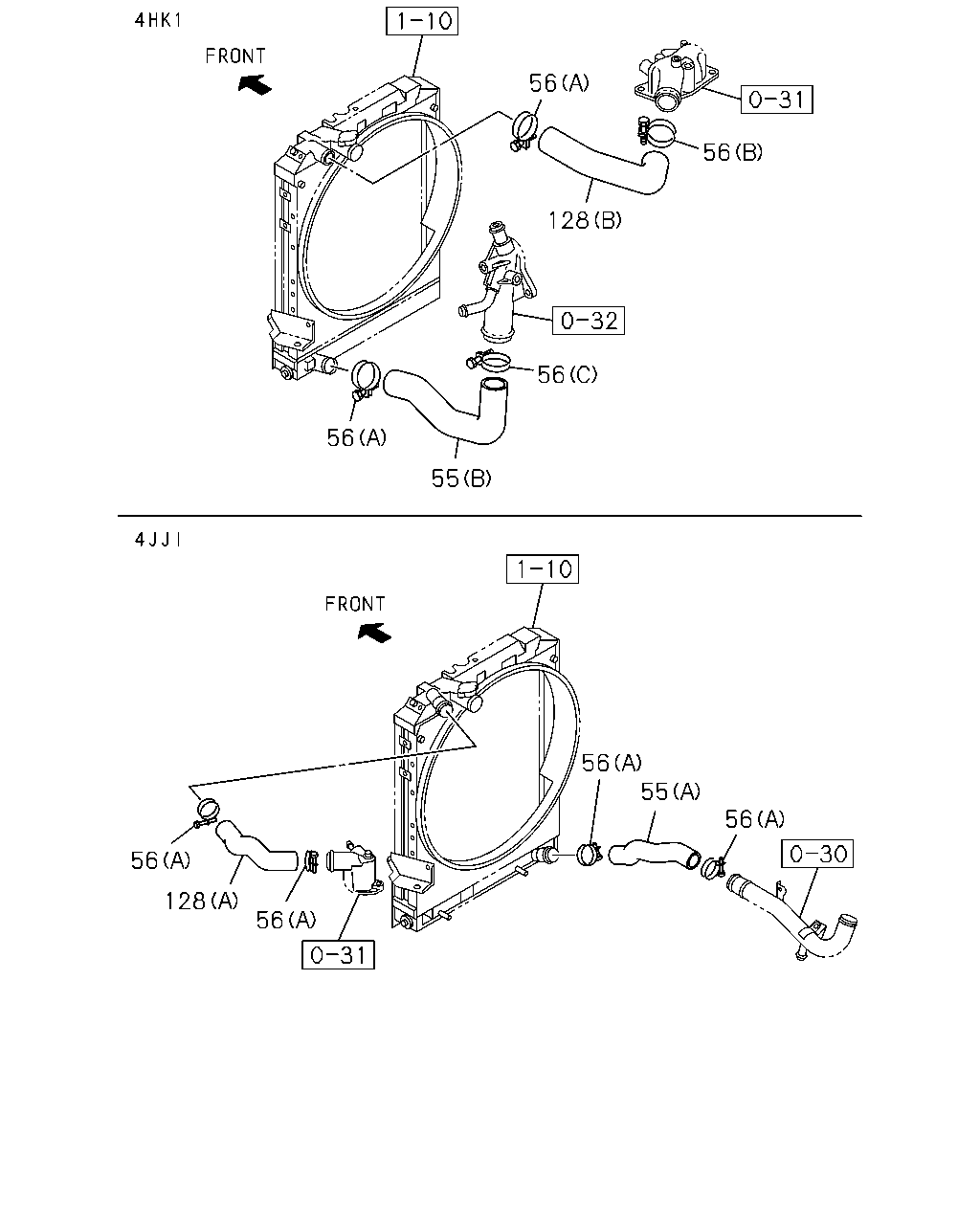

56 56 128 56 55 56 56 55 56 56 128 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
55	HOSE; WATER,RAD OUTLET 4HK1-TCN ENG(RDQ) (B)	8-98006-453-0	01	1	1306-	●	●	●
55	HOSE; WATER,RAD OUTLET 4JJ1-TCC ENG(RDU) (A)	8-97383-814-1	01	1	1306-	●
56	CLIP; WATER HOSE,RAD 4HK1-TCN ENG(RDQ) (B) ID=52 SOU	1-09704-057-0	01	1	1306-	●	●	●
56	CLIP; WATER HOSE,RAD 4HK1-TCN ENG(RDQ) (C) ID=62	8-98133-957-0	01	1	1306-	●	●	●
56	CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1306-	●	●	●
56	CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	02	1	1306-	●
128	HOSE; WATER,RAD INL 4HK1-TCN ENG(RDQ) (B)	8-98006-452-0	01	1	1306-	●	●	●
128	HOSE; WATER,RAD INL 4JJ1-TCC ENG(RDU) (A)	8-97383-812-1	01	1	1306-	●
