1-10 — RADIATOR (#122642) — 106 parça

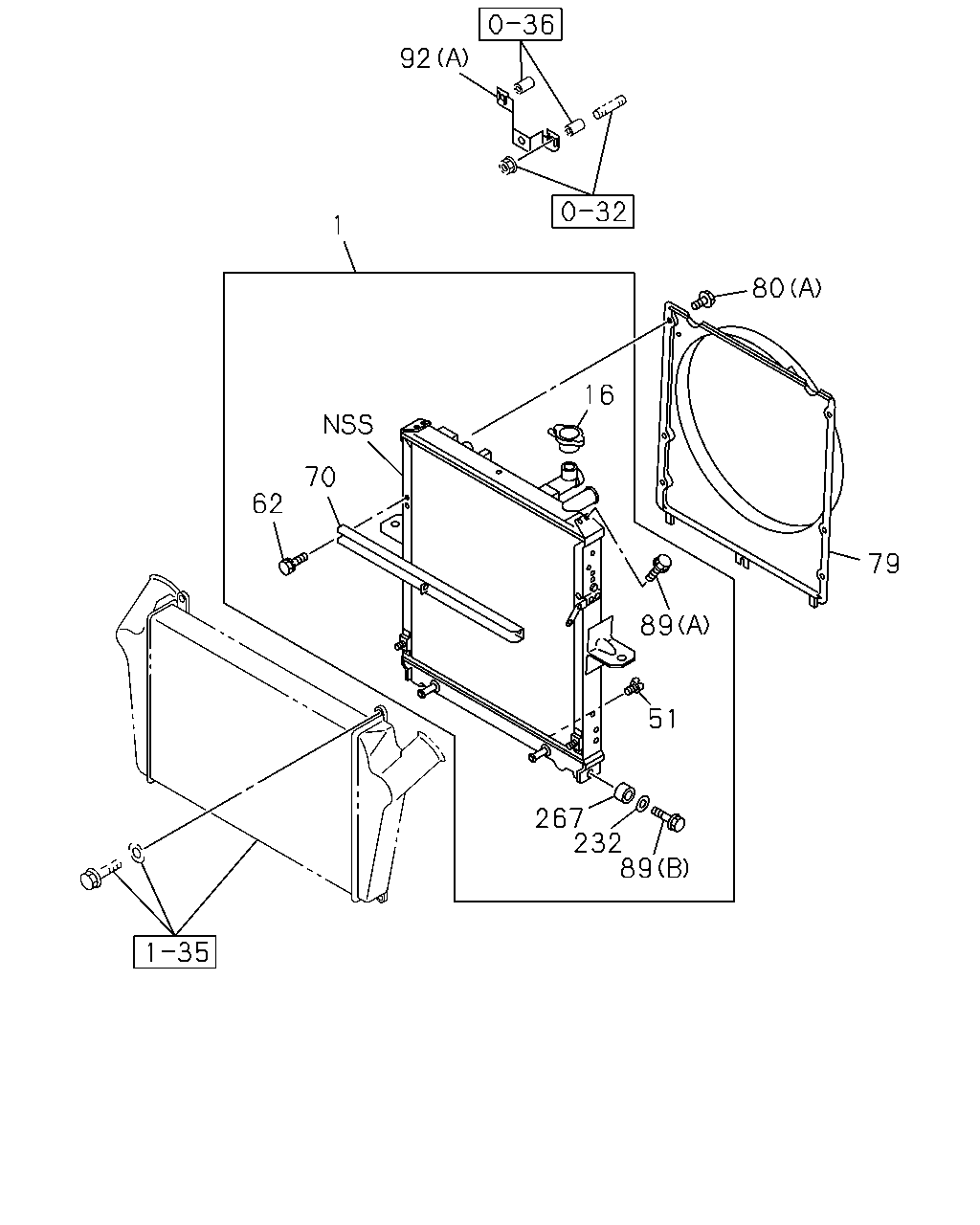

92 1 70 62 16 79 89 51 89 232 267 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98174-421-0	01	1	1306-	●	●	●
1	RADIATOR ASM 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98174-420-0	01	1	1306-	●	●	●
1	RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98172-907-0	01	1	1306-	●
1	RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98240-295-0	01	1	1306-	●
16	CAP; RAD	8-98096-226-0	01	1	1306-	●	●	●
51	PLUG; DRAIN W/GASKET SOU	8-97171-437-0	01	1	1306-	●	●	●
62	BOLT; STAY M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●	●
70	STAY; RAD 4HK1-TCN ENG(RDQ)	8-98018-941-0	01	1	1306-	●	●	●
70	STAY; RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-940-0	01	1	1306-	●
70	STAY; RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98114-297-0	01	1	1306-	●
79	GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ)	8-98172-924-0	01	1	1306-	●	●	●
79	GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98172-923-0	01	1	1306-	●
79	GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-081-1	01	1	1306-1410	●
79	GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98234-712-0	01	1	1411-	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X12	8-98039-672-0	04	1	1411-	●
80	BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) (A) M6X16	1-21559-481-0	04	1	1306-	●	●	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X12	8-98039-672-0	02	1	1306-1410	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X12	8-98039-672-0	02	1	1306-1410	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X12	8-98039-672-0	02	1	1411-	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (D) M8X130 FLANGE	0-28055-813-0	01	1	1306-	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) M8X30 FLANGE	0-28650-830-0	03	1	1306-	●
89	BOLT (A) M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●	●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1306-	●	●	●
92	BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97382-827-2	01	1	1306-	●	●	●
92	BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B)	8-98237-770-0	01	1	1306-	●
232	COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	1-87410-723-0	02	1	1306-	●	●	●
232	COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-87410-723-0	02	1	1306-	●
232	COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98141-232-0	02	1	1306-	●
267	RUBBER; CUSHION	1-21467-023-0	02	1	1306-	●	●	●

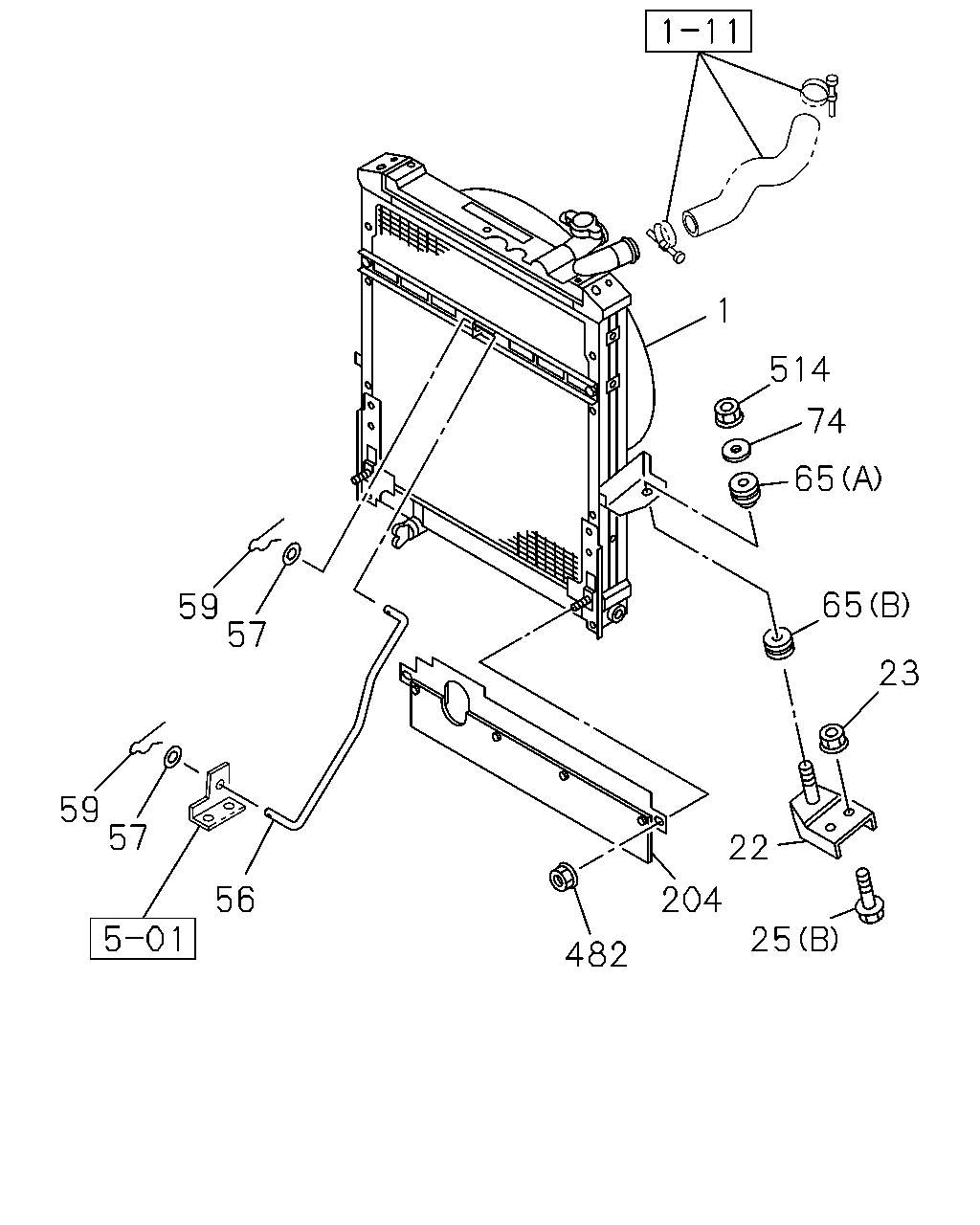

1 514 74 65 65 23 22 25 204 482 56 57 59 57 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98174-421-0	01	1	1306-	●	●	●
1	RADIATOR ASM 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98174-420-0	01	1	1306-	●	●	●
1	RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98172-907-0	01	1	1306-	●
1	RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98240-295-0	01	1	1306-	●
22	BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97330-527-1	02	1	1306-	●	●	●
22	BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-640-0	01	1	1306-	●
22	BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-641-0	01	1	1306-	●
23	NUT; RAD MTG 4HK1-TCN ENG(RDQ) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
23	NUT; RAD MTG 4JJ1-TCC ENG(RDU) M10 FLANGE SOU	0-91180-110-0	04	1	1306-	●
25	BOLT; BRKT 4JJ1-TCC ENG(RDU) (B) M10X30 FLANGE SOU	0-28651-030-0	04	1	1306-	●
25	BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X12 FLANGE SOU	0-28050-612-0	04	1	1306-	●
25	BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X12 FLANGE SOU	0-28050-612-0	04	1	1306-	●
56	STAY; RAD 4HK1-TCN ENG(RDQ)	8-98006-490-2	01	1	1306-	●	●	●
56	STAY; RAD 4JJ1-TCC ENG(RDU)	8-97387-650-0	01	1	1306-	●
57	WASHER; PL,STAY ID=10.5 SOU	0-91610-510-0	02	1	1306-	●	●	●
59	PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1306-	●	●	●
65	INSULATOR; RAD (A)	8-94249-346-0	02	1	1306-	●	●	●
65	INSULATOR; RAD (B)	8-94249-347-0	02	1	1306-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1306-	●	●	●
204	GUIDE ASM; AIR 4JJ1-TCC ENG(RDU)	8-97383-928-1	01	1	1306-	●
482	NUT; AIR GUIDE 4JJ1-TCC ENG(RDU) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●
514	NUT; RAD M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●

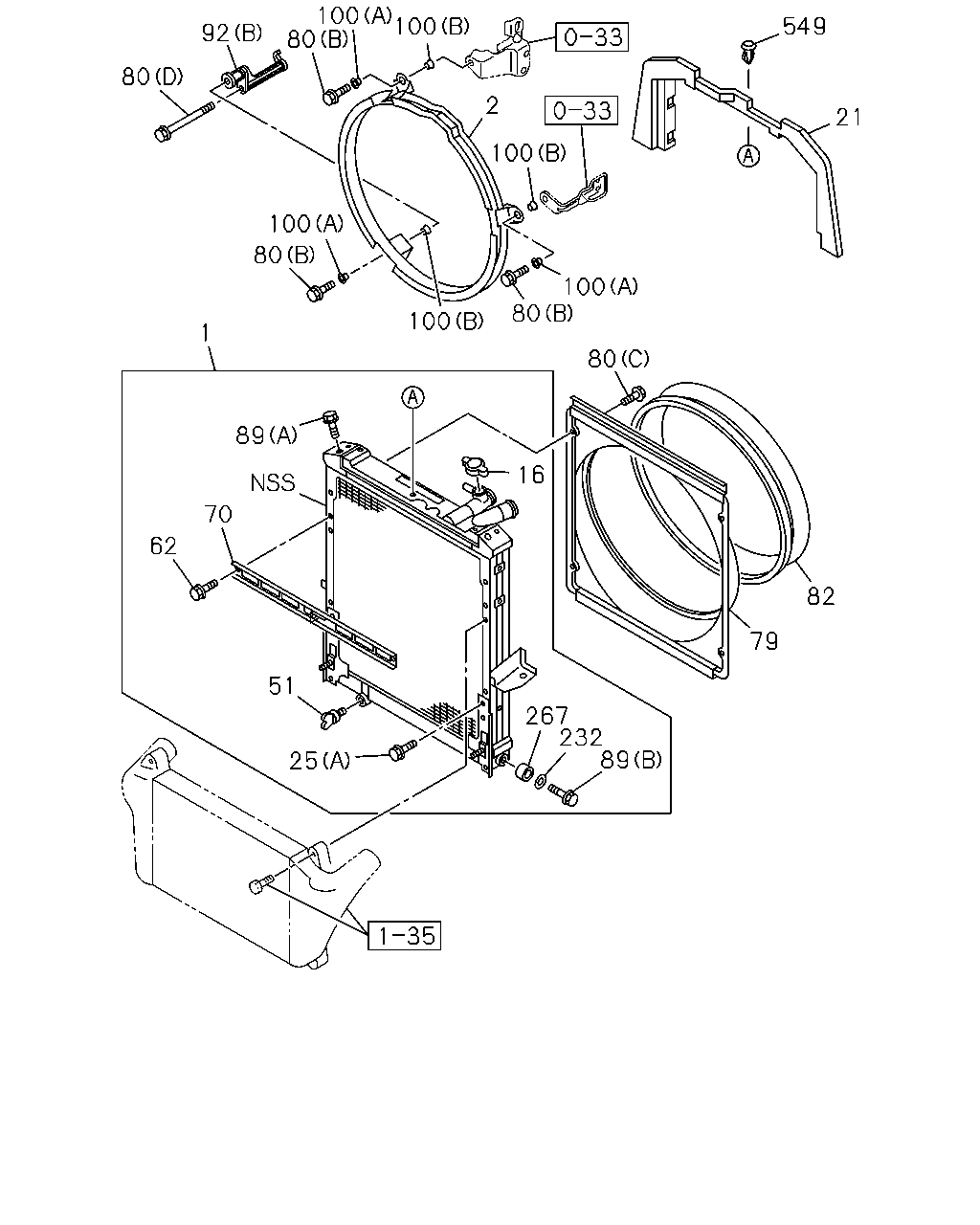

92 80 80 100 100 2 100 80 100 21 549 100 80 100 80 16 89 70 62 51 25 267 232 89 79 82 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98174-421-0	01	1	1306-	●	●	●
1	RADIATOR ASM 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98174-420-0	01	1	1306-	●	●	●
1	RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98172-907-0	01	1	1306-	●
1	RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98240-295-0	01	1	1306-	●
2	GUIDE; FAN 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-98054-659-0	01	1	1306-	●
16	CAP; RAD	8-98096-226-0	01	1	1306-	●	●	●
21	SEAL; RAD 4JJ1-TCC ENG(RDU)	8-98025-371-0	01	1	1306-	●
25	BOLT; BRKT 4JJ1-TCC ENG(RDU) (B) M10X30 FLANGE SOU	0-28651-030-0	04	1	1306-	●
25	BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X12 FLANGE SOU	0-28050-612-0	04	1	1306-	●
25	BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X12 FLANGE SOU	0-28050-612-0	04	1	1306-	●
51	PLUG; DRAIN W/GASKET SOU	8-97171-437-0	01	1	1306-	●	●	●
62	BOLT; STAY M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●	●
70	STAY; RAD 4HK1-TCN ENG(RDQ)	8-98018-941-0	01	1	1306-	●	●	●
70	STAY; RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-940-0	01	1	1306-	●
70	STAY; RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98114-297-0	01	1	1306-	●
79	GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ)	8-98172-924-0	01	1	1306-	●	●	●
79	GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98172-923-0	01	1	1306-	●
79	GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-081-1	01	1	1306-1410	●
79	GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98234-712-0	01	1	1411-	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X12	8-98039-672-0	04	1	1411-	●
80	BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) (A) M6X16	1-21559-481-0	04	1	1306-	●	●	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X12	8-98039-672-0	02	1	1306-1410	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X12	8-98039-672-0	02	1	1306-1410	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M6X12	8-98039-672-0	02	1	1411-	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (D) M8X130 FLANGE	0-28055-813-0	01	1	1306-	●
80	BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) M8X30 FLANGE	0-28650-830-0	03	1	1306-	●
82	COVER; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-085-1	01	1	1306-	●
89	BOLT (A) M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●	●
89	BOLT (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1306-	●	●	●
92	BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97382-827-2	01	1	1306-	●	●	●
92	BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B)	8-98237-770-0	01	1	1306-	●
100	RUBBER; MTG 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) OD=32	8-94395-766-0	03	1	1306-	●
100	RUBBER; MTG 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) OD=32	8-98058-502-1	03	1	1306-	●
232	COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	1-87410-723-0	02	1	1306-	●	●	●
232	COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-87410-723-0	02	1	1306-	●
232	COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98141-232-0	02	1	1306-	●
267	RUBBER; CUSHION	1-21467-023-0	02	1	1306-	●	●	●
549	CLIP; SEAL,RAD 4JJ1-TCC ENG(RDU)	8-97228-568-0	05	1	1306-	●

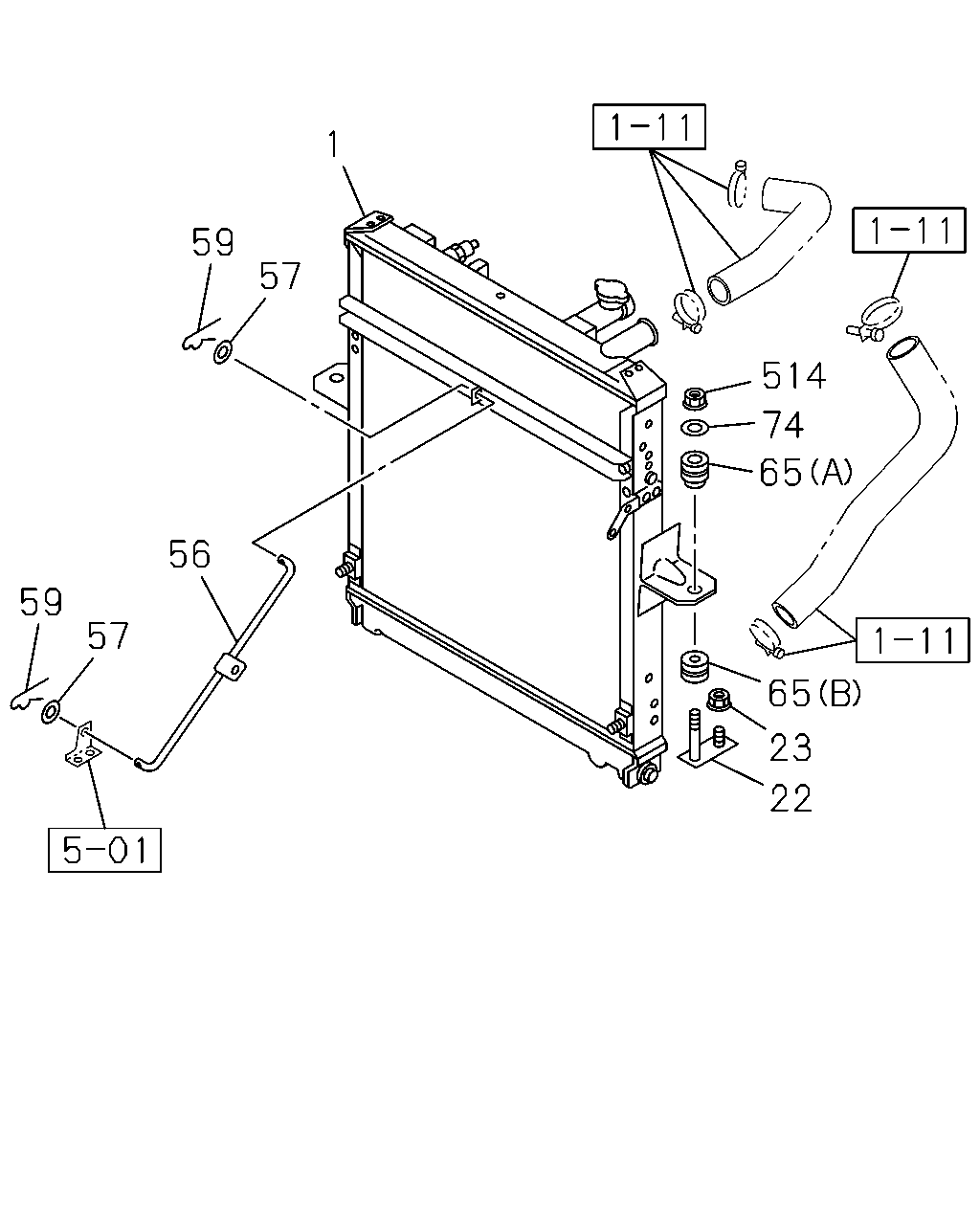

1 59 57 56 59 57 65 23 22 65 74 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98174-421-0	01	1	1306-	●	●	●
1	RADIATOR ASM 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98174-420-0	01	1	1306-	●	●	●
1	RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98172-907-0	01	1	1306-	●
1	RADIATOR ASM 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98240-295-0	01	1	1306-	●
22	BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-97330-527-1	02	1	1306-	●	●	●
22	BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-640-0	01	1	1306-	●
22	BRACKET; RAD MTG 4JJ1-TCC ENG(RDU)	8-97387-641-0	01	1	1306-	●
23	NUT; RAD MTG 4HK1-TCN ENG(RDQ) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
23	NUT; RAD MTG 4JJ1-TCC ENG(RDU) M10 FLANGE SOU	0-91180-110-0	04	1	1306-	●
56	STAY; RAD 4HK1-TCN ENG(RDQ)	8-98006-490-2	01	1	1306-	●	●	●
56	STAY; RAD 4JJ1-TCC ENG(RDU)	8-97387-650-0	01	1	1306-	●
57	WASHER; PL,STAY ID=10.5 SOU	0-91610-510-0	02	1	1306-	●	●	●
59	PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1306-	●	●	●
65	INSULATOR; RAD (A)	8-94249-346-0	02	1	1306-	●	●	●
65	INSULATOR; RAD (B)	8-94249-347-0	02	1	1306-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1306-	●	●	●
514	NUT; RAD M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●	●
