0-12 — CYLINDER BLOCK (#12264) — 43 parça
çizim 21500
2 4
BalonParca AdiParca NoAdetTipApplied Date
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-998-3 06 1 0105-0303
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-451-0 06 1 0304-0311
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-863-0 06 1 0312-
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-999-3 06 1 0105-0303
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-452-0 06 1 0304-0311
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-864-0 06 1 0312-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 0105-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 0105-

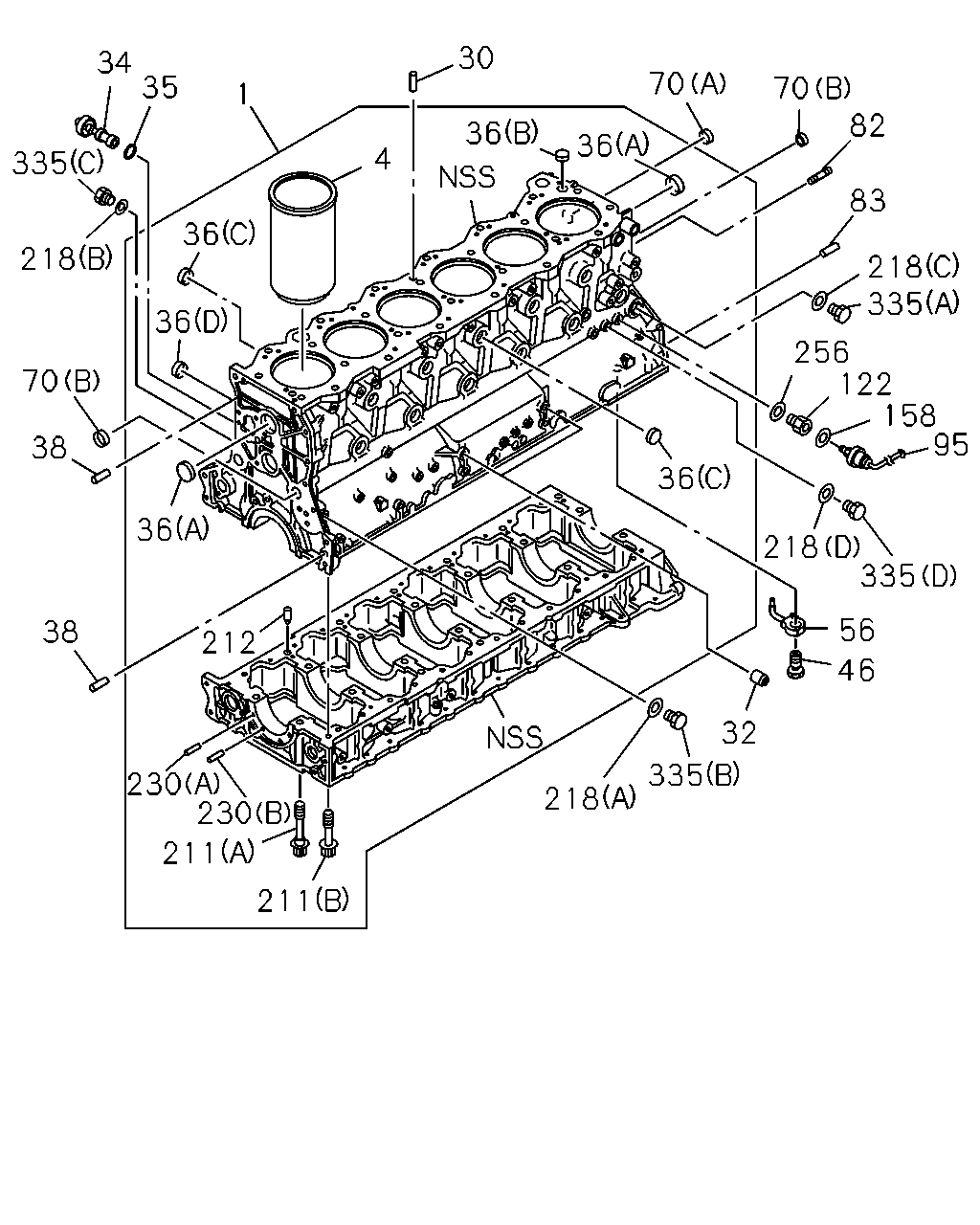

çizim 22359
30 34 35 70 70 82 1 36 36 4 335 36 83 36 36 218 218 335 256 122 158 95 70 38 36 218 335 212 56 46 38 230 230 211 32 335 218 211
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL 1-11210-656-8 01 1 0105-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 0105-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 0105-
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 03 1 0105-
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 0105-
34 VALVE; OIL RELIEF 1-13160-030-3 01 1 0105-
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 0105-0508
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 0105-
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 0105-
36 CUP; SEALING,WATER JACKET
(D) OD=40 		1-09600-065-1 02 1 0105-
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94241-637-0 13 1 0105-
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 0105-
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 0105-
56 JET; OIL,PISTON COOLING 1-13342-125-4 06 1 0105-
70 CUP; SEALING,FRT & RR
(A) OD=32 		1-09600-012-2 01 1 0105-
70 CUP; SEALING,FRT & RR
(B) OD=25 		1-09600-016-0 04 1 0105-
82 STUD; FLYWHEEL HSG
M14X35 L=56 		9-04411-435-0 01 1 0105-
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 0105-
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 0105-0508
122 ADAPTER; OIL PRESSURE SWITCH 8-94390-391-0 01 1 0105-0508
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0105-0508
211 BOLT; CRANKCASE
(B) M12X114 		1-09070-087-2 28 1 0105-
211 BOLT; CRANKCASE
(A) M18X150 		1-09070-151-0 14 1 0105-
212 PIN; CRANKCASE 1-09740-068-1 02 1 0105-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0105-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 0105-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22 		1-09630-089-0 01 1 0105-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25 		1-09630-141-0 01 1 0105-
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 0105-
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 0105-
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0105-0508
335 PLUG; C/BL,SIDE
(A) M22X12 		1-09604-035-0 01 1 0105-
335 PLUG; C/BL,SIDE
(B) M10X7 		1-09604-094-0 01 1 0105-
335 PLUG; C/BL,SIDE
(C) M12X9 		1-09604-095-0 01 1 0105-
335 PLUG; C/BL,SIDE
(D) M14X9 		9-99202-314-0 01 1 0105-
