◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#122636) — 75 parça

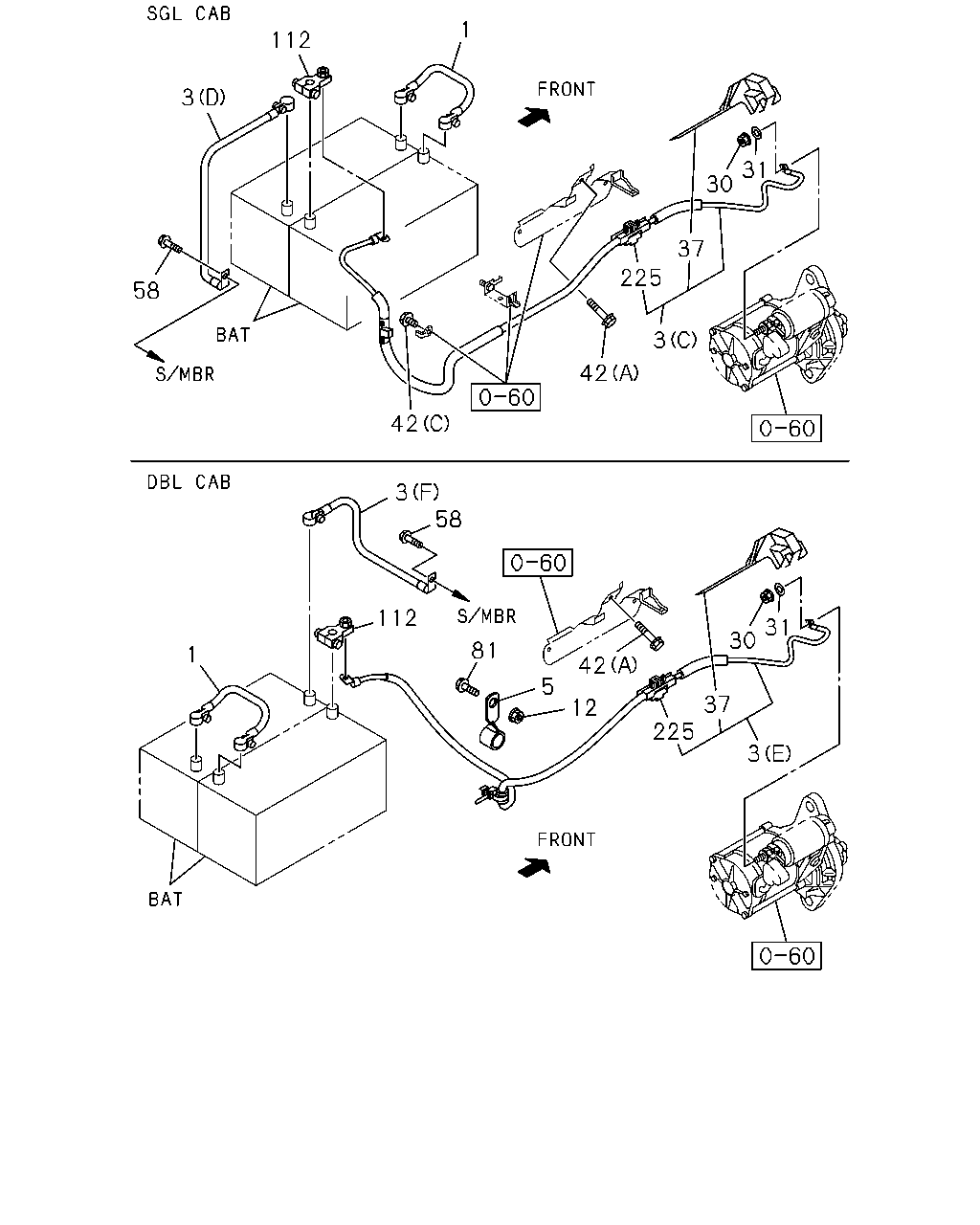

çizim 355438
112 3 1 31 30 37 225 3 42 42 58 3 112 1 81 5 12 42 225 37 30 31 3 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1306- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-726-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-724-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1306- ●
3 HARNESS; CABLE,BATTERY TO STARTER
(B) L=200 		8-98056-337-1 01 1 1306- ●
3 HARNESS; CABLE,BATTERY TO STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-229-2 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-720-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-719-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1306- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98108-590-1 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98294-735-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-144-3 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-728-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98108-588-1 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98294-733-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) BATTERY 115E41L<8MA> (F) L=450 		8-98072-275-1 01 1 1306- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) L=250 		8-98056-338-1 01 1 1306- ●
5 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1306- ●
12 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) BATTERY 115E41L<8MA> M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ●
30 NUT; CABLE,STARTER TO BATTERY
M8 SOU 		0-91110-508-0 01 1 1306- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 SOU 		0-91510-808-0 01 1 1306- ● ●
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1306- ● ●
42 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		8-97329-599-0 01 1 1306- ● ●
42 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) M6X25 FLANGE SOU 		0-28650-625-0 01 1 1306- ●
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1306- ● ●
81 BOLT; BATTERY CABLE
DBL CAB(NP**W*) BATTERY 115E41L<8MA> M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1306- ● ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1306-1409 ● ●
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ●

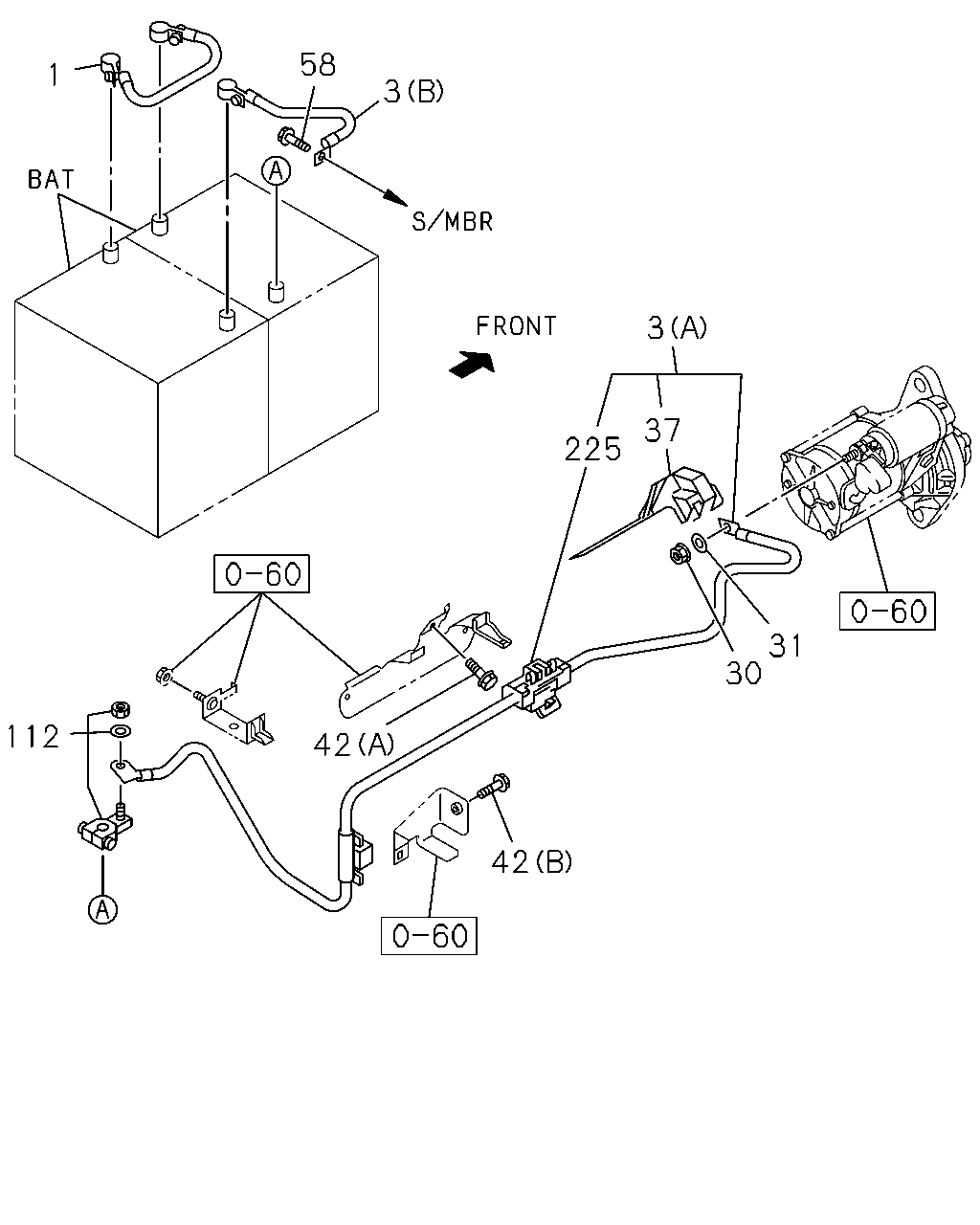

çizim 355525
42 42 112 30 31 225 37 3 3 58 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1306- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-726-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-724-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1306- ●
3 HARNESS; CABLE,BATTERY TO STARTER
(B) L=200 		8-98056-337-1 01 1 1306- ●
3 HARNESS; CABLE,BATTERY TO STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-229-2 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-720-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-719-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1306- ● ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98108-590-1 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98294-735-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-144-3 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-728-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98108-588-1 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98294-733-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 1306-1409 ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1410- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) BATTERY 115E41L<8MA> (F) L=450 		8-98072-275-1 01 1 1306- ●
3 HARNESS; CABLE,BATTERY TO STARTER
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) L=250 		8-98056-338-1 01 1 1306- ●
30 NUT; CABLE,STARTER TO BATTERY
M8 SOU 		0-91110-508-0 01 1 1306- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 SOU 		0-91510-808-0 01 1 1306- ● ●
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1306- ● ●
42 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (C) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
42 BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE 		8-97329-599-0 01 1 1306- ● ●
42 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (B) M6X25 FLANGE SOU 		0-28650-625-0 01 1 1306- ●
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1306- ● ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1306- ● ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1306-1409 ● ●
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
