0-57 — EMISSION PIPING (#122634) — 85 parça

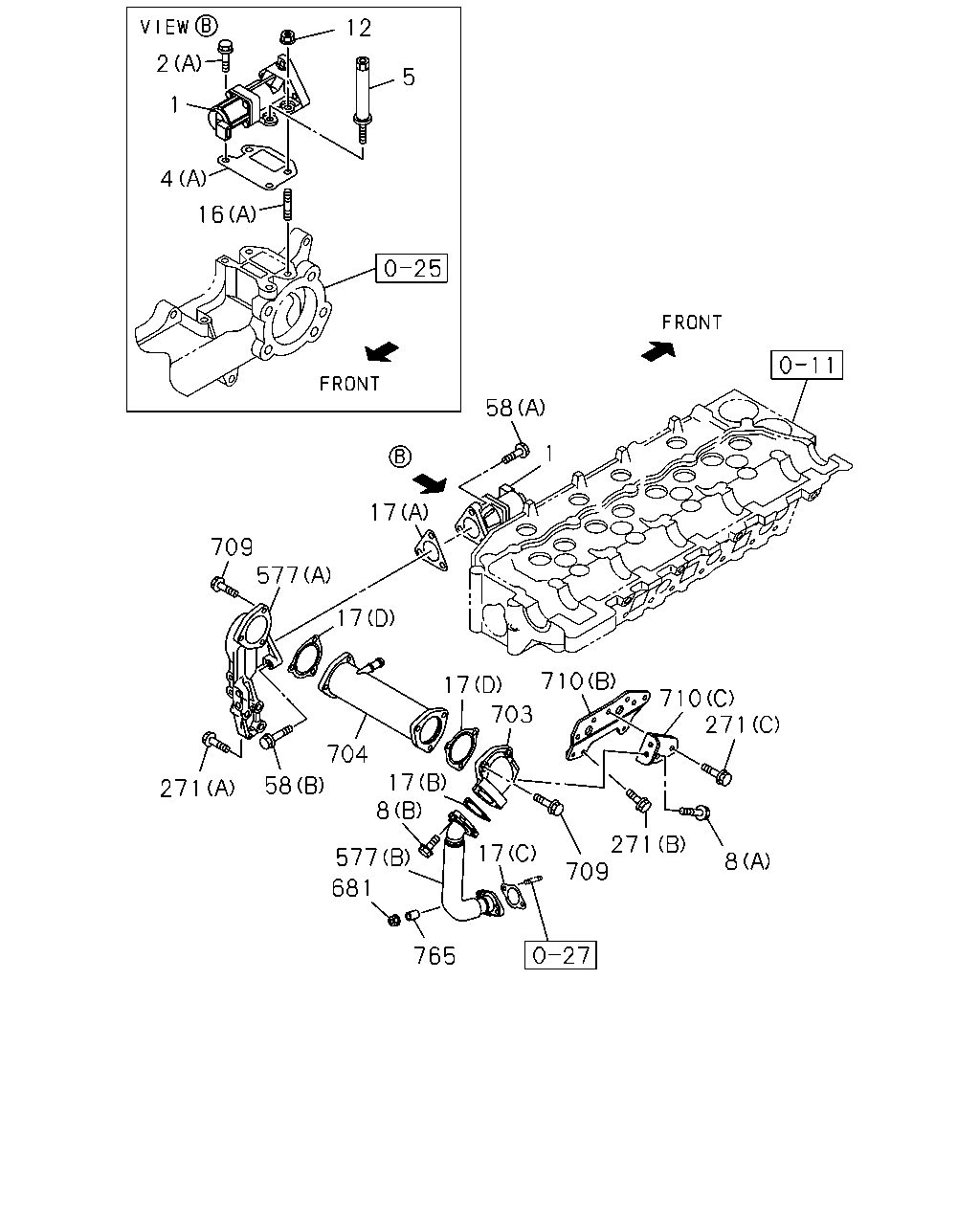

12 5 16 4 1 2 58 17 709 577 17 271 58 17 8 577 681 765 17 703 17 710 710 271 8 271 709 1 704

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97377-509-8	01	1	1306-	●
1	VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97381-560-7	01	1	1306-1403		●
1	VALVE; EGR EURO3 SPECIFICATION(NT3)	8-98238-259-1	01	1	1404-		●
2	BOLT; EGR VLV EURO3 SPECIFICATION(NT3) (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
2	BOLT; EGR VLV EURO3 SPECIFICATION(NT3) (B) M8X80 FLANGE SOU	0-28050-880-0	01	1	1306-		●
2	BOLT; EGR VLV EURO3 SPECIFICATION(NT3) (C) M8X23 FLANGE	8-97378-077-0	03	1	1306-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1306-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98094-528-0	02	1	1306-		●
5	ADAPTER ASM	8-97377-804-0	01	1	1306-	●
8	BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1306-	●
8	BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) (B) M8X28 FLANGE	8-98043-528-0	03	1	1306-	●
12	NUT; EGR VLV EURO3 SPECIFICATION(NT3) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●
12	NUT; EGR VLV EURO3 SPECIFICATION(NT3) M8 FLANGE SOU	0-91180-208-0	04	1	1306-		●
16	STUD; EGR VLV EURO3 SPECIFICATION(NT3) (A) M8X20 L=32	0-41010-820-0	02	1	1306-	●
16	STUD; EGR VLV EURO3 SPECIFICATION(NT3) (B) M8X25 L=41	0-40210-825-0	02	1	1306-		●
16	STUD; EGR VLV EURO3 SPECIFICATION(NT3) (C) M8X50 L=62	0-40210-850-0	02	1	1306-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-97367-918-0	01	1	1306-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (C)	8-97375-980-1	01	1	1306-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97388-919-0	02	1	1306-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-98036-507-0	01	1	1306-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (E)	8-97357-684-3	01	1	1306-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (F)	8-98017-551-0	01	1	1306-		●
58	BOLT; PIPE EURO3 SPECIFICATION(NT3) (B) M8X45 FLANGE SOU	0-28050-845-0	02	1	1306-	●
58	BOLT; PIPE EURO3 SPECIFICATION(NT3) (A) M8X30 FLANGE	0-28650-830-0	01	1	1306-	●
271	BOLT; BRKT (A) M12X50 FLANGE	0-28151-250-0	02	1	1306-	●
271	BOLT; BRKT EURO3 SPECIFICATION(NT3) (B) M8X20 FLANGE	0-28050-820-0	02	1	1306-	●
271	BOLT; BRKT EURO3 SPECIFICATION(NT3) (C) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION(NT3) (A)	8-98055-858-2	01	1	1306-	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION(NT3) (B)	8-98063-655-2	01	1	1306-	●
681	NUT; EGR PIPE M8 FLANGE SOU	0-91180-208-0	02	1	1306-	●
681	NUT; EGR PIPE EURO3 SPECIFICATION(NT3) M8 FLANGE SOU	0-91180-208-0	02	1	1306-		●
703	DUCT; EGR EURO3 SPECIFICATION(NT3)	8-98061-100-2	01	1	1306-	●
704	COOLER ASM; EGR EURO3 SPECIFICATION(NT3)	8-98061-104-0	01	1	1306-	●
709	BOLT; EGR COOLER EURO3 SPECIFICATION(NT3) M10X35 FLANGE SOU	0-28751-035-0	06	1	1306-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	1306-	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	1306-	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	1306-	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1306-	●

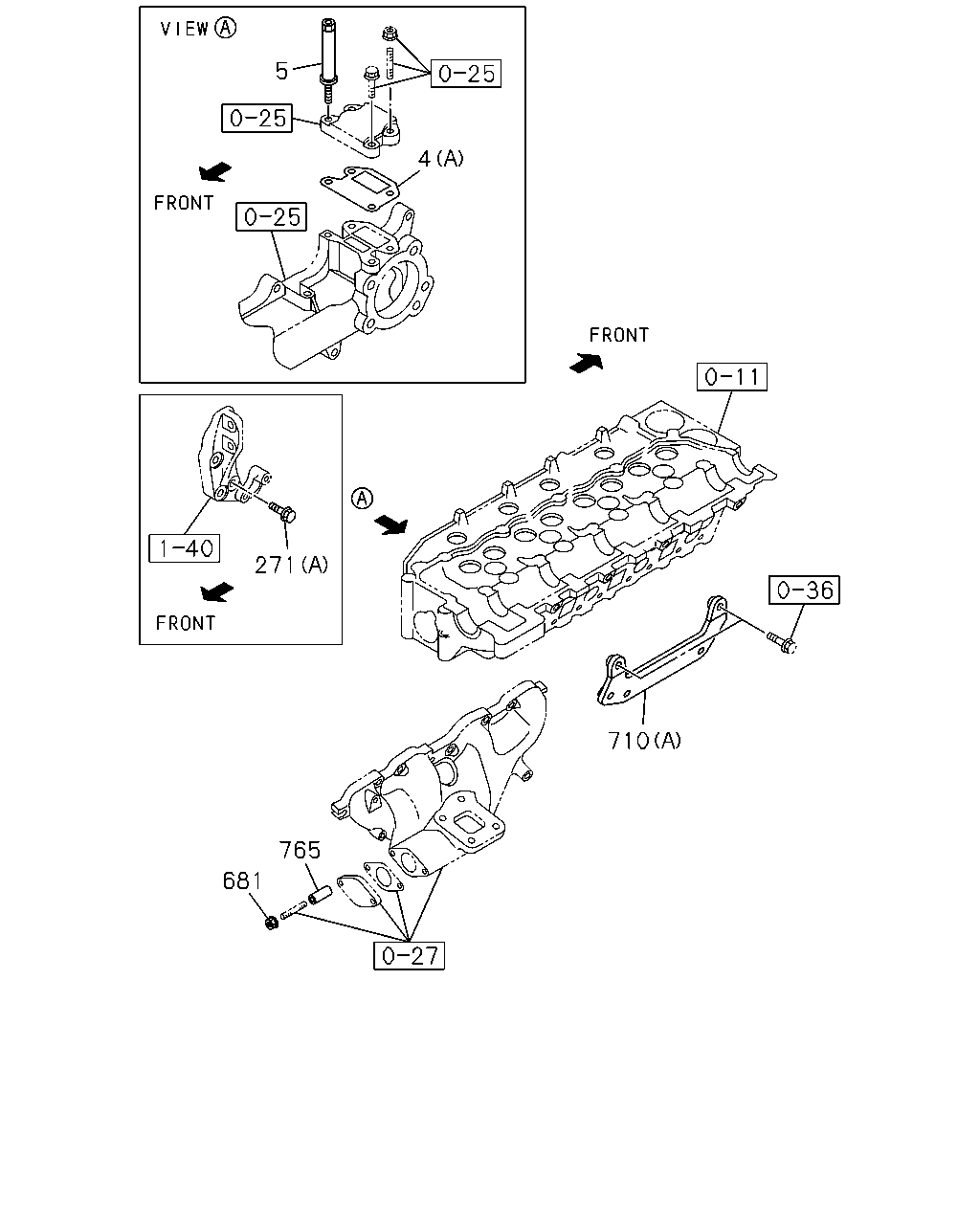

5 4 271 765 681 710

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1306-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98094-528-0	02	1	1306-		●
5	ADAPTER ASM	8-97377-804-0	01	1	1306-	●
271	BOLT; BRKT (A) M12X50 FLANGE	0-28151-250-0	02	1	1306-	●
271	BOLT; BRKT EURO3 SPECIFICATION(NT3) (B) M8X20 FLANGE	0-28050-820-0	02	1	1306-	●
271	BOLT; BRKT EURO3 SPECIFICATION(NT3) (C) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●
681	NUT; EGR PIPE M8 FLANGE SOU	0-91180-208-0	02	1	1306-	●
681	NUT; EGR PIPE EURO3 SPECIFICATION(NT3) M8 FLANGE SOU	0-91180-208-0	02	1	1306-		●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	1306-	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	1306-	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	1306-	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1306-	●

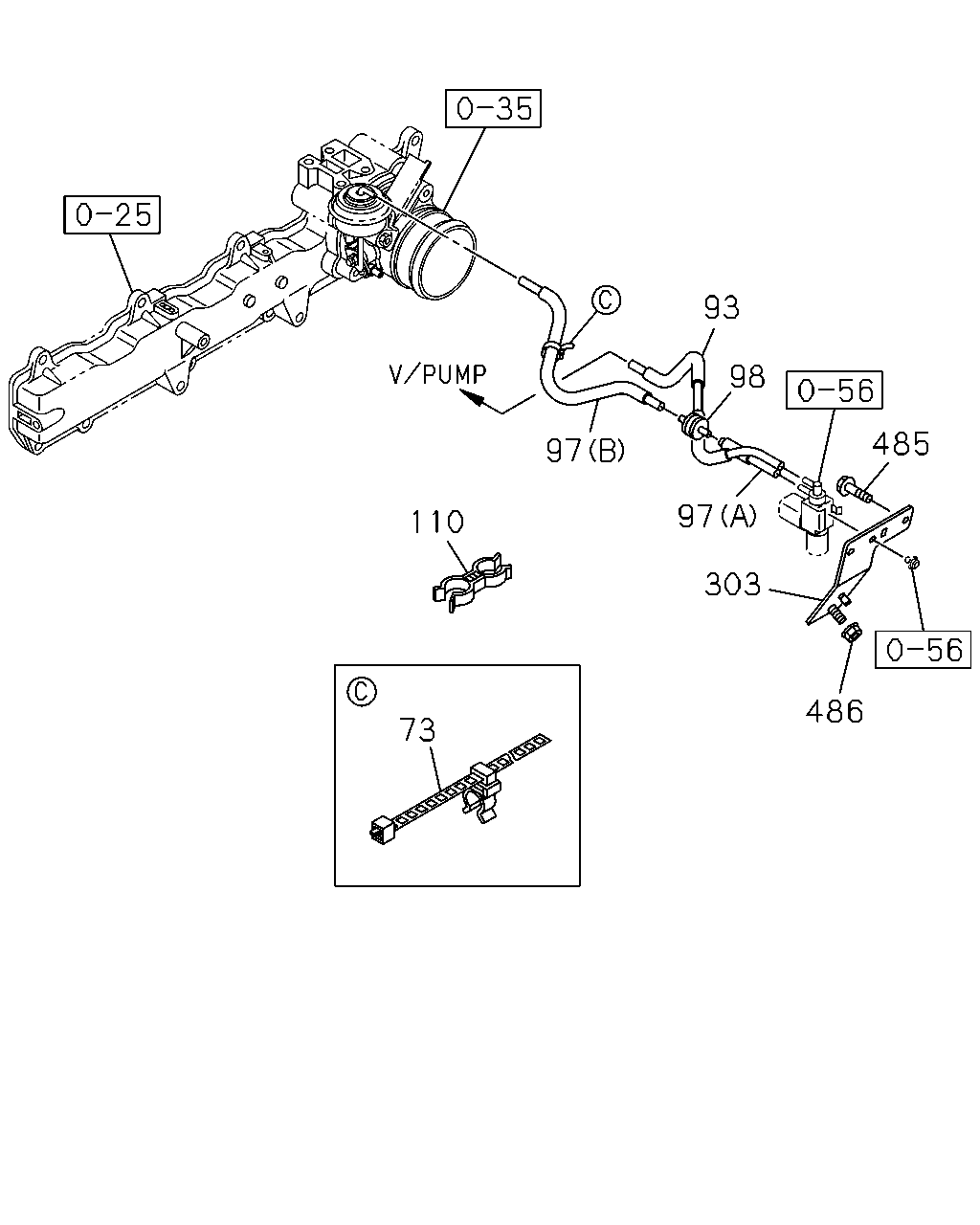

93 98 485 486 303 97 97 97 110 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
73	CLIP; VAC HOSE L=350	8-97373-487-0	02	1	1306-	●
93	HOSE ASM	8-98105-295-1	01	1	1306-	●
97	HOSE; RUBBER (B)	8-98113-964-0	01	1	1306-	●
97	HOSE; RUBBER (A)	8-98113-965-0	01	1	1306-	●
98	VALVE; DELAY	8-94110-978-0	01	1	1306-	●
110	CLIP; VAC HOSE ID=13.2 & 14.5	8-94475-649-0	01	1	1306-	●
303	BRACKET; VAC SW	8-98097-124-0	01	1	1306-	●
485	BOLT; VSV M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1306-	●
486	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●

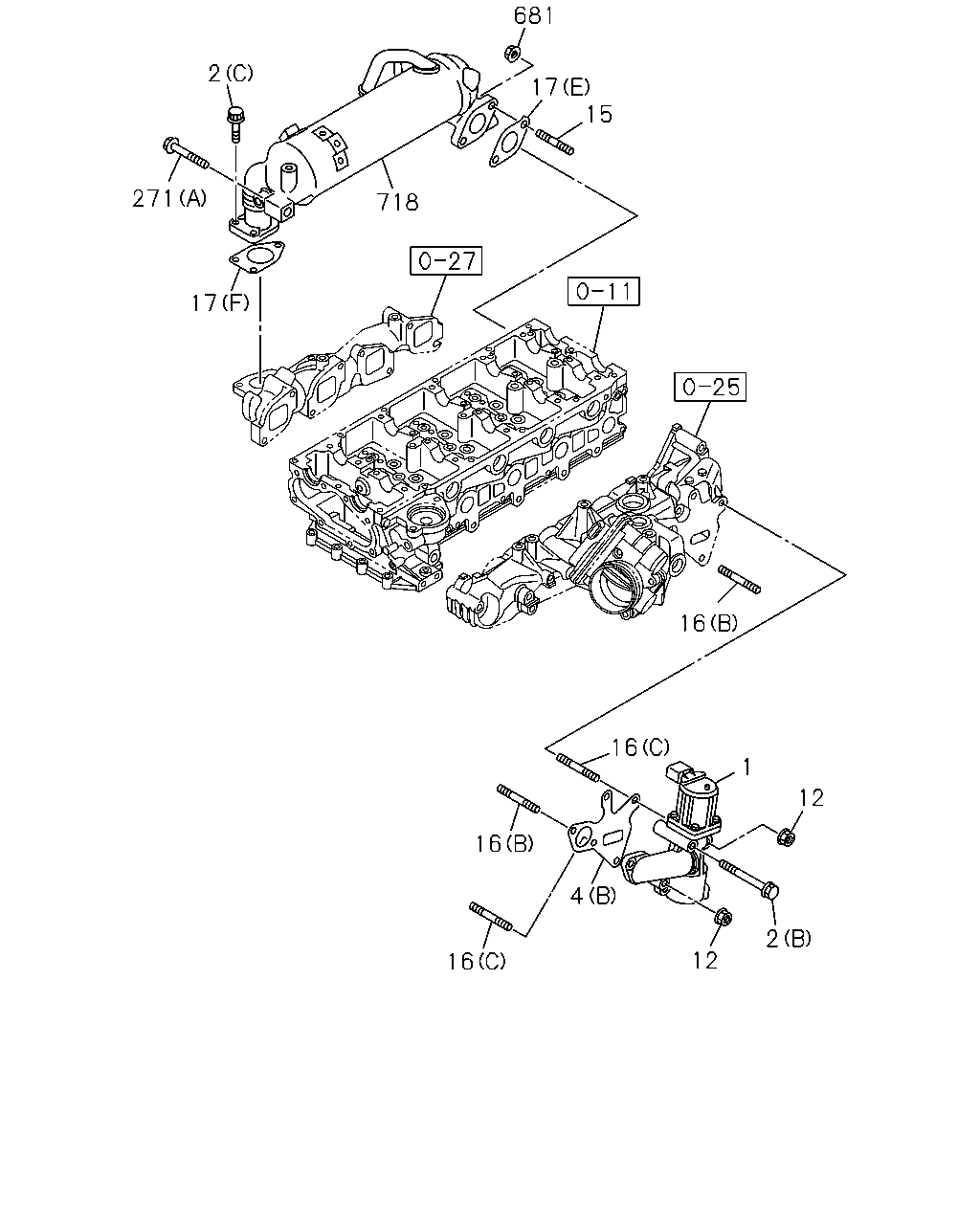

2 271 17 718 681 17 16 16 16 1 12 2 12 4 16 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97377-509-8	01	1	1306-	●
1	VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97381-560-7	01	1	1306-1403		●
1	VALVE; EGR EURO3 SPECIFICATION(NT3)	8-98238-259-1	01	1	1404-		●
2	BOLT; EGR VLV EURO3 SPECIFICATION(NT3) (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
2	BOLT; EGR VLV EURO3 SPECIFICATION(NT3) (B) M8X80 FLANGE SOU	0-28050-880-0	01	1	1306-		●
2	BOLT; EGR VLV EURO3 SPECIFICATION(NT3) (C) M8X23 FLANGE	8-97378-077-0	03	1	1306-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1306-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98094-528-0	02	1	1306-		●
12	NUT; EGR VLV EURO3 SPECIFICATION(NT3) M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●
12	NUT; EGR VLV EURO3 SPECIFICATION(NT3) M8 FLANGE SOU	0-91180-208-0	04	1	1306-		●
15	STUD; EGR PIPE EURO3 SPECIFICATION(NT3) M8X25 L=37	0-41010-825-0	02	1	1306-		●
16	STUD; EGR VLV EURO3 SPECIFICATION(NT3) (A) M8X20 L=32	0-41010-820-0	02	1	1306-	●
16	STUD; EGR VLV EURO3 SPECIFICATION(NT3) (B) M8X25 L=41	0-40210-825-0	02	1	1306-		●
16	STUD; EGR VLV EURO3 SPECIFICATION(NT3) (C) M8X50 L=62	0-40210-850-0	02	1	1306-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-97367-918-0	01	1	1306-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (C)	8-97375-980-1	01	1	1306-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97388-919-0	02	1	1306-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-98036-507-0	01	1	1306-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (E)	8-97357-684-3	01	1	1306-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (F)	8-98017-551-0	01	1	1306-		●
271	BOLT; BRKT (A) M12X50 FLANGE	0-28151-250-0	02	1	1306-	●
271	BOLT; BRKT EURO3 SPECIFICATION(NT3) (B) M8X20 FLANGE	0-28050-820-0	02	1	1306-	●
271	BOLT; BRKT EURO3 SPECIFICATION(NT3) (C) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●
681	NUT; EGR PIPE M8 FLANGE SOU	0-91180-208-0	02	1	1306-	●
681	NUT; EGR PIPE EURO3 SPECIFICATION(NT3) M8 FLANGE SOU	0-91180-208-0	02	1	1306-		●
718	COOLER; EGR EURO3 SPECIFICATION(NT3)	8-98164-570-1	01	1	1306-		●
