◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#122628) — 21 parça

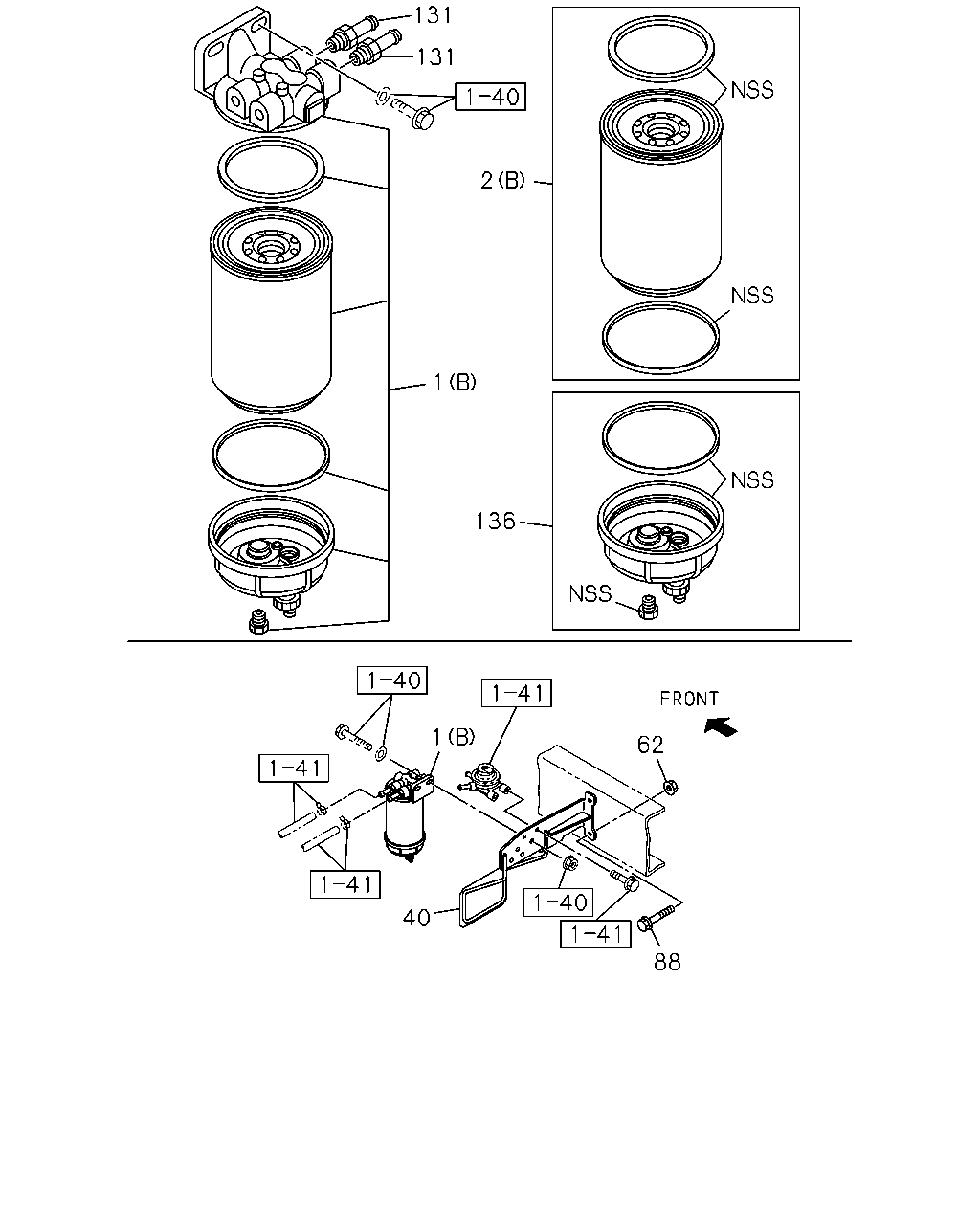

çizim 355389
131 2 131 1 136 1 40 88 62
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1306- ● ●
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1306- ● ●
2 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1306- ● ●
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1306- ● ●
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1306- ● ●
40 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98107-354-3 01 1 1306- ● ●
62 NUT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE SOU 		0-91180-110-0 02 1 1306- ● ●
88 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) M10X30 FLANGE SOU 		0-28651-030-0 02 1 1306- ● ●
131 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1306- ● ●
136 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 1306-1408 ● ●
136 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98279-324-0 01 1 1409- ● ●

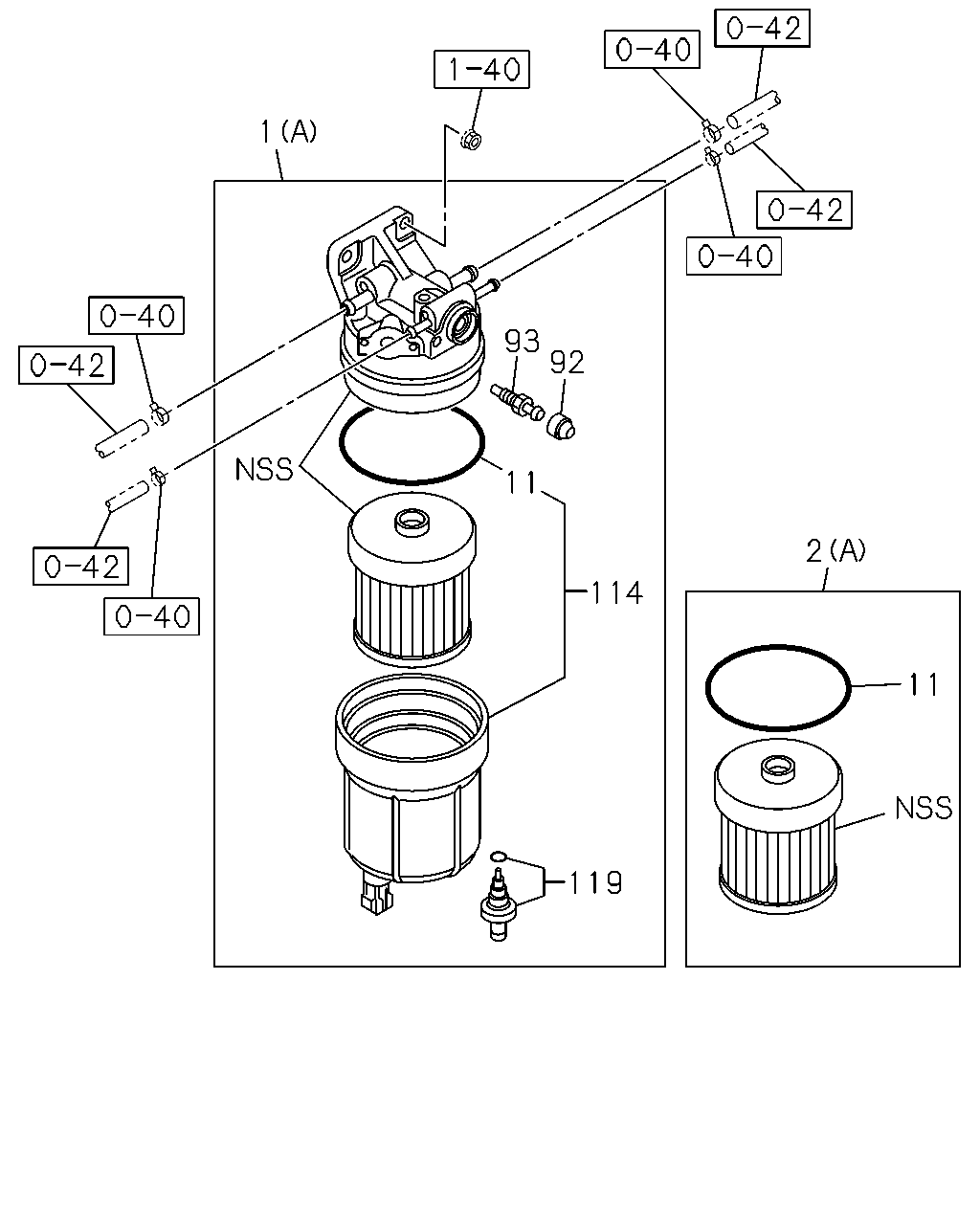

çizim 355390
1 93 92 11 114 2 11 119
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-1 01 1 1306- ● ●
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1306- ● ●
2 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1306- ● ●
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1306- ● ●
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1306- ● ●
11 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1306- ● ●
92 CAP; FUEL FILTER 8-98034-314-0 01 1 1306- ● ●
93 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1306- ● ●
114 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1306- ● ●
119 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 1306- ● ●
