0-40 — FUEL INJECTION SYSTEM (#122627) — 201 parça

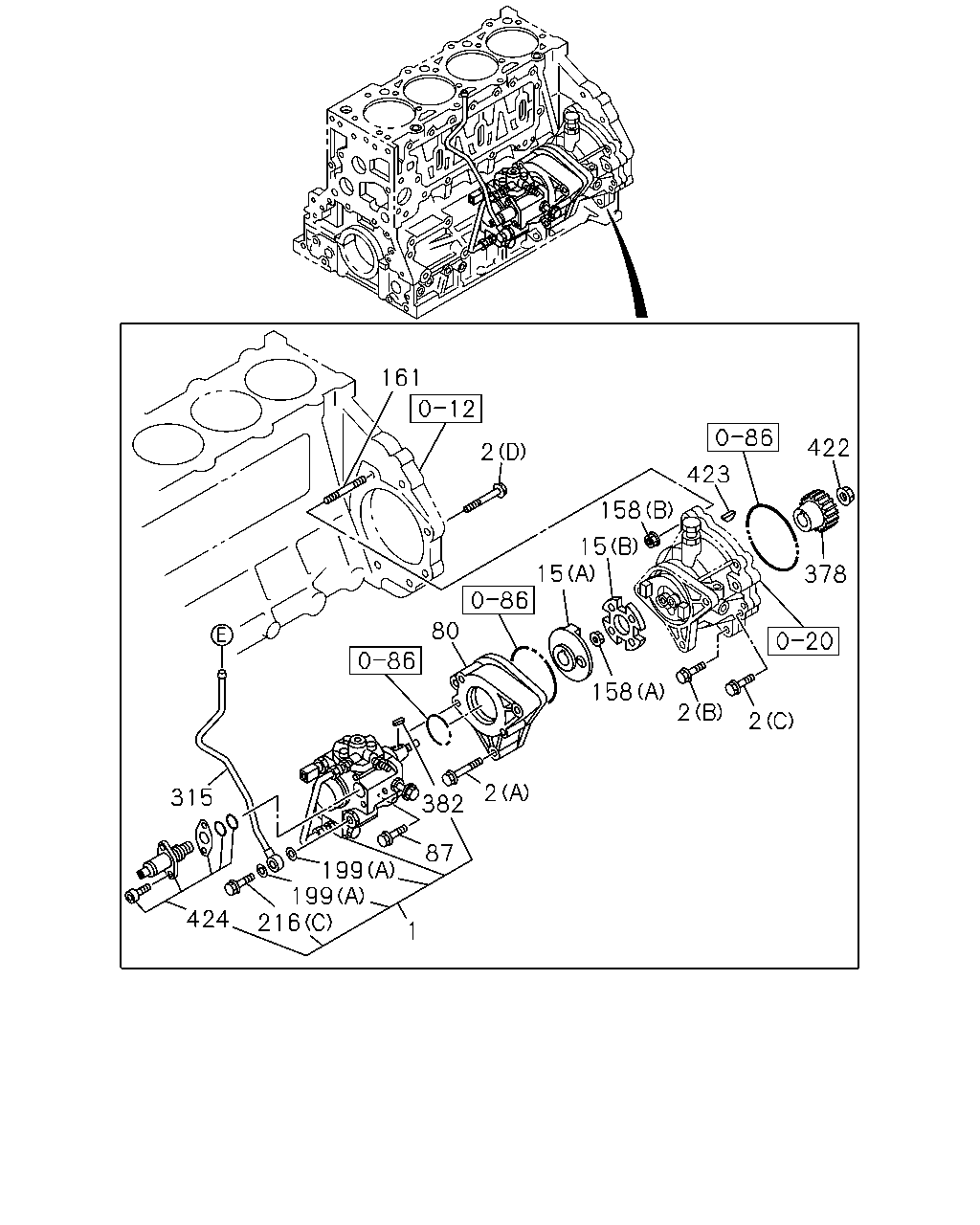

çizim 355386
161 2 422 423 158 15 378 15 80 2 382 87 199 1 199 216 424 315 158 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97386-557-5 01 1 1306- ●
2 BOLT; INJ PUMP
(A) M10X60 FLANGE SOU 		0-28051-060-0 03 1 1306- ●
2 BOLT; INJ PUMP
(B) M10X70 FLANGE 		0-28151-070-0 01 1 1306- ●
2 BOLT; INJ PUMP
(C) M12X70 FLANGE 		0-28151-270-0 01 1 1306- ●
2 BOLT; INJ PUMP
(D) M12X95 FLANGE 		8-94396-485-1 01 1 1306- ●
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1306- ●
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1306- ●
80 BRACKET; PUMP 8-98061-699-0 01 1 1306- ●
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1306- ●
158 NUT; INJ PUMP
(B) M10 FLANGE SOU 		0-91180-110-0 02 1 1306- ●
158 NUT; INJ PUMP
(A) M14 FLANGE 		0-91180-114-0 01 1 1306- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1306- ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1306- ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1306- ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1306- ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1306- ● ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1306- ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1306- ●
216 BOLT; EYE
(D) SOU 		9-88130-088-0 01 1 1306- ●
315 PIPE; FUEL,SUCTION 8-98126-333-0 01 1 1306- ●
378 GEAR; PUMP
Z=35 		8-98017-915-0 01 1 1306- ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1306- ● ●
422 NUT; GEAR
M18 		8-97141-154-0 01 1 1306- ●
423 KEY; GEAR 9-08055-519-0 01 1 1306- ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1306- ● ●

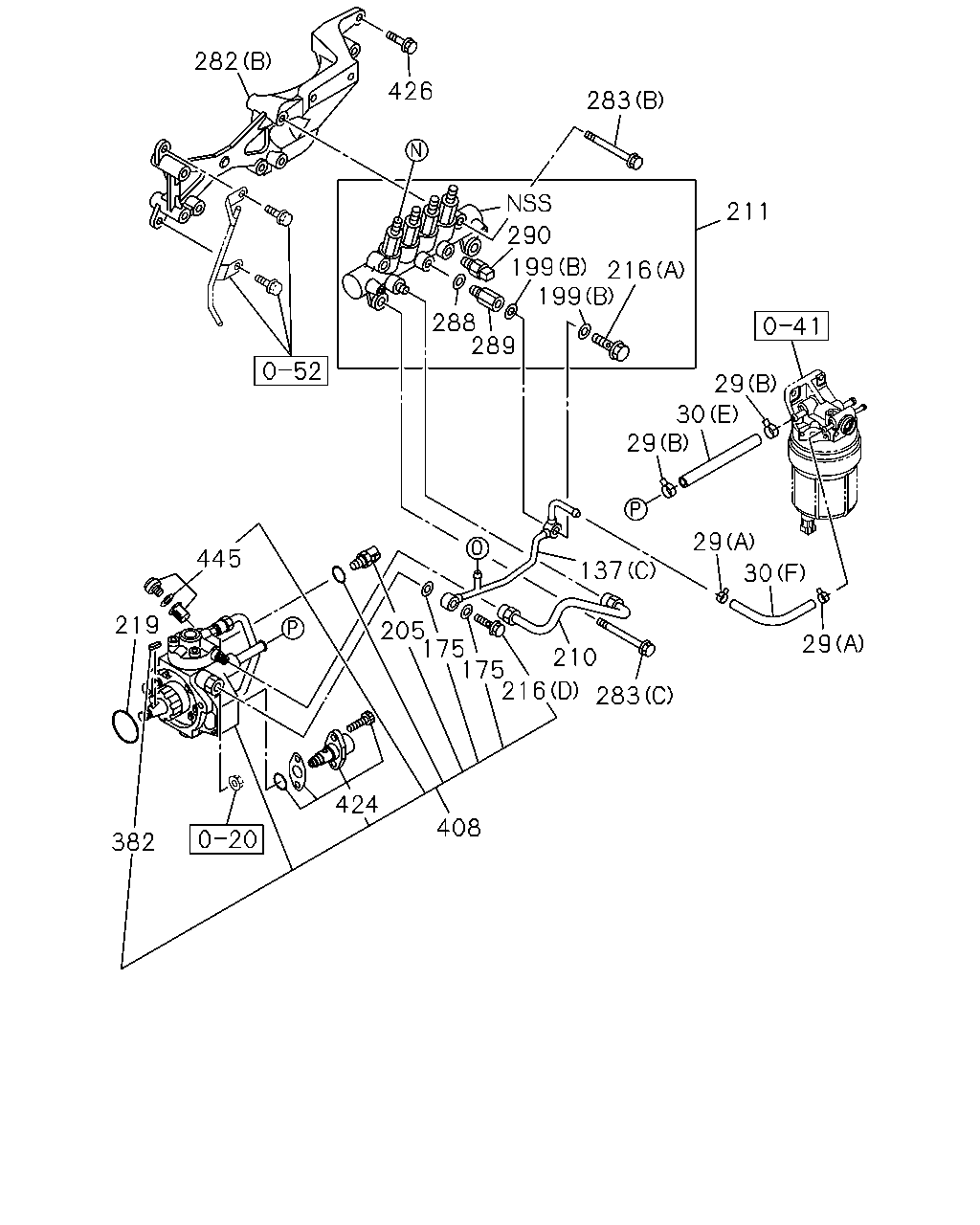

çizim 355391
282 426 283 290 199 216 199 288 289 211 29 30 29 29 30 29 137 445 219 382 205 175 175 216 283 210 424 408
BalonParca AdiParca NoAdetTipApplied Date A B
29 CLIP; HOSE
(A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1306- ●
29 CLIP; HOSE
(B) ID=16 		8-94392-924-0 02 1 1306- ●
29 CLIP; HOSE
(C) ID=10.5 		8-97019-473-0 10 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(A) 		8-98036-320-2 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=110 		8-97377-894-0 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1306- ●
137 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1306- ●
137 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1306- ●
137 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1306- ●
137 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1306- ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 		1-09630-083-0 02 1 1306- ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1306- ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1306- ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1306- ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1306- ● ●
210 PIPE; INJ,C/R 8-98036-176-1 01 1 1306- ●
210 PIPE; INJ,C/R 8-97388-902-0 01 1 1306- ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1306- ● ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1306- ● ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1306- ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1306- ●
216 BOLT; EYE
(D) SOU 		9-88130-088-0 01 1 1306- ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1306- ●
282 BRACKET; COMMON RAIL
(A) 		8-98157-115-0 01 1 1306- ●
282 BRACKET; COMMON RAIL
(B) 		8-98147-694-0 01 1 1306- ●
283 BOLT; COMMON RAIL
(A) M8X25 FLANGE SOU 		0-28050-825-0 01 1 1306- ●
283 BOLT; COMMON RAIL
(C) M8X70 FLANGE SOU 		0-28050-870-0 02 1 1306- ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1306- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1306- ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1306- ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1306- ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1306- ● ●
408 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 1306- ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1306- ● ●
426 BOLT; BRACKET
M8X60 FLANGE SOU 		0-28050-860-0 01 1 1306- ●
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1306- ● ●

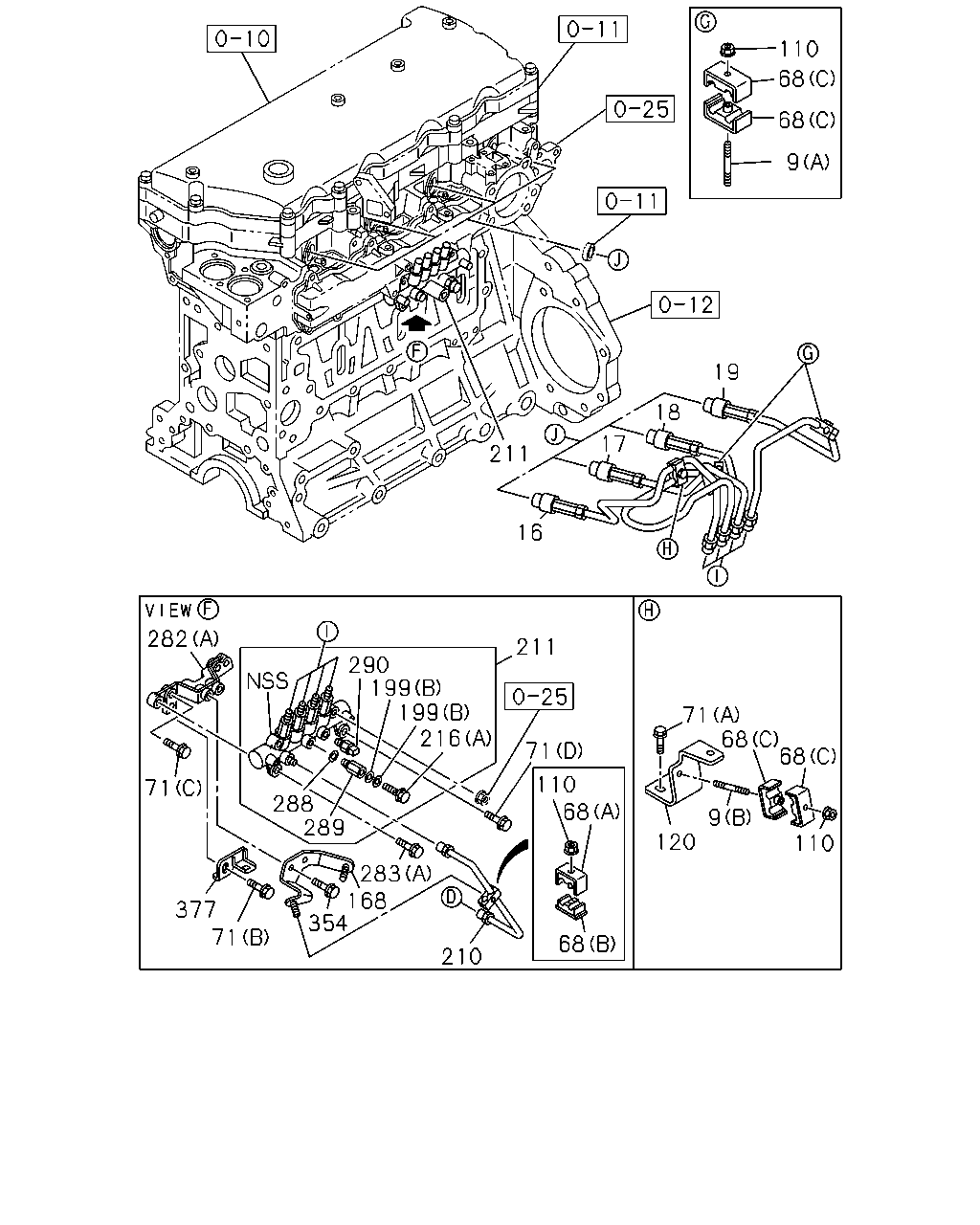

çizim 358331
110 9 68 19 18 17 211 16 211 290 199 199 216 71 377 71 288 289 283 354 168 210 110 68 68 71 71 120 68 68 110 9 282 68
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
(A) M6X30 L=38 		0-41010-630-0 02 1 1306- ● ●
9 STUD; CLIP
(B) M6X35 L=43 		8-97203-278-0 01 1 1306- ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1306-1404 ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 PIPE; INJ NO.1 8-98203-719-0 01 1 1306- ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1306-1404 ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 PIPE; INJ NO.2 8-98203-720-0 01 1 1306- ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1306-1404 ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 PIPE; INJ NO.3 8-98203-721-0 01 1 1306- ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1306-1404 ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 PIPE; INJ NO.4 8-98203-722-0 01 1 1306- ●
68 CLIP; INJ PIPE
(A) 		1-09701-195-3 01 1 1306- ●
68 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1306- ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1306-1405 ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1306-1405 ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
71 BOLT; BRKT
EURO2 SPECIFICATION(NT2) (B) M6X10 FLANGE SOU 		0-28050-610-0 01 1 1306- ●
71 BOLT; BRKT
(A) M8X16 FLANGE SOU 		0-28050-816-0 01 1 1306- ●
71 BOLT; BRKT
(C) M8X40 FLANGE 		0-28050-840-0 01 1 1306- ●
71 BOLT; BRKT
(D) M8X50 FLANGE 		0-28050-850-0 01 1 1306- ●
71 BOLT; BRKT
EURO3 SPECIFICATION(NT3) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1306- ●
110 NUT; CLIP
M6 FLANGE SOU 		0-91180-106-0 04 1 1306- ●
110 NUT; CLIP
M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ●
120 BRACKET; INJ PIPE 8-98041-601-0 01 1 1306- ●
168 BRACKET; FUEL PIPE 8-98036-175-1 01 1 1306- ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1306- ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1306- ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1306- ●
210 PIPE; INJ,C/R 8-98036-176-1 01 1 1306- ●
210 PIPE; INJ,C/R 8-97388-902-0 01 1 1306- ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1306- ● ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1306- ● ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1306- ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1306- ●
216 BOLT; EYE
(D) SOU 		9-88130-088-0 01 1 1306- ●
282 BRACKET; COMMON RAIL
(A) 		8-98157-115-0 01 1 1306- ●
282 BRACKET; COMMON RAIL
(B) 		8-98147-694-0 01 1 1306- ●
283 BOLT; COMMON RAIL
(A) M8X25 FLANGE SOU 		0-28050-825-0 01 1 1306- ●
283 BOLT; COMMON RAIL
(C) M8X70 FLANGE SOU 		0-28050-870-0 02 1 1306- ●
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1306- ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1306- ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1306- ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 1306- ● ●
354 BOLT; FUEL PIPE
M8X16 FLANGE SOU 		0-28050-816-0 02 1 1306- ●
377 BRACKET; HARNESS
EURO2 SPECIFICATION(NT2) 		8-97310-438-1 01 1 1306- ●
377 BRACKET; HARNESS
EURO3 SPECIFICATION(NT3) 		8-97310-438-1 02 1 1306- ●

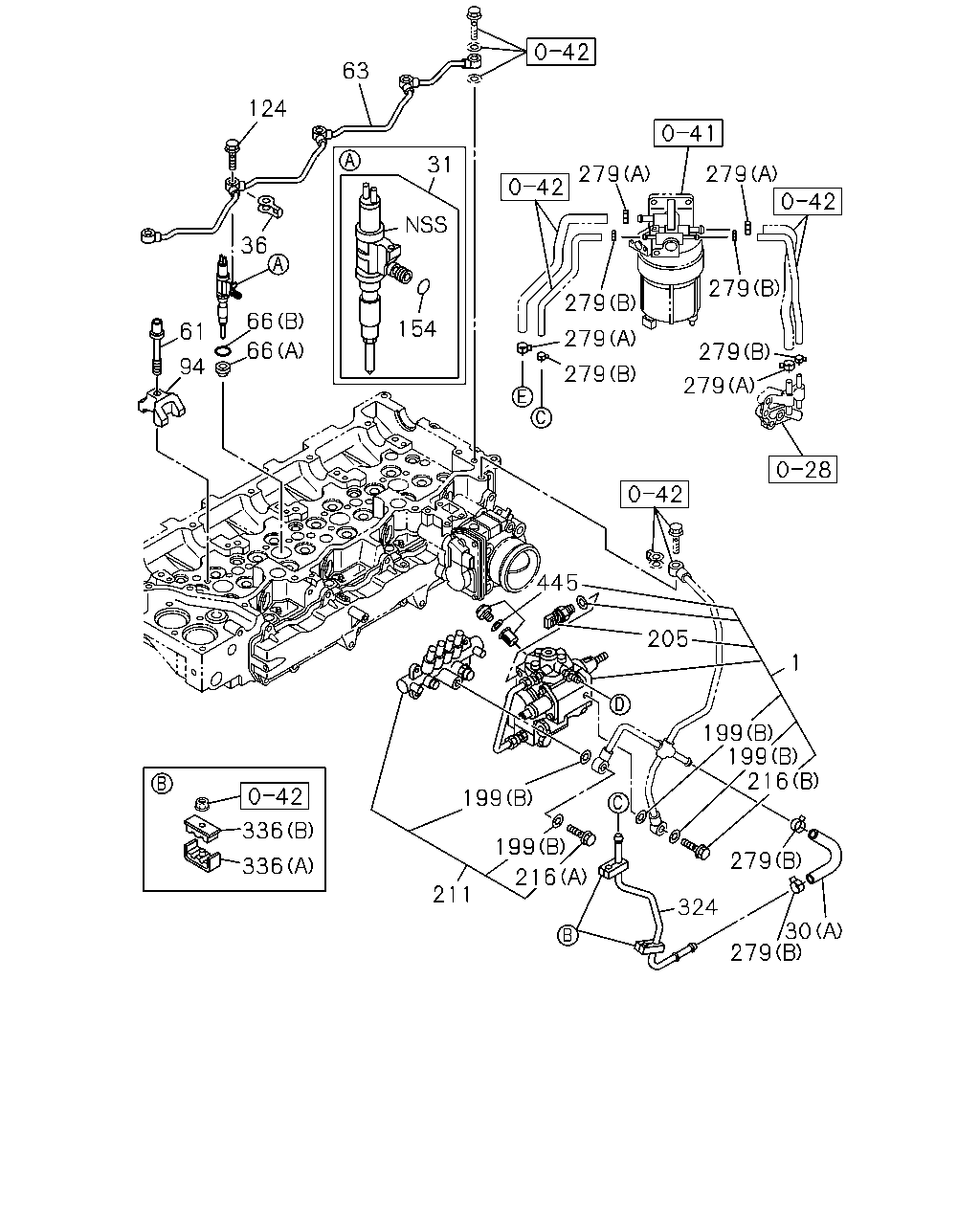

çizim 358768
63 31 154 124 36 61 94 66 66 336 336 211 199 199 216 324 279 279 30 216 199 199 1 205 445 279 279 279 279 279 279 279 279
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97386-557-5 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(A) 		8-98036-320-2 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=110 		8-97377-894-0 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1306- ●
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1306- ●
31 NOZZLE ASM; INJ 8-98011-604-5 04 1 1306- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1306- ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1306- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97306-081-0 01 1 1306- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1306- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1306- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-98181-540-0 04 1 1306- ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1306- ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1306- ●
154 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1306- ●
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1306- ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1306- ●
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 02 1 1306- ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1306- ● ●
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1306- ● ●
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1306- ● ●
216 BOLT; EYE
(C) 		5-15759-003-0 01 1 1306- ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 1306- ●
216 BOLT; EYE
(D) SOU 		9-88130-088-0 01 1 1306- ●
279 CLIP; FUEL HOSE
(A) ID=16 		8-97329-628-0 04 1 1306- ●
279 CLIP; FUEL HOSE
(B) ID=11.5 		8-97375-638-0 06 1 1306- ●
324 PIPE; FUEL RETURN 8-98036-173-0 01 1 1306- ●
336 CLIP; FUEL PIPE
(A) ID=8 & 9 L=25 		8-97603-522-0 02 1 1306- ●
336 CLIP; FUEL PIPE
(B) ID=8 & 9 L=25 		8-97603-523-0 02 1 1306- ●
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1306- ● ●

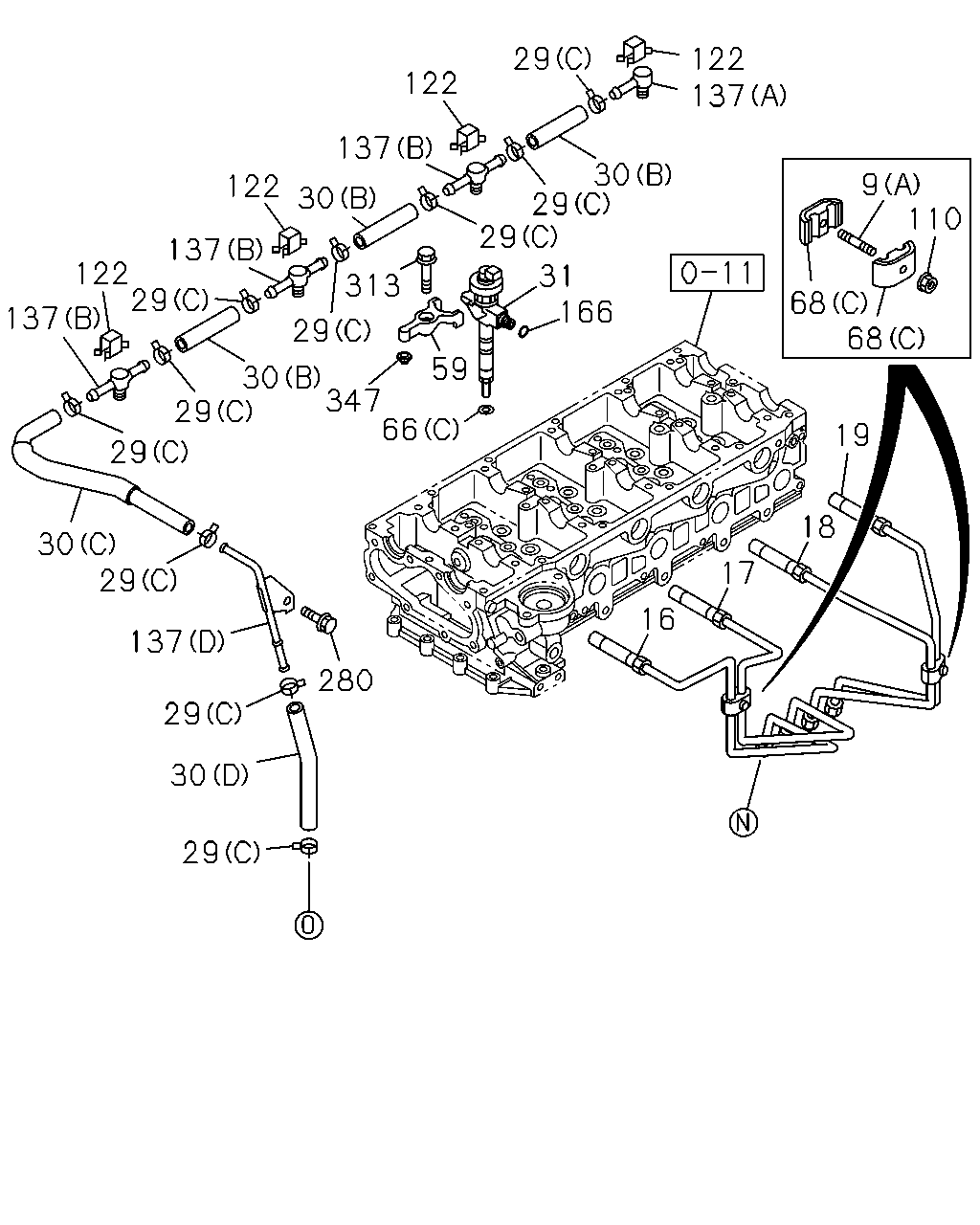

çizim 358840
29 30 29 137 29 30 29 280 16 17 18 19 68 68 9 110 66 347 59 30 29 137 122 29 137 122 30 137 122 29 29 29 313 31 166 29 30 122 137
BalonParca AdiParca NoAdetTipApplied Date A B
9 STUD; CLIP
(A) M6X30 L=38 		0-41010-630-0 02 1 1306- ● ●
9 STUD; CLIP
(B) M6X35 L=43 		8-97203-278-0 01 1 1306- ●
16 PIPE; INJ NO.1 8-98185-344-0 01 1 1306-1404 ●
16 PIPE; INJ NO.1 8-98271-202-0 01 1 1405-1501 ●
16 PIPE; INJ NO.1 8-98298-606-0 01 1 1502- ●
16 PIPE; INJ NO.1 8-98203-719-0 01 1 1306- ●
17 PIPE; INJ NO.2 8-98185-345-0 01 1 1306-1404 ●
17 PIPE; INJ NO.2 8-98271-203-0 01 1 1405-1501 ●
17 PIPE; INJ NO.2 8-98298-607-0 01 1 1502- ●
17 PIPE; INJ NO.2 8-98203-720-0 01 1 1306- ●
18 PIPE; INJ NO.3 8-98185-346-0 01 1 1306-1404 ●
18 PIPE; INJ NO.3 8-98271-204-0 01 1 1405-1501 ●
18 PIPE; INJ NO.3 8-98298-608-0 01 1 1502- ●
18 PIPE; INJ NO.3 8-98203-721-0 01 1 1306- ●
19 PIPE; INJ NO.4 8-98185-347-0 01 1 1306-1404 ●
19 PIPE; INJ NO.4 8-98271-205-0 01 1 1405-1501 ●
19 PIPE; INJ NO.4 8-98298-609-0 01 1 1502- ●
19 PIPE; INJ NO.4 8-98203-722-0 01 1 1306- ●
29 CLIP; HOSE
(A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1306- ●
29 CLIP; HOSE
(B) ID=16 		8-94392-924-0 02 1 1306- ●
29 CLIP; HOSE
(C) ID=10.5 		8-97019-473-0 10 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(A) 		8-98036-320-2 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(D) L=130 		0-01804-130-0 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(F) L=110 		8-97377-894-0 01 1 1306- ●
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1306- ●
31 NOZZLE ASM; INJ 8-97609-788-6 04 1 1306- ●
31 NOZZLE ASM; INJ 8-98011-604-5 04 1 1306- ●
59 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1306- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1306- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1 		8-98079-248-0 04 1 1306- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-98181-540-0 04 1 1306- ●
68 CLIP; INJ PIPE
(A) 		1-09701-195-3 01 1 1306- ●
68 CLIP; INJ PIPE
(B) 		1-09701-196-2 01 1 1306- ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 06 1 1306-1405 ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 06 1 1406- ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98039-293-0 04 1 1306-1405 ●
68 CLIP; INJ PIPE
(C) ID=11 & 11 L=19 		8-98148-996-2 04 1 1406- ●
110 NUT; CLIP
M6 FLANGE SOU 		0-91180-106-0 04 1 1306- ●
110 NUT; CLIP
M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ●
122 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1306- ●
137 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1306- ●
137 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1306- ●
137 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1306- ●
137 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1306- ●
166 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11 OD=14.8 		9-09566-111-0 04 1 1306- ●
280 BOLT; CLIP,FUEL HOSE
M8X12 FLANGE 		0-28050-812-0 01 1 1306- ●
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 1306- ●
347 PIN 8-98165-035-0 04 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
