Sayfa 0-37 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶

0-37 — TURBOCHARGER (#122626) — 10 parça

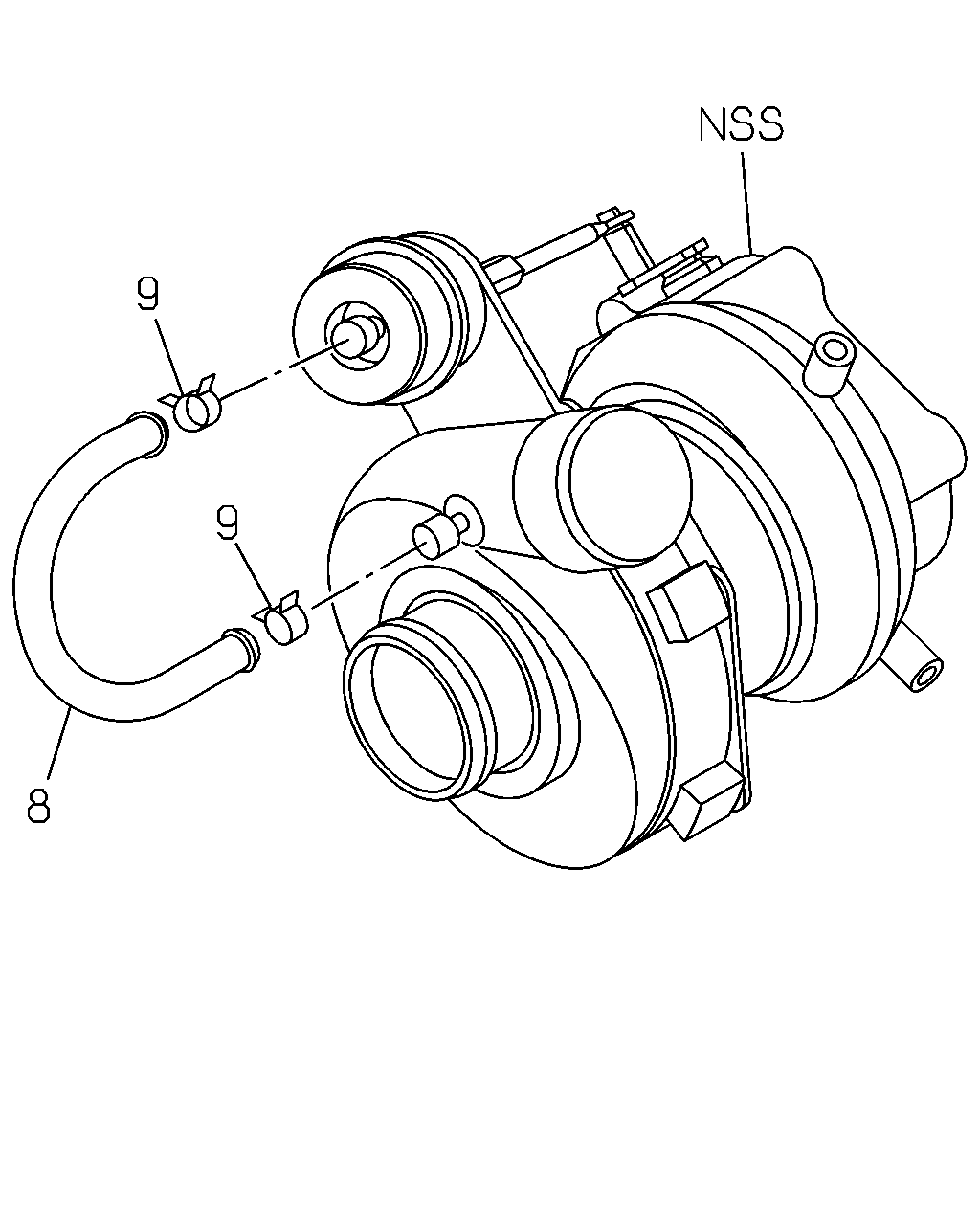

çizim 355334

8 9 9

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-98015-115-2, C = 8-98054-011-1, E = 8-98097-686-1	8-94311-934-0	01	1	-
	8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: D = 8-98079-569-2	8-97215-553-0	01	1	-
	8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-98000-031-2	8-97375-933-0	01	1	-
	9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: B = 8-98015-115-2, C = 8-98054-011-1, E = 8-98097-686-1	8-94167-469-0	02	1	-
	9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-98000-031-2, D = 8-98079-569-2	8-97213-592-0	02	1	-

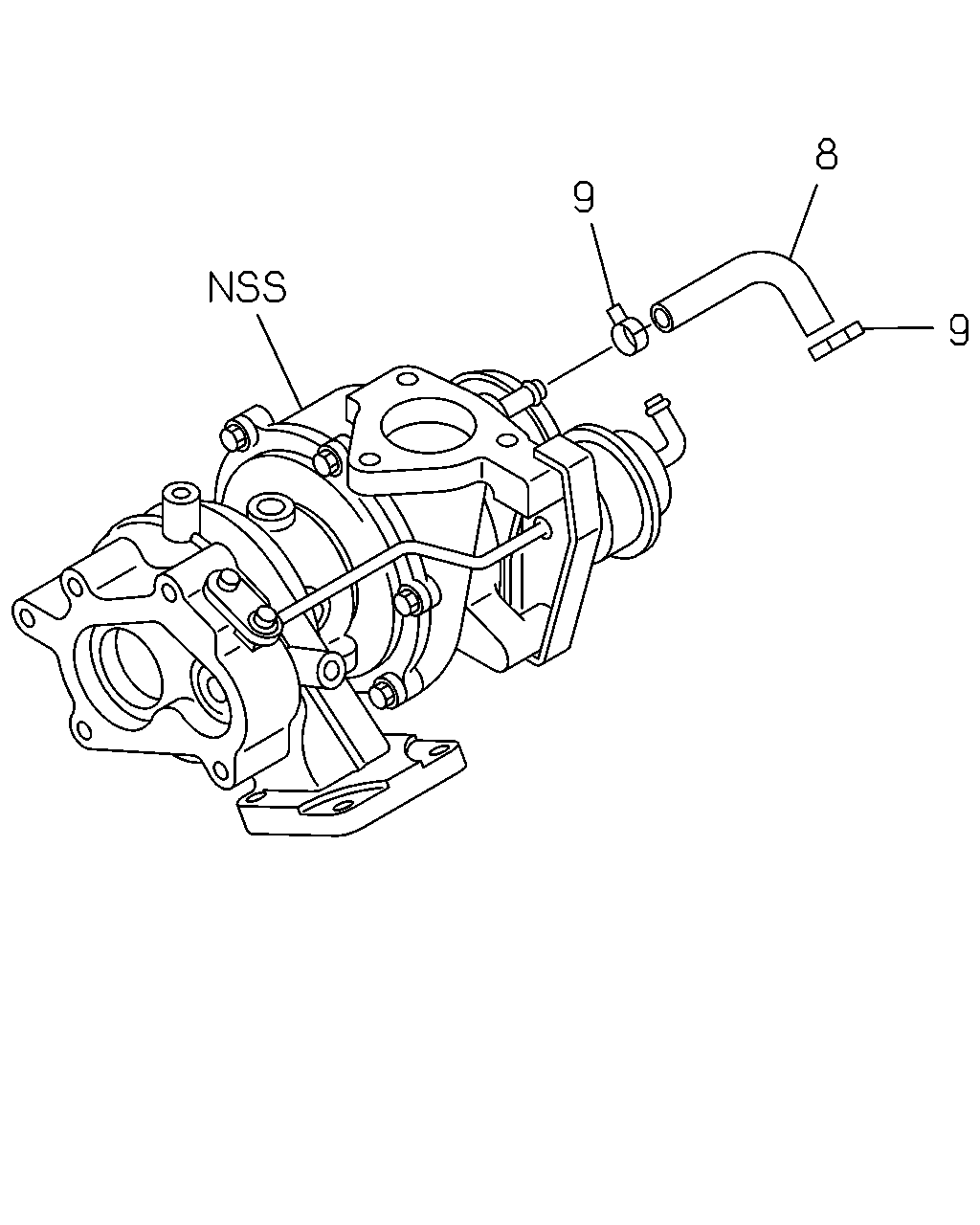

çizim 358044

9 8 9

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: B = 8-98015-115-2, C = 8-98054-011-1, E = 8-98097-686-1	8-94311-934-0	01	1	-
	8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: D = 8-98079-569-2	8-97215-553-0	01	1	-
	8	HOSE; ACTUATOR TO BLOWER HSG,TC ASM PART: A = 8-98000-031-2	8-97375-933-0	01	1	-
	9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: B = 8-98015-115-2, C = 8-98054-011-1, E = 8-98097-686-1	8-94167-469-0	02	1	-
	9	CLIP; ACTUATOR HOSE,TURBOCHARGER ASM PART: A = 8-98000-031-2, D = 8-98079-569-2	8-97213-592-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
